WOYO PL028 Automotive Diagnostic Tool Steering Wheel EPS Tester for Mercedes Benz Coupe & BMW MINI

WOYO PL028 EPS TESTER For Mercedes-Benz & BMW MINI

Automotive Diagnostic tool Wheel Steering Motor Tester,Simulate Torque Sensor to Activate CAN

After you repair the Wheel Steering Motor, our product can be directly tested on the workbench to see if it works properly without the need to reinstall it in the car for repeated testing.

Test on bench, useful tool for workshop:

PL028 can easy to simulate torque sensor to drive EPS motor.

Note:

PL028 Support for Mercedes-Benz & BMW MINI.

PL018 Support for Volkswagen Audi A4 A5 A6 Q5 Q7, Also for Porsche Macan.

PL008 Support for BMW E81 E82 E84 E88 E89 E90 E91 E93.

This is the PL028

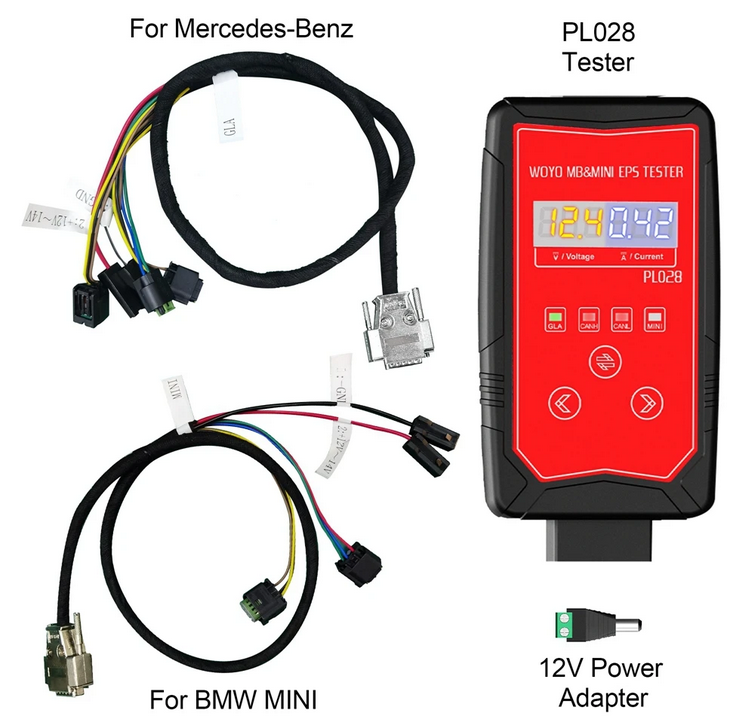

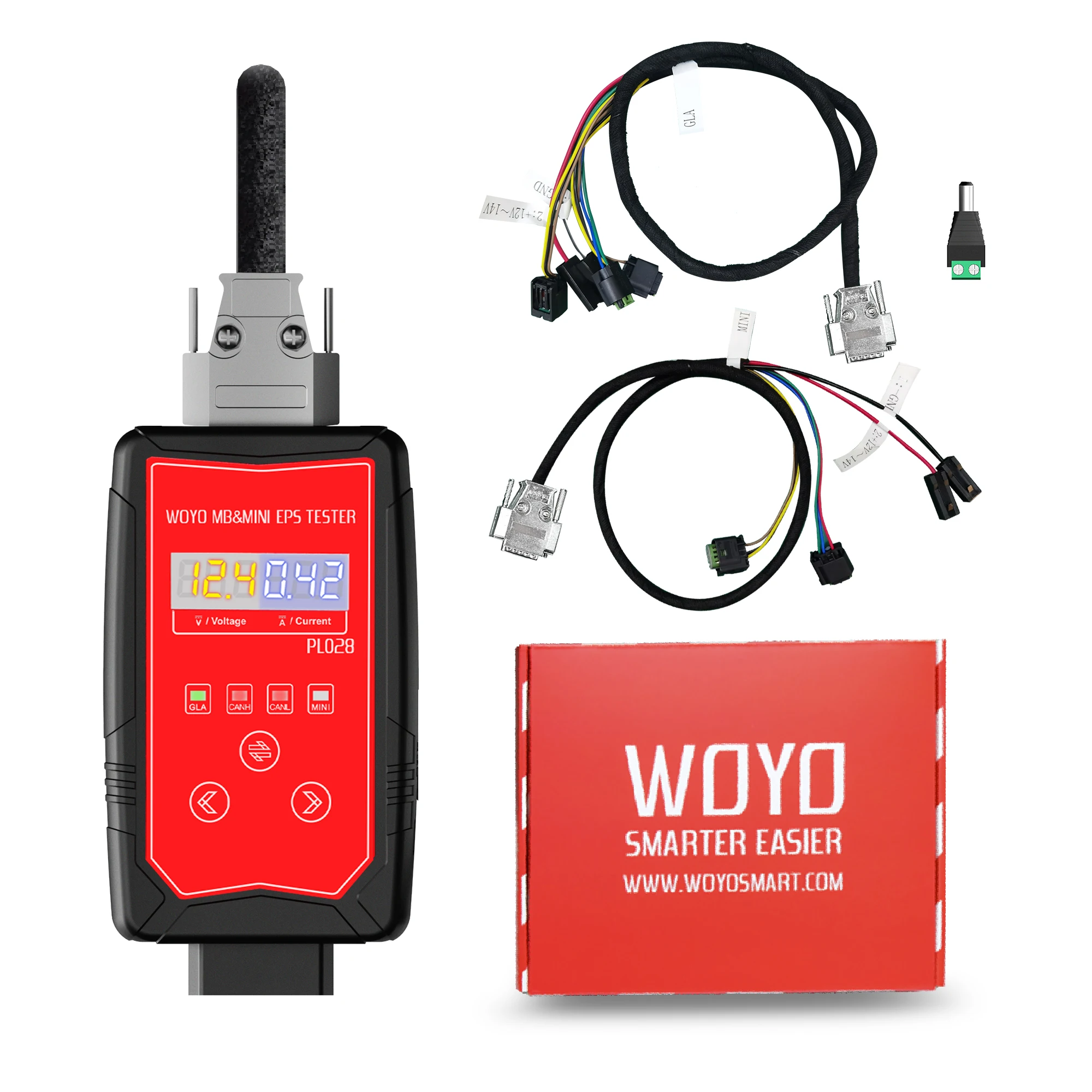

Package list:

PL028 EPS Tester * 1

Adapter cable * 1

EPS Connector Cable *2

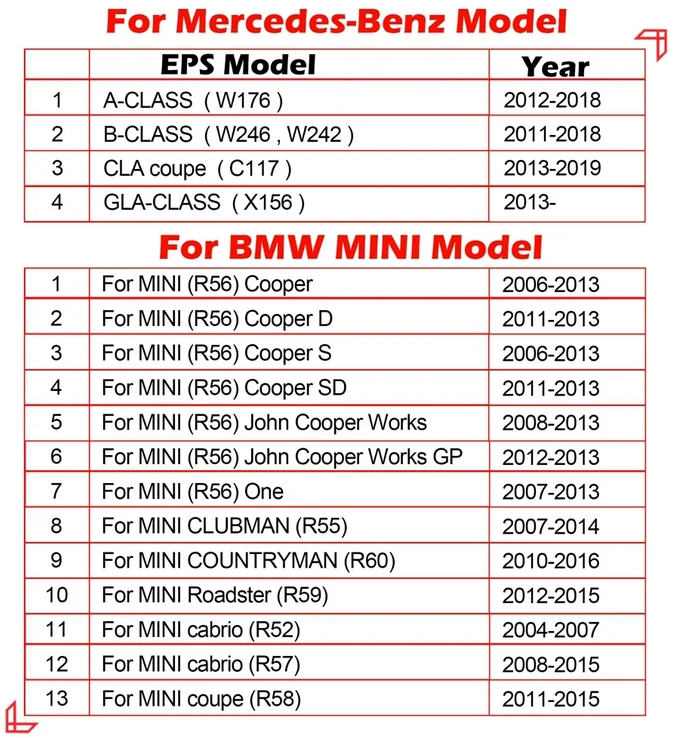

PL028 Suit for these car model:

For MERCEDES-BENZ:

For MERCEDES-BENZ A-CLASS (W176) 2012-2018

For MERCEDES-BENZ B-CLASS (W246,W242) 2011-2018

For MERCEDES-BENZ CLA coupe (C117) 2013-2019

For MERCEDES-BENZ GLA-CLASS (X156) 2013-

For BMW MINI:

For MINI (R56) Cooper 2006-2013

For MINI (R56) Cooper D 2011-2013

For MINI (R56) Cooper S 2006-2013

For MINI (R56) Cooper SD 2011-2013

For MINI (R56) John Cooper Works 2008-2013

For MINI (R56) John Cooper Works GP 2012-2013

For MINI (R56) One 2007-2013

For MINI CLUBMAN (R55) 2007-2014

For MINI COUNTRYMAN (R60) 2010-2016

For MINI Roadster (R59) 2012-2015

For MINI cabrio (R52) 2004-2007

For MINI cabrio (R57) 2008-2015

For MINI coupe (R58) 2011-2015

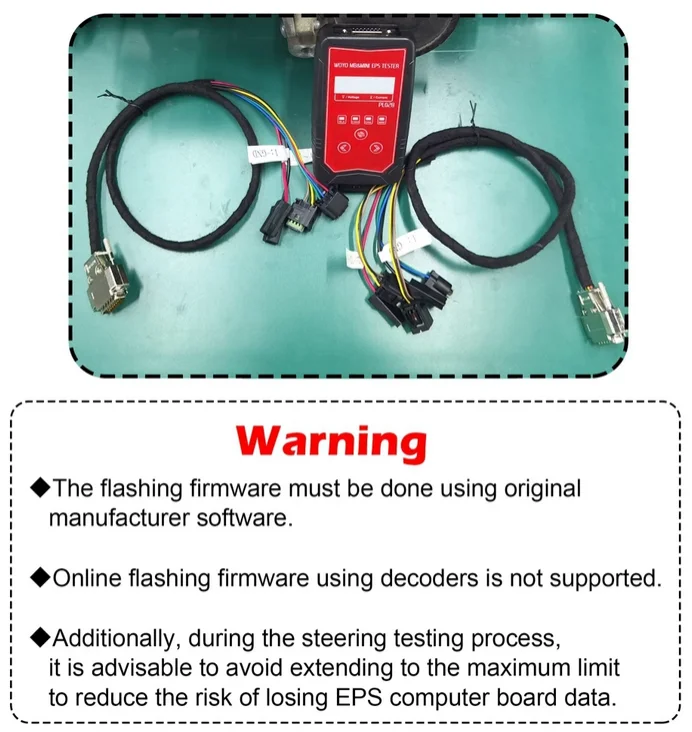

Note:

1.The flashing firmware must be done using original manufacturer software.

2.Online flashing firmware using decoders is not supported.

3.Additionally, during the steering testing process,it is advisable to avoid extending to the maximum limit to reduce the risk of losing EPS computer board data.

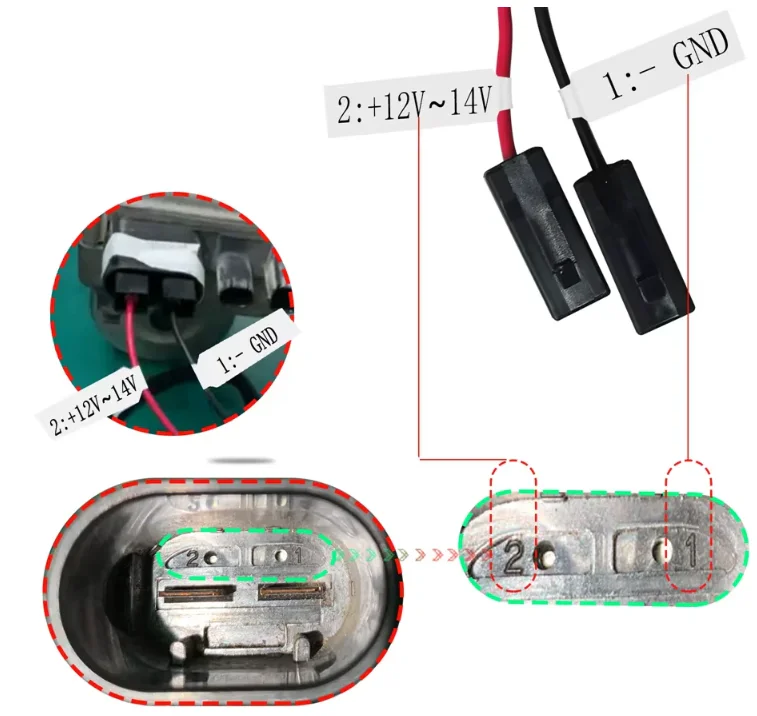

4.Pay attention for the direction:Do the correct direction connection for the power jack of EPS motor, notice the "1" & "2" sign.

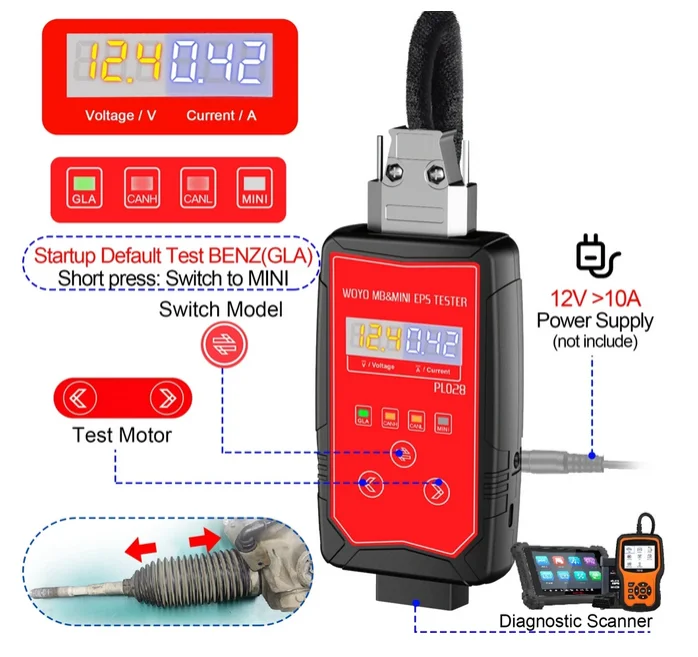

WOYO PL028 Function:

1.Switch: The default test for startup is GLA (For MERCEDES-BENZ ),short press to switch model (for MINI)

2."<" ">": Retract or Rotate the Wheel Steering Motor.

3.Power supply:12V >10A, we don't send with this cable, but send with 12V power adapter.

4.Screen:Show work voltage or current of the tester.

5.Support to connect to other diagnostic scanner to check the real-time data for Wheel Steering Motor.

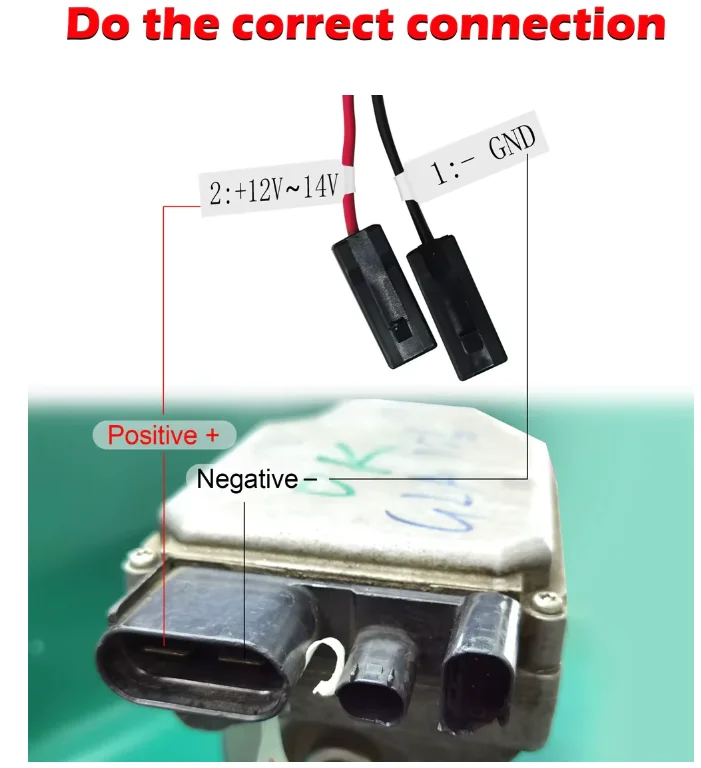

Pay attention for the direction:

Do the correct direction connection for the power jack of EPS motor, notice the "1" & "2" sign.

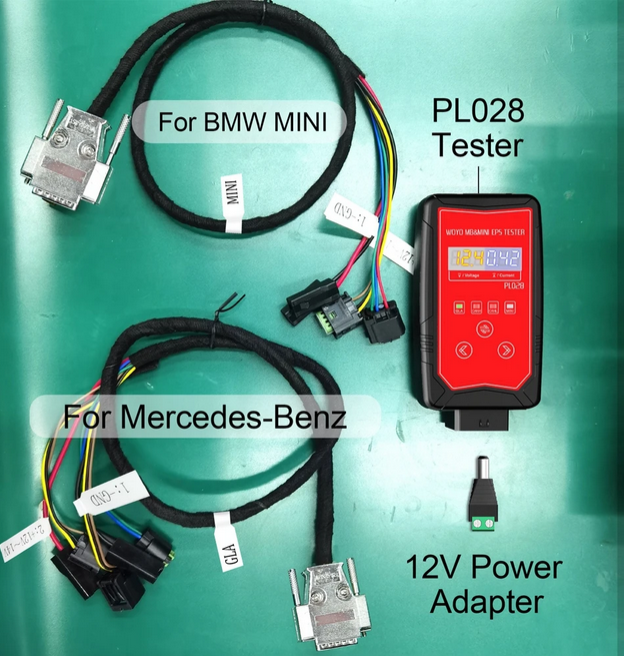

Real picture

Double cable:

One for Mercedes Benz (label with "GLA")

One for BMW MINI (label with "MINI")
