WOYO PL058 EPS Tester 12V on Bench Electrical Steering Wheel for Tsla Model Y/S/3/X Steering Motor Detector Car Diagnostic Tool

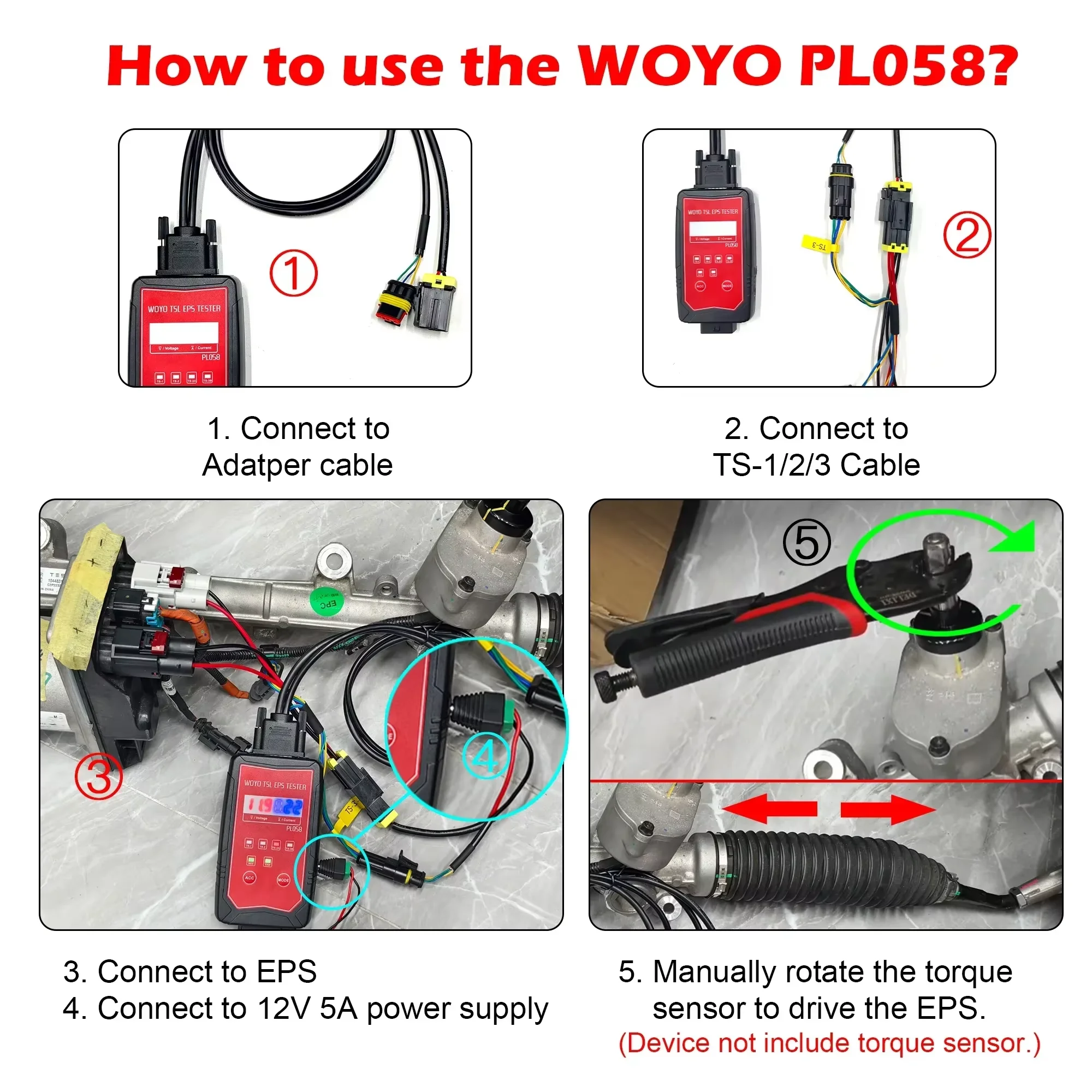

After you repair the Wheel Steering Motor, our product can be directly tested on the workbench to see if it works properly without the need to reinstall it in the car for repeated testing.

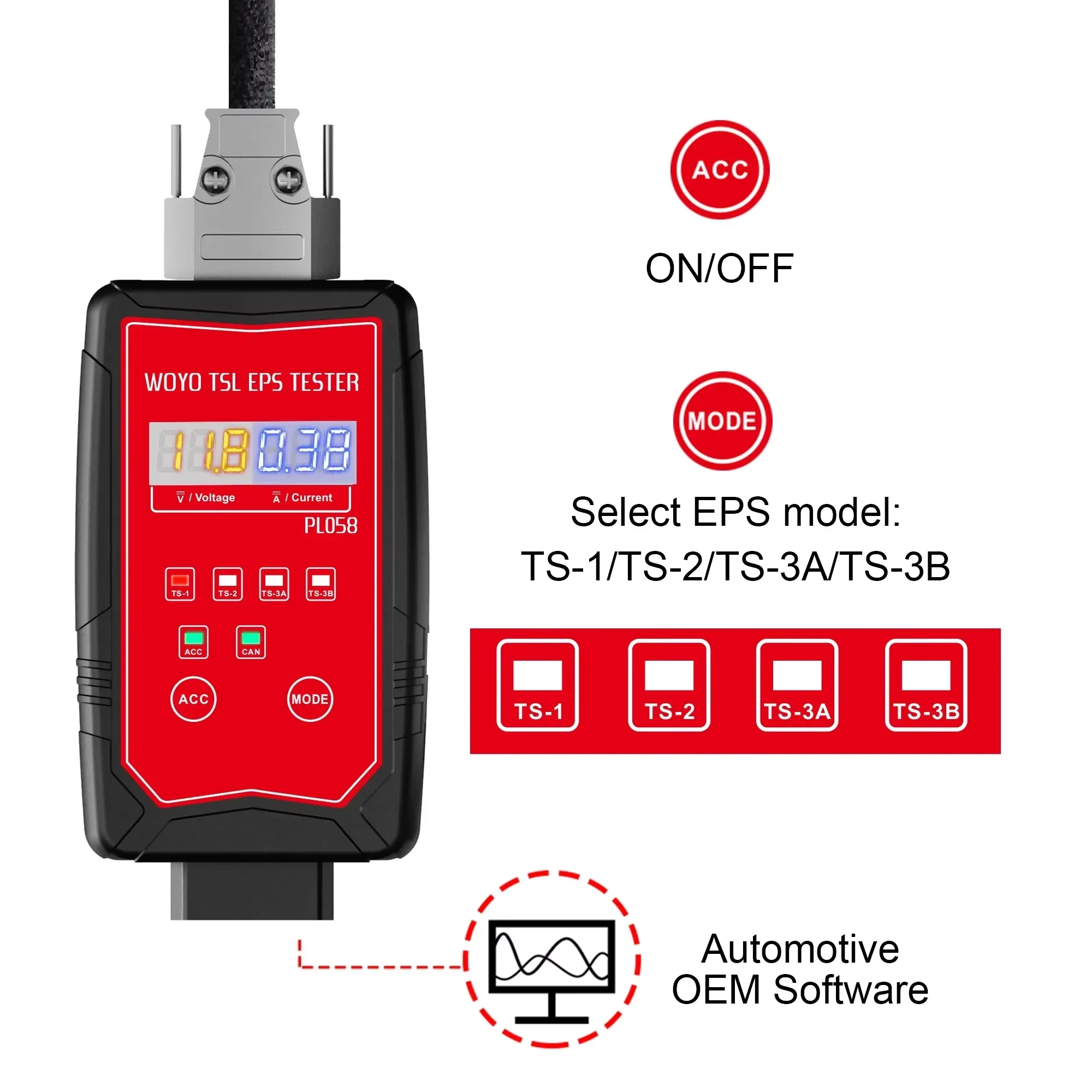

Operation:

Model : Select the model you want to test. ("TS-1" "TS-2""TS-3A""TS-3B")

ACC: Device ON/OFF

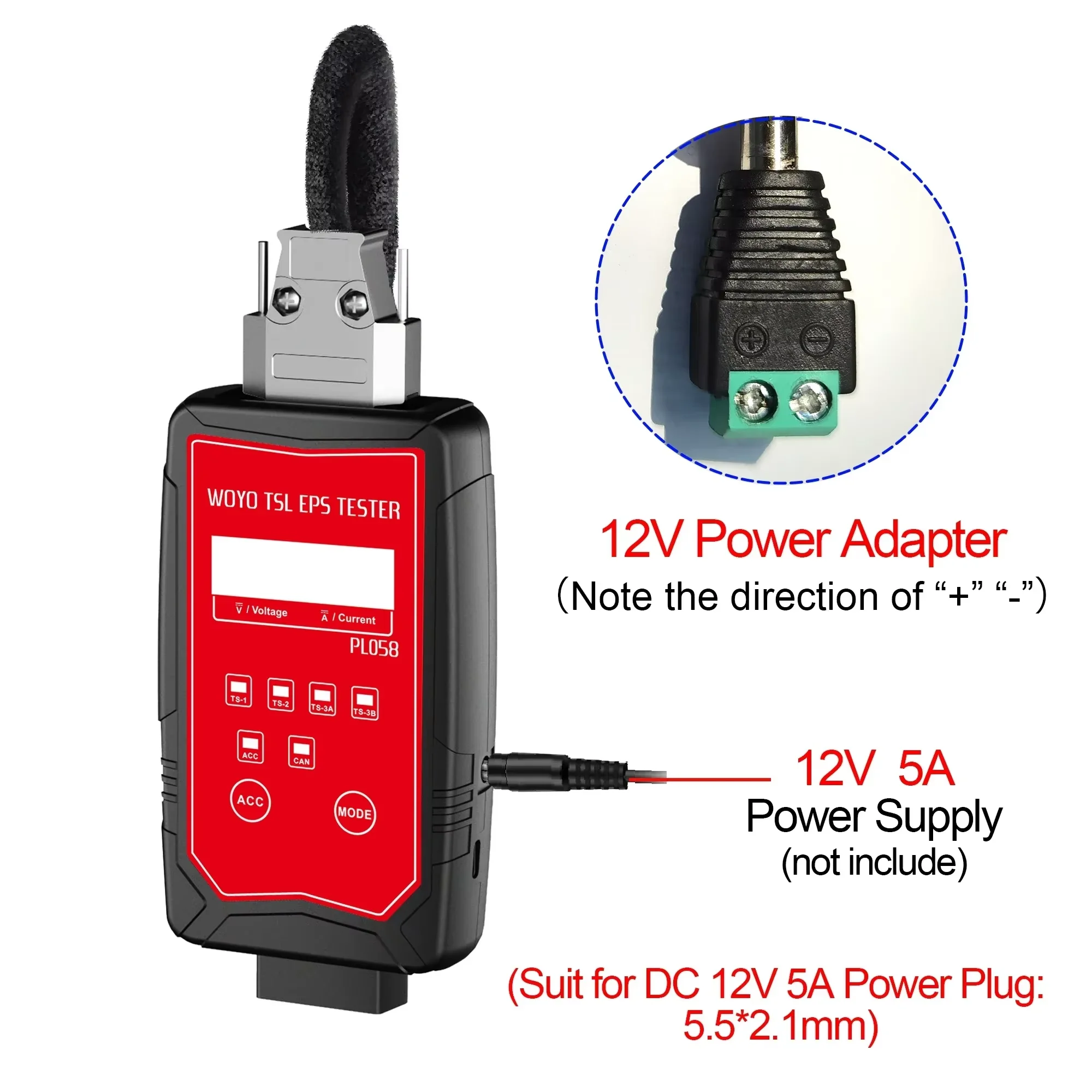

Power supply:12V 5A, we don't send with this cable.

Screen:Show work voltage or current of the tester.

Support to connect to other diagnostic scanner to check the real-time data for Wheel Steering Motor.

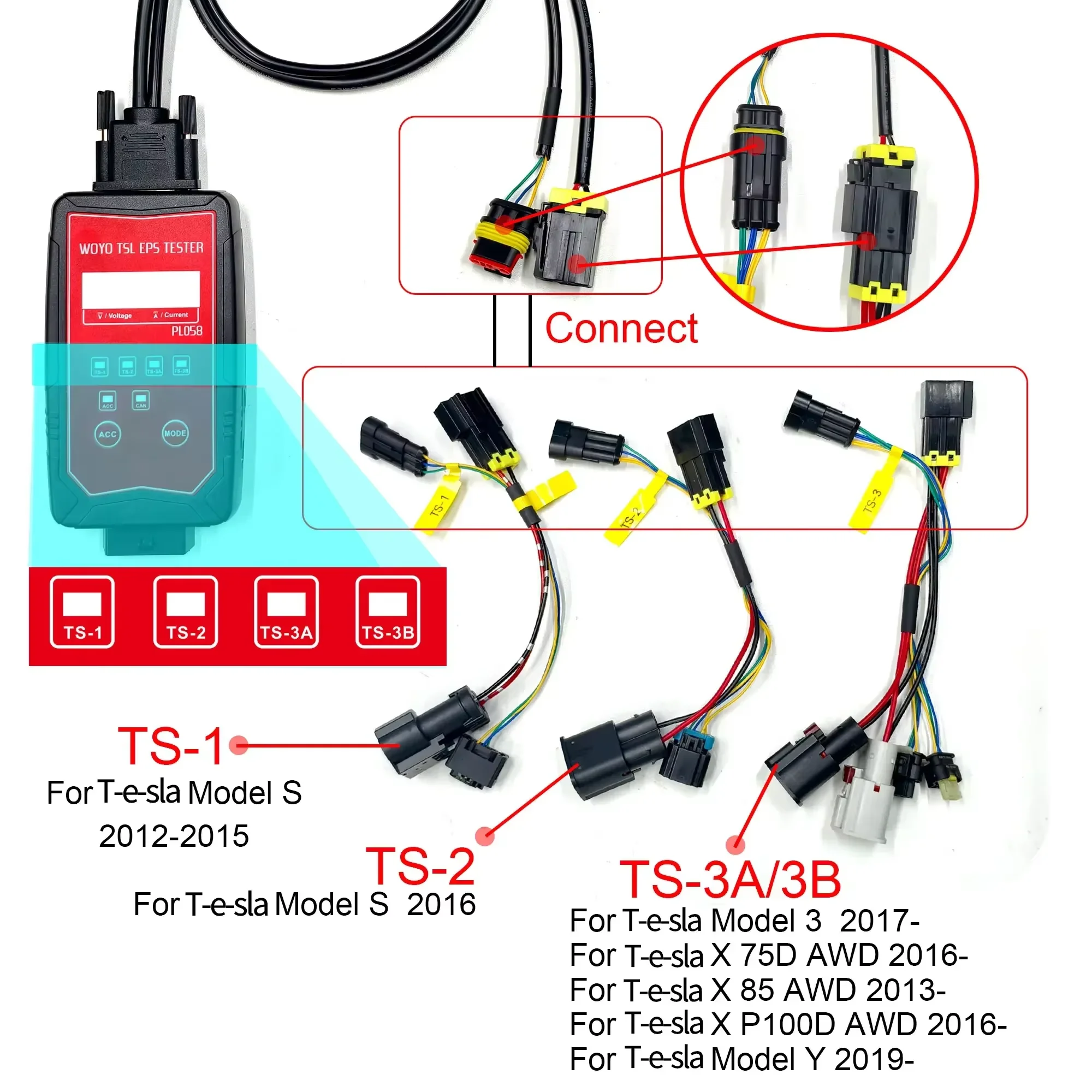

Support model:

TS-1: For Tsla Model S 2012 -2015

TS-2: For Tsla Model S 2016

TS-3A/3B:

For Tsla Model 3 2017-

For Tsla Model X 75D AWD 2016-

For Tsla Model X 85 AWD 2013-

For Tsla Model X P100D AWD 2016-

For Tsla Model Y 2019-

Note:

1. Need to use with torque sensor, if your EPS without torque sensor, you need to buy one.

2. Additionally, during the steering testing process, it's advisable to avoid extending to the maximum limit to reduce the risk of losing EPS computer board data.

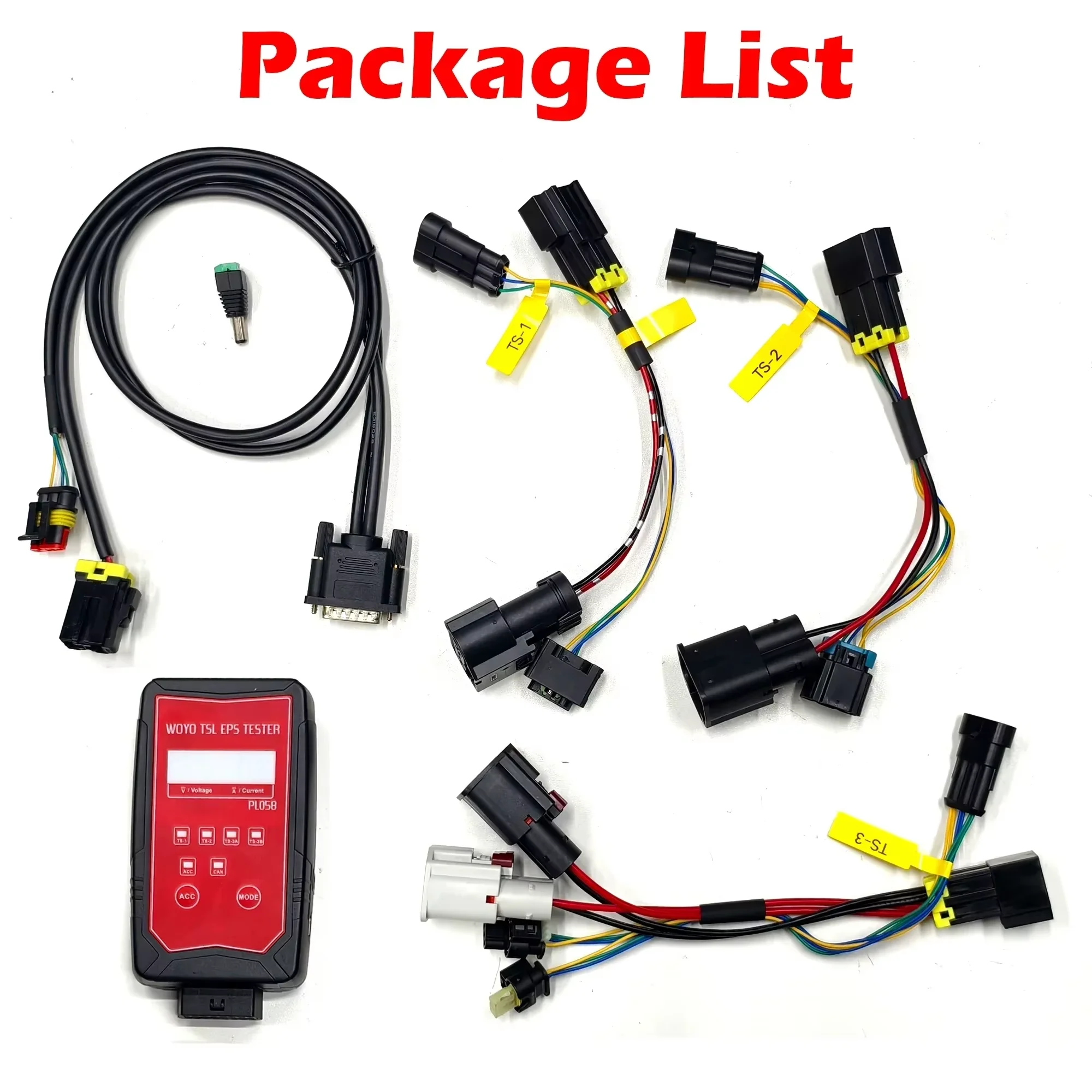

Package List:

Tester*1
Adapter Cable*1
12V Power Adapte*1

EPS Connector Cbale * 3
