WOYO PL018 EPS Test Platform For Audi A4 A5 A6 Q5 Q7 EPS Simulator Automotive Electric Power Steering Motor Diagnostic Tool

WOYO PL018 EPS TESTER

Automotive Diagnostic tool Wheel Steering Motor Tester

For AUDI A4 A5 A6 Q5 Q7

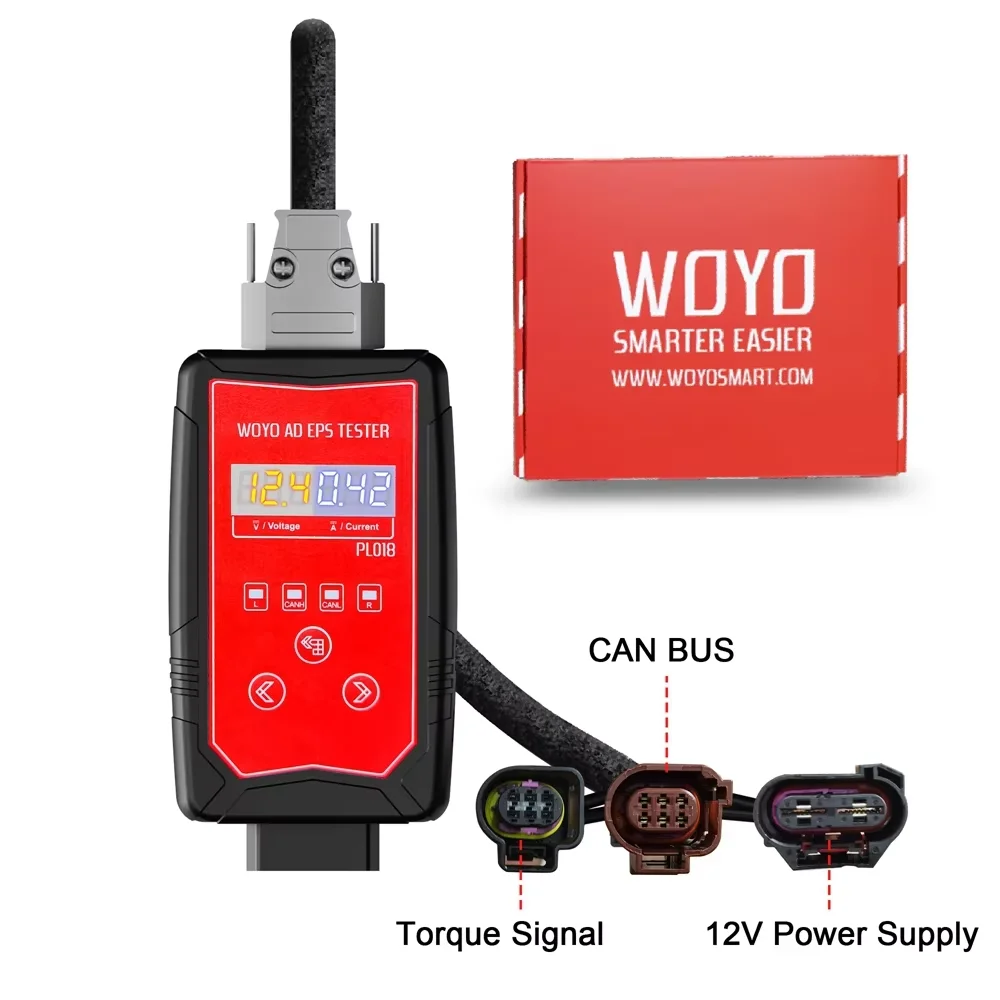

Simulate Torque Sensor to Activate CAN

Can Flash Firmware, update software on the EPS

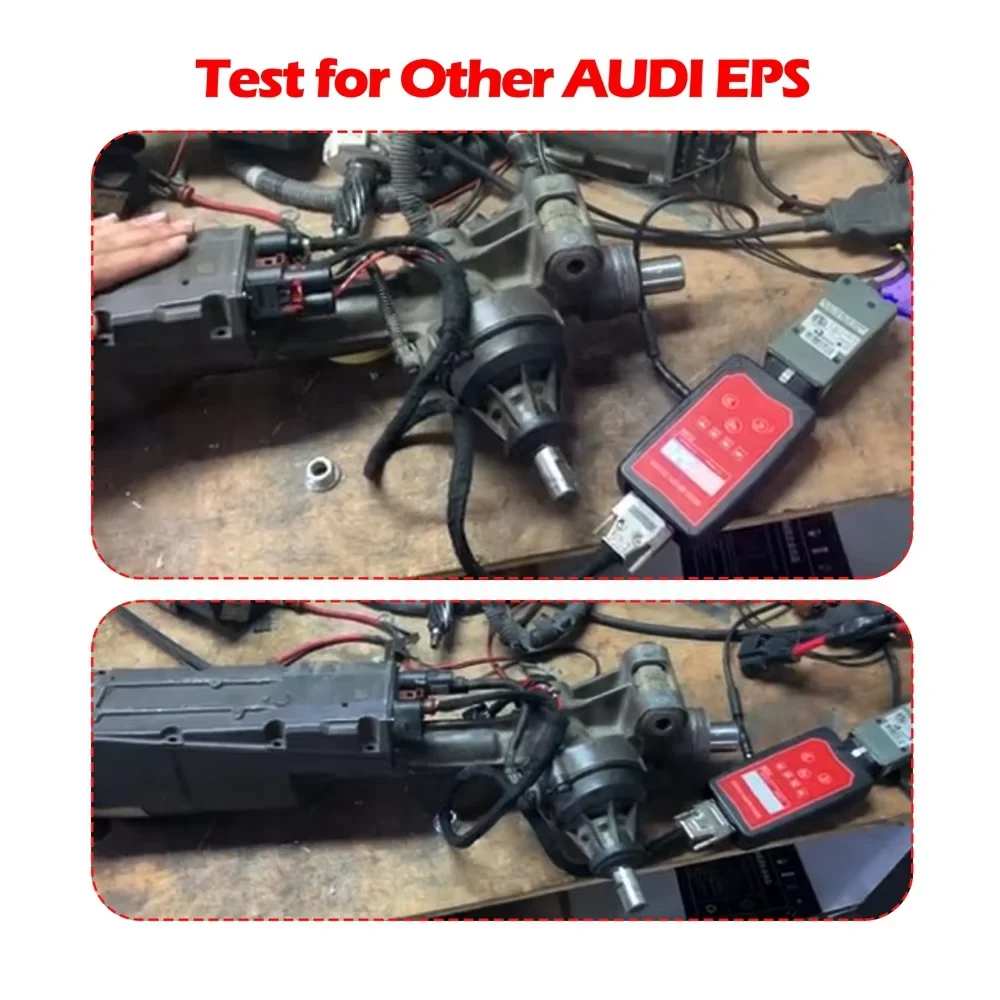

After you repair the Wheel Steering Motor, our product can be directly tested on the workbench to see if it works properly without the need to reinstall it in the car for repeated testing.

Test on bench, useful tool for workshop:

PL018 can easy to simulate torque sensor to drive EPS motor.

Note:

PL018 Support for Volkswagen Audi A4 A5 A6 Q5 Q7, Also for Porsche Macan.

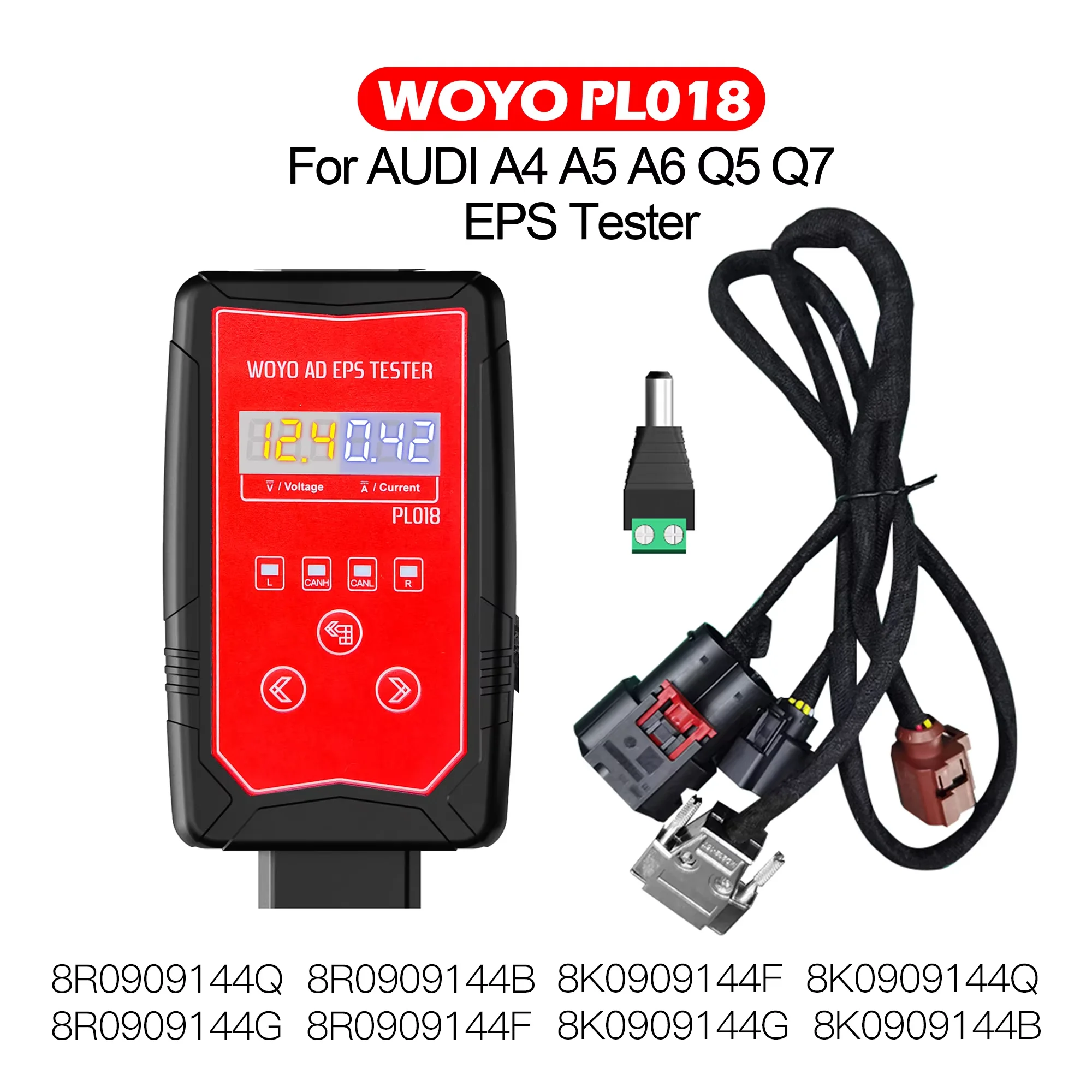

Package list:

Pl018 EPS tester * 1 adapter cable * 1

Function:

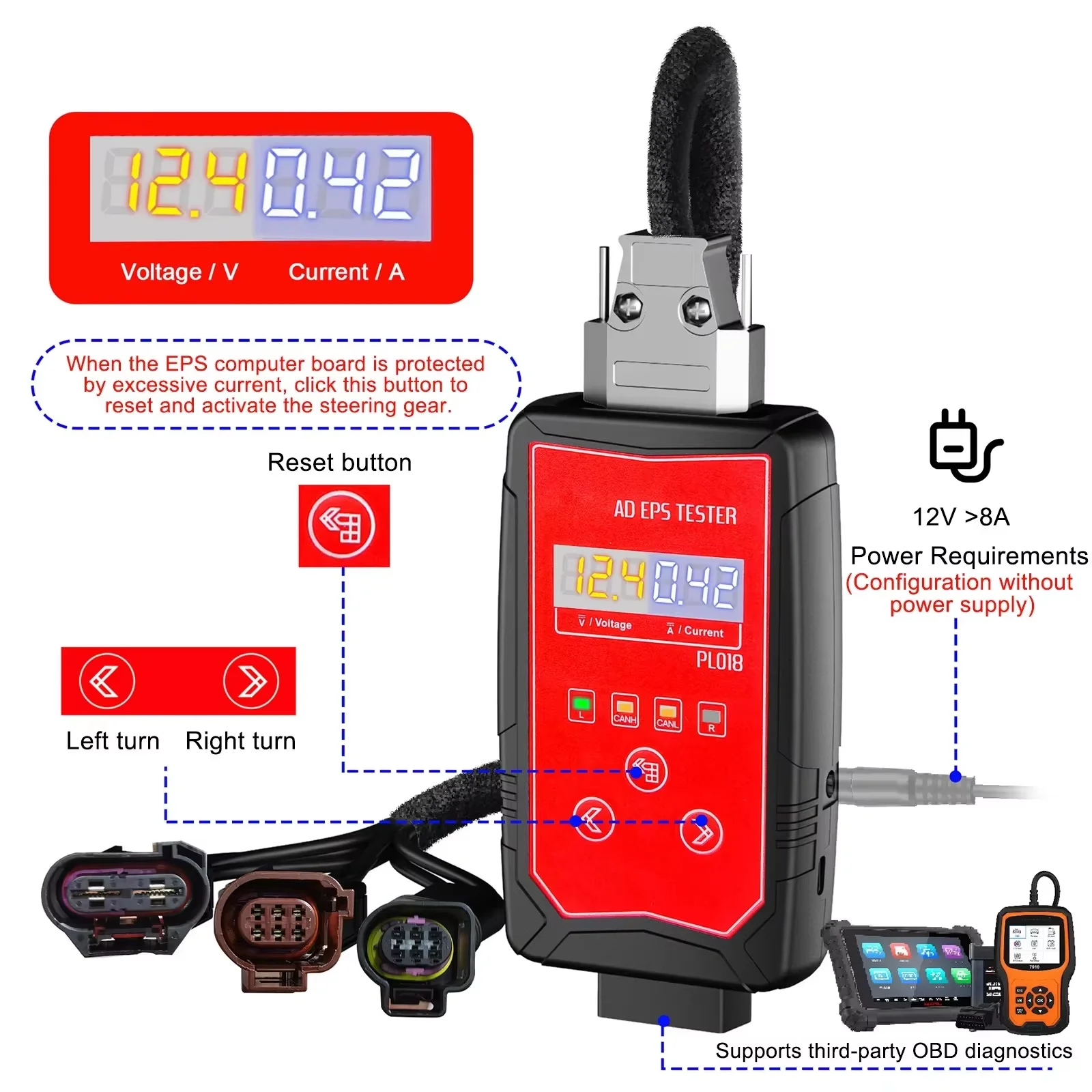

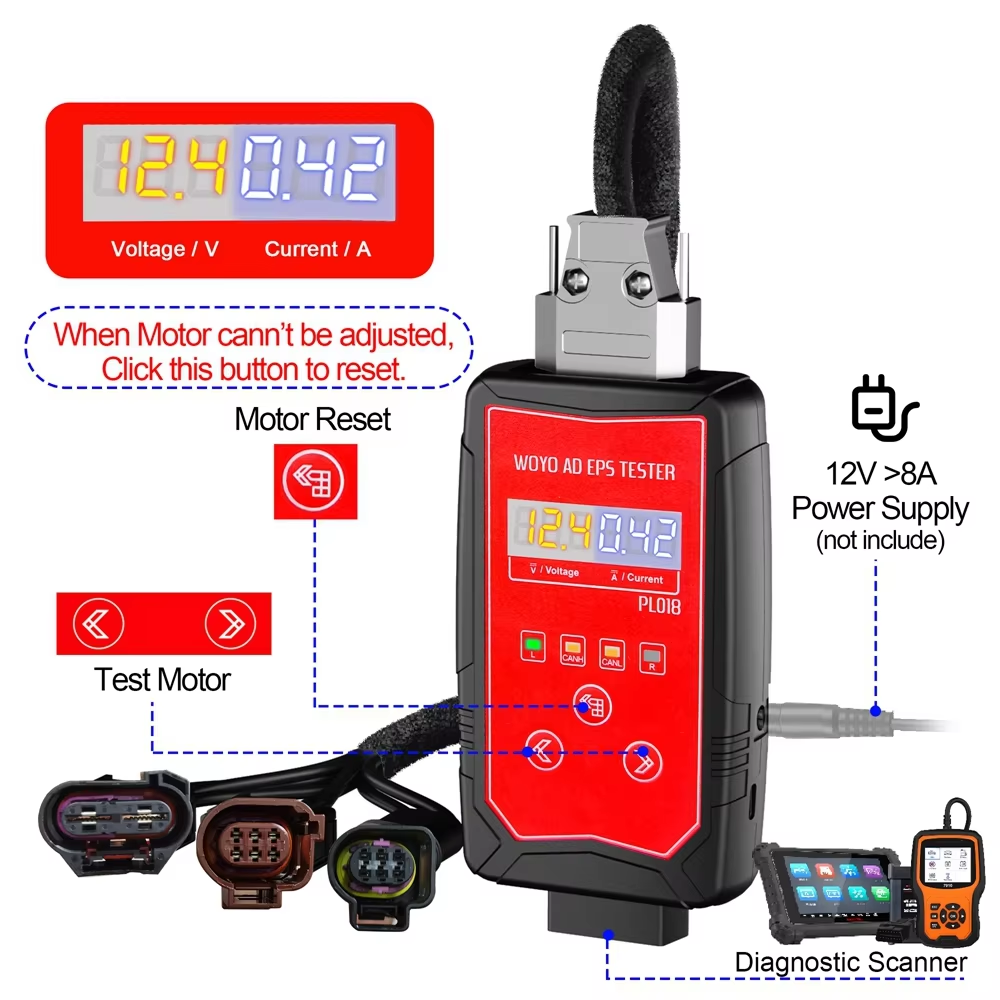

Reset:Due to the protection of the original factory for the computer board of the Wheel Steering Motor. When the Wheel Steering Motor cannot be adjusted to retract or rotate during testing, please press the "reset button" to reset the computer board.

"<" ">": Retract or Rotate the Wheel Steering Motor.

Power supply:12V >8A, we don't send with this cable.

Screen:Show work voltage or current of the tester.

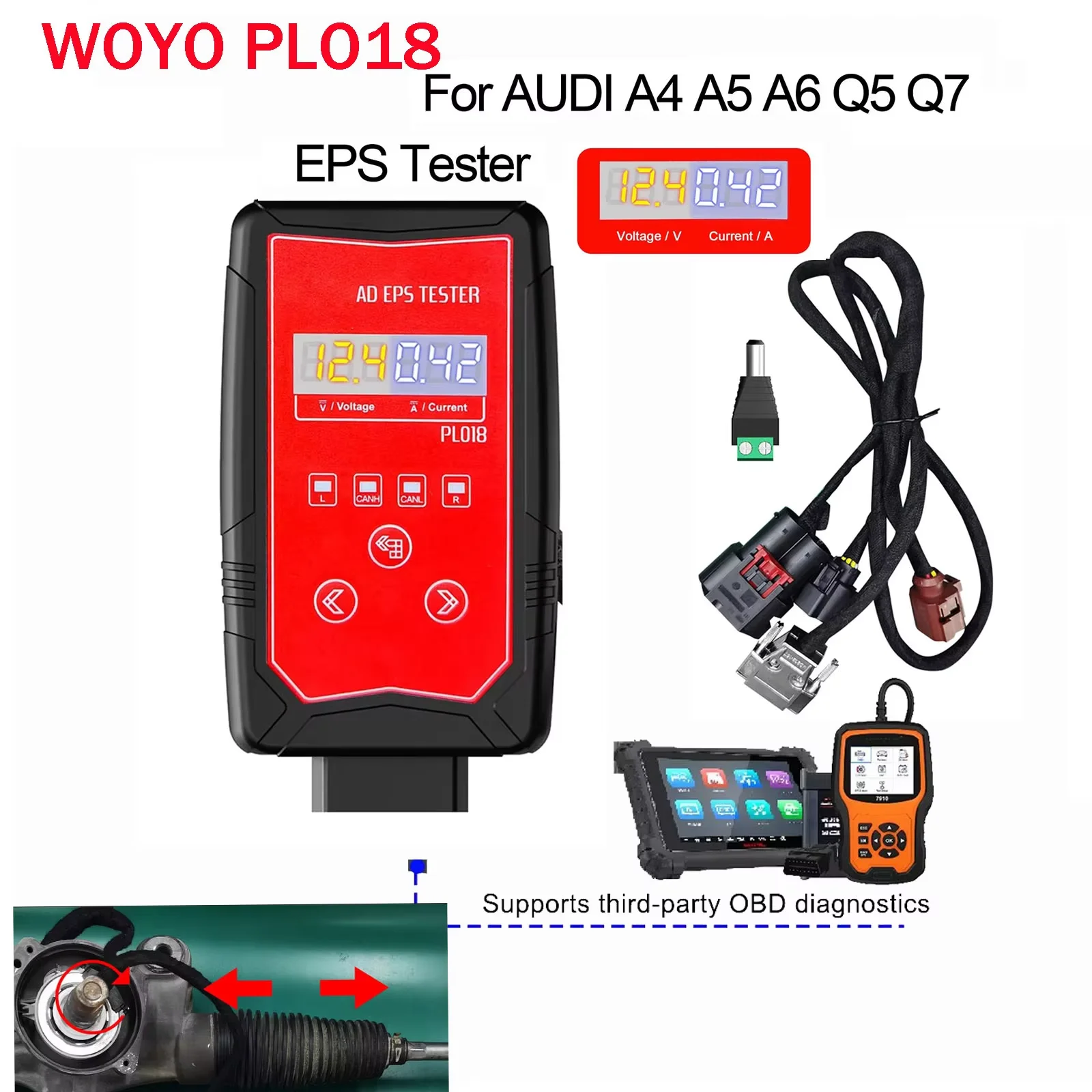

Support to connect to other diagnostic scanner to check the real-time data for Wheel Steering Motor.

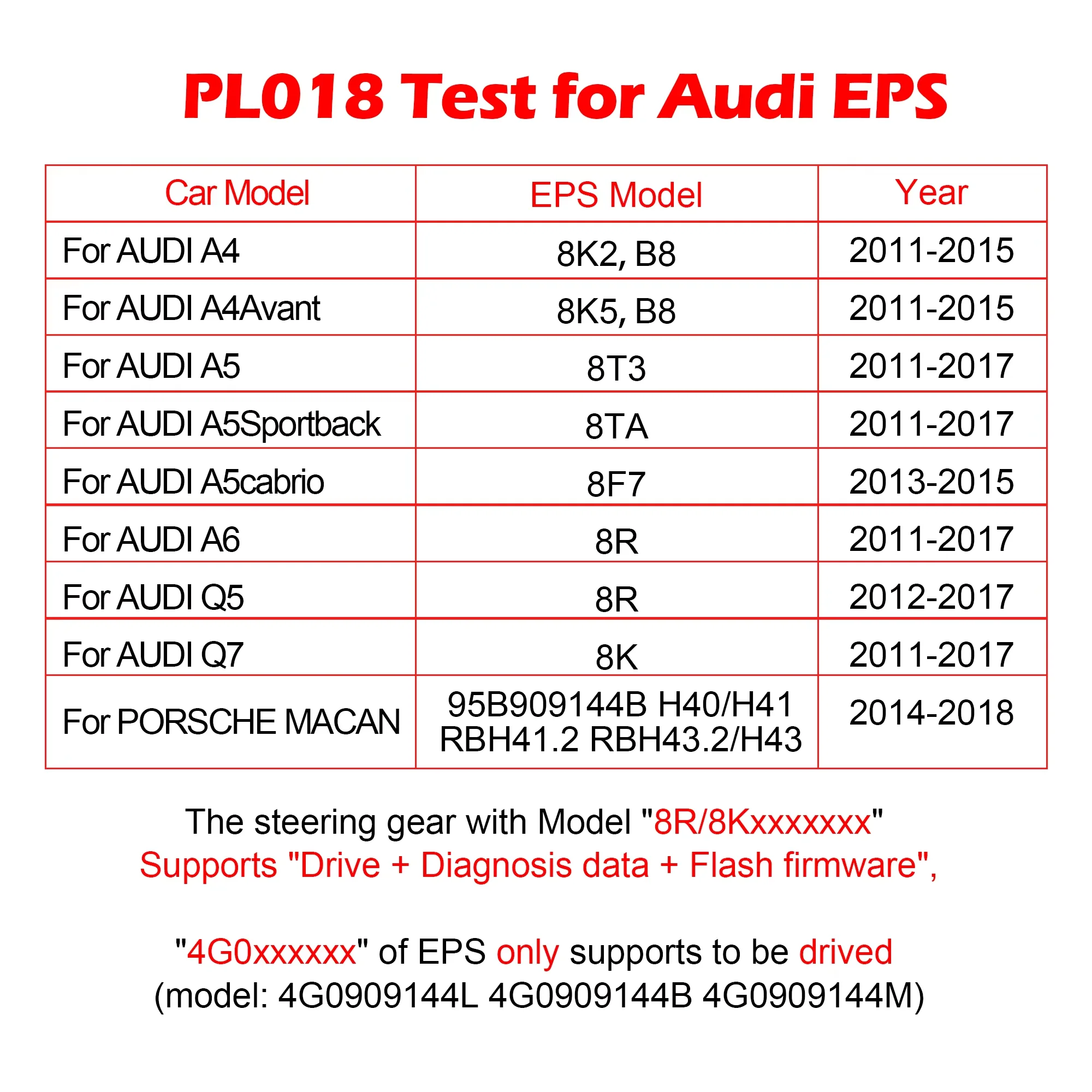

PL018 Suit for these car model:

For AUDI A4 B8, 8k2 (2011-2015)

For AUDI A4 Avant B8, 8K5 (2011-2015)

For AUDI A5 8T3 (2011-2017)

For AUDI A5 Sportback 8TA (2011-2017)

For AUDI A5 cabrio 8F7 (2013-2015)

For AUDI A6 8R (2011-2017)

For AUDI Q5 8R (2012-2017)

For AUDI Q7 8K (2011-2017)

For PORSCHE MACAN 95B (2014-2018)

Support Steering Gearbox Number:

Note: The steering gear with Model "8R/8Kxxxxxxx" supports the function of "drive + diagnosis data + flash firmware",

The model "4G0xxxxxx" of EPS only supports to be drived (model: 4G0909144L 4G0909144B 4G0909144M)

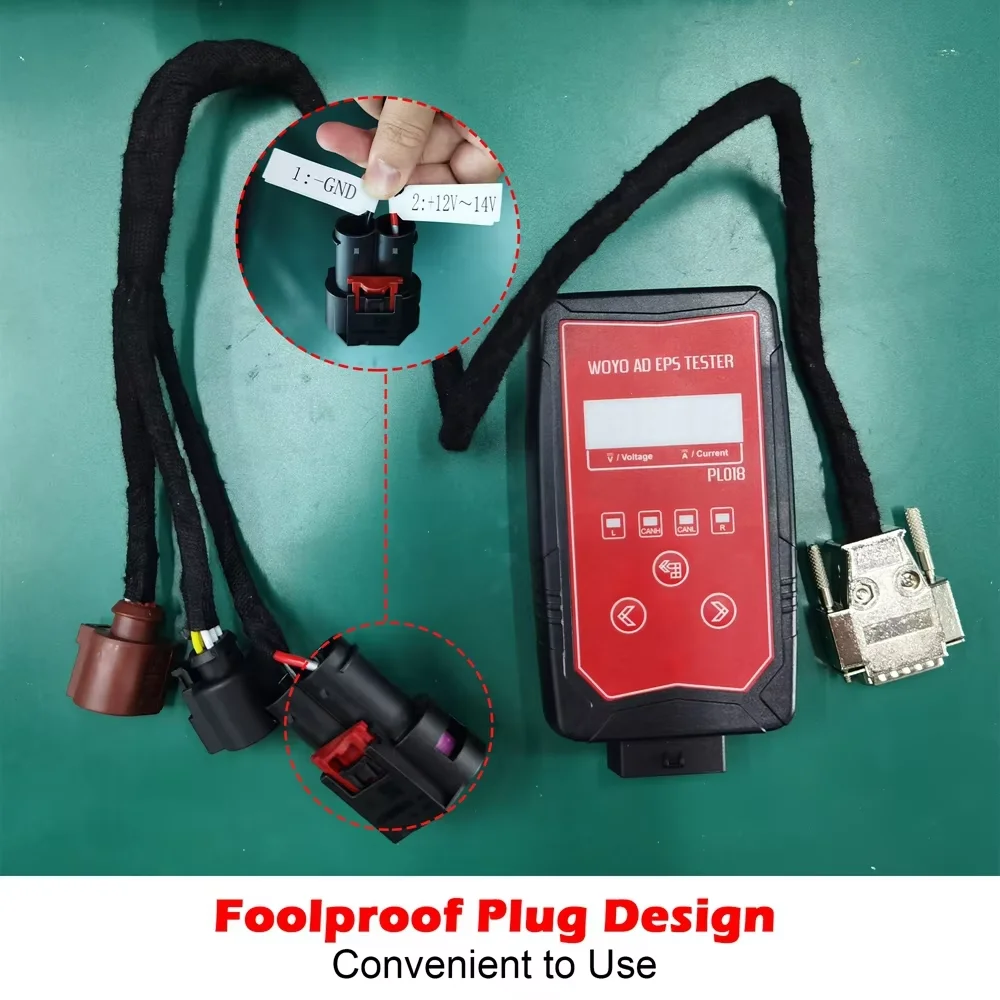

Foolproof Plug Design

Convenient to use.

Do the correct connection, pay attention for the "1" & "2".
