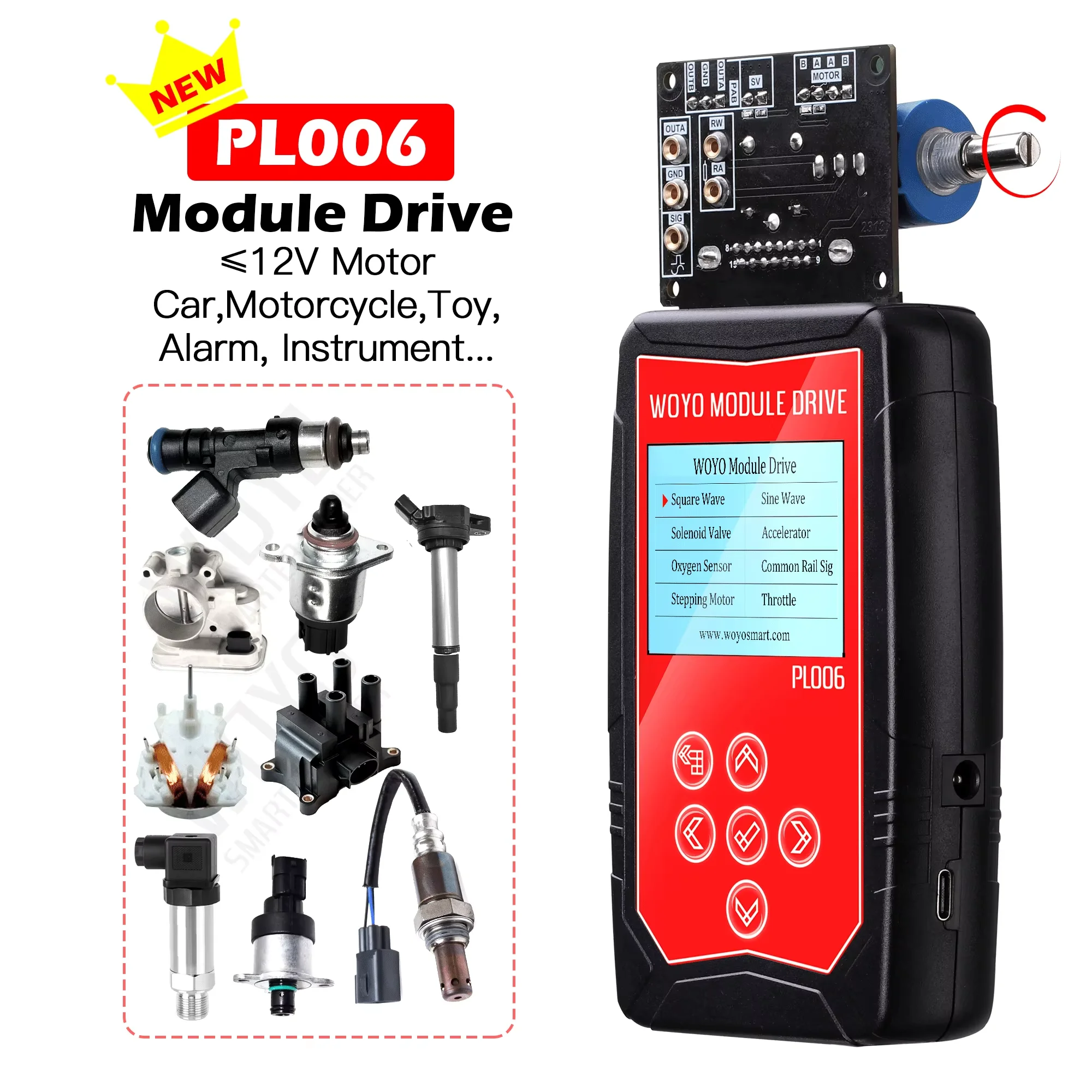

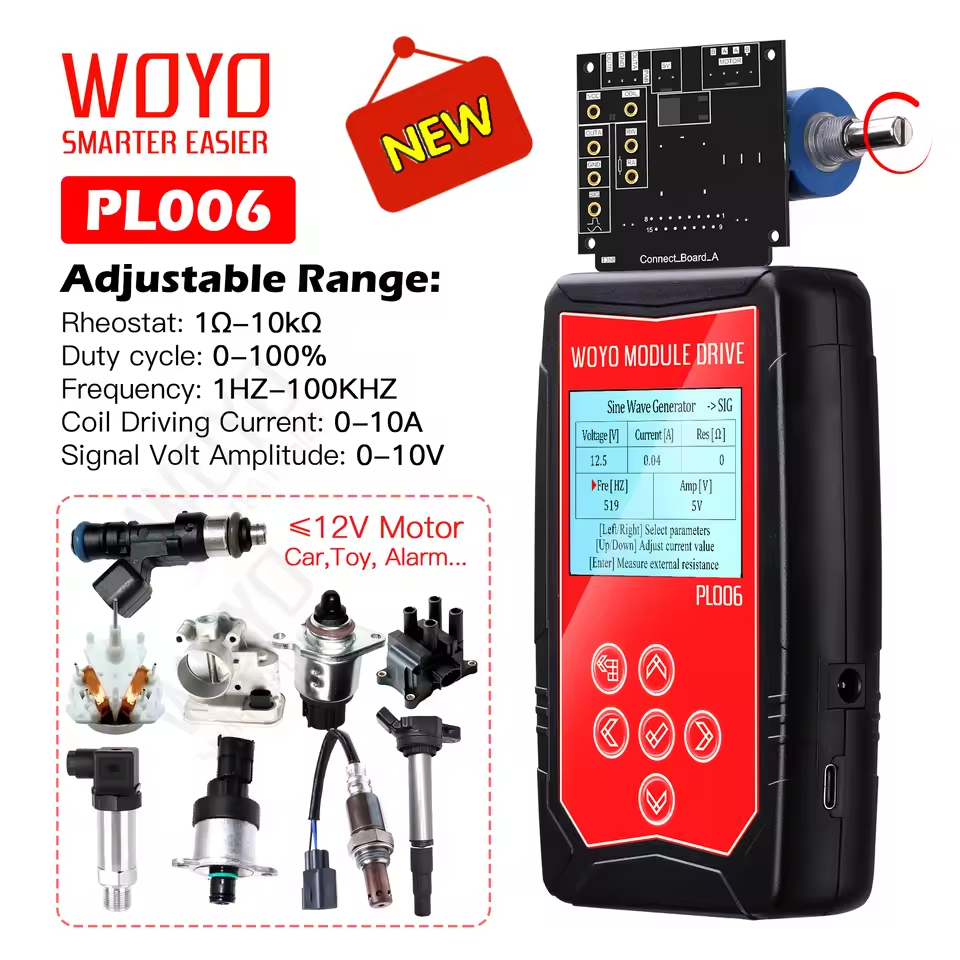

WOYO PL006 Module Drive

For ≤12V Motor tester with 4.5inch LCD Screen

Can test COP Coil-on-Plug Ignition Coil.(2P/3P/4P)

Main Functions:

1.Drive test ignition coil:including independent ignition,coil type,Module Type.

2.Drive test fuel injector:including gasoline-powered car 12V fuel injector.

3.Drive and test solenoid valves and fuel metering valves controlled by various duty ratios.

4.Drive and test motors controlled by various duty ratios,urea pump motors,etc.

5.Drive and test idle stepping motors,instrument stepping motors,headlight follow-up steering stepping motor and so on.

6.Built-in PWM Signal Adjustable output frequency,amplitude and duty ratio.Used to simulate various duty cycle sensors,such as air conditioning pressure sensor(duty cycle type), air flowmeter(duty cycle type),etc.

7.Power supply voltage:12V,with reverse connection protection,overcurrent protection.

Support to adjust:

1.Electromagnetic coil driving current range: 0-10A

2.Output frequency range: 1HZ-100KHZ

3.Duty cycle range: 1%-100%

4.Signal Voltage Range: 0.1V-10V (Depend on different motor)

5.Rheostat‘s resistance range: 0-10kΩ

6. You can test ≤12V Motor, include the motor of vehicle ,Motorcycle,Toy, Alarm, Instrument...

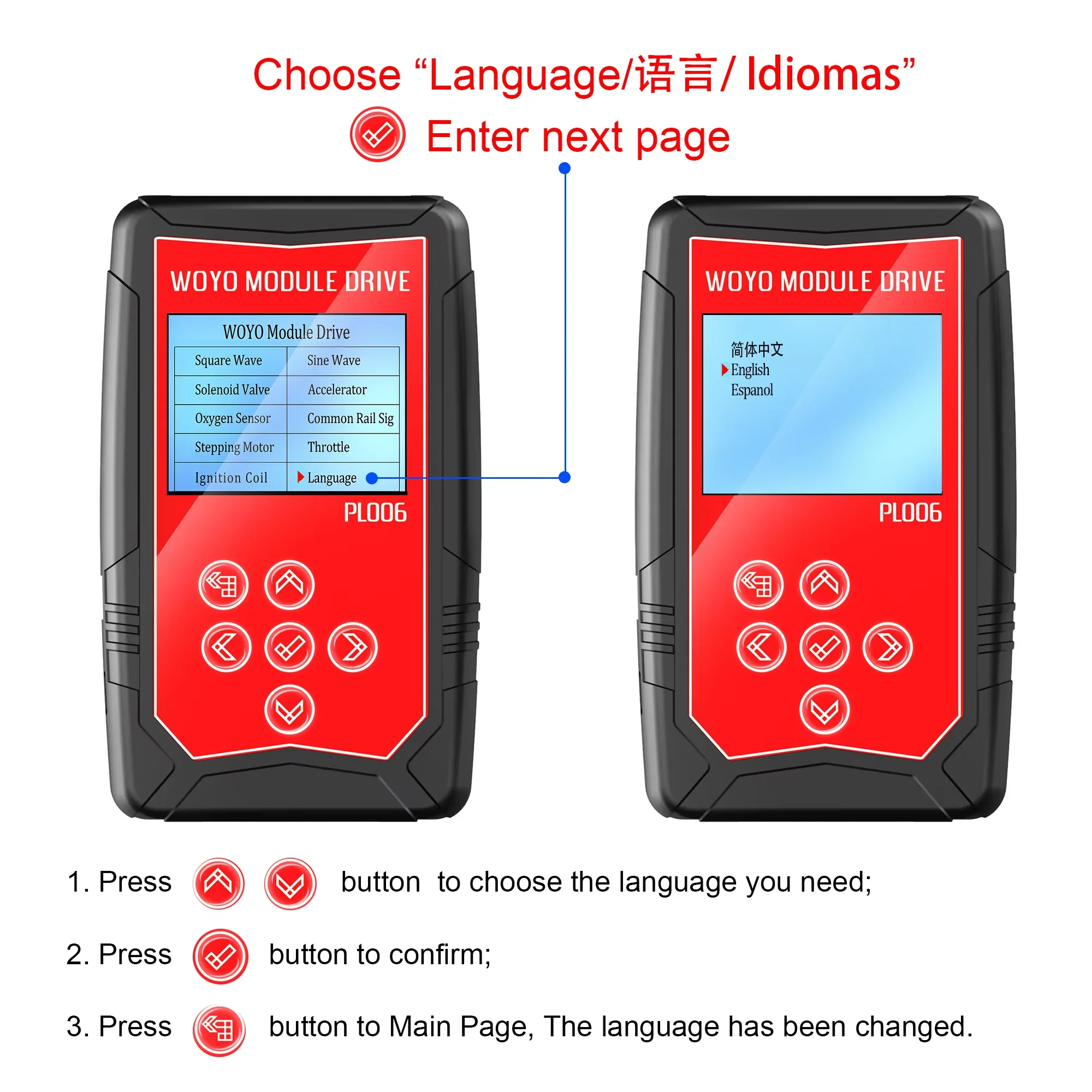

How the new version(since October 15, 2023) to change the languages?

1. Choose "Language" on Main Page to enter next page.

2. Press "up" & "Down"  button to choose the language you need.

3. Press "correct" button to confirm your choice.

4. Press "back" button and show you the language page you want.

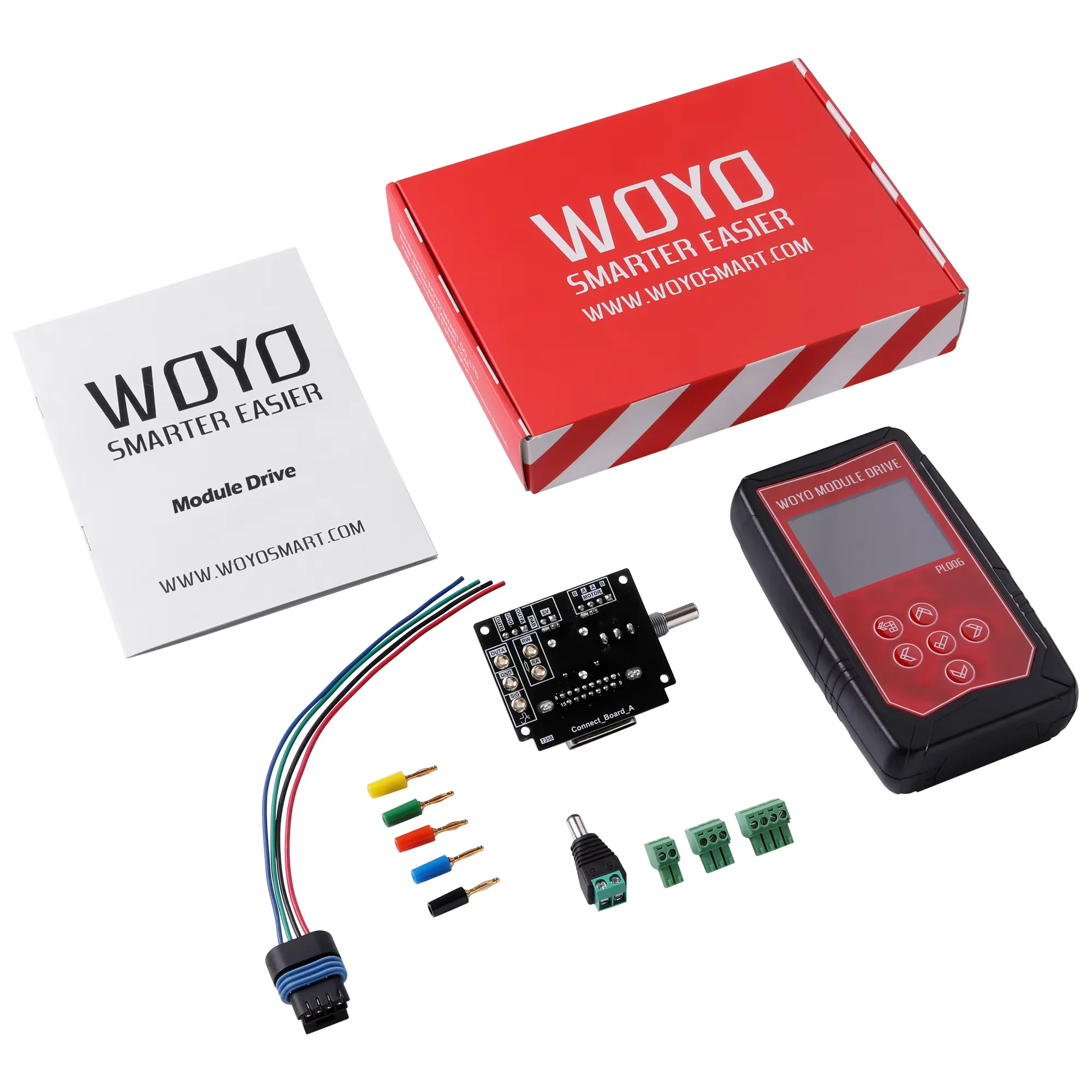

Here is the package list

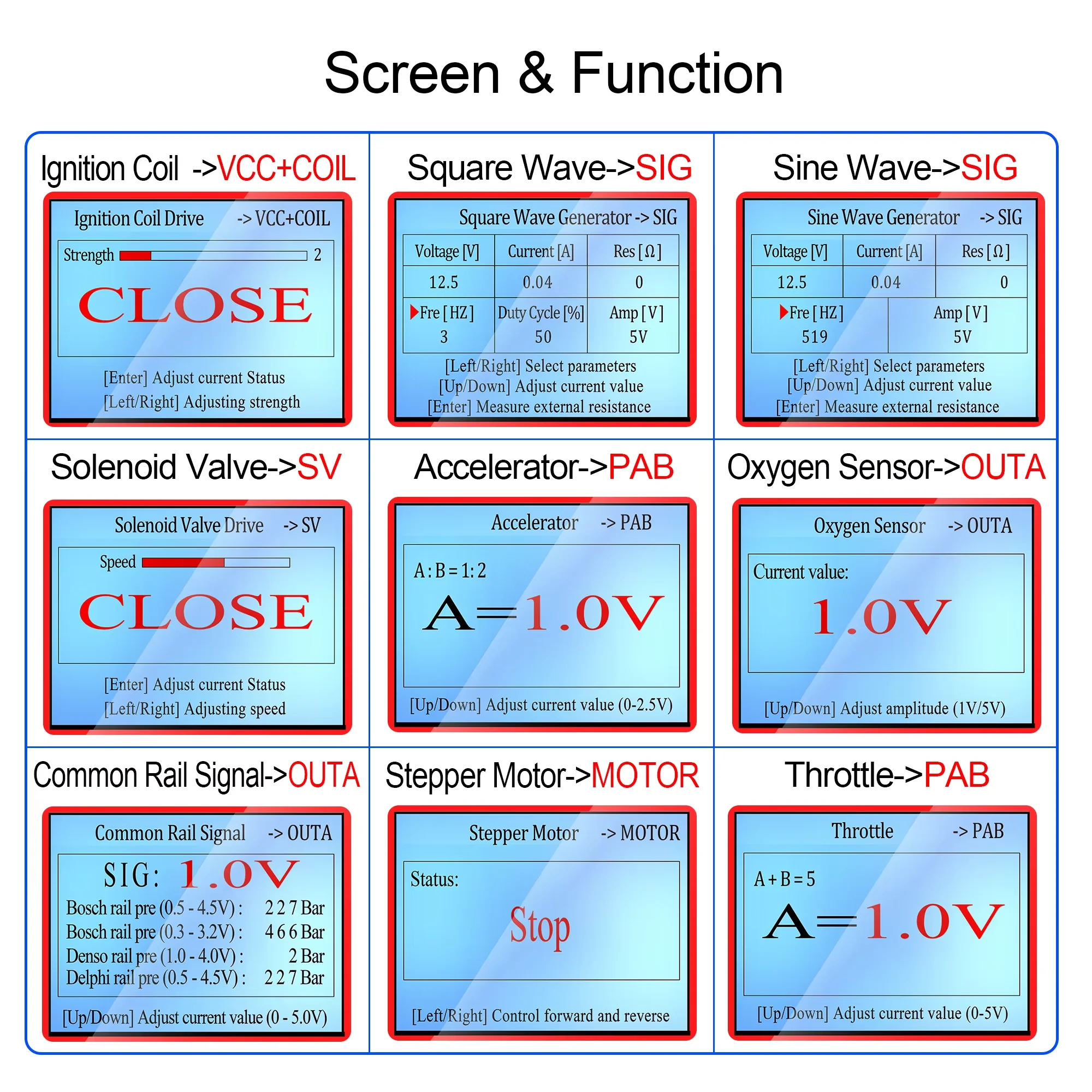

You can choose the page you need to test and adjust the range you need.

Square wave: 1-100Khz ,amplitude 5/10V, can automatically read the resistance value of rheostat, and display the output analog resistance of rheostat during regulation;

Sine wave: 1-100Khz, amplitude 5/10V, can automatically read the resistance value of Rheostat, and display the output analog resistance of Rheostat during regulation;

Solenoid valve: 0-10A control relay open/close (driven part voltage can be customized by user);

Accelerator:A/B=1:2 , A-channel voltage up to 2.5V, B-channel voltage up to 5V, for dual synchronization coefficients output analog signals (can also be used separately);

Oxygen sensor:1V or 5V analog signal output;

Common rail signal: analog rail pressure output, interface with rail pressure corresponding pressure and analog signal voltage parameters;

Stepper motor:4-wire 12V stepping motor drive, maximum power 6W (500mA);

Throttle:A+B=5V, used to output analog signal with dual synchronization coefficients (can also be used separately).

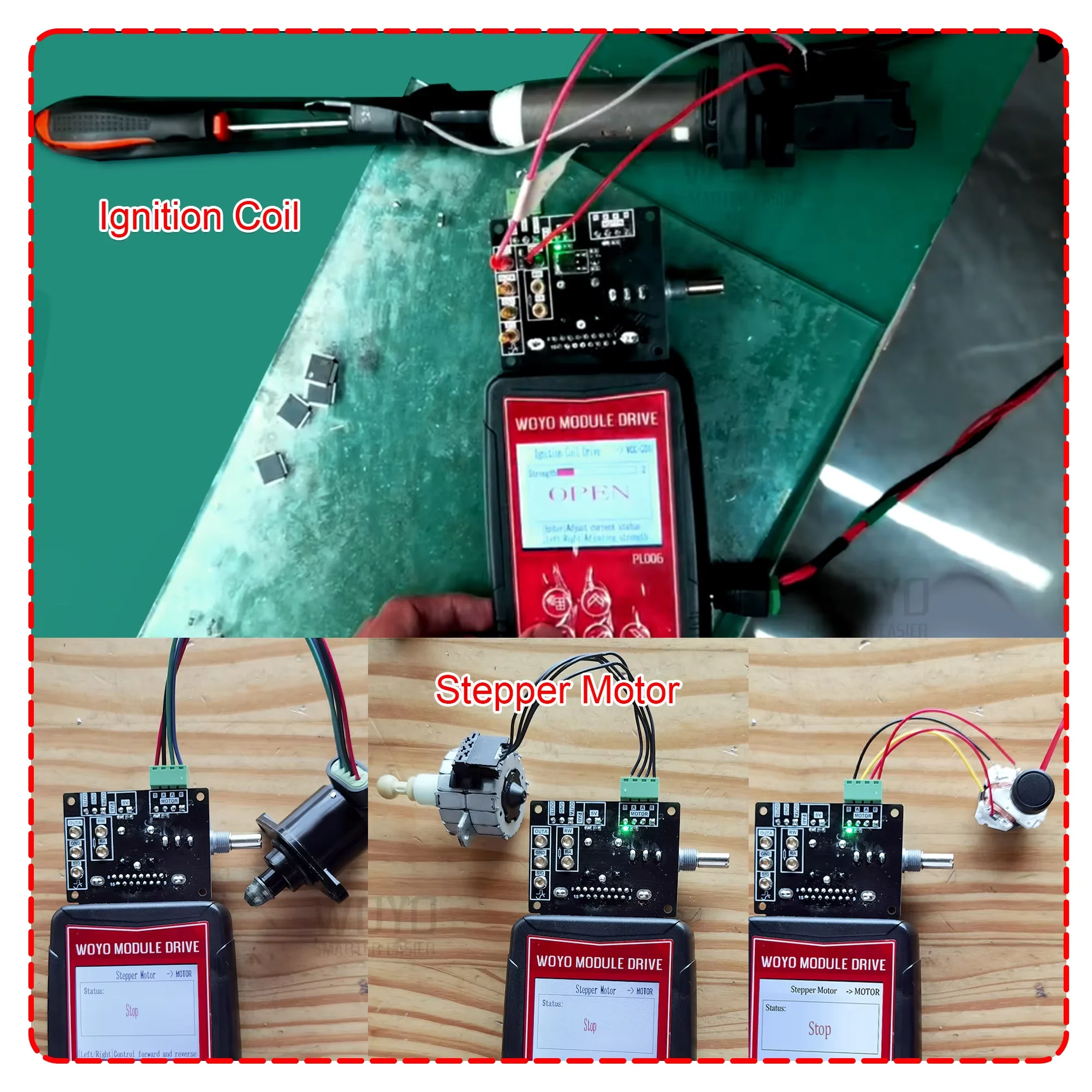

Ignition Coil : Adjust the stength, test 2P/3P/4P ignition coil.

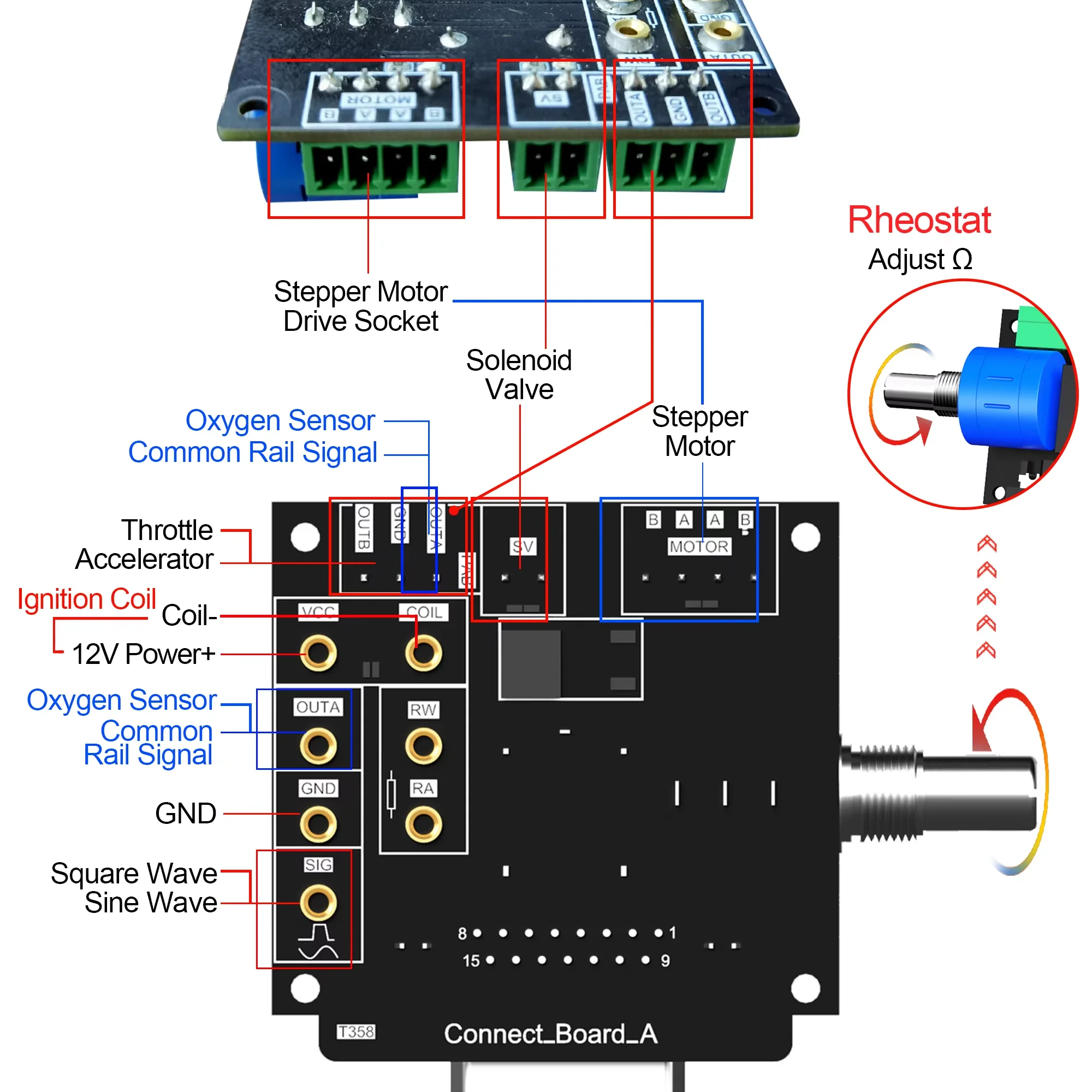

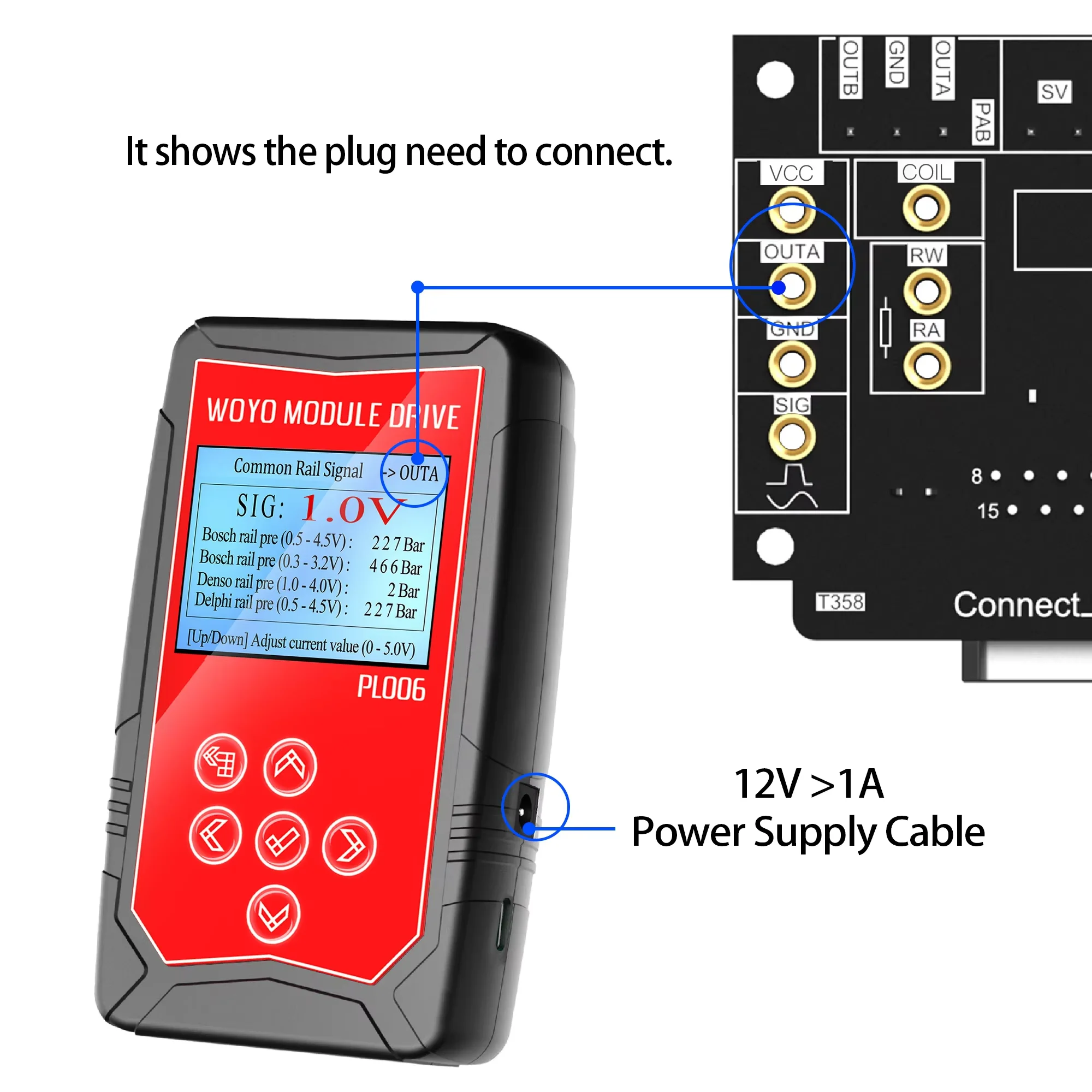

The keyword you see on the Upper right corner  of the screen, it means you need to connect on the PCB.

Operation:

1. Connect to 12V power supply.

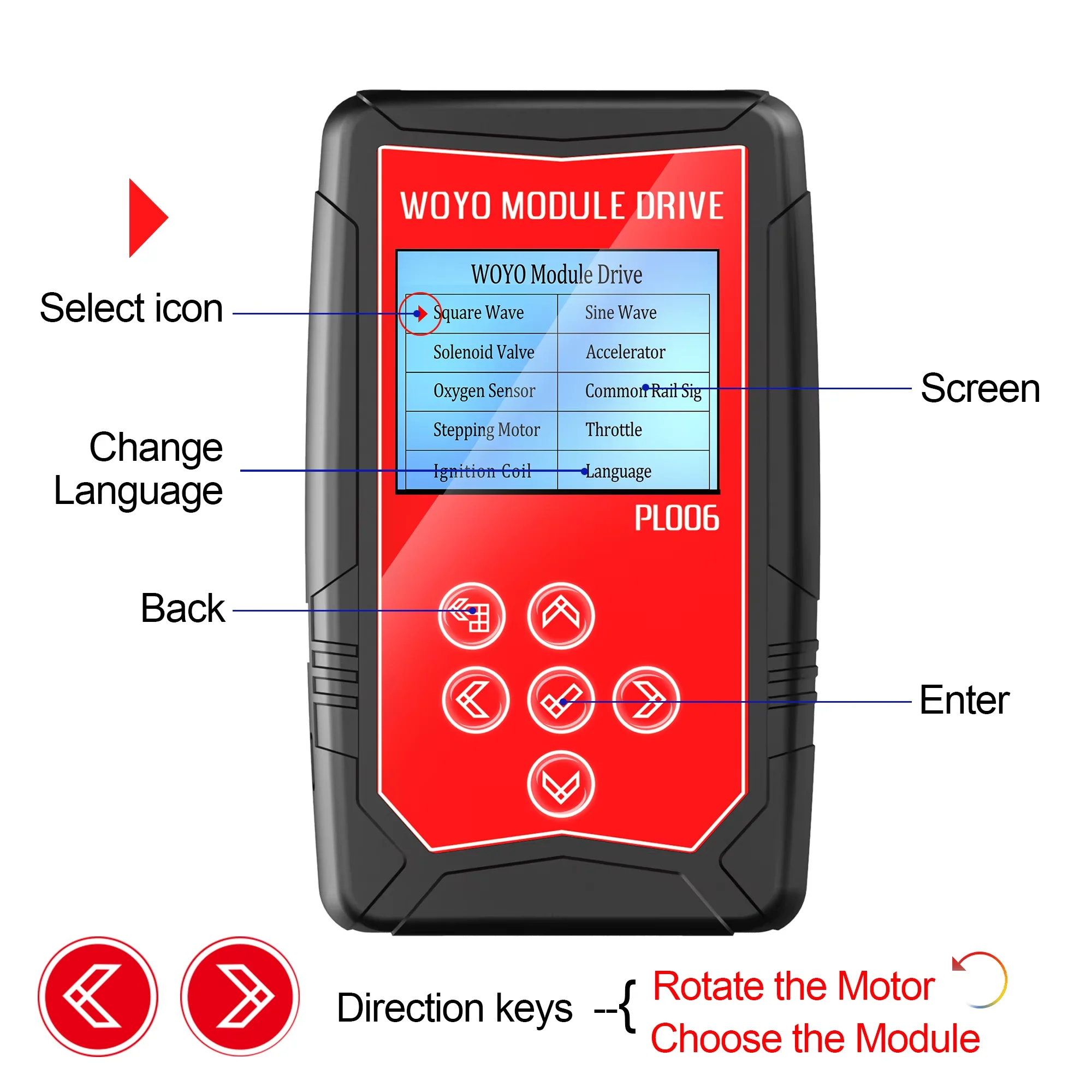

2. Press the direction button to choose the content you need to enter.

3. "<" & ">" can rotate the motor or  make it stretch out and draw back.

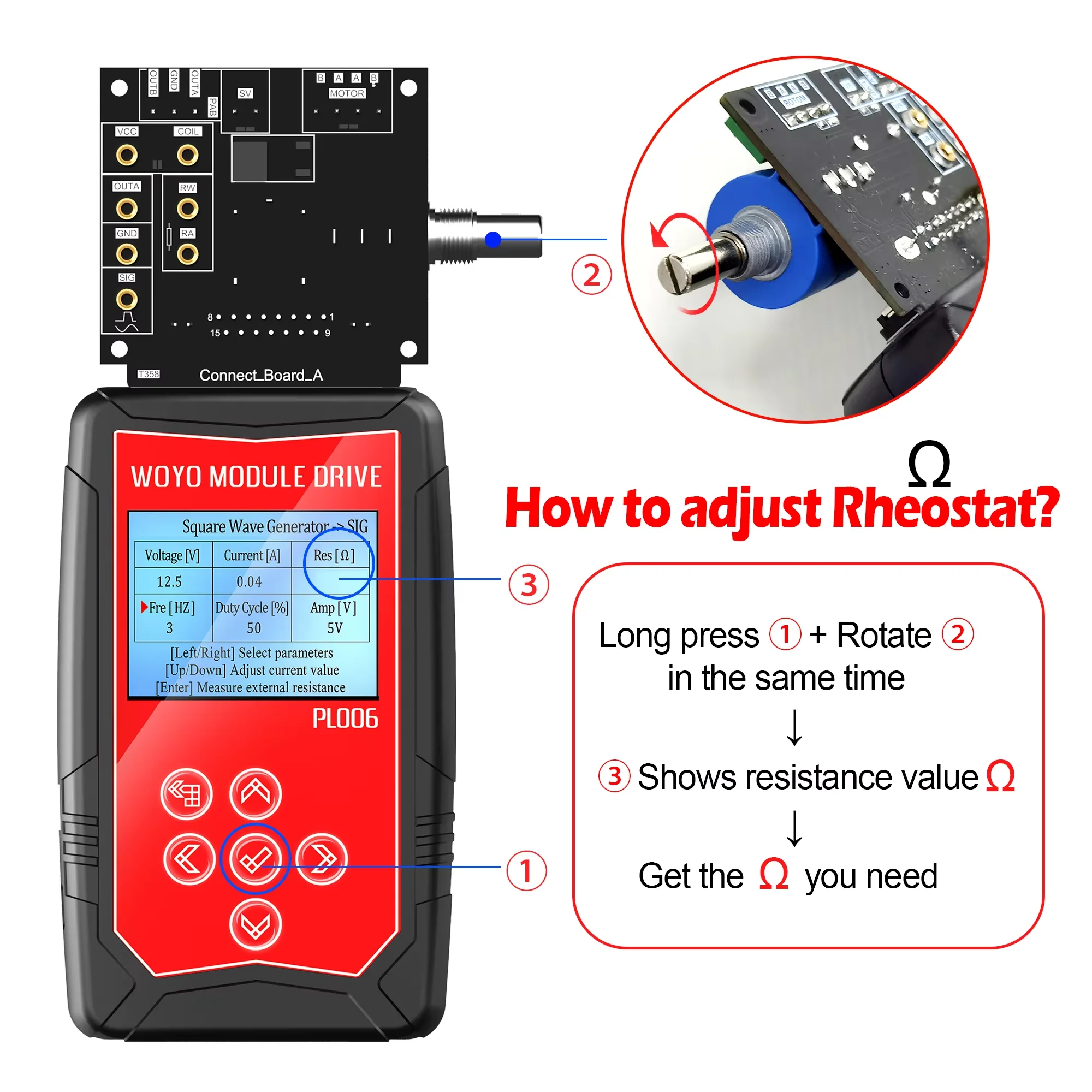

How to adjust the Rheostat:

1. Long press "√"+Rotate the knob of Rheostat in the same time.

2. Screen Shows real-time data (resistance value).

3. Get the resistance value(Ω) you need.

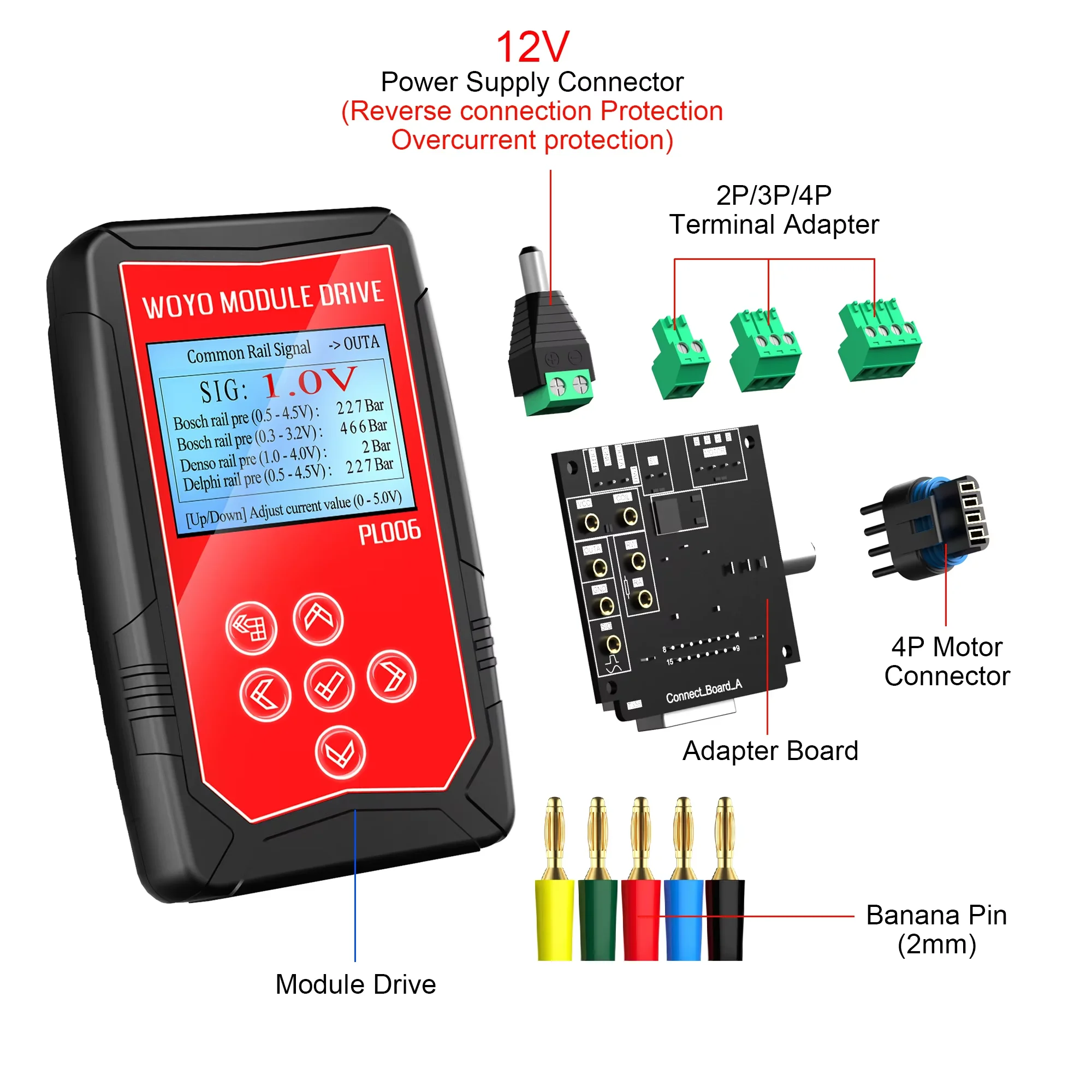

This is the package you get.

can test: Automobile signal simulator, ignition coil injector, solenoid valve, idle stepper motor, Automotive sensors simulator, pulse generator injectors, signal generator injector, ignition coil denzopil,

Any question, please feel free to contact us.
