WOYO PL026 VI Curve Tester:Excel at "blind testing" or comparative repair.

Description:

Advanced Testing Capabilities:

Conduct comprehensive testing on electronic components without powering up the circuit board. This ensures maximum safety throughout the entire diagnostic process.

Versatile Component Compatibility

Compatible with a wide range of components, including transistors, diodes, voltage regulators, capacitors, resistors, and more. It is a highly versatile tool suitable for diverse circuit designs.

User-Friendly Display Interface

Equipped with a 2.4-inch TFT color screen that clearly presents test results and configuration settings, significantly enhancing user interaction and readability.

Enhanced Customization & Functionality

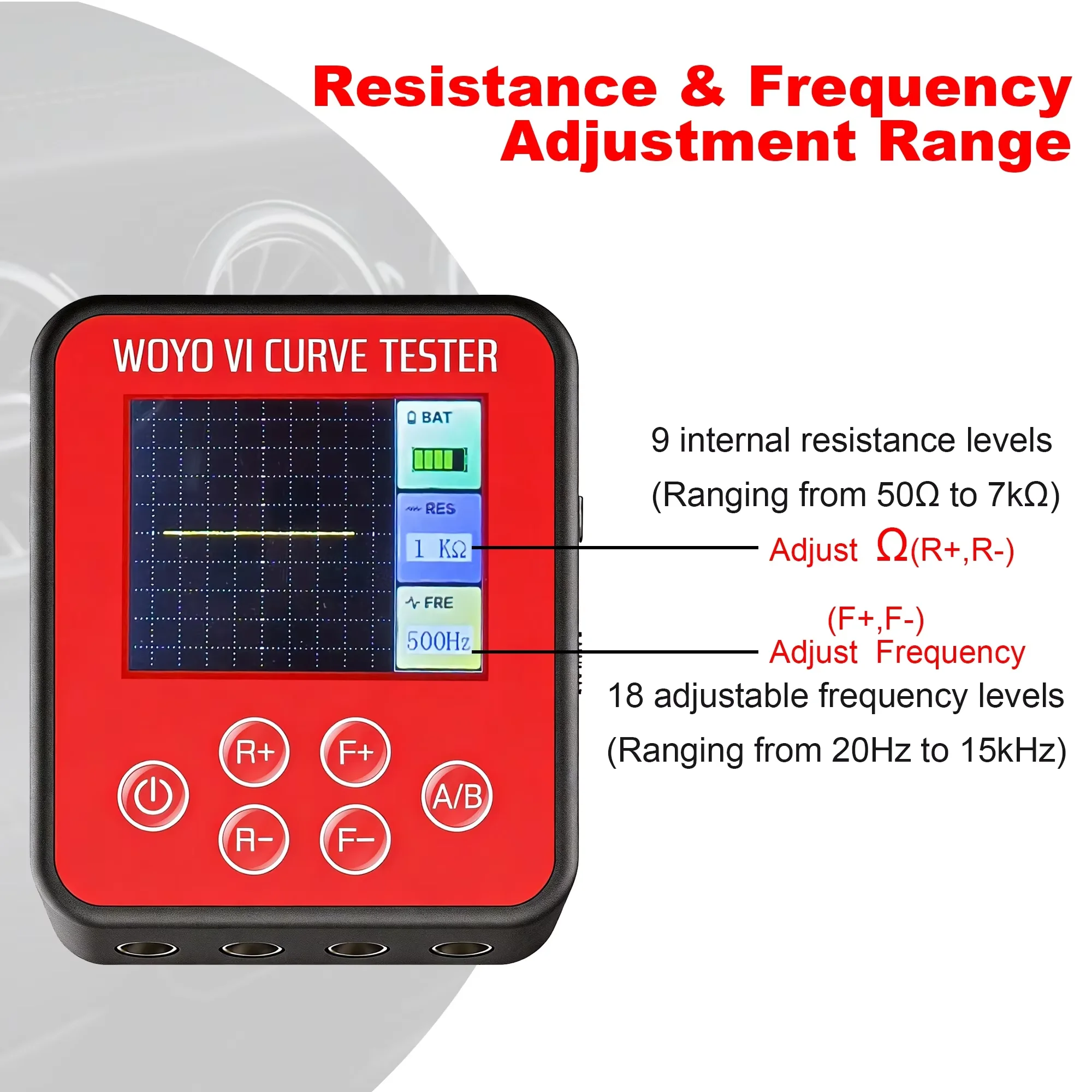

Features 18 adjustable frequency levels (ranging from 20Hz to 15kHz) and 9 internal resistance levels (ranging from 50Ω to 7kΩ), providing precise and customizable testing conditions for accurate performance evaluations.

Convenient Power Management

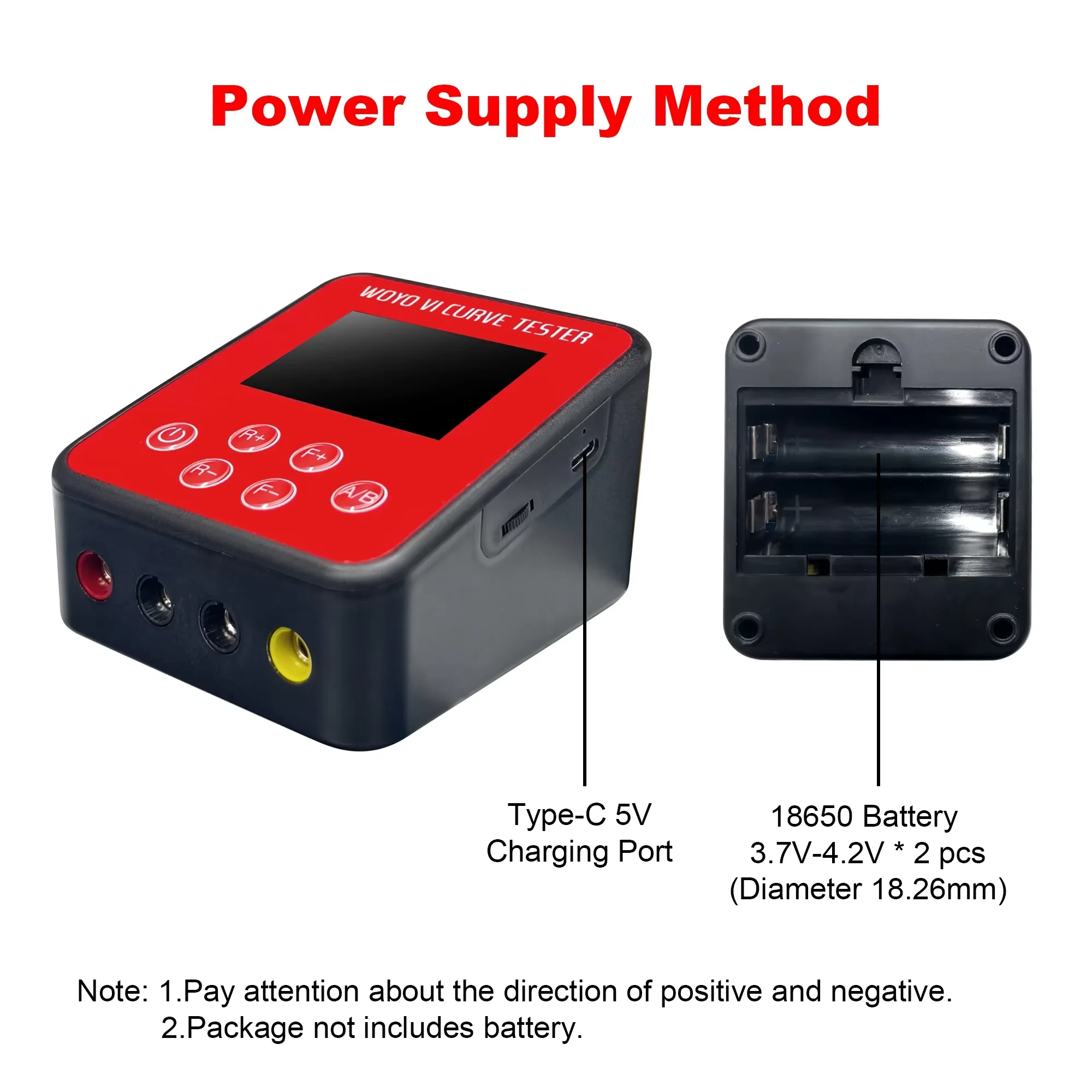

Powered by a built-in, removable 18650 lithium battery and supports Type-C charging, perfectly balancing portability and reliability. It also includes an auto-power-off function that saves energy after 15 minutes of inactivity.

Specifications:

Display:2.4" Color LCD display

Waveform:SineWave

Test Voltage: 8V (p-p) (< +/-5%)

Test Frequency:Levels (18 Steps)20Hz, 100Hz, 500Hz, 1kHz, 2kHz, 3kHz, 4kHz, 5kHz, 6kHz, 7kHz, 8kHz, 9kHz, 10kHz, 11kHz, 12kHz, 13kHz, 14kHz, 15kHz

Internal Resistance (9 Levels)50Ω, 500Ω, 1kΩ, 2kΩ, 3kΩ, 4kΩ, 5kΩ, 6kΩ, 7kΩ

Device Power: 5V (TYPEC Connector)

Voltage Current:8.4V/150mA

Important Note: The circuit board must be completely powered off before conducting any tests.
