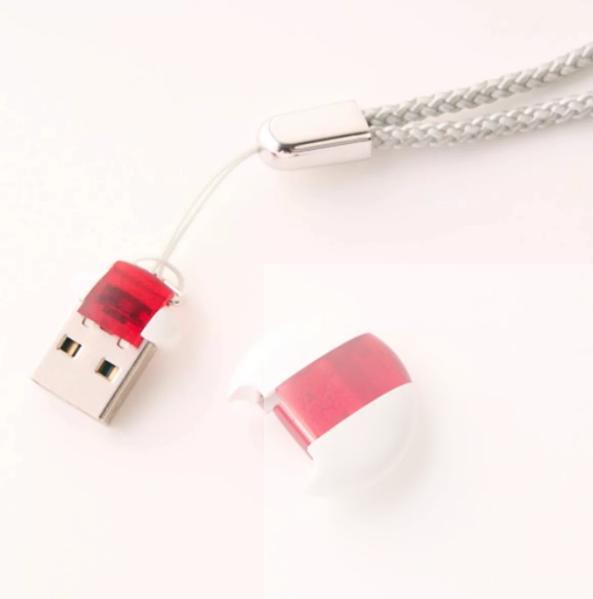

Bitedit USB Dongle (with Single Pre-activated Module) ECU Calibration Software Module Toyota Denso Yaris GR Turbo

Module Toyota Denso Yaris GR Turbo

Software module for editing calibrations of Denso ECU for petrol Toyota GR Yaris and GR Corolla 1.6 Turbo vehicles with G16E-GTS engine

Allows to edit MCU1 8A230-X2XXX and MCU0 8A220-X2XXX

Only 4Mb filesize supported.

Available maps for MCU1 8A230-X2XXX:

Air control: Efficiency in additional mode, Maximal mass air flow

Boost control: limitation: Boost correction factor, Maximal boost pressure absolute, Torque clamp boost limiter, Boost limitation absolute, Boost limitation by torque, Boost limitation relative, Maximal boost relative

Boost control: wastegate: Target wastegate duty, Wastegate duty in additional speed

Camshaft Control: Intake Camshaft, Intake camshaft correction, Intake camshaft correction factor

Engine speed limit: Engine speed limitation

Fuel Pressure: Target fuel pressure, Maximum fuel pressure

Fuelling Direct Injection: Injection I angle in additional mode, Injection II angle in additional mode

Ignition Optimum: Spark advance optimal

Sensors scaling: Mass air flow sensor scaling

Spark advance: Ignition efficiency, Minimal spark advance, Spark advance in additional mode, Spark advance main, Spark advance retardation on camshaft, Spark advance warmup correction

Throttle control: Primary throttle efficiency in additional gear, Primary throttle efficiency 1 [Normal mode], Primary throttle efficiency 1 [Sport mode], Primary throttle efficiency 2 [Normal mode], Primary throttle efficiency 2 [Sport mode], Primary throttle efficiency base, Primary throttle efficiency [gear 2], Throttle efficiency idle, Throttle position base

Throttle: direct control: Throttle control limit in additional gear [Normal], Throttle control limit in additional gear [Sport], Throttle direct control limit [1st GEAR], Throttle direct control limit [1st GEAR] AWD High, Throttle direct control limit [1st GEAR] AWD Low, Throttle direct control limit [Reverse GEAR], Throttle direct control limit

Torque model: Calculated torque from load, Engine speed by throttle position, Maximal engine torque, Torque Limiter, Torque limiter by temperature, Maximal torque

Vehicle speed limit: Vehicle speed limiter (if found)

Available maps for MCU0 8A220-X2XXX:

Air Control: Air mass flow sensor slope, Maximum MAP sensor

Deactivation: Deaclivation turbo charger protection

Engine Torque: Limiter of maximum torque, Torque request during take off condition in additional mode, Maximum Boost Limiter of Turbo Pressure

Injection Warm Up: Injection warm up in additional mode

Rail Pressure: Rail Pressure in additional mode

Torque model: Limiter of Maximum torque, Optimal engine torque

Spark Advance: Minimum Spark Advance, Spark Advance, Spark Advance base , Spark Advance correction , Spark Correction Water temperature

DTC mask is in development and will be added ASAP

Supported SW list for Module Toyota Denso Yaris GR Turbo
