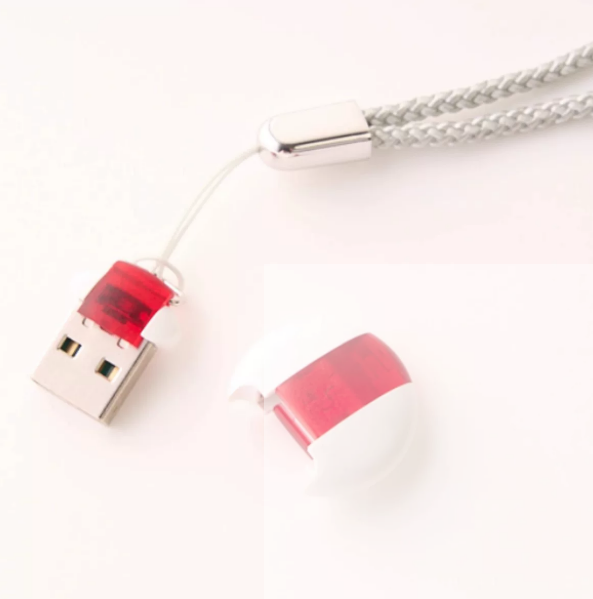

Bitedit USB Dongle (with Single Pre-activated Module) ECU Calibration Software Module Toyota Denso Diesel 7

Module Toyota Denso Diesel 7

Software module for editing calibrations Denso Gen3 ECUs of diesel Toyota vehicles

Supported engines: 2.8TD 1GDFTV, 3.3TD F33AFTV.

Supported filesize: 4Mb.

Supported SW id: 8A222-xxxxx.

Available maps:

Air calculation: Air flow correction, Desired air calculation in additional mode

Boost Pressure: Base boost pressure, Base boost pressure with active EGR, Minimum boost pressure
Boost Pressure Correction: Boost pressure correction from air temperature sensor, Boost pressure correction from atmospheric pressure , Boost pressure correction from coolant temperature
Boost Pressure Limitation: Boost limitation in emergency

EGR: Basic position of EGR, Lower threshold of the moment for operation EGR, Upper threshold of the moment for operation EGR

Fuel pressure: Fuel pressure at start-up, Fuel pressure correction from coolant temperature, Fuel pressure in regeneration mode, Rail Pressure, Maximum fuel pressure, Maximum fuel pressure during regeneration
Initial injection phase: Initial injection phase

Injection volume limitation: Correction of maximum permissible injection volume, Injection volume Limitation from air flow rate, Injection volume limitation from atmospheric pressure, Maximum injection volume from atmospheric pressure, Base injection volume, Injection volume limitation, Border of the transition from cold to warm operation mode, Border of the transition from warm to hot mode

Limiters: Engine Speed Limitation, Minimum speed limitation, Vehicle Speed Limitation (Test)
Nozzle performance: Nozzle performance at the 1st and 2nd pilot injection, Nozzle performance at the main injection

Post injection: Post-injection phase stage

Sensors: Coolant temperature sensor, Exhaust Temperature Sensor Scaling, Intake air temperature sensor, Intake manifold air temperature sensor, SCR Temperature Sensor Scaling

Torque: Inversion requested torque, Requested torque

Torque loss: Torque loss on fuel pump by fuel pressure, Torque loss on fuel pump by fuel volume increasing, Base loss torque, Torque loss by coolant temperature

VNT: Base position of the VNT, Maximum VNT position, Maximum VNT position when EGR is active, Proportional gain for VGT duty cycle control, Proportional coefficient for inactive EGR is the negative derivative, Proportional coefficient for inactive EGR is the positive derivative

VNT correction: Additional correction to the base position of the VNT

Volume of Pilot Injection: Volume of the 0-th pilot injection, Volume of the 1st pilot injection with the active 0-th pilot injection, Volume of the 2nd pilot injection with the 1st pilot injection active, Volume of the 3rd pilot injection with the 1st pilot injection active

DTC

URGENT requests are not allowed in this module.

Supported SW list for Module Toyota Denso Diesel 7
