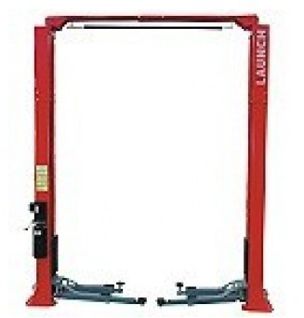

TLT240SCA Clear Floor Two Post Lift

Standard Clear Floor Two Post Lift (Rated Capacity: 4.0Ton),applicable for the lifting of various small and medium-sized vehicles with total weight below 4t in garage and workshop.Euipped with electrical control box for easy operation

Feature
1.Dual hydraulic cylinders drive, stable lifting and lowering. Adopt two steel cables for equalization, force two carriages to move synchronously.
2.Electrical control box facilitate the operation.
3.Top limit switch, effectively protecting the vehicle from overhead collision.
4.Electromagnetic full-scope safety lock.
5.Lowest height of lifting pad is 110mm, good for repairing low chassis or low profile car.

Specification
Rated capacity (kg) 4000
Lifting height (mm) 1950
Lifting time 50s
Lowering time 40s
Motor power (kw) 2.2
Passagge width(mm) 2486
Overall width(mm) 3420
Overall height(mm) 3840

Spare Parts
1 TLT240SCA Powerside column
