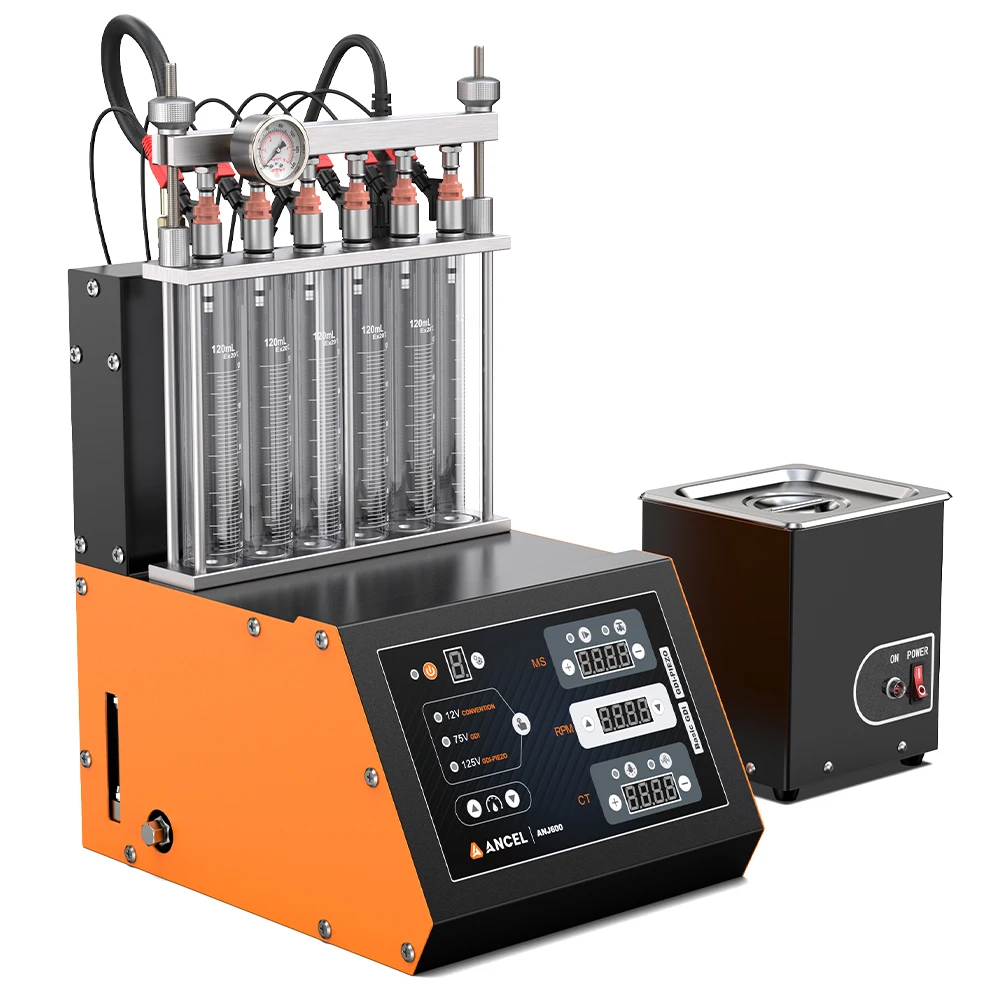

ANCEL ANJ600 GDI Piezo Car Fuel Injector Cleaner Tester 6-Cylinder Car Motorcycle Ultrasonic Fuel Injector Cleaner Machine 220V/110V

This product has two versions, 110V US plug and 220V EU plug, please indicate the version you need.

ANCEL ANJ600 GDI Piezo is a fuel injector cleaning machine newly developed by ANCEL TECH. It combines ultrasonic cleaning technology and microcomputer oil pressure closed-loop control cleaning and detection technology. This product simulates various engine working conditions and cleans and inspects various automobiles and motorcycle fuel injectors. Its unique design saves weight and volume, while further optimizing the product's functionality. With a larger cleaning tank and cleaning fluid heating effect, which can achieve better cleaning results.

Why Need ANCEL ANJ600 GDI Piezo?

After the car has been driven for a period of time, certain deposits will form in the fuel system, clogging the injectors. Clogged injectors can seriously affect the performance of the car. The main purpose of cleaning injectors is to improve the atomization effect of gasoline, increase the combustion efficiency of gasoline and reduce fuel consumption.

✅ANCEL ANJ600 GDI Piezo Fuel Injector Cleaner Main functions

☑️Ultrasonic cleaning:
To clean injectors to remove the carbon deposition on them completely.

☑️Resistance test
To test the resistance of fuel injector

☑️Uniformity / Sprayability test:
To test the uniformity of injecting amount of each injector, and to monitor the spraying status of each injector with the help of backlight.

☑️Leakage test:
To test the sealing and dribbling conditions of injectors under system pressure.

☑️Injecting flow test:
To check the injecting amount of the injector in 15 seconds of constant injection.

☑️Working modes test:
To test injectors under different working conditions.

☑️On-Vehicle Cleaning:
Coming with a variety of disassembly-free cleaning connectors, the device can be used to perform on-vehicle cleaning and maintenance for various vehicle models.

☑️Low resistance injectors test function
Through the dedicated motherboard, it supports the full and long test of low resistant fuel injector such as 1 ohm.

☑️Multi items Setting:
Set different parameters of the device, including the buzzer sound level, display brightness, and backlight brightness.

☑️Version information:
to check the software version information of the current device.

✅Cleaning & testing sequences

Recommended to carry out the complete cleaning and testing procedures as the following order.
● Ultrasonic cleaning;
● Uniformity / Sprayability test;
● Leakage test;
● Injecting flow test;
● Working modes test.

* Resistance Test.

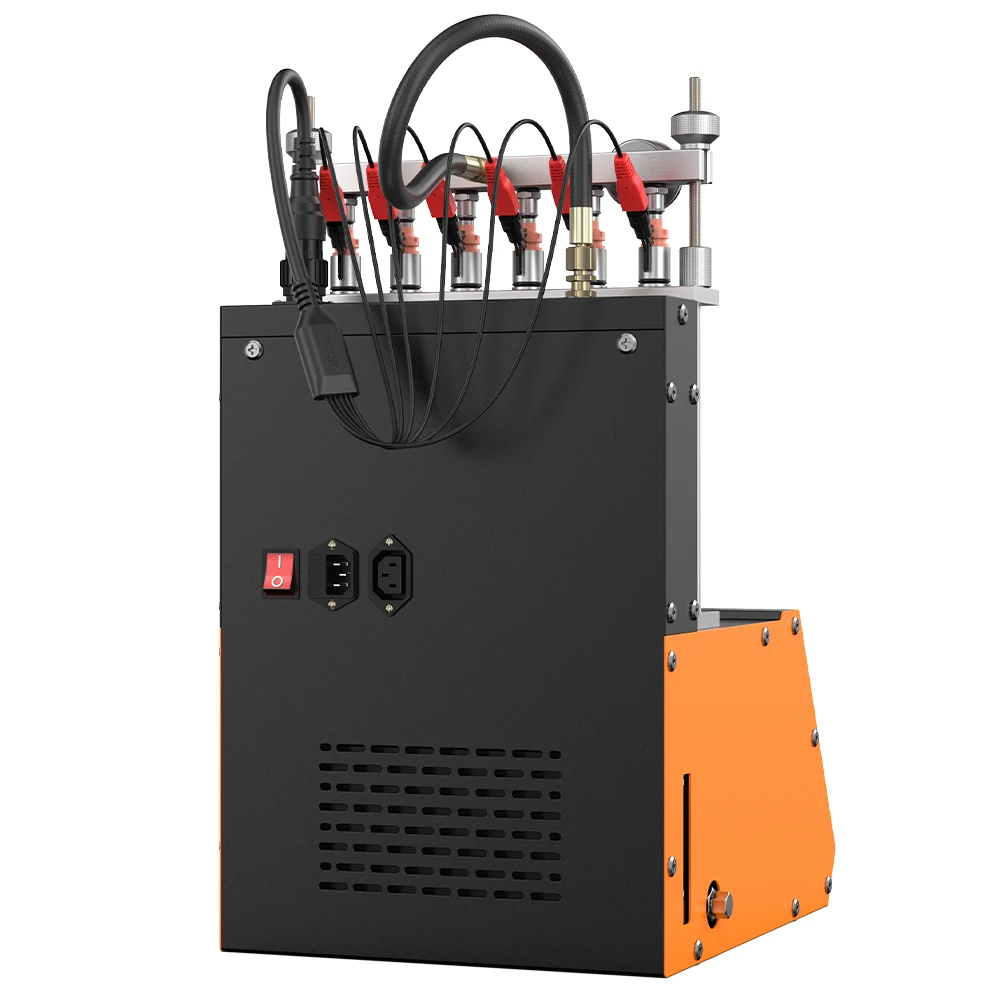

1) Connect one end of the resistance measurement line to the interface on the right side of the device, and the other end to the two electrodes of the fuel injector.
2) Start the machine, and press the key. The resistance value will be displayed on the screen.
3) If needed, measure several times to confirm the measured value.
4) After the measurement is completed, remove the fuel injector and the resistance measurement line

* Ultrasonic Cleaning

It works by sending an ultrasonic vibration signal to the injector through the pulse signal cable, which causes a strong vibration of the carbon inside and thus enables more thorough cleaning.

✅Procedures

1) Place the injector/pump which has gone through surface cleaning in the launder.
2) Add enough injector detergent into ultrasonic cleaner so that the liquid level is about 20mm above the needle valve of injectors / whole pump.
3) Plug the pulse signal wire to injector / pump respectively.
4) Select ultrasonic cleaning function and then set the time.
5) Press RUN key to start the procedure.
6) Turn on the ultrasonic cleaning switch on the left side of the machine.
7) When the time is up, it will stop automatically as the beeper rings.
8) Turn off the ultrasonic cleaning switch on the left side of the machine after cleaning procedure.
9) Take the injector / pump out of the launder and wipe them with a dry soft cloth. Get ready for next operation.

* Uniformity/Sprayability Test

Uniformity test is to find out the difference of the injectors injecting at the same working condition. This test can indicate the comprehensive influences on the injector caused by electrical nature, bore variation and clogging. Spray
ability test is to inspect the spraying performance by observing the injectors.

✅Installing and testing procedures for injectors

1) Choose a proper adaptor according to the injector type and mount it to the fuel separator.
2) Install the injectors in forward direction (Apply a little lubricating grease on the O-ring.)
3) Install the fuel separator with injector onto the plate of the test tube.
4) Connect the injector pulse signal wire.
5) Before doing this test, drain the test liquid from the measuring cup if there is any.
6) Select Uniformity/Sprayability test function, set corresponding parameters (consult the appendix for pressure setting, consult vehicle manuals for other parameters as needed), and then press RUN key to start the test.
7) When the test is completed, the equipment will auto stop with the ring of the buzzer.

* Leakage Test

Leakage test is to inspect the sealing conditions of the injector needle valve under system pressure and to find out if the injector is dribbling

Procedures

Installation refer to Uniformity/ Sprayability Test.

1) Before doing leakage test, please drain the rudimental residual test liquid from the measuring cup.
2) Select Leakage Test function and press Run key to start. At this time the system pressure can be adjusted by pressing + and – key to observe dribbling from the injector the pressure is adjusted preferably 10% higher than manufacturer’s specifications.
3) When the test is over, the equipment will automatically stop and the buzzer will ring simultaneously.

* Injecting Flow Test

Injecting flow test is to check if the injecting flow in 15 seconds meets the specifications for injecting amount. The deviation reflects the wear or clogging in the injector, instead of electrical parameter variation.

✅Procedures:

Installation refer to Uniformity/ Sprayability Test.
1) Before this test, drain the test liquid from the measuring cup if there is any.
2) Choose Injecting Flow Test function and press Run key to start the test. Adjust the fuel pressure by pressing + or – key according to the injector specification.
3) When the test is over, the equipment will stop automatically at the ring of the buzzer.

* Working modes test

Working modes test contains three working status simulation tests(Acceleration, Deceleration, Acceleration+ Deceleration test)). This function can test more comprehensive performance of injectors by simulating the various engine working conditions.

✅Procedures:

Installation refer to Uniformity/ Sprayability Test.
1) Before the test, drain all the test liquid in the measuring cups if there is any.
2) Select Modes function and choose the mode needed , then press Run key to start the test.
3) Adjust the fuel pressure by pressing + or – keys.
4) When the test is over, the equipment will auto stop at the ring of the buzzer.

✅6-Cylinders Ultrasonic Cleaning

It works by sending an ultrasonic vibration signal to the injector nozzle through the pulse signal line, which makes the stubborn carbon deposit jitter strongly and removes more thoroughly.

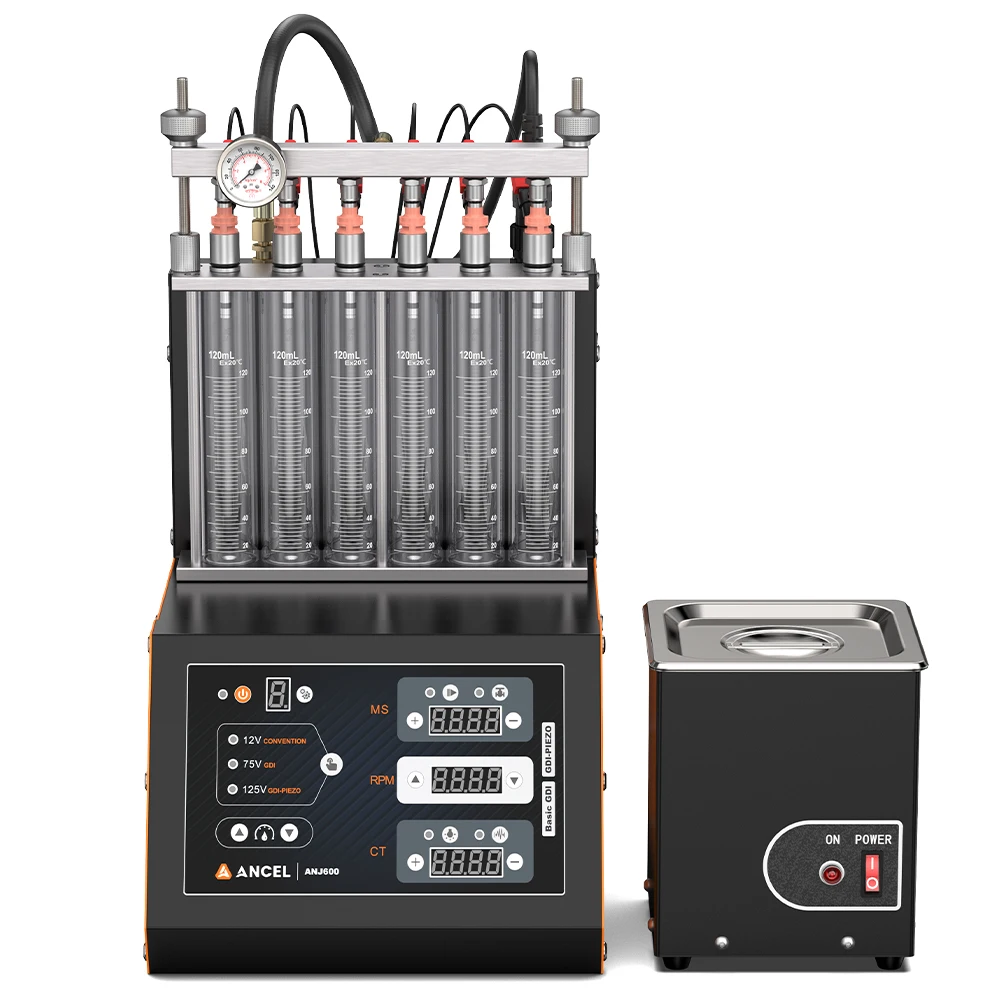

✅Friendly control panel

✅Easy Operation:

1. Clean injector's outside with gasoline or cleaning liquid before turning on the machine
2. Putting injectors in ultrasonic bathtub after the outside of injector is free of dirt.
3. Turn on ultrasonic system, allowing the ultrasonic energy to dislodge any particles even build-up inside the injectors.
4. Fix injectors on the machine
5. Test injectors for resistance, shorts, and current draw
6. Perform leak test, spray pattern, and flow rate testing on flow bench.
7. The injectors are now returned to the flow bench for retesting of all functions.

✅Smart Control Panel

✅Working conditions:

Temperature: -10~+40℃ Relative humidity: <85%
Intensity of outer magnetic field: <400A/m
No naked flame within 2m.

✅Technical parameter

Main unit power supply: AC220V±10% 50Hz/60Hz or AC110V±10% 60Hz
Input power: 230W
Ultrasonic cleaner power: 100W
Resistance test accuracy: 0.1Ω
Simulated RPM range:100~9900rpm, step:10rpm
Time range: 5~300s, step:5s
Pulse width: 0.1~30ms,step: 0.1ms
Fuel tank capacity: 2000 ml
Work pressure: 0-8bar

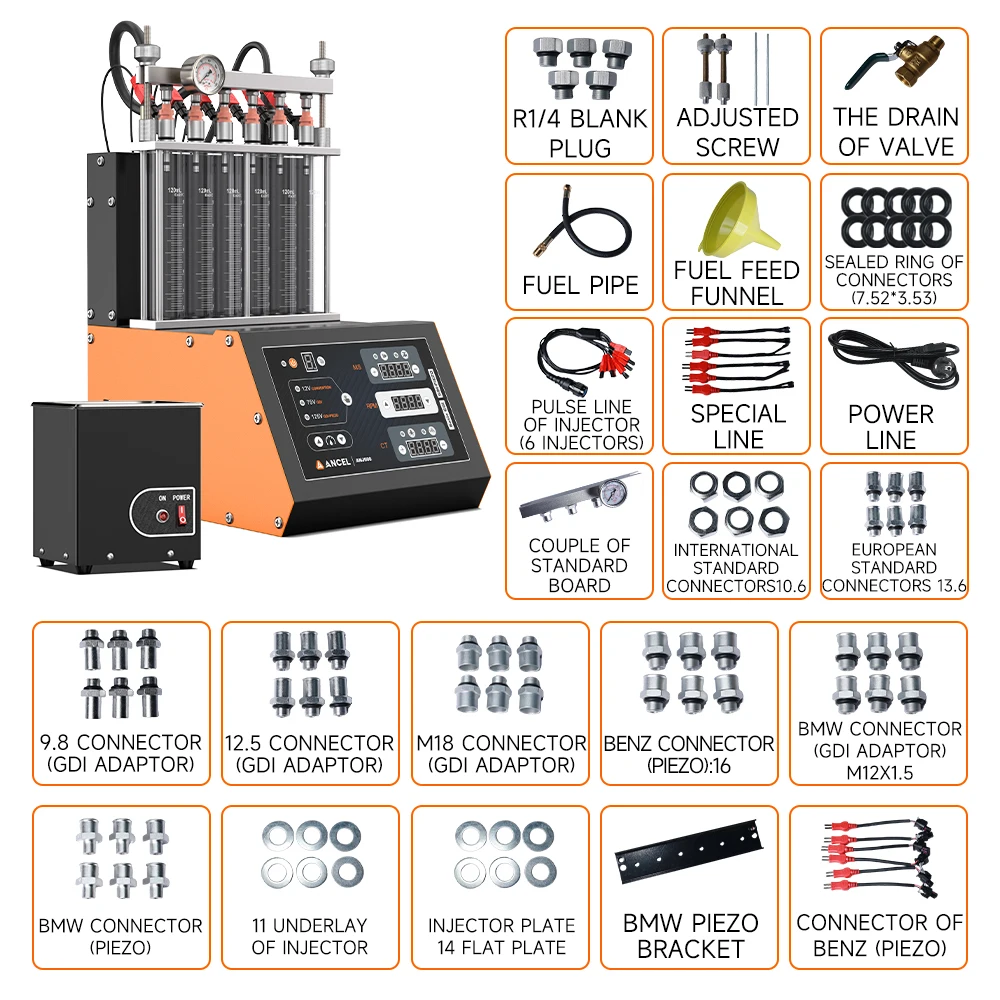

✅ANCEL ANJ600 GDI Piezo Package:
