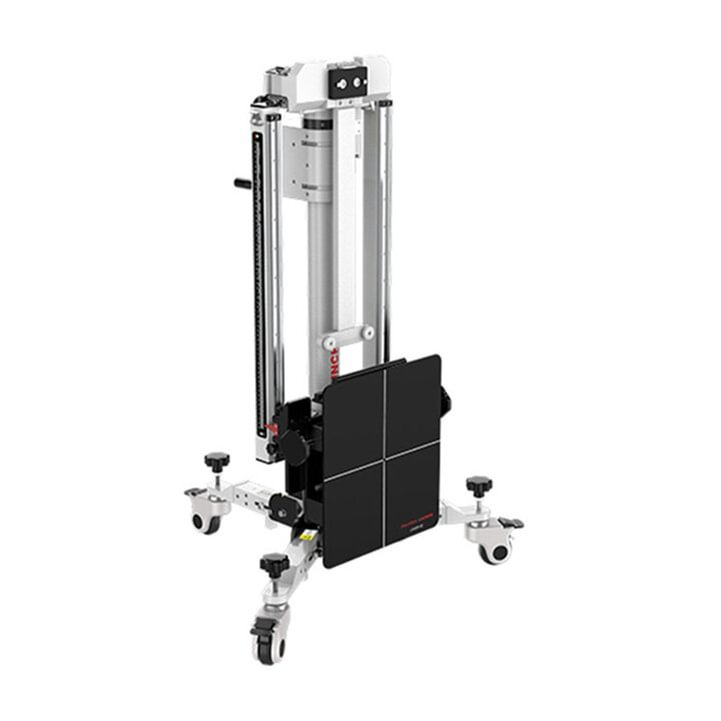

LAUNCH X431 Passenger Vehicle ADAS Mobile Radar Calibration Equipment

Note: When you place an order, it defaults to the basic version.  X431 ADAS Mobile has Basic version , Standard version and Premium version for selection

Launch X431 ADAS Mobile is a portable ADAS calibration tool for calibrating ADAS system and ideal for repair business to target new revenue stream. The unique fully foldable design can minimize the transporting risk, speed up the setup procedure and calibrate in various place. Features with 23-style manufacturer standard targets and advanced ADAS software X431 ADAS Mobile offer the one-stop calibration service.

Launch X431 ADAS Mobile Features:

• Start to calibrate in seconds, no more tedious work of disassembly and installation

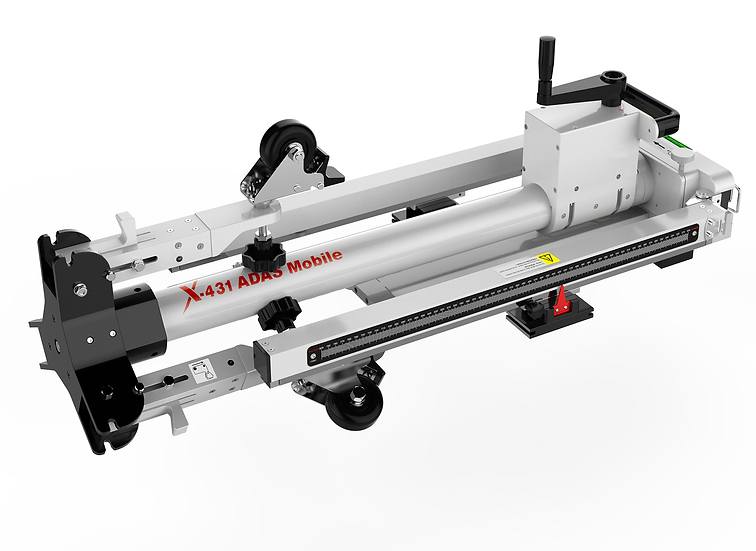

• Fully foldable design including completely flat folded base, close-fitting foldable arms and foldable crank handle

• Multi-functional base integrates 360°rotating wheels, wheel locks and fine-tuning height-adjustment to adapt to uneven ground

• Equilateral triangle design of the base ensures a stable frame

• Digital distance laser shows the cross-bar height and make sure it is equal to the standard value precisely

• Five line laser and fine-tuning switch help to easy center the device and parallel to the vehicle and offer high precision calibrating

• Special small target design makes it convenient to carry and store

• 23-style manufacturer standard targets provide one-stop calibration service

• Compatible with AVM/ RCW/ BSD Targets of Launch ADAS PRO

• Quick access to ADAS calibration by step-by-step tutorial graphics on LAUNCH X-431 diagnostic tools

•


Launch X431 ADAS Mobile Vehicle Model Coverage:

European

Mercedes-Benz, BMW, Audi, Volkswagen, Land Rover, Jaguar, Volvo, Fiat, Opel, Seat, Skoda, Renault, Citroen, Smart, Mini, Peugeot, Porsche, etc.

American

GM, Ford, Chrysler, Buick, Cadillac, Chevrolet, Dodge, Jeep, Lincoln, etc.

Asian

Kia, Hyundai, Toyota, Lexus, Honda, Acura, Nissan, lnfiniti, Mitsubishi, Subaru, Suzuki, Daihatsu, Mazda, etc.

Note: The vehicle coverage list is continuously updating. Please contact Launch dealer to get the latest coverage.

Launch X431 ADAS Mobile Included:

• QTY 1 Main Frame

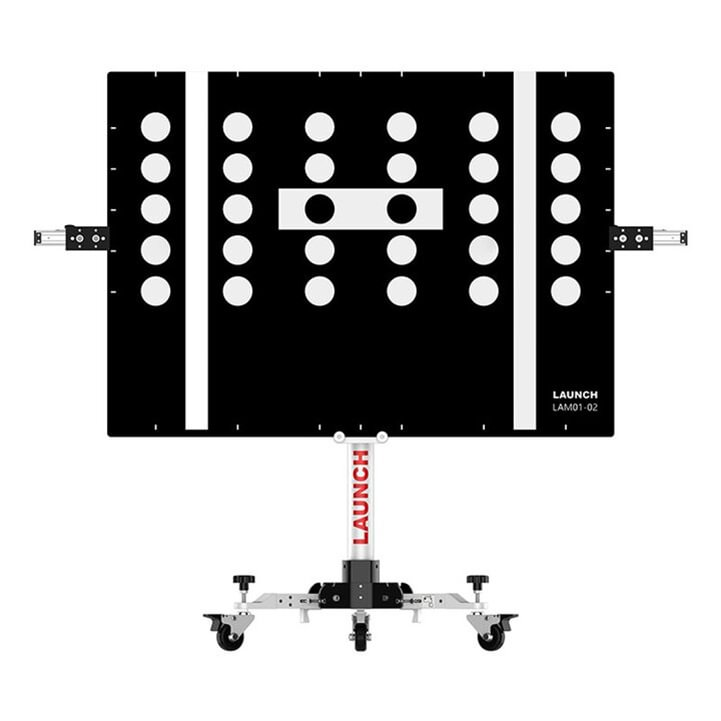

• QTY 1 LAM01-02, VW-LDW

• QTY 1 LAM01-04-L, Honda-LDW

• QTY 1 LAM01-04-R, Honda-LDW

• QTY 1 LAM01-06-1, Toyota-LDW

• QTY 1 LAM01-06-2, Toyota-LDW

• QTY 1 LAM01-06-3, Toyota-LDW

• QTY 1 LAM01-07-L, Nissan-LDW

• QTY 1 LAM01-07-L, Nissan-LDW

• QTY 1 LAM01-07-R, Nissan-LDW

• QTY 1 LAM01-10, Mazda-LDW

• QTY 1 LAM01-12-L, Nissan/Renault-LDW

• QTY 1 LAM01-12-R, Nissan/Renault-LDW

• QTY 1 LAC01-13, Hyundai-LDW

• QTY 1 LAM01-15, Subaru-LDW

• QTY 1 LAM01-16-L, Mazda-LDW

• QTY 1 LAM01-16-R, Mazda-LDW,

• QTY 1 LAM01-17, Honda-LDW

• QTY 1 LAM01-18-L, Suzuki-LDW

• QTY 1 LAM01-18-R, Suzuki-LDW

• QTY 1 LAM01-19-L, Mitsubishi -LDW

• QTY 1 LAM01-19-R, Mitsubishi-LDW

• QTY 1 LAM01-20, Honda-LDW

• QTY 1 Five Line Laser LAM09-01

• QTY 1 Cross Laser LAM09-02

• Optional - LAM01-11, Romeo-LDW

Launch X431 ADAS Mobile Accessories:

• QTY 1 Laser Reflector LAM09-03

• QTY 1 Auxiliary Mirror LAM09-04

• QTY 1 L-Type Positioning, Bracket LAM09-05

• QTY 1 Lead Hammer LAM09-06

• QTY 1 Targets Storage Bracket LAM09-07

• QTY 1 Target Extension Rod LAM09-08

• QTY 1 Target Extension Rod II LAM09-09

• QTY 1 Laser range finder
