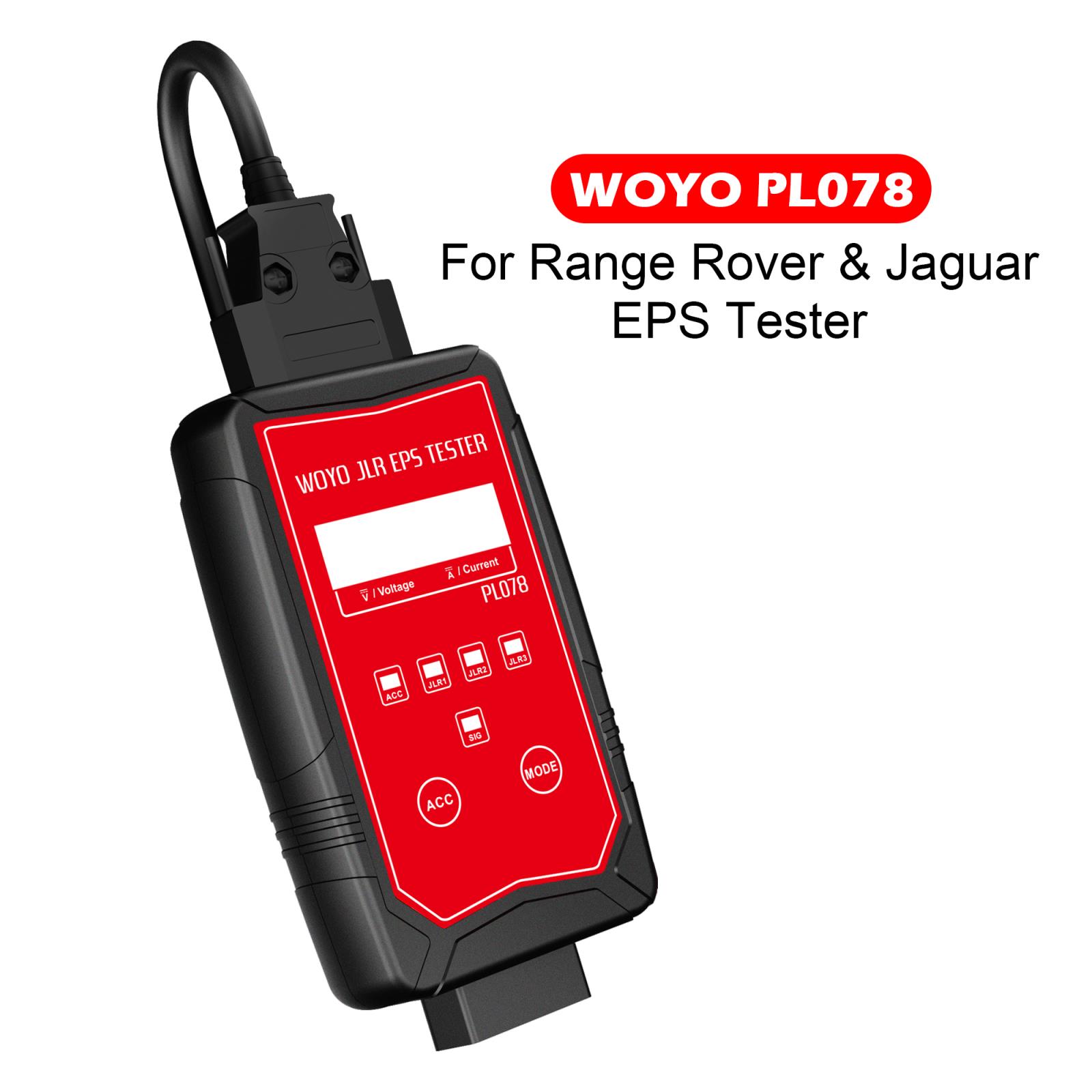

WOYO PL078 EPS Tester For Land Rover For Jaguar Steering Wheel Motor Detector On Bench CAN BUS Data Simulator

Note:

1.The product needs to use with torque sensor, if your EPS without torque sensor, you need to buy one.

2.Additionally, during the steering testing process, it's advisable to avoid extending to the maximum limit to reduce the risk of losing EPS computer board data.

How to use PLO78?

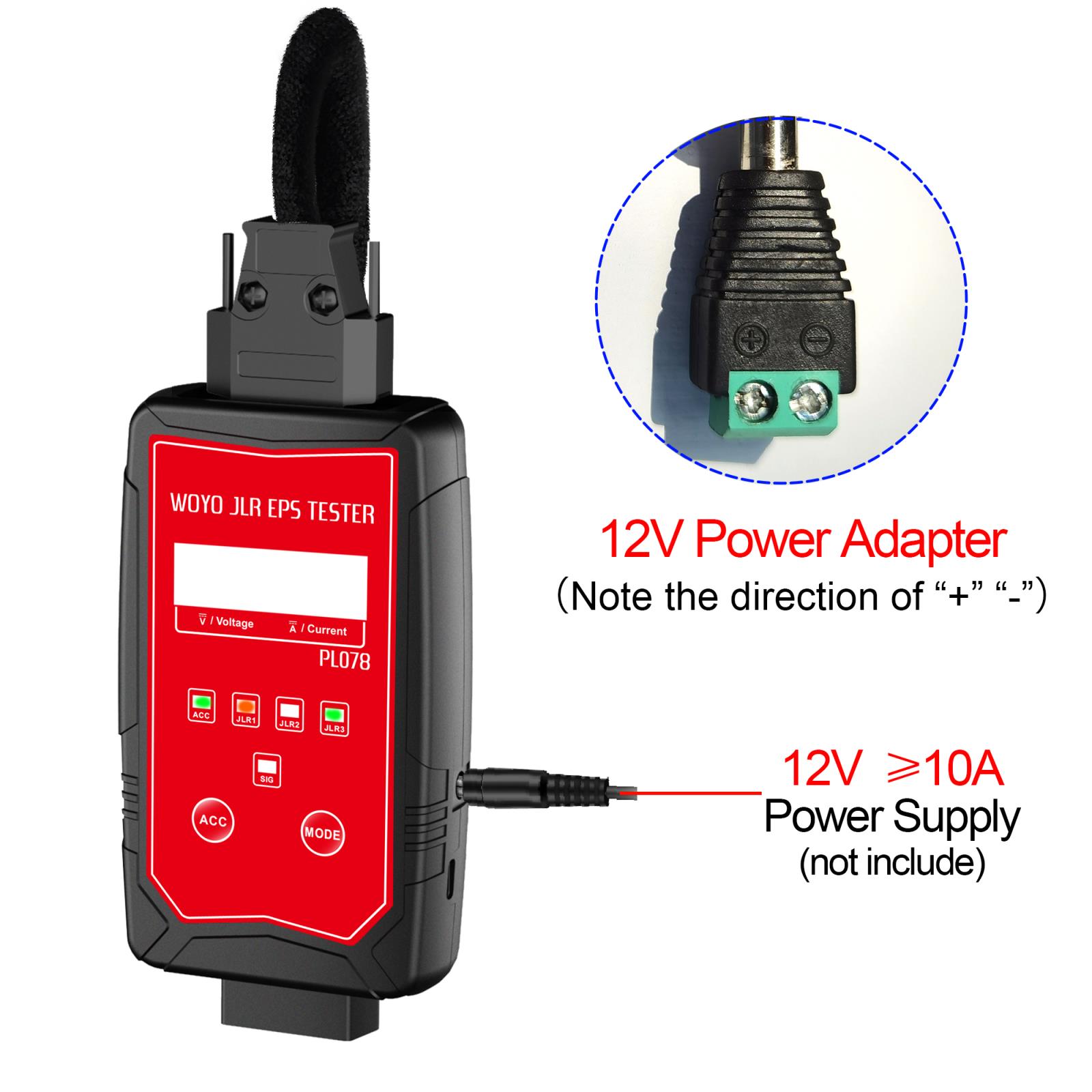

1.Connect to DC 12V 10A 5.5X2.1mm

2.Connect EPS,press (model), select the EPS model.

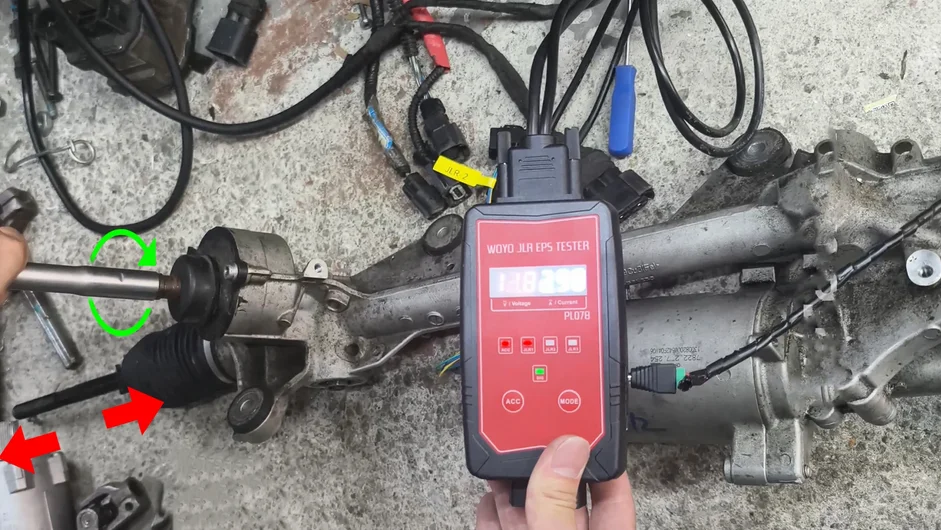

3.Manually rotate the torque of EPS to drive the EPS.

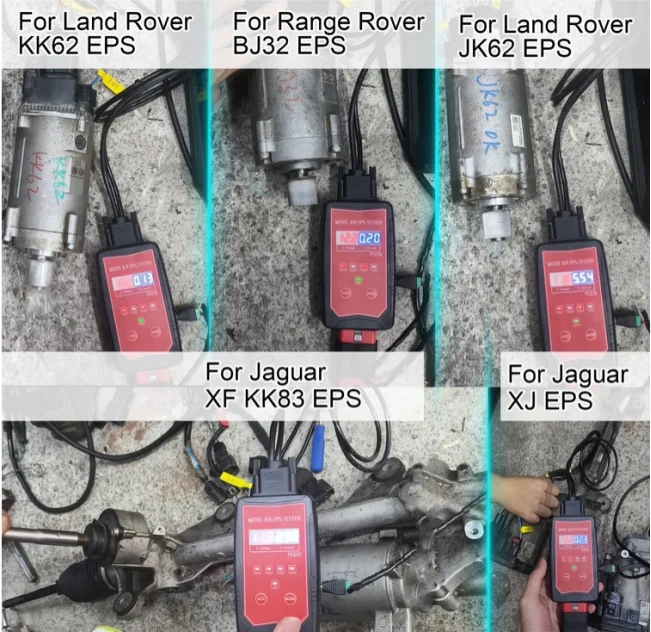

After you repair the Wheel Steering Motor, our product can be directly tested on the workbench to see if it works properly without the need to reinstall it in the car for repeated testing.

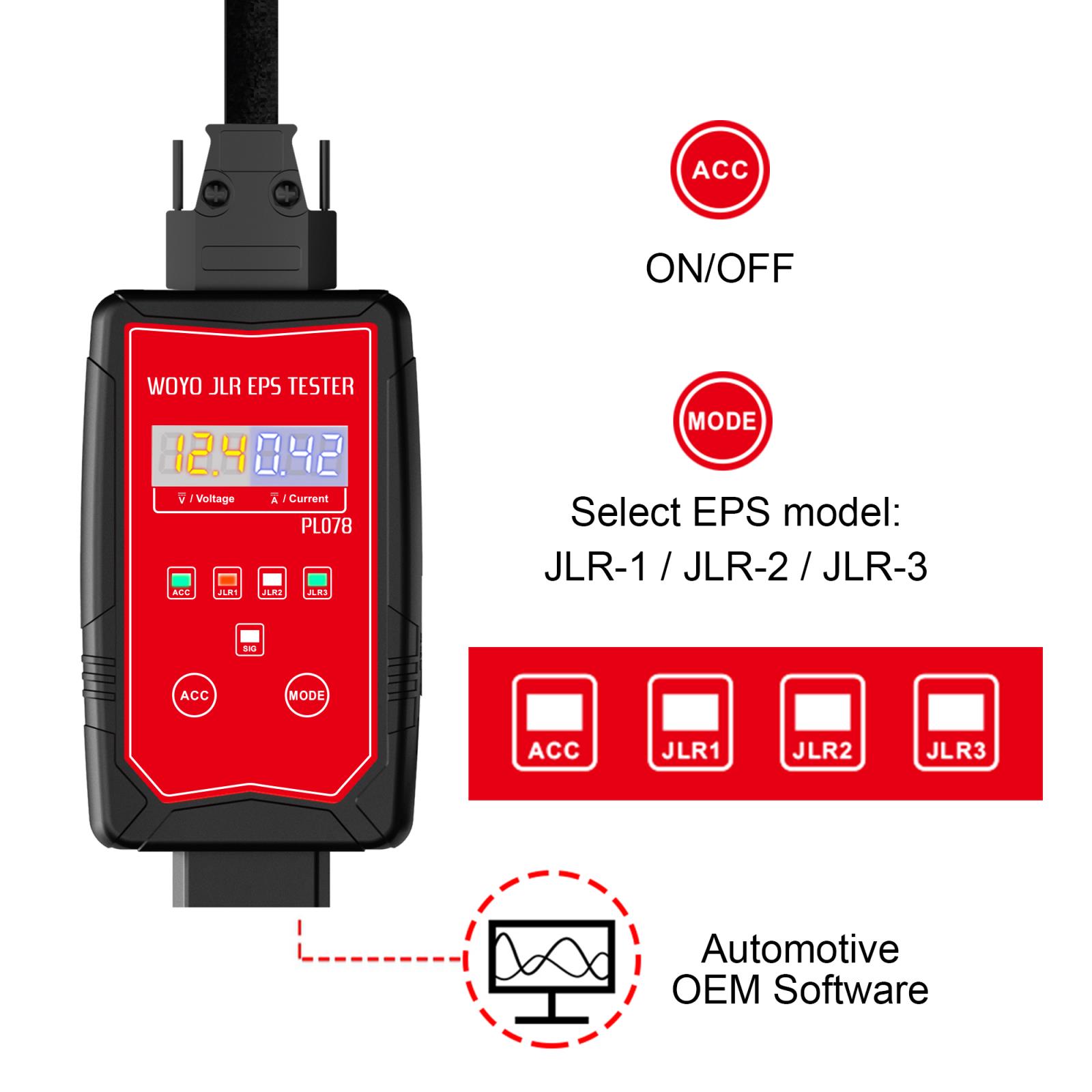

Operation:

Model: Select the model you want to test. ("JLR-1" "JLR-2""JLR-3")

ACC: Device ON/OFF

Power supply:12V 10A, we don't send with this cable.

Screen: Show work voltage or current of the tester.

Support to connect to other diagnostic scanner to check the real-time data for Wheel Steering Motor.

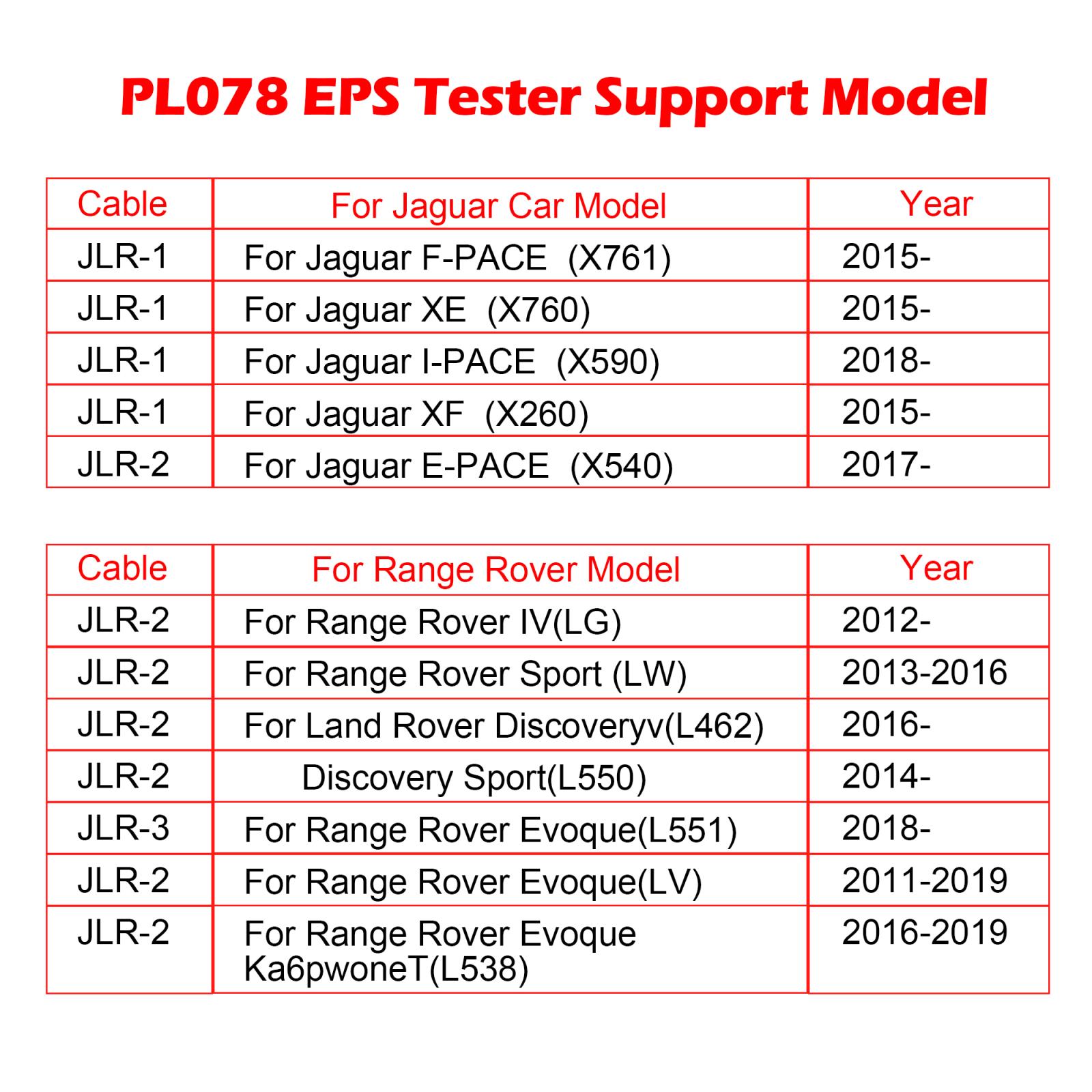

Support EPS Model:
