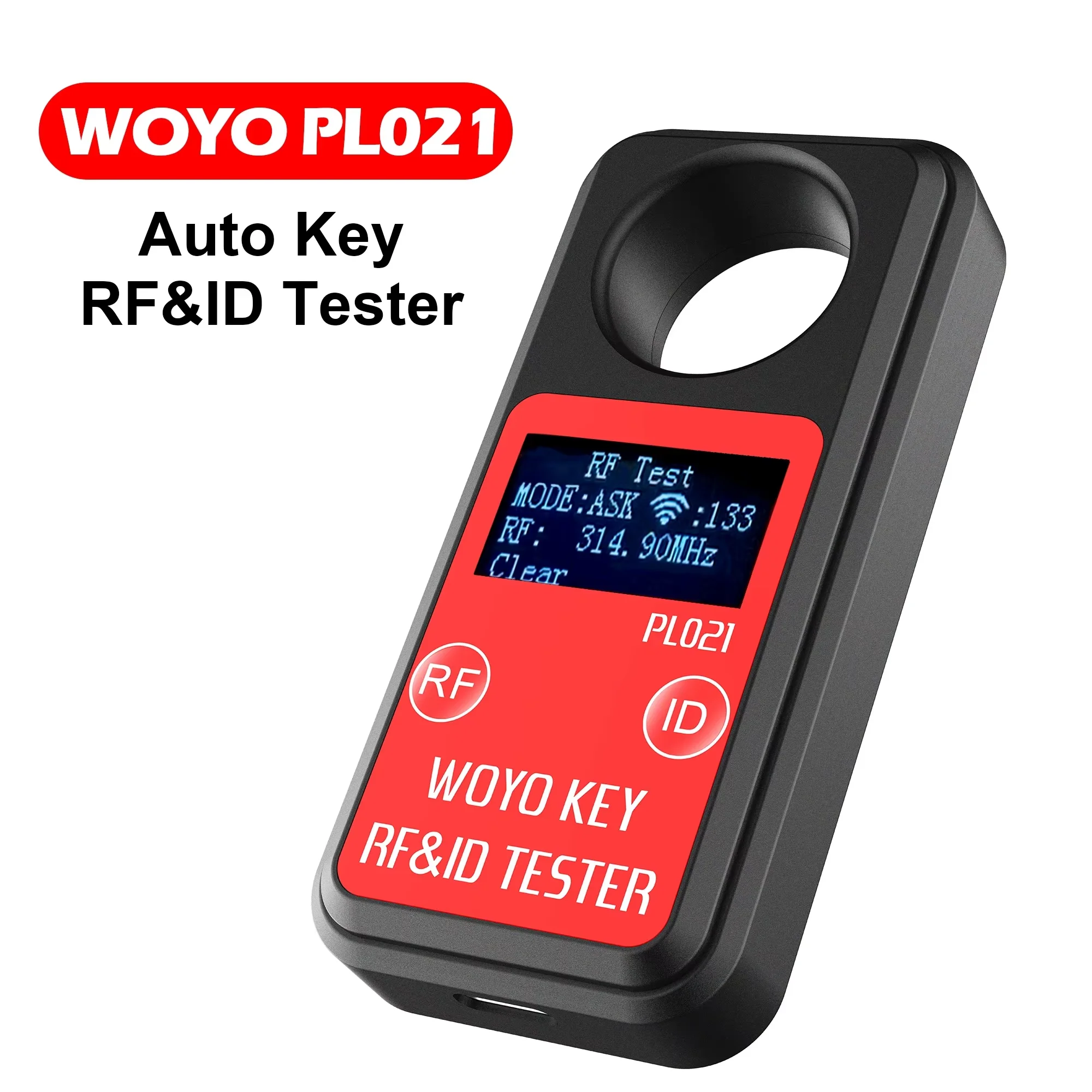

WOYO PL021 RF & ID Tester for All Car Key, 100-1000MHz Remote Detector, Test RSSI Value/ASK/FSK, Read ID&Type of Auto Key Chip

Model: PL021

Name: Radio Frequency Identifier Tester

Description:

Designed for testing both automotive and truck remote controls.

Simply place the remote key over the detection screen and press the corresponding button on the key.

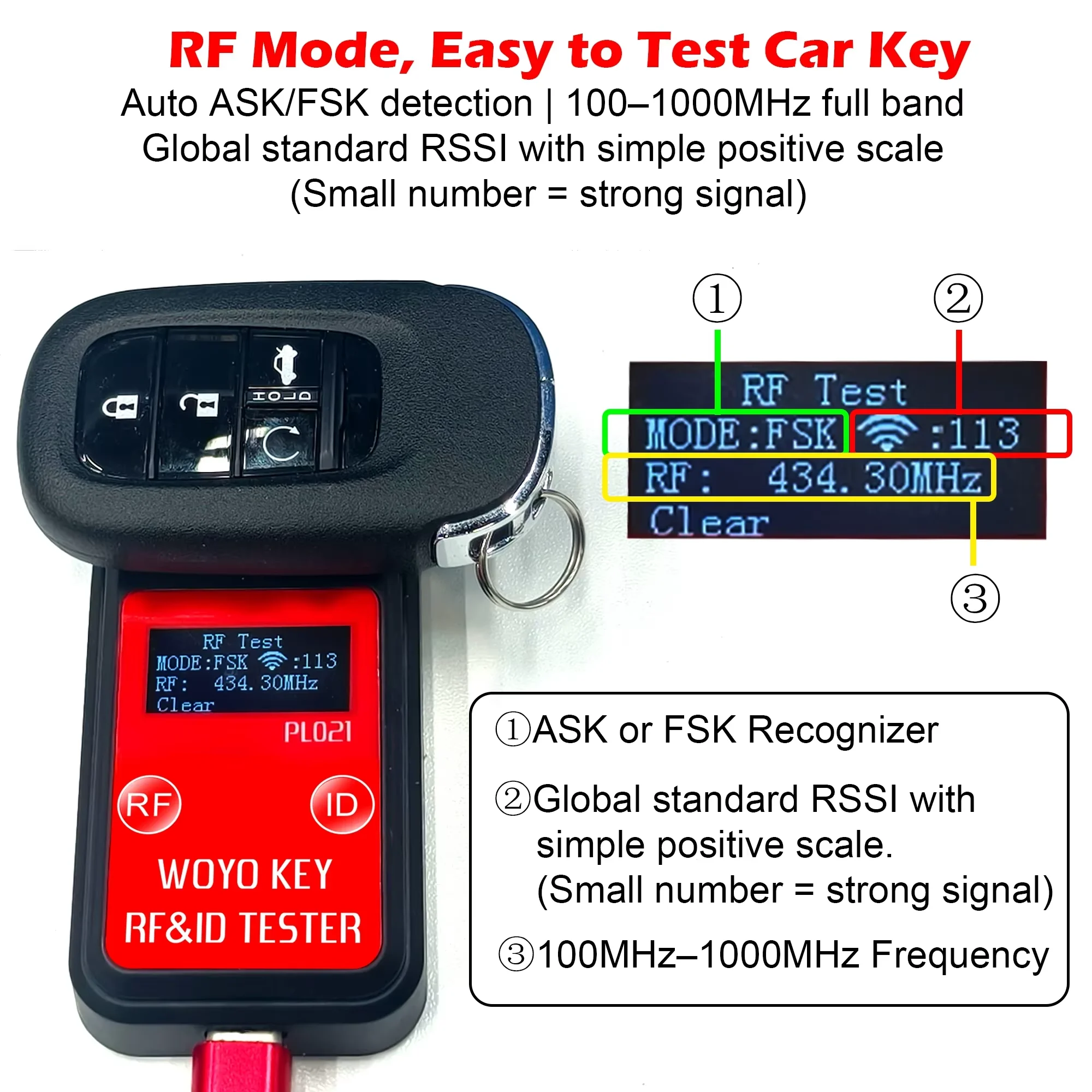

It will instantly transmit a signal to the WOYO Remote Tester, and the screen will display either the digital frequency or the transponder chip ID.

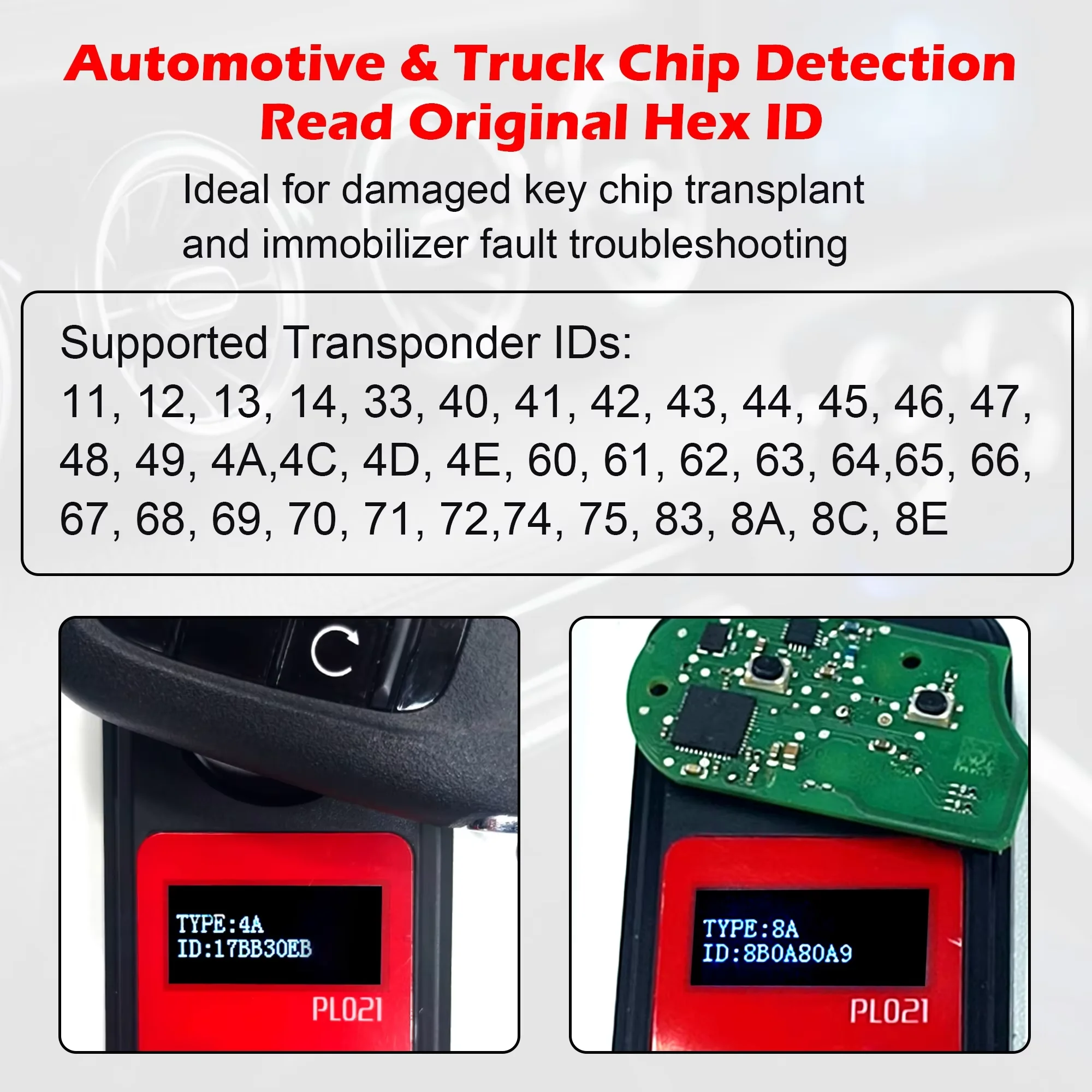

Supported Transponder IDs:

11, 12, 13, 14, 33, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 4A,

4C, 4D, 4E, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72,

74, 75, 83, 8A, 8C, 8E

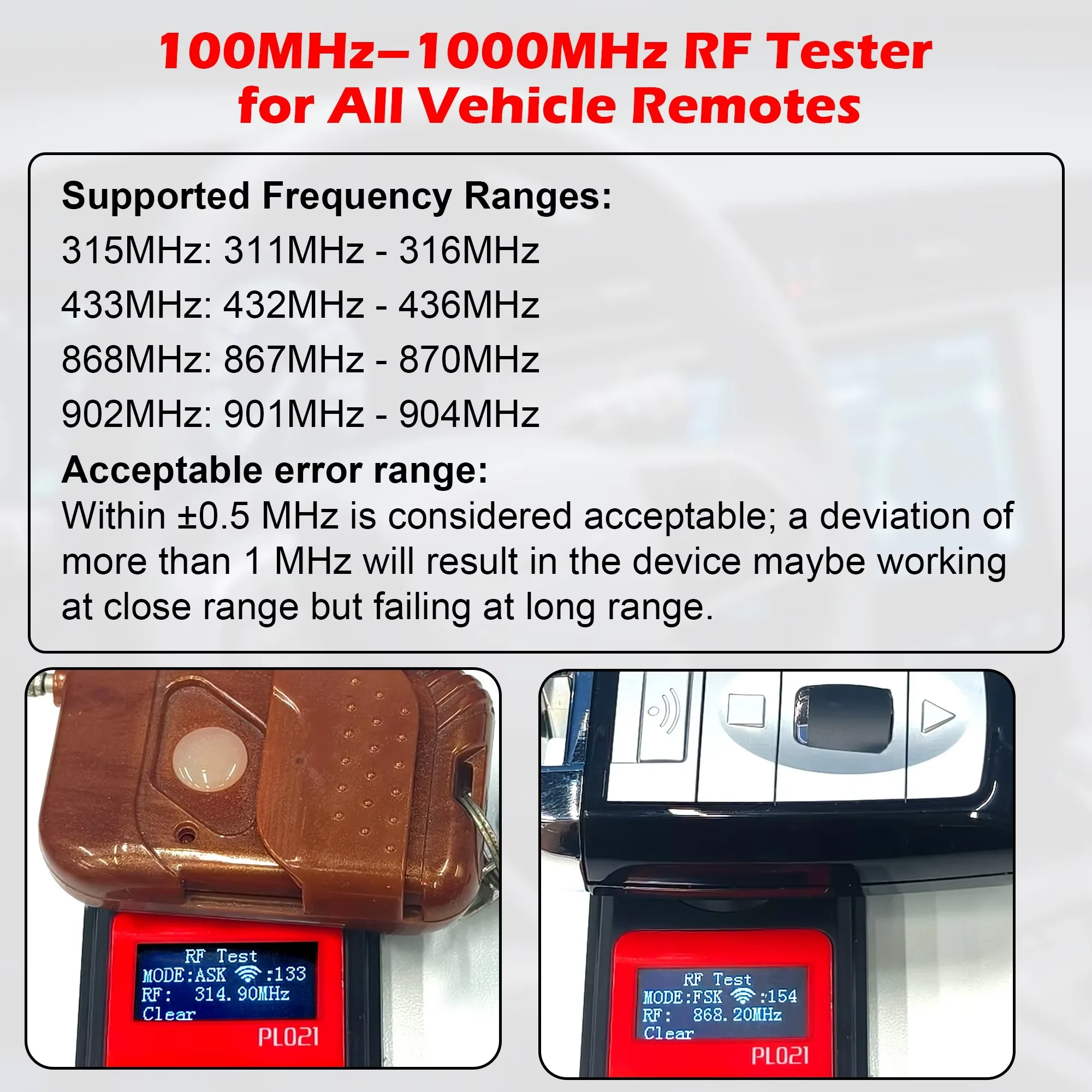

Supported Frequency Ranges:

315MHz: 311MHz - 316MHz

433MHz: 432MHz - 436MHz

868MHz: 867MHz - 870MHz

902MHz: 901MHz - 904MHz

Specifications:

Working Voltage/Current: 5V/100mA DC

Display: 0.96-inch OLED Screen
