Description:

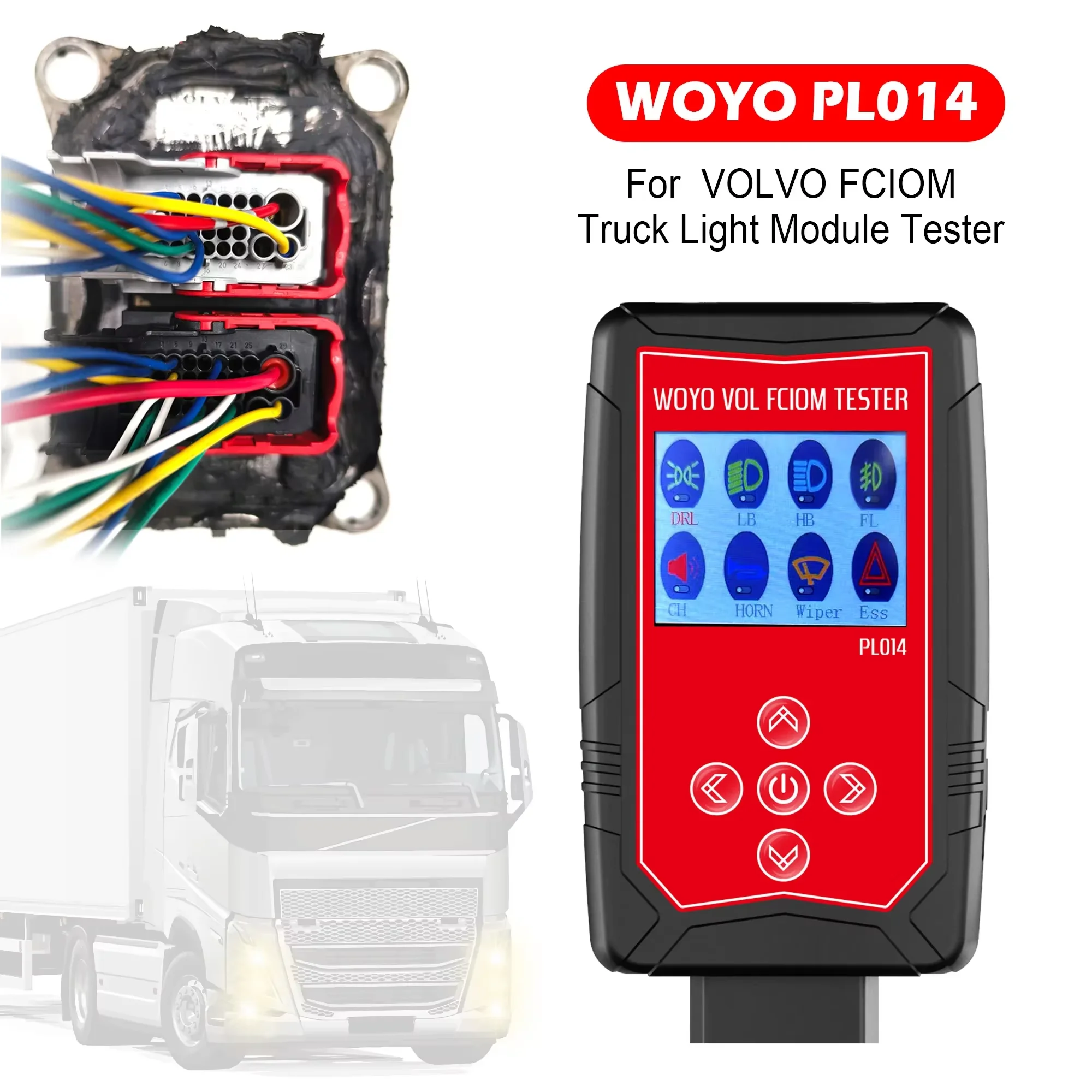

WOYO PL014 is ideal for engineers to verify the functionality of automotive electronic modules post-repair without the need to reinstall them into the vehicle. By using WOYO PL014 For  VOLVO FCIOM Front Camera Interface Onboard Module tester tool, engineers can accurately test and validate repaired modules in a simulated real-vehicle environment, significantly enhancing the efficiency and success rate of repairs. The Hardware In-the-Loop (HIL) testing method not only saves time but also substantially reduces the risk of subsequent issues due to inadequate testing. Specifically, for theVOLVO FCIOM Front Camera Interface Onboard Module, Bench Testing can confirm repair status effectively, avoiding repeated assembly and disassembly.

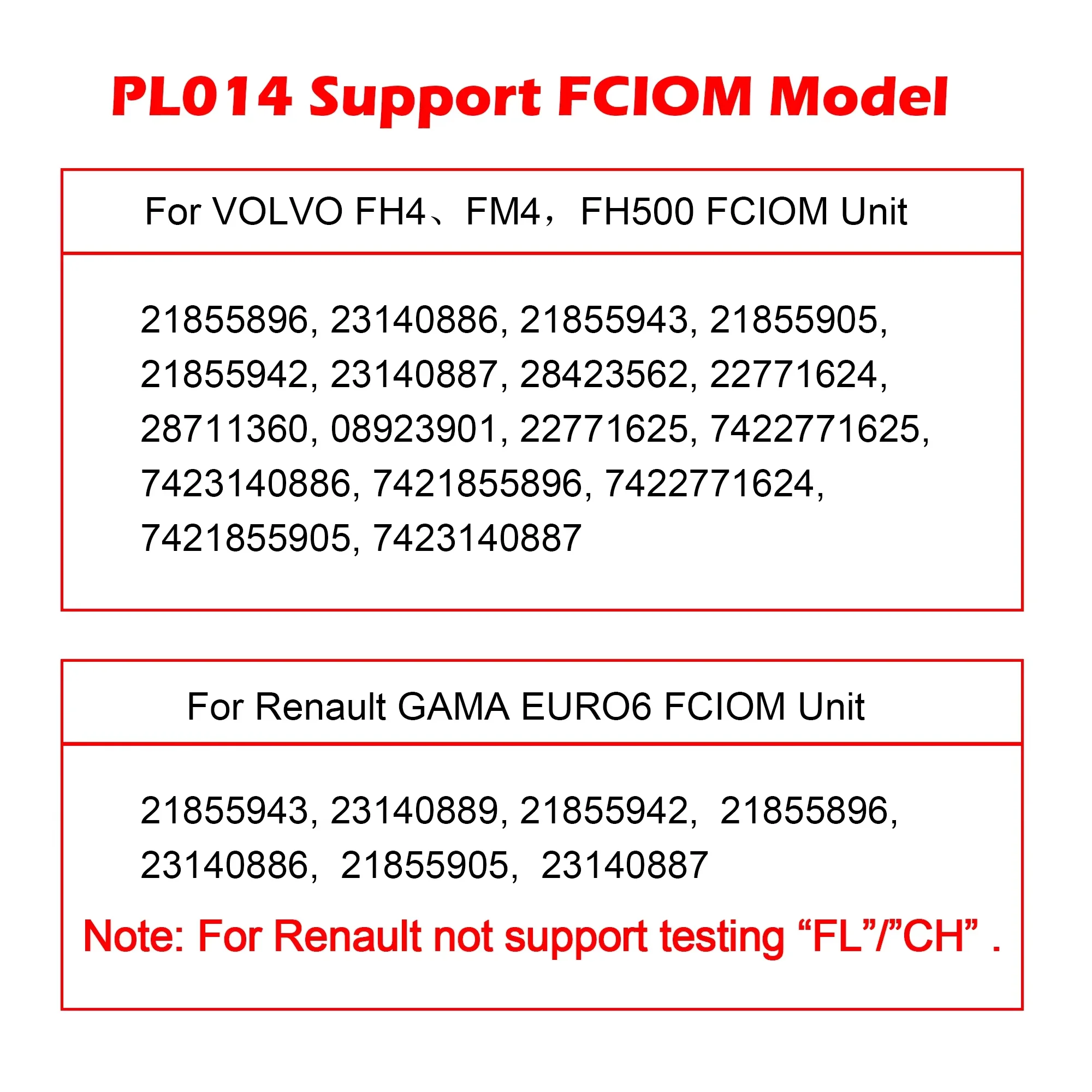

Suit for VOLVO FH4,FM4,FH500 FCIOM Control Unit:

Part Number: 21855896, 23140886, 21855943, 21855905, 21855942, 23140887, 28423562, 22771624, 28711360, 08923901, 22771625, 7422771625, 7423140886, 7421855896, 7422771624, 7421855905, 7423140887

Suit for Renault GAMA EURO6 FCIOM FCIOM Control Unit:

Part Number: 21855943, 23140889, 21855942, 21855943, 23140886, 21855905, 21855896, 23140887

Note: For Renault not support testing "FL"/"CH" .

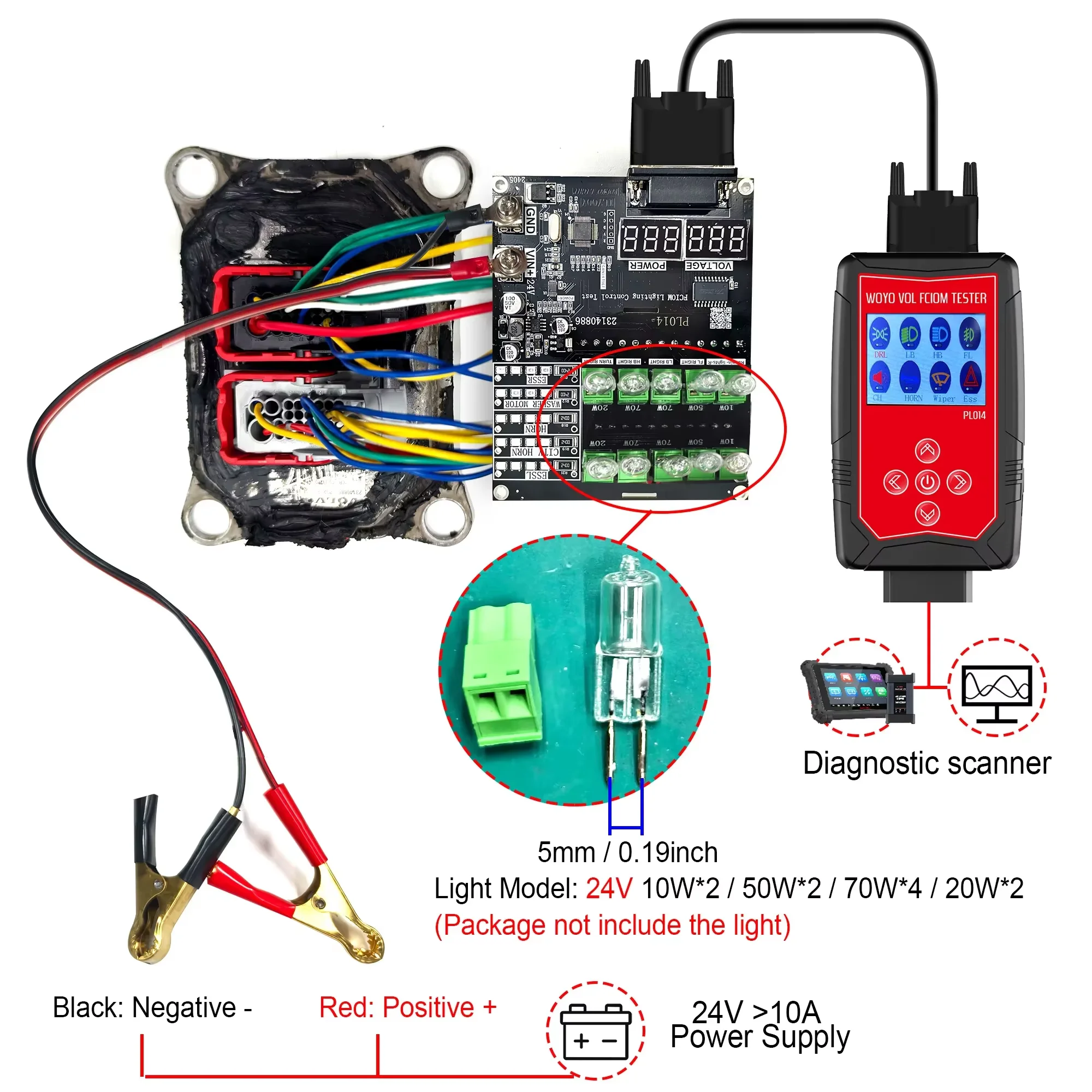

Power supply: 24V >10A

Light Model: Package not include

Note: PL014 connect to the diagnostic scanner, need to manually select the module model with year to clear the fault code or view the real time data.

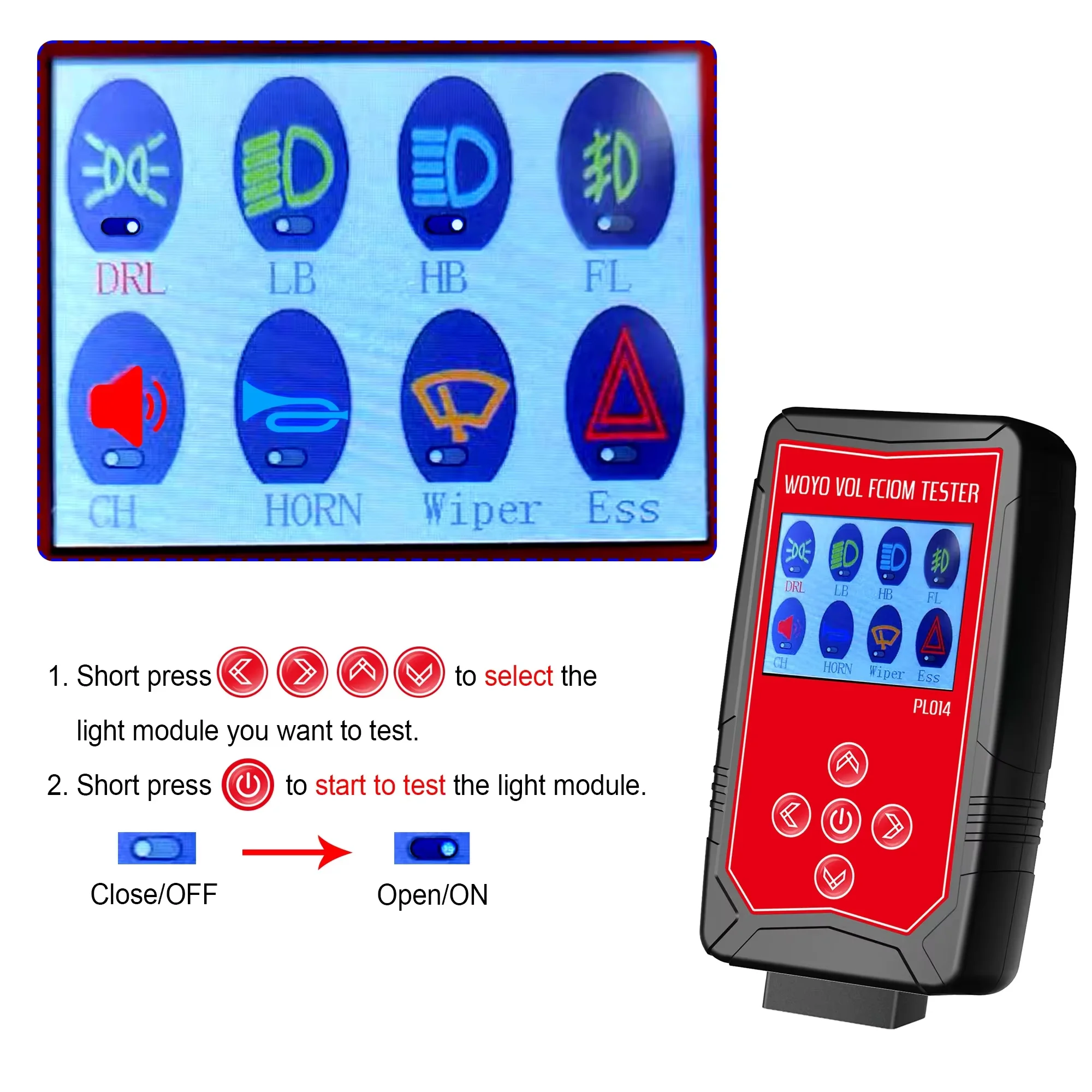

Test Function:

1.DRL Daytime Running Lights: Ensures the vehicle is visible during the day with low-intensity lights.

2.LB Low beams (dims) are the primary source of light and most frequently used lighting function.

3.HB  High beams (brights) are a secondary source of light used occasionally in low light environments such as on dark country roads.

4.FL Fog Lights: Controls the fog lights to improve visibility in foggy conditions.

5.CH City Horn: A specific horn mode designed for urban areas to alert pedestrians and other vehicles without being excessively loud.

6.Horn: The regular horn used in noisier environments or situations that require a stronger alert signal.

7.Wiper: Controls the windshield wipers for clear visibility in various weather conditions.

8.ESS Hazard Lights: Controls the hazard lights for emergency situations.

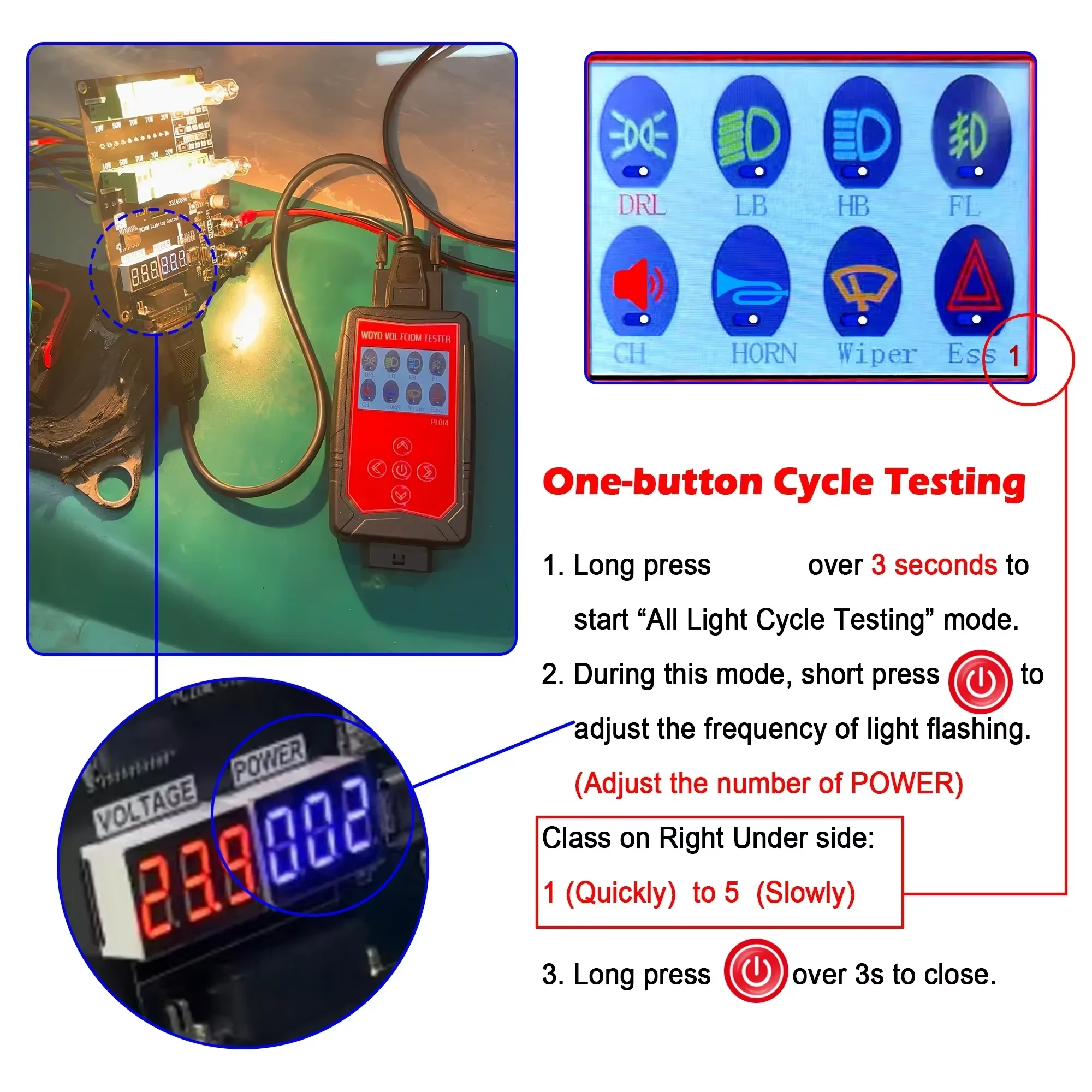

Long Press the Switch button to turn on Hardware In-the-Loop (HIL) Testing.

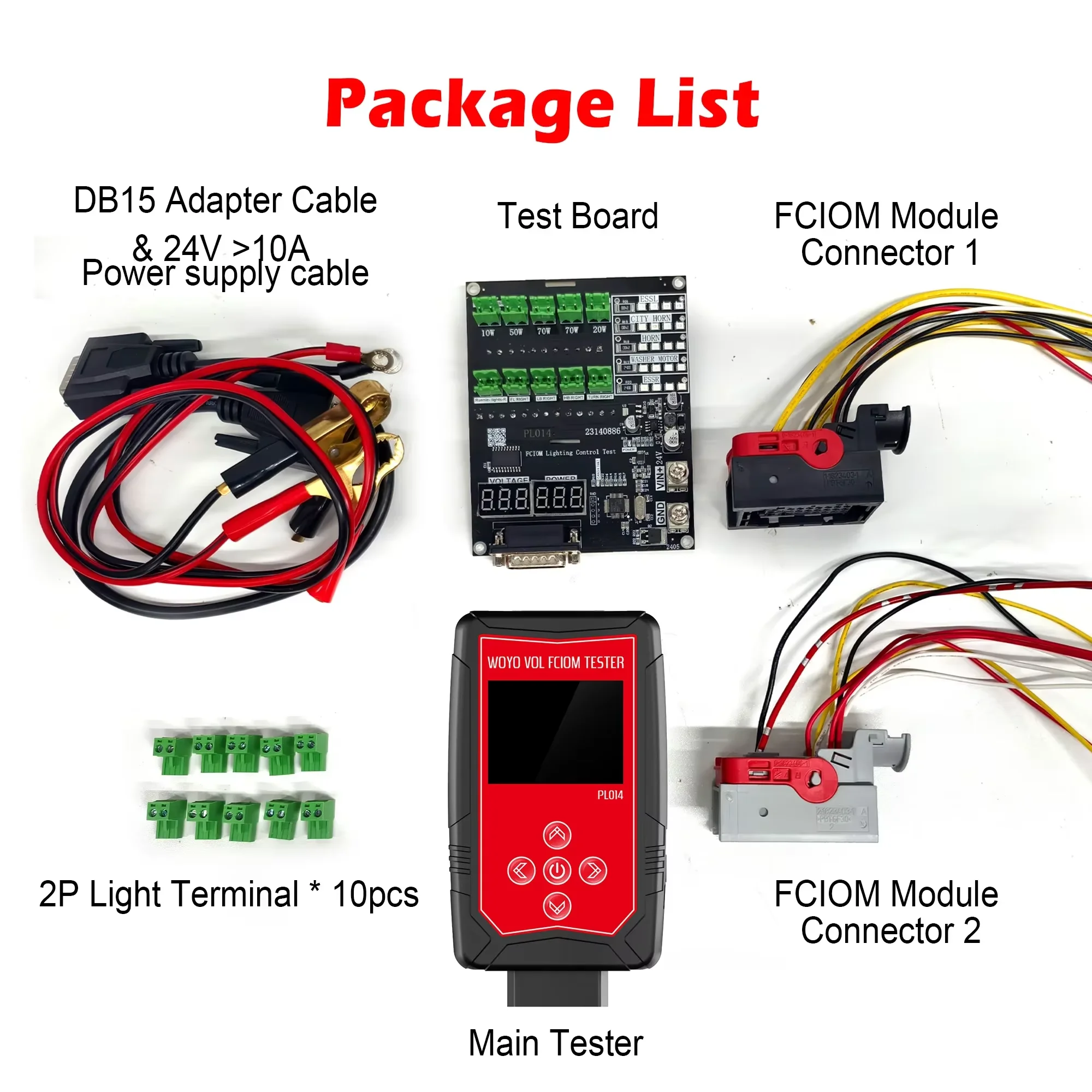

Packing List:

Main Tester*1

DB15 Cable *1
Connector *2
Power Supply Cable*1

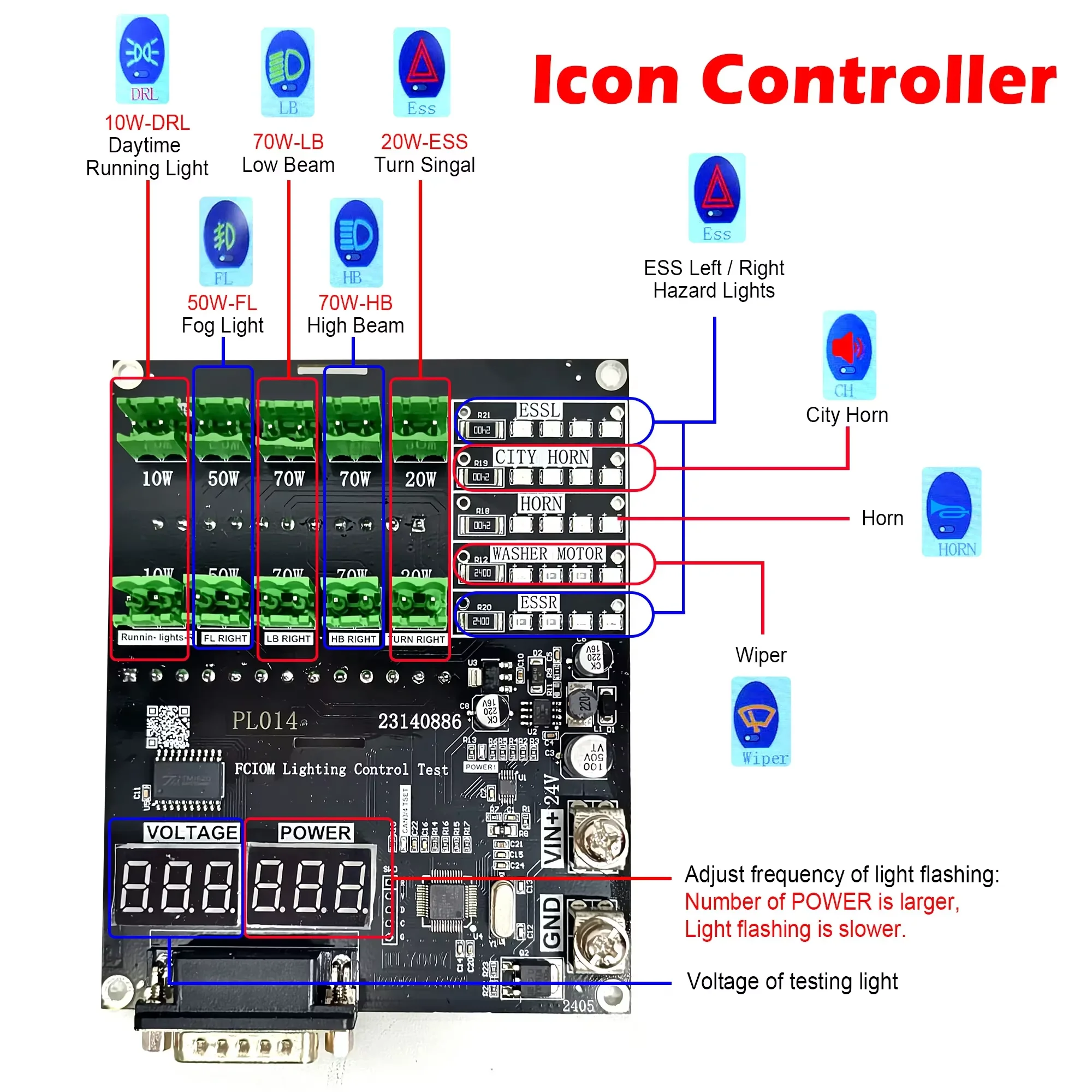

Test board*1
Terminal*10
