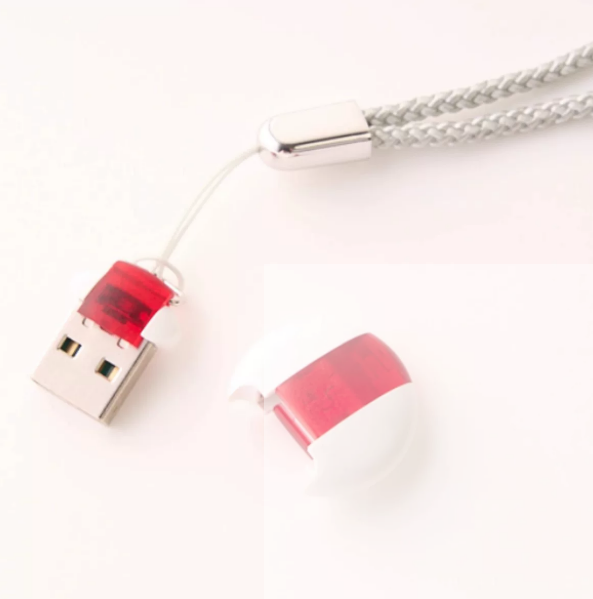

Bitedit USB Dongle (with Single Pre-activated Module) ECU Calibration Software Module Toyota Denso Petrol 2

Module Toyota Denso Petrol 2

Software module for editing calibrations Denso ECU of petrol Toyota | Lexus | Scion vehicles with petrol engines 2.0, 2.4, 2.5 and 2.7 litres with ECUs Denso 89661-xxxxx and MCU NEC 76F0038, 76F0039, 76F0040, 76F0070, 76F0085 inside.

For now we support following maps:

Air calculation: Calculated air load from requested torque, Mass air flow pulsations factor

Exhaust temperature model: Calculated exhaust temperature 1 in additional mode, Exhaust temperature offset for spark retardationExhaust temperature offset for vehicle speed, Maximal/Minimal exhaust temperature for engine protection

Fuel: enrichment: AFR value as stoichiometry, Coolant temperature to enable closed loop, Delay for enable closed loop, Enrichment for engine protection base, Enrichment for engine protection base, Enrichment for engine protection correction for full load, Enrichment for engine protection correction on retardation, Per cylinder enrichment multiplier, Throttle position threshold to enter full load, Throttle position threshold to exit from full load

Fuel: injector control: Injection time correction factor by load, Injector dead time, Minimal injection time, Minimal injection time when fault is stored, Minimal injection time when fault is stored

Limiters: Engine/Vehicle speed limitation

Sensors scaling: Intake air temperature correction factor for mass air flow, Mass air flow sensor scaling, Accelerator pedal sensor

Spark advance: Maximal/Minimal spark advance, Spark advance base, Spark advance high/low octane

Spark advance: corrections: Spark advance base correction by coolant temperature, Spark advance correction for VVT, Spark advance corrections high/low octane

Spark advance: knock: Coolant temperature threshold for retardation, Engine speed lower threshold for retardation, Engine speed lower threshold for retardation, Maximal spark advance retardation, Retardation recovery rate, Spark advance retardation amount

Spark advance: minimal: Coolant temperature threshold for minimal spark advance correction, Spark advance minimal base, Spark advance minimal temperature correction

Throttle valve control: Throttle valve maximal position, Throttle valve position limitation full load, Throttle valve position limitation low load, Accelerator pedal

Torque model: Optimal torque

VVT: Exhaust camshaft position base, Intake camshaft position at full load, Intake camshaft position at high throttle, Intake camshaft position at low throttle, Intake camshaft position base

DTC mask editor

Supported engines:

1ARFE
1AZFE
2ARFE
2AZFE
2TRFE
3ZRFE
3ZRFAE
4GRFSE
5GRFE etc

Supported SW list for Module Toyota Denso Petrol 2
