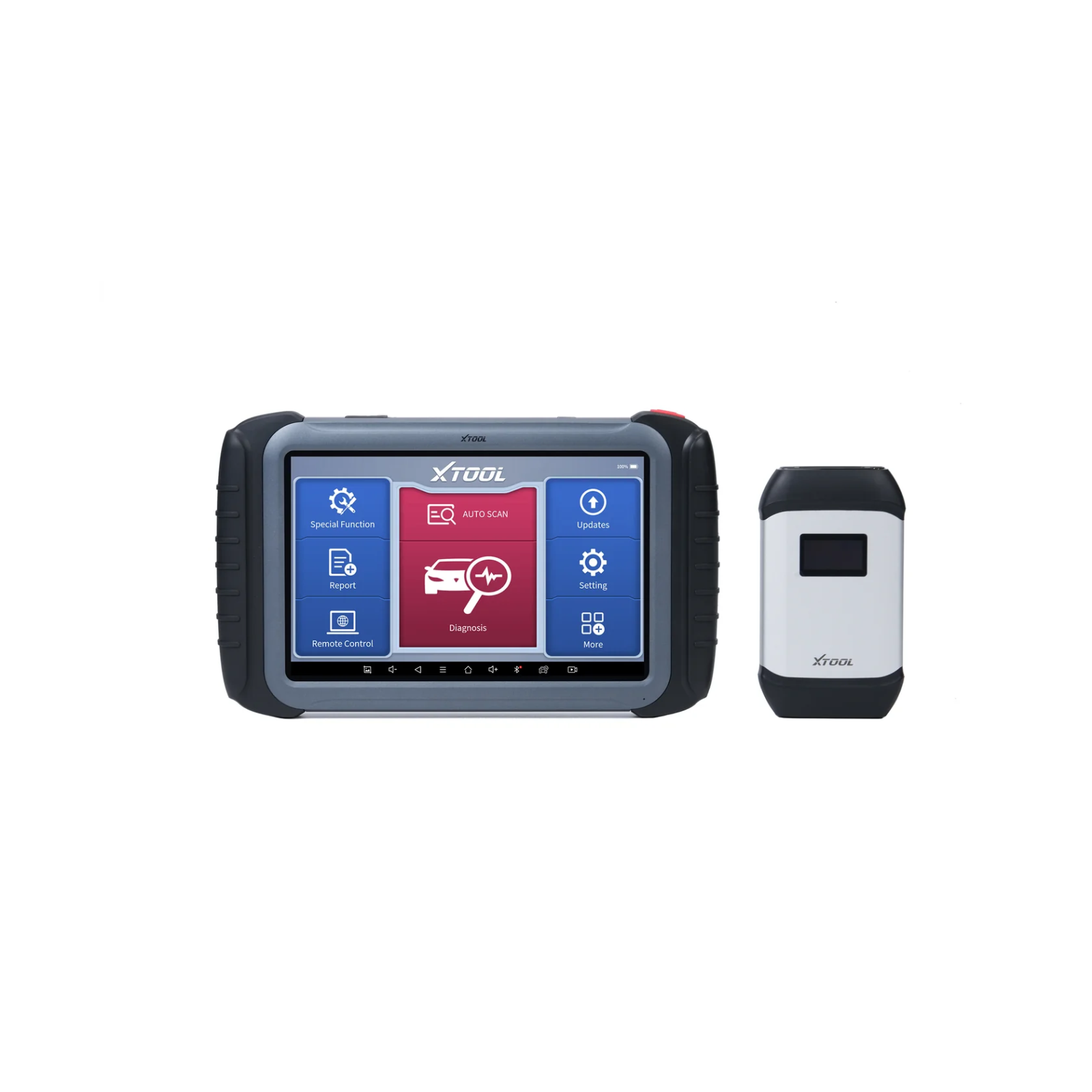

XTOOL H6PRO3 H6 PRO 3 Smart Diagnosis System Tablet 42 Resets Control Topology Mapping 3 Years Online Free Updates Support ECU Coding and Programming

Coverage includes U.S., European, Asian and Chinese electric, gas and diesel, and hybrid vehicles.Provides fault code guidance for VAG and BMW.Supports offline programming for Ford, Lincoln and Mazda; Online coding & programming for VAG BMW and Mercedes-Benz. Includes OBDI Connectors, and charging dock.

Description

• 10.1'Touchscreen (1920 x 1200) / Android 10.0

• 2.2GHz+1.8GHz Octa-core Processor /8+128GB Memory

• Dual Wi-Fi Connection

• 6400mAh - 6hrs Continuous Use / 8MP Rear Camera

• New VCI Protocols: DoIP/CAN FD

• Coverage includes U.S., European, Asian and Chinese electric, gas and diesel, and hybrid vehicles

• Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)

• Provides fault code guidance for VAG and BMW.

• Supports offline programming for Ford, Lincoln and Mazda; Online coding & programming for VAG BMW and Mercedes-Benz

• Perform ADAS Systems Calibrations for camera and radars

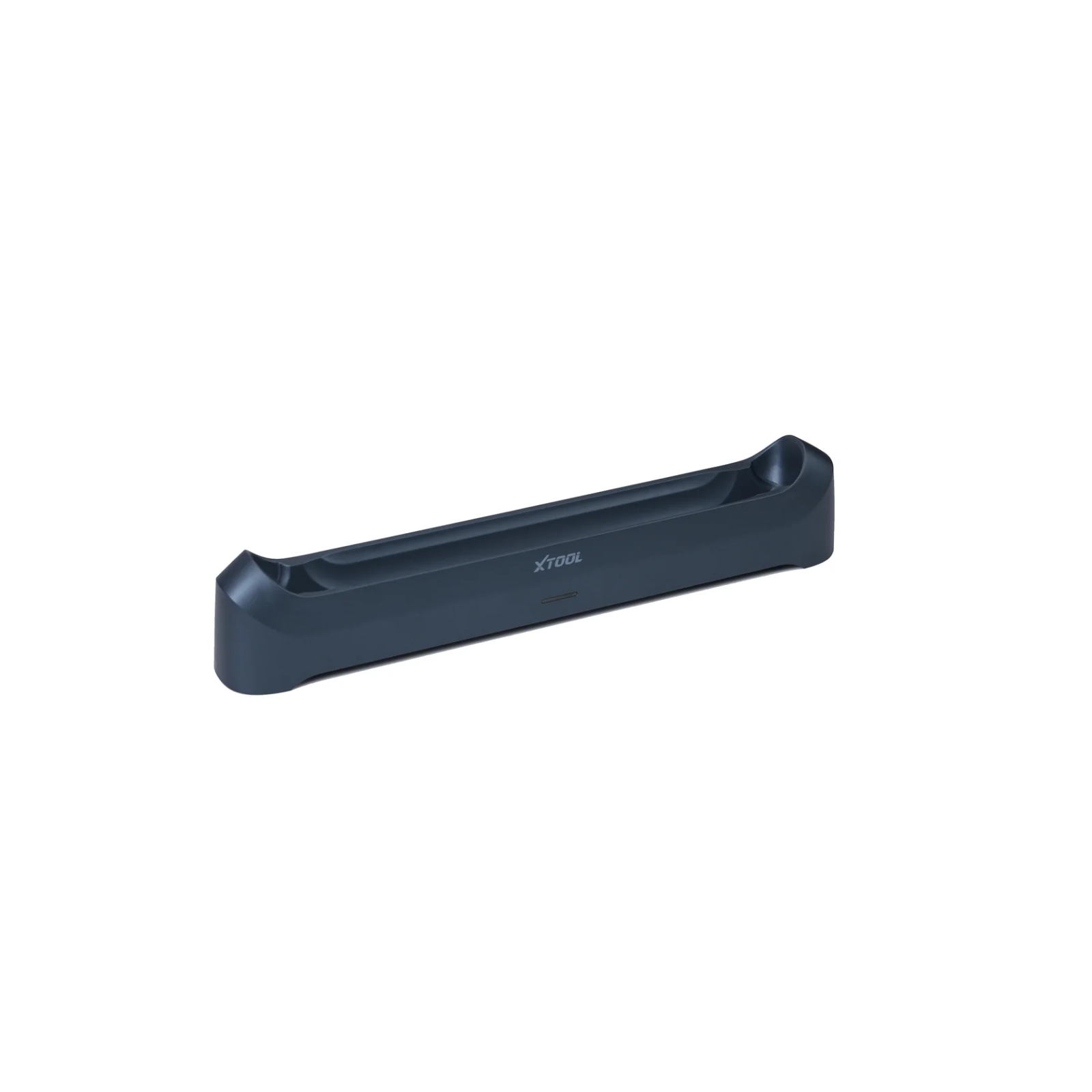

• Includes OBDI Connectors, and charging dock

• Enhanced Diagnostic Reports: PreSCAN & PostSCAN

• 2YR Warranty & 3 YR Software Subscription

Features

1. Full-System Diagnostic

• Perform OE-Level diagnosis on all available systems. Support ECU information, read and clear DTC, live data and freeze frame and special function under system menus

2. ECU Coding & Programming

• Provide fault code guidance for VAG and BMW. Supports offline programming for Ford, Lincoln and Mazda, Online coding and programming for VAG, BMW and Mercedes-Benz.

3. Topology Mapping Supported

• Provides a visual representation of the communication status of each system in the vehicle during automatic scanning.

4. 42 Maintenance Functions

• Include top popular maintenance functions, like ABS Bleeding, Key Programing, Injector Coding, Oil Reset, EPB, etc.

Comparison Between XTOOL H6 PRO3, H6W2 and H6E2

Parameters

Operating System:Android 10.0

Processor:2.2GHz+1.8GHz Octa-core Processor

Memory:8G+128G

Display:10.1-inch, 1920×1200P

Camera:8.0 Megapixel, AF with Flashlight

Auto Input/Output:Microphone, Speaker

Dimension (L×W×H)::309.2×188.9×34.9 mm

Communication Method:Wi-Fi, USB

Connectivity:Type-C

Working Voltage:9-36V

Battery:6400 mAh, 7.2V

Working Temperature:0 to 40℃

Storage Temperature:-40 to 60℃

Compatible Protocol:CANFD, DoIP

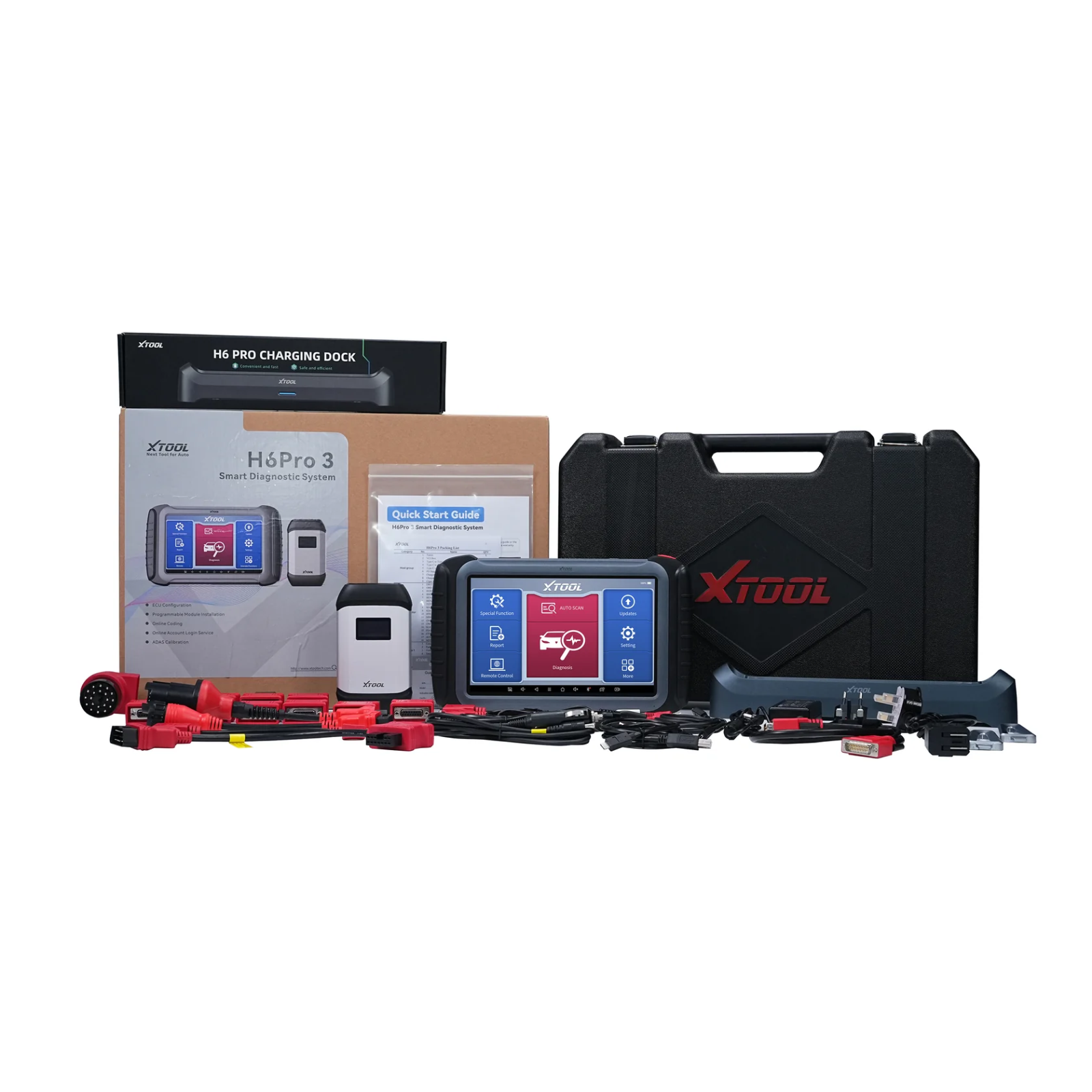

PACKING LIST

Accessories:

Color Carton

Packing List

Certificate of Quality

Tool Case

Quick Start Guide

Main Units:

Tablet

VCI Box

Type C to Type-A Data Cable

Type C to Type-B Data Cable

Type C to Type-C Charger Cable

PD Supply Charging Adapter US

Charging Adapter EU

Charging Adapter UK

Cigar Lighter Power Plug

Test Connectors:

DB15 Main Cable

OBD II-16

HONDA-3

BMW-20

BENZ-14

BENZ-38

TOYOTA-17

MAZDA-17R

KIA-20

HYUNDAI/KIA-10

NISSAN-14

GM/DAEWOO-12

UNIVERSAL-3

SUZUKI-3

FIAT-3

CITROEN-2

AUDI-4

MITSUBISHI-12+16
