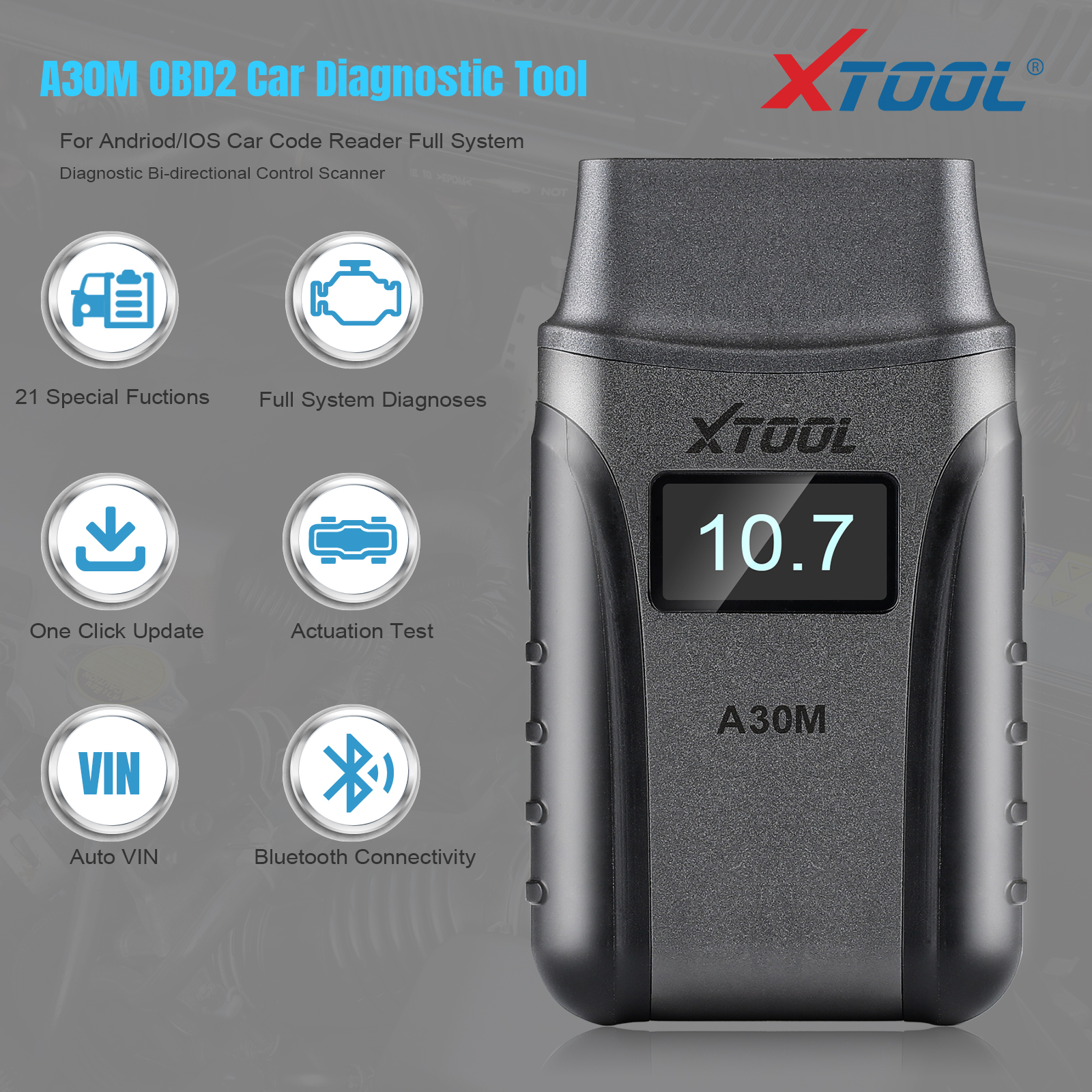

XTOOL Anyscan A30M OBD2 Car Diagnostic Tools With Andriods/IOS Car Code Reader

Product Features

1. Ability to quickly Read and Clear codes in ALL modules for European, Asian, and Domestic vehicles 1996-present

2. One button Auto-Scan reads codes in ALL modules and displays them on the Phone

3. Quick Erase feature allows all codes to be cleared with the push of a button

4. Live data graphing for the ECU

5. One tool to do it all. Reads and clears trouble codes on engine, transmission , airbag, and ABS failures

6. Global OBD II coverage (US, Asian, & European)

7. Turns off engine, transmission, ABS, and airbag warning lights for most USA Domestic, Asian, and European vehicles

8. Supports all 10 test modes of the latest J1979 OBD II test specs, including Read Codes,Erase codes, Live Data, Freeze Frame, I/M Readiness, O2 Monitor Test, On-Board Monitor Test, Component Test, and Vehicle Information

9. Enhanced OBD II Mode 6

10. OBD II code tips guide technicians to the root cause of trouble codes faster

11. Data graphing

12. View freeze frame data

13. USB cable included for product updates

14. FREE software updates and upgrades included

To diagnose car comprehensively, XTOOL A30M scanner can read DTCs and data streams, perform active test, Coding for ALL systems.

For instance: Engines/Auto Transmission/Airbags/Immobilizer/Key Coding/ABS/Cruise Control/Instruments/ Self Leveling Suspension systems/Seats/Doors/Gateway/Steering Angle/Air Suspension/Body Systems/Electronic Power Steering & Motor Assisted/Power Steering/Tyre Pressure/Rain Sensors/4WD System/Stabilizer/Intelligent Parking Assist/Door Motors/Audio Systems/Air Conditioning/Tiptronic/Anti Theft/Soft Top/Headlamp Leveling/Central Locking/Automatic Clutch/ DPF Reset/Electric Windows/Plip Programming/Heated Rear Window/Xenon Headlights/Wash Wipe/Fuel Burning Heater/Transfer Box/Seat Memory/Oil Life Service Reset/Sliding Doors/Electronic Throttle/Navigation System/Rollover Sensor/Cruise Control/ Multi Function Steering Wheel/Aux Heating/Electronic Parking Brake/Clutch Electronics, ....etc.

Service/Maintenance Light Reset:The lightening of the car maintenance light indicates that the vehicle needs maintenance.Reset the mileage or driving time to zero after the maintenance, so the maintenance light will go out and the system

EPB Reset:This function has a multitude of usages to maintain the electronic braking system safely and effectively. The applications include deactivating and activating the brake control system, assisting with brake fluid control opening and closing brake pads, and setting brakes after disc or pad replacement, etc

SAS Adjust:To reset the steering angle, first find the relative zero point position for the car to drive in straight line.Taking this position as reference,the ECU can calculate the accurate angle for left and right steering.

DPF Regeneration:DPF regeneration is used to clear PM(Particulate Matter) from the DPF filter through continuous combustion oxidation mode (such as high temperature heating combustion, fuel additive or catalyst reduce PM ignition combustion) to stabilize the filter performance

Injector Coding:Write injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder so as to more accurately control or correct cylinder injection quantity

ABS Bleeding:When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity

Gear learning: After the engine ECu, crankshaft position sensor,or crankshaft flywheel is replaced, or the DTC 'gear not learned' is present, gear learning must be performed.

BMS Reset:The BMS (Battery Management System) allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle

Gearbox Match:When the gearbox is disassembled or repaired (the car battery is powered off), it will cause the shift delay. In this case, you need to perform this operation so that the gearbox can automatically compensate according to the driving situation to achieve better shift quality

SRS Reset:This function resets the airbag data to clear the airbag collision fault indicator

TPMS Reset:This function allows you to quickly look up the tire sensor IDs from the vehicle’s ECU, as well as to perform TPMS replacement and sensor test

Air Suspension:This function can adjust the height of the body. When replacing the body height sensor in the air sus pension system, or control module or when the vehicle level is incorrect, you need to perform thisfunction to adjust the body height sensor for level calibration

Throttle Relearn:Elec. Throttle Adaption is to utilize the car decoder to initialize the throttle actuator so that the learning value of the ECU returns to the initial state.

Headlight Adjustment:This feature is used to initialize the adaptive headlamp system.

Tire Refit:This function is used to set the size parameters of the modified or replaced tire.

Window Initialization:This feature is designed to perform door window matching to recover ECU initial memory, and recover the automatic ascending and descending function of power window

Electronic Water Pump Activation:Use this function to activate the electronic water pump before venting the cooling system.

Seat Matching:This function is applied to match the seats with memory function that are replaced and repaired

Disable Transport mode:ln order to reduce power consumption, the following functions may be disabled, including limiting the vehicle speed, not waking up the door opening network, and disabling the remote control key, etc.At this time, the transport mode needs to be deactivated to restore the vehicle to normal.

Cylinder matching:This function is to balance the cylinder power of the car.

This scanner supports all 10 test modes for OBD-II cars which are great for daily repair work. The table below describes the purpose of each mode of operation:

1.Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)

2.Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors.

3.Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

4.I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

5.Read Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

6.View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

7.O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.

8.On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.

9.Read Vehicle Information:Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

10.Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability

A30M auto read the Car VIN code via the OBD2 , can works for active test once your car get any problems

A30M Support multi-Language

German, Spanish. French, Italian, English, Polish, Portuguese, Russian

(if you need change language please provide the serial number on the A30 ,we will change language for you in 24 hours)

Diagnostic Models:

Vehicle Health Report Share and Print

With XTOOL A30M ,you can generate a full system Diagnostic Report by ONE-CLICK. The reports can be emailed to the office or directly to your customer. You can also print out the vehicle health report card .

A30M Get Free update online
here with the Teamview in the Tablet can support remote Technical support ,A30M with the Live date Save the date you need works

Parameter:
