Tools You Need:

XTOOL Tablet (Take X100PAD Elite as example)

Main Cable & OBD2-16 Connector

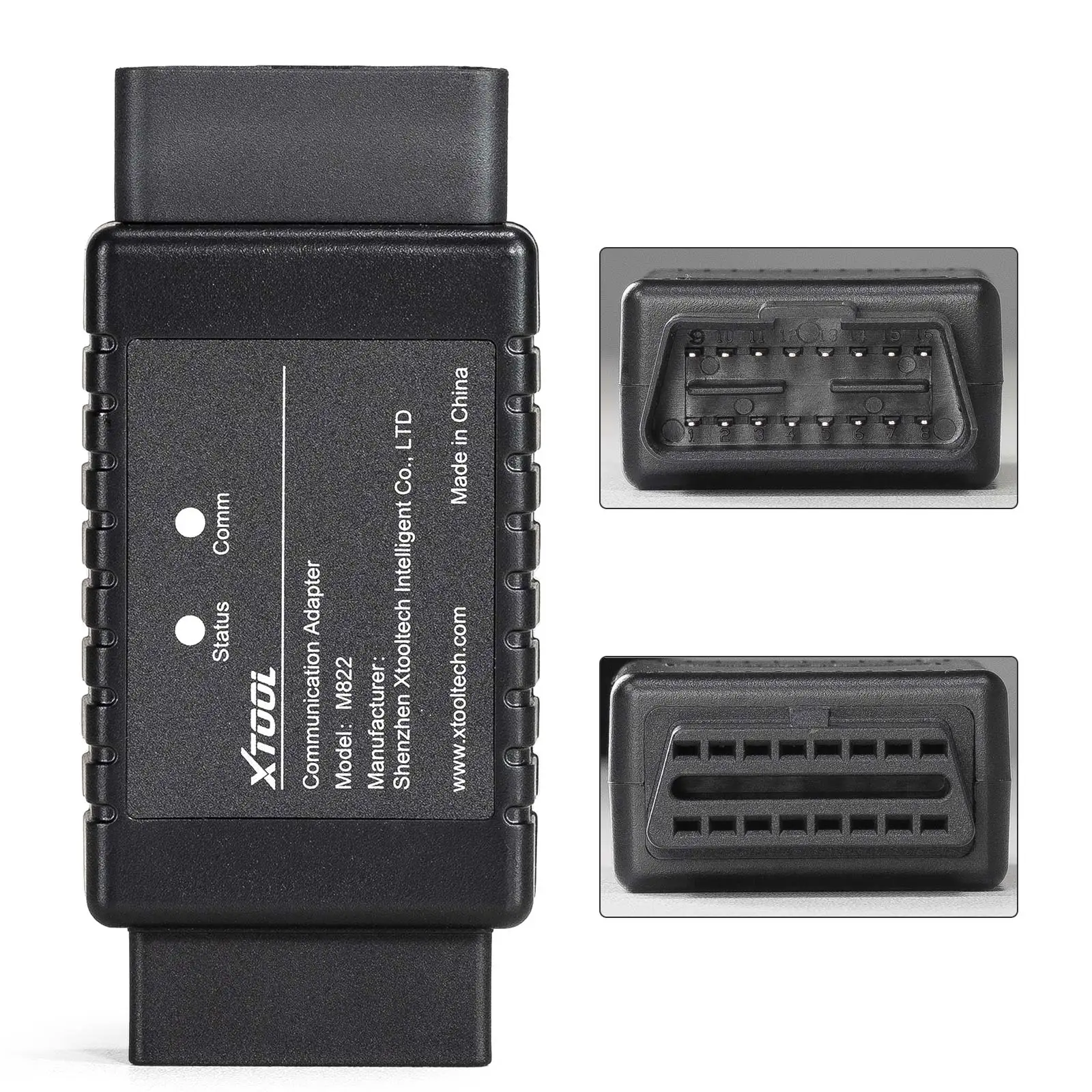

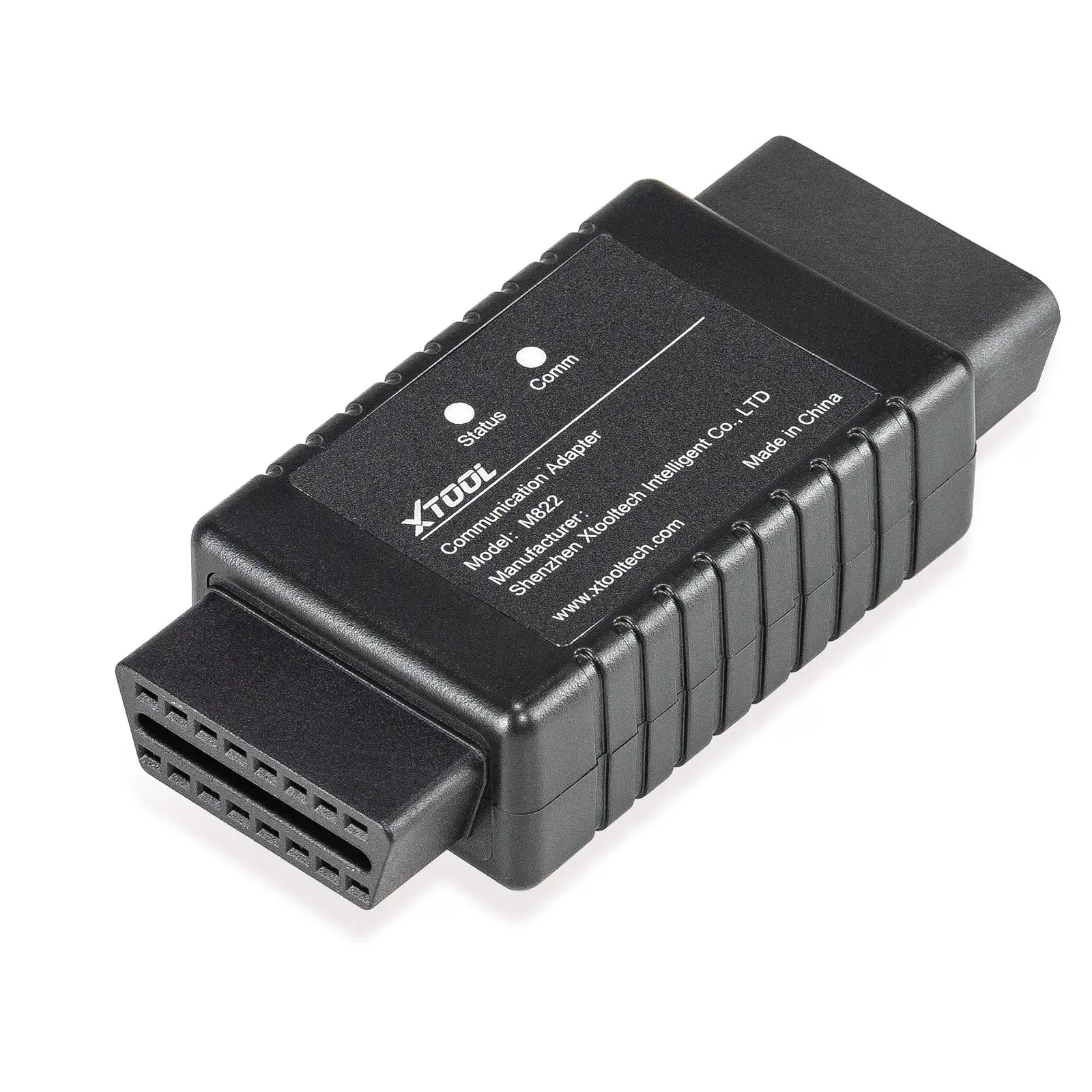

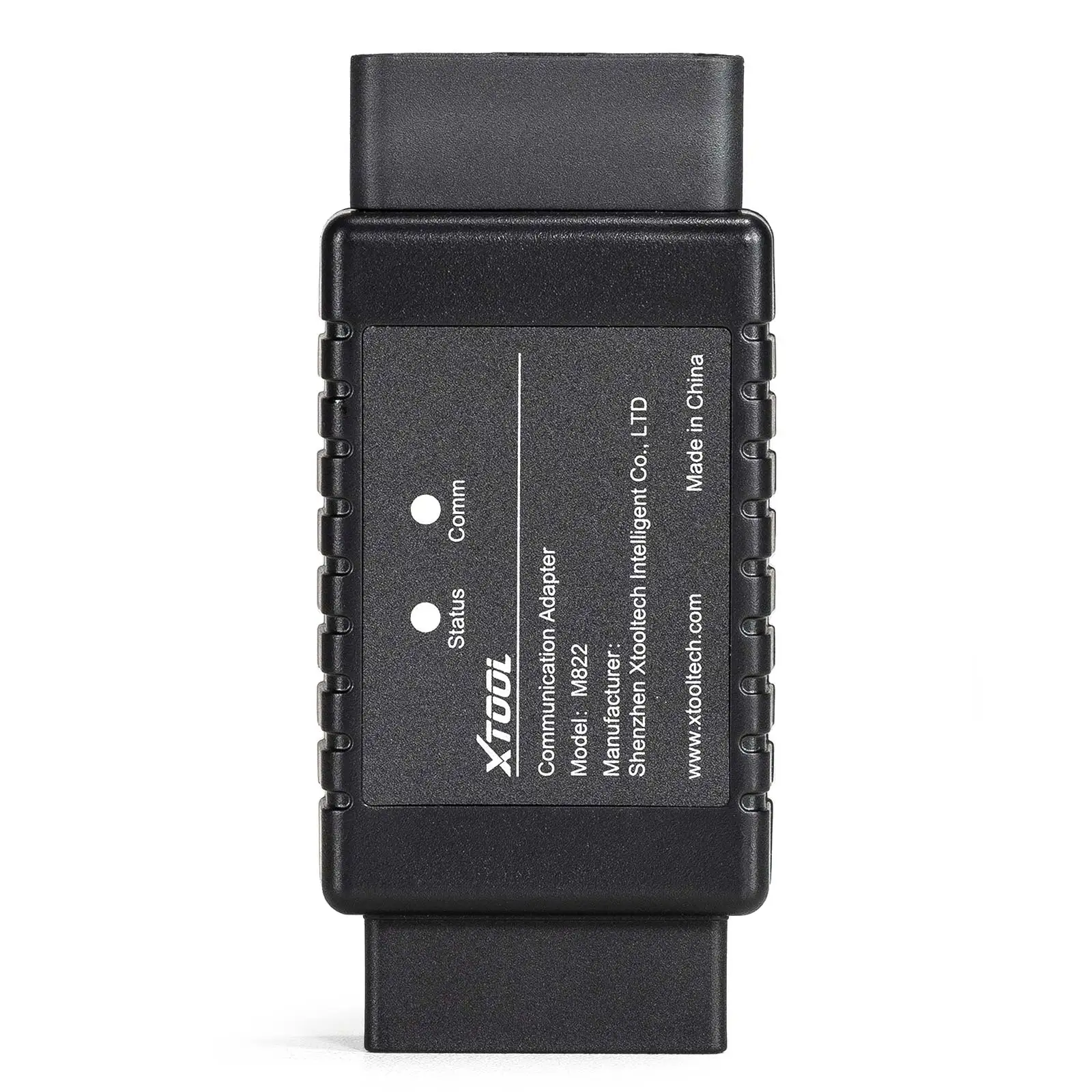

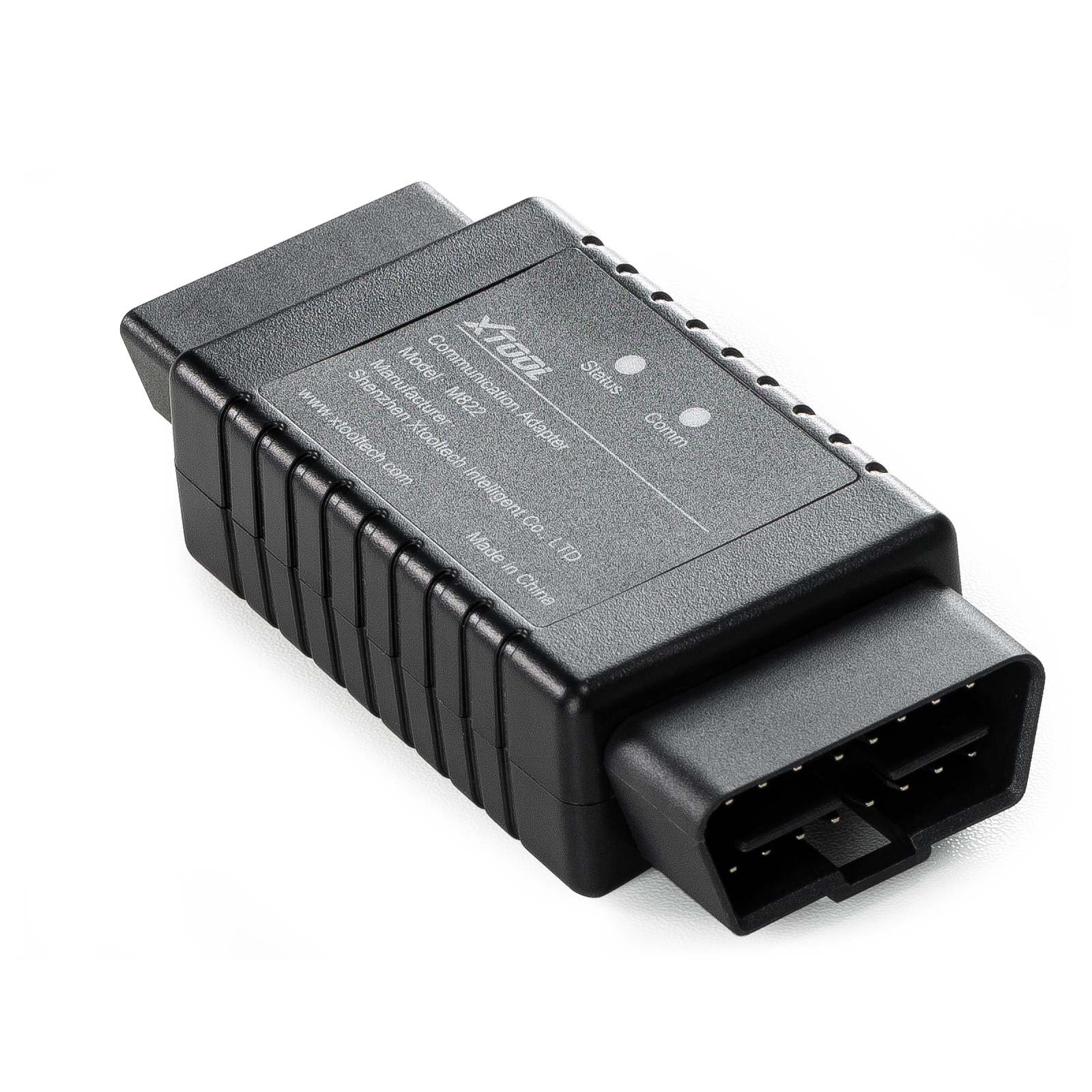

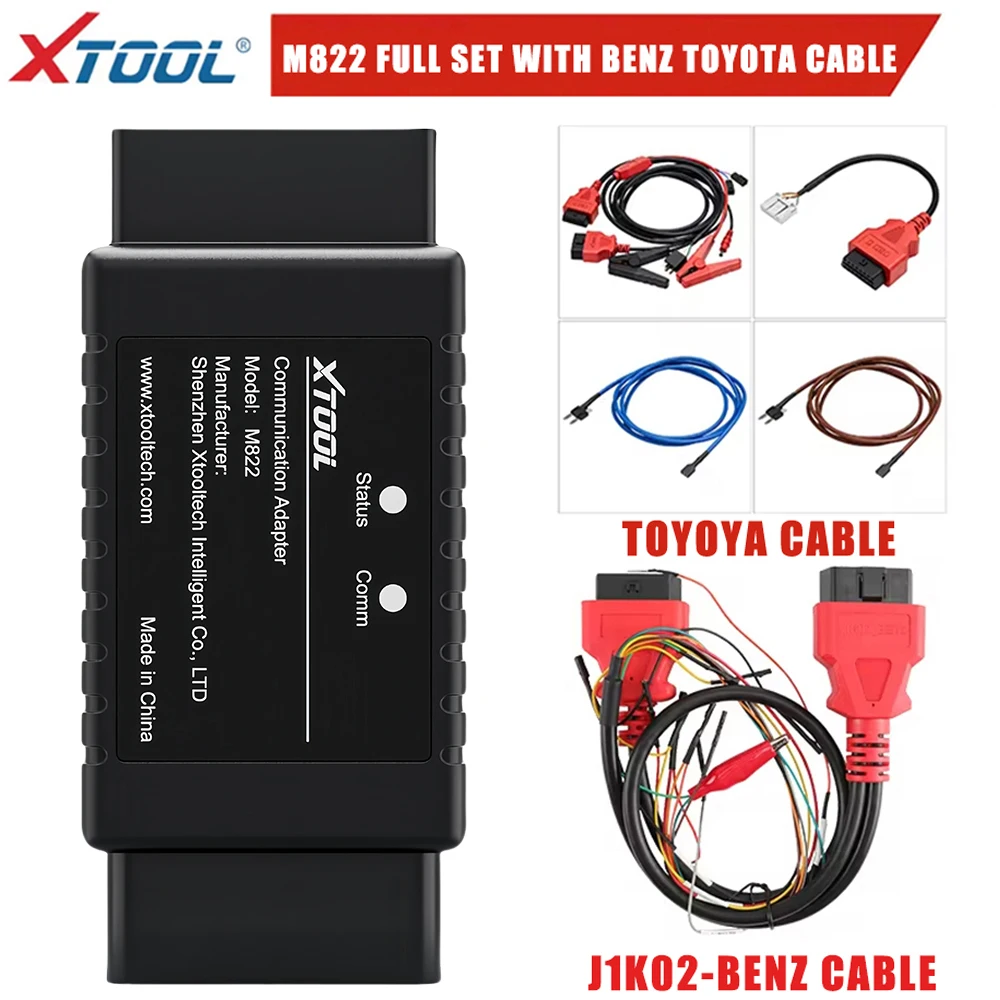

M822 Communication Adapter

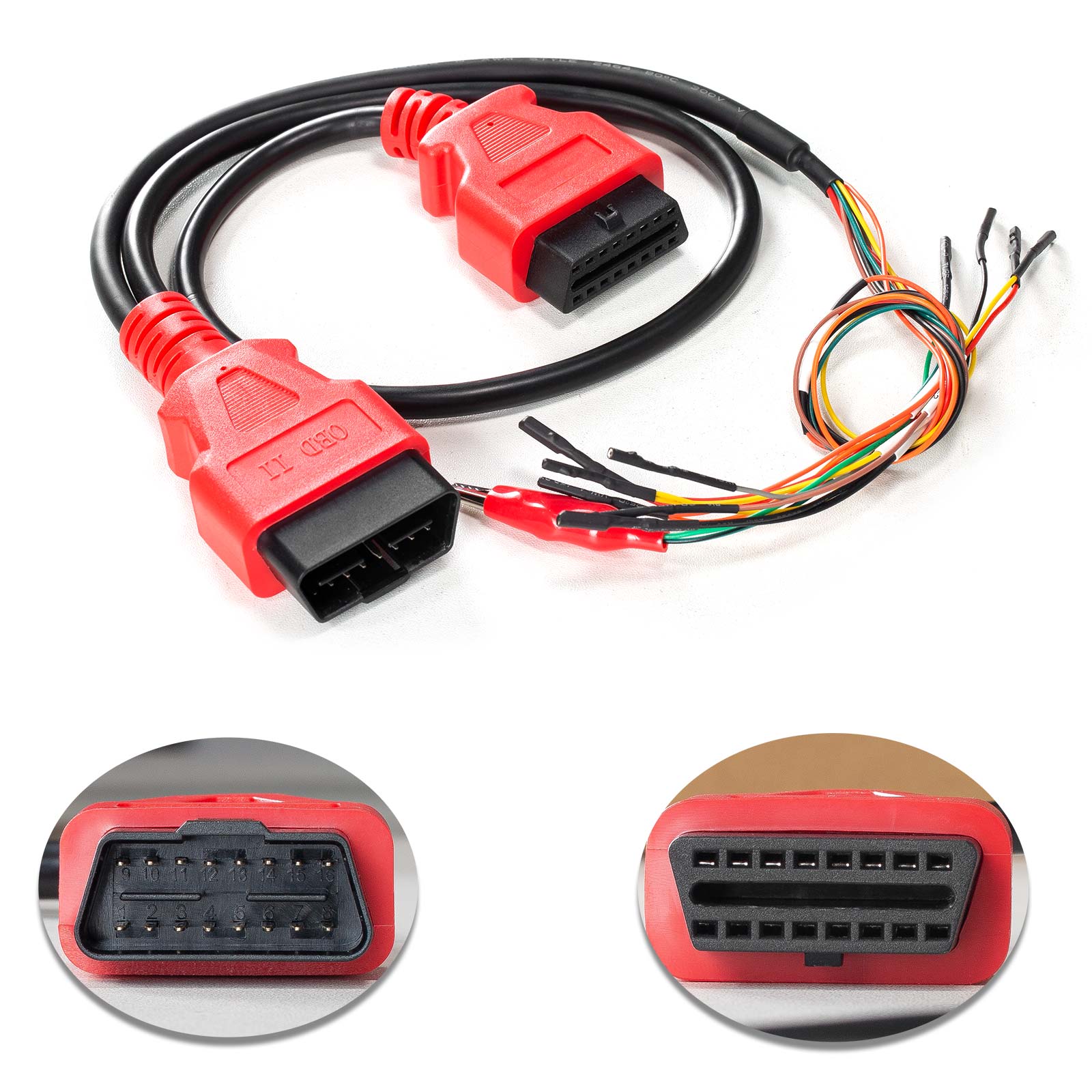

Toyota 8A Specialized Wiring Harness

KC100 Key Programmer

KS-1 Toyota Key Emulator

Network Connection

Models Supported:

Note:This is not compatible with American models with “H” Chip blade keys. For these models, please use the Reset IMMO function that is supported on X100PAD2/X100PAD3/X100PAD3 SE/X100MAX/IK618/D8/D8 BT/IP616/IP819/IP819TP/A80/A80 PRO/A80 PRO MASTER/PS90/D9/D9 PRO.

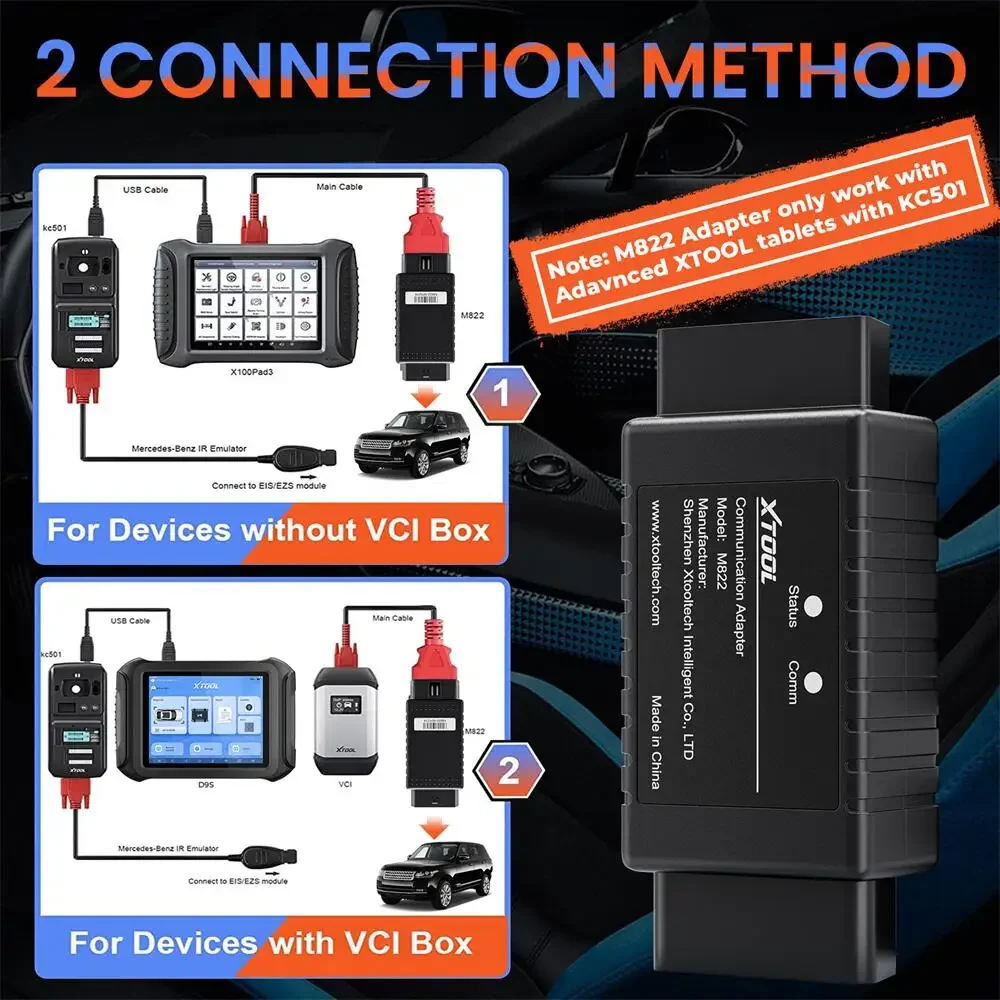

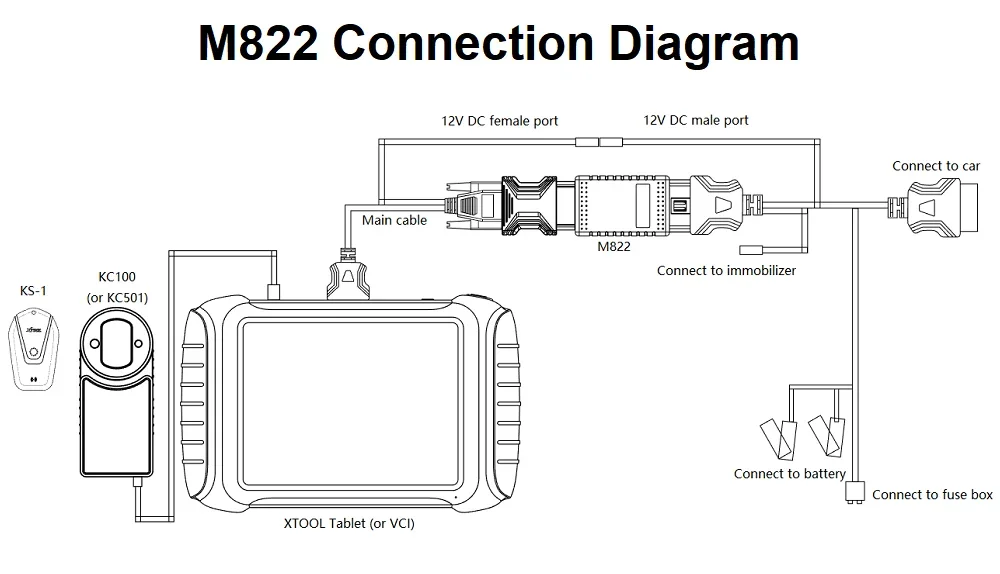

Connection Method

Connect VIA OBD:

1. Connect KC100/KC501 to the device via USB and prepare a KS-1

2. Connect the device (or VCI box) with the M822 Adapter using the main cable.

3. Connect the Toyota cable to the car using OBD port.

4. Take the battery clip from the car out and use the battery clip to connect the cable to the battery.

5. Take out the fuse from the fuse box then plug the cable into it.

6. Find the 12V DC male port from the Toyota cable and connect it to the 12V DC female port from the main cable.

Note:

For different models, the connection method might not be same. Sometimes an extend cable is needed, and the fuse might be different. Please check XTOOL tablets for detailed wiring diagram when connecting to vehicle and fusebox.

Connect on bench:

1. Connect KC100/KC501 to the device via USB and prepare a KS-1

2. Connect the immobilizer to the Toyota bench cable.

3. Connect the main cable and the Toyota bench cable via M822 adapter.

4. Connect the 12V DC adapter to the main cable.
