Original Scanmatik SM3 J2534 Adapter (Scanmatik SM2 PRO successor supports PCMflash, Bitbox, Techstream, Insite, GDS, ODIS etc)

Scanmatik SM3 Pass-Thru adapter is a successor of SM2Pro adapter with CAN-FD and DoIP protocols.It offers widest support for SAE J2534-1/2 and TMC RP1210 standard features required by OEM vehicle diagnosis & reprogramming software, vehicle tuning and ECU reflash software like PCMflash, BitBox, Combiloader, MDFlasher etc. Exclusive per-software features was implemented to extend vehicle and function coverage (Ignition State Emulation (VAG ODIS), KLINE multiplexing (MB-DAS) and so on. J1850 VPW/PWM, Chrysler SCI interfaces were implemented to support legacy vehicles.

THIS IS GENUINE PRODUCT SOLD FROM CHINA BRANCH OF SCANMATIK LLC (RU).

Note: SM2Pro production has ended 03.12.2024, it will continue to get software and feature updates. No stock for SM2Pro, please do not ask.

Features:

• Supports USB or Wi-Fi connection to PC

• Galvanically isolated USB port

• Stable, easy-to-use Wi-Fi connection running on in-house developed Wi-Fi module firmware (no Serial Port emulation involved)

• Fully protected transceiver lines (overvoltage, short-circuit)

• Supports 24V onboard voltage (trucks & buses)

• Load dump & overvoltage spike protection (withstand voltages up to 55V)

• Full support for SAE J2534-1 (V0404, V0202) and SAE J2534-2

• Full support for TMC RP1210C (heavy duty vehicles)


Specifications:

• 13X ISO-9141-2/ISO-14230-2 (K-LINE)/Chrysler SCI channels multiplexed to J1962 OBD port pins [1,2,3,6,7,8,9,10,11,12,13,14,15].

• 1X J1850 VPW/PWM Channel

• 5X CAN2.0/CAN-FD Channels multiplexed to OBD port pins 6-14, 3-11, 12H-13L or 12L-13H (polarity swap), 1-9, 2-10

• 1X Single Wire CAN (GM)

• 1x10/100BASE-TX channel (DoIP)

• Programming Voltage (FEPS) generator (5-24V) multiplexed to OBD Port pins [6, 8, 11, 12, 13, 14]

• Separate AUX output for Programming Voltage to DB-25 (requires AUX-type Main cable to convert to banana-jack)

• Bluetooth range: <=10m (Class 2)

• Adapter dimensions (L x W x H): 97×75×22mm


Documents & Software:

[LINK] Software Test Report (V2.21.23)

[LINK] Software Setup Package (V2.21.29)

Package Contents:

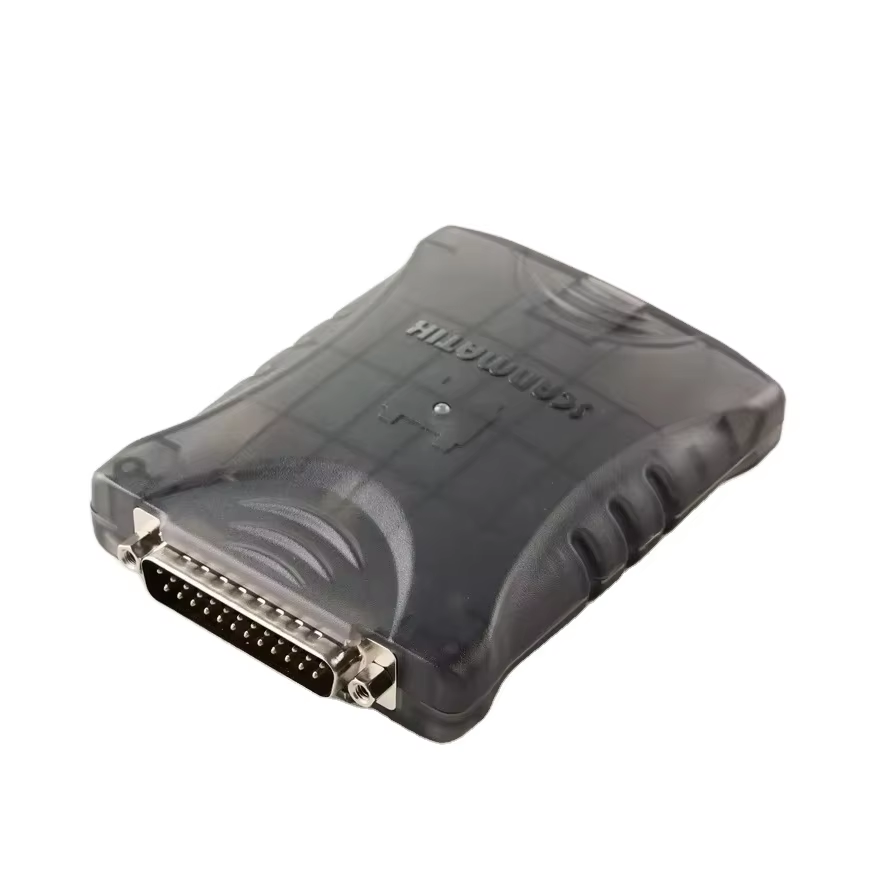

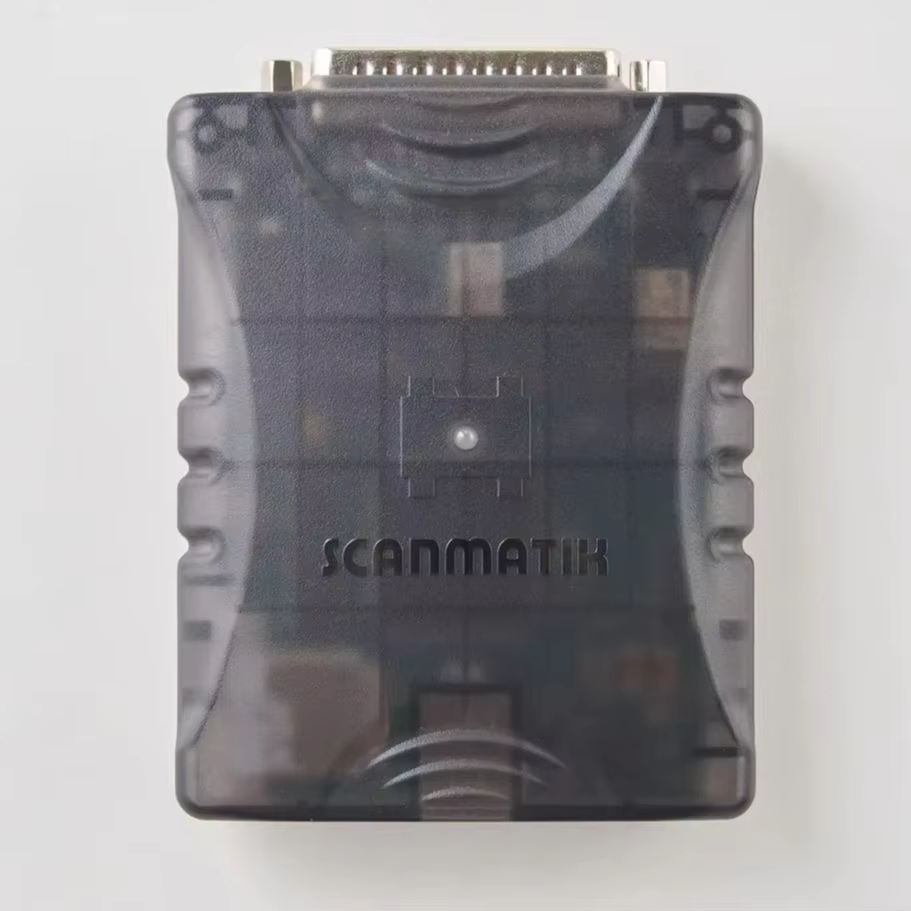

1. SM3 Device

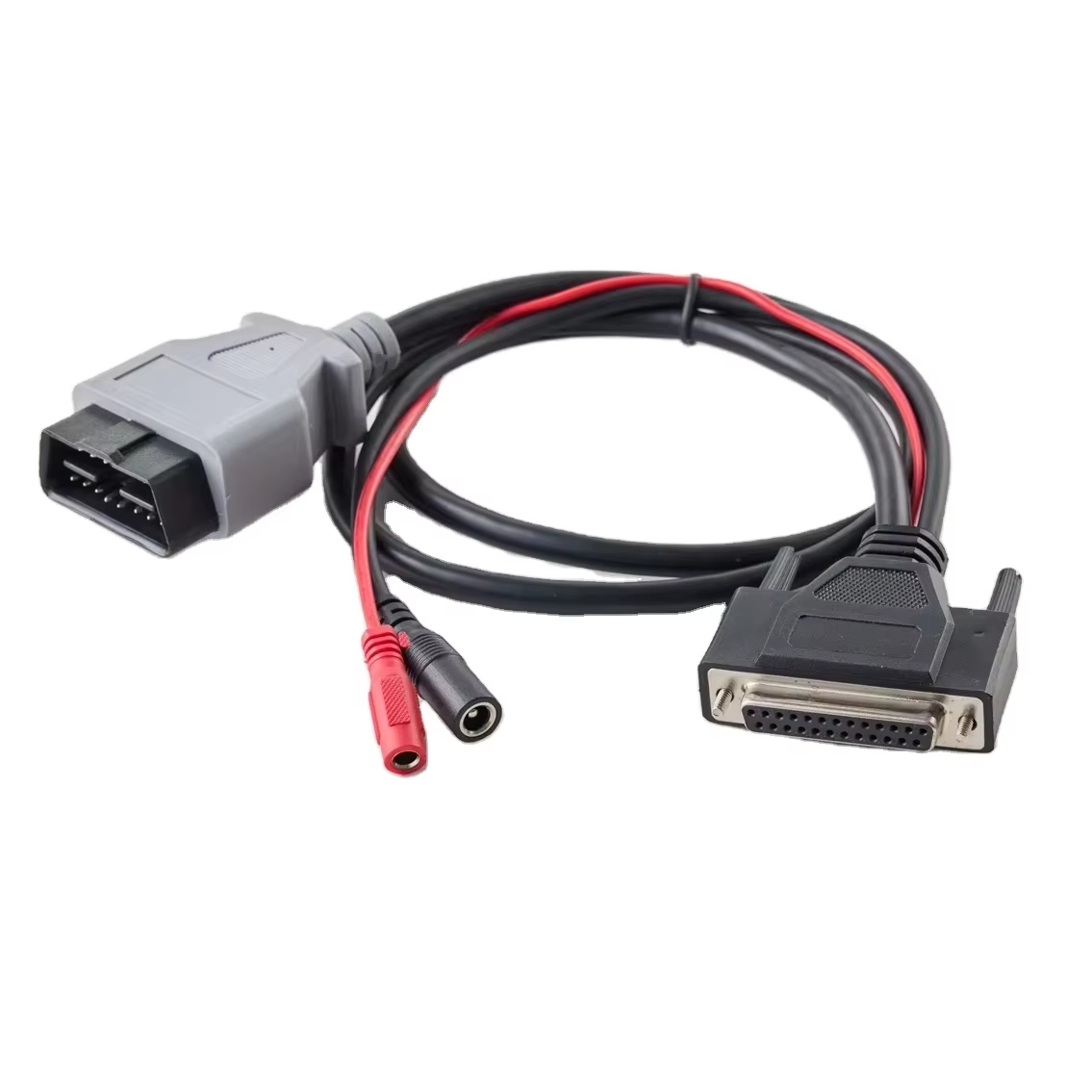

2. OBDII to DB25 cable ("Main Cable") with AUX output (banana)

3. Lighter Cable

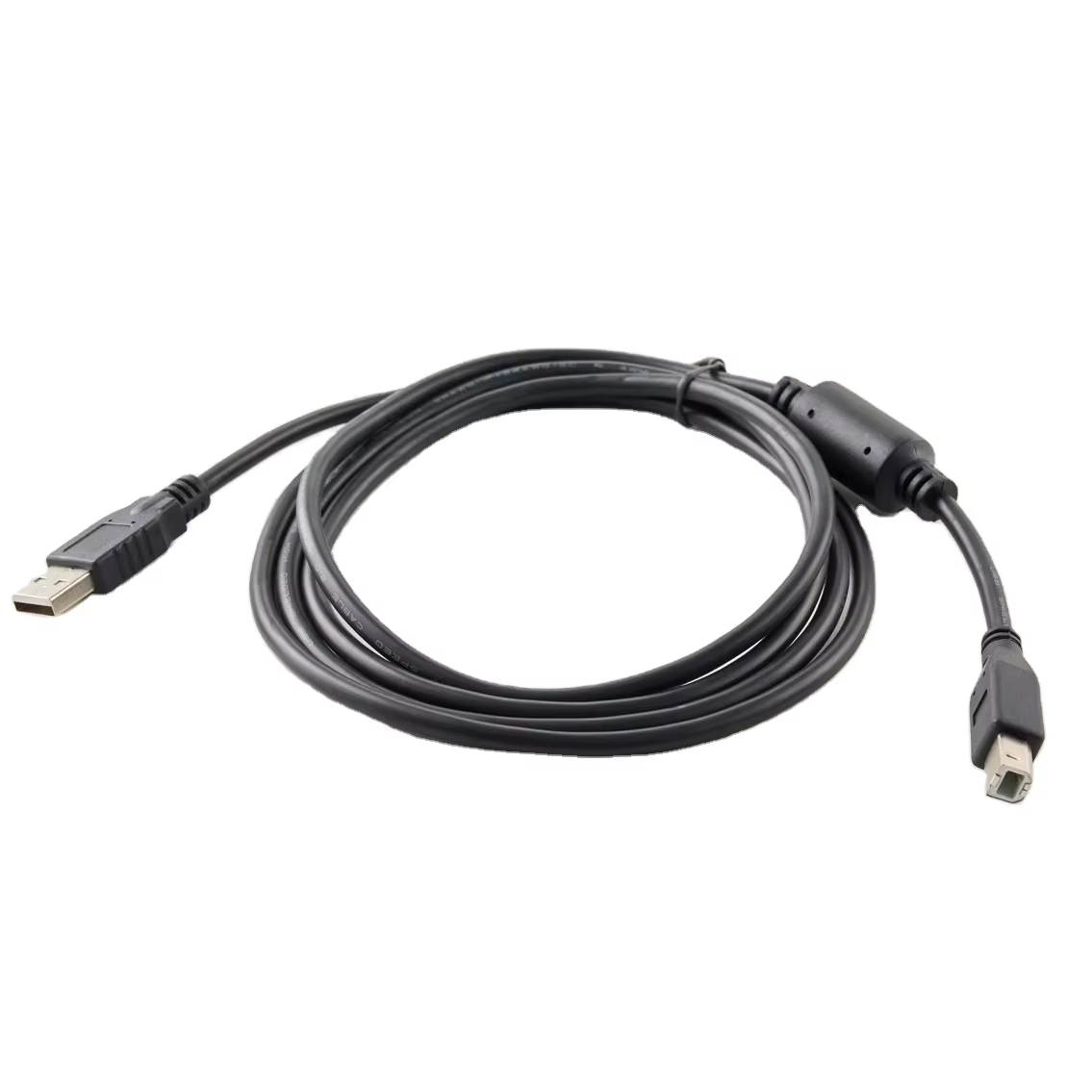

4. USB A-B Cable

5. Scanmatik-branded Bag (vertically handled)


Warranty:

We provide free-of-charge repair/replacement for manufacturing defects found during warranty period.

Warranty validity terms (since purchase):

- 1 year for SM3 Adapter,

- 3 months for cable accessories.

Delivery to/from manufacturer repair shop location is paid by customer.
