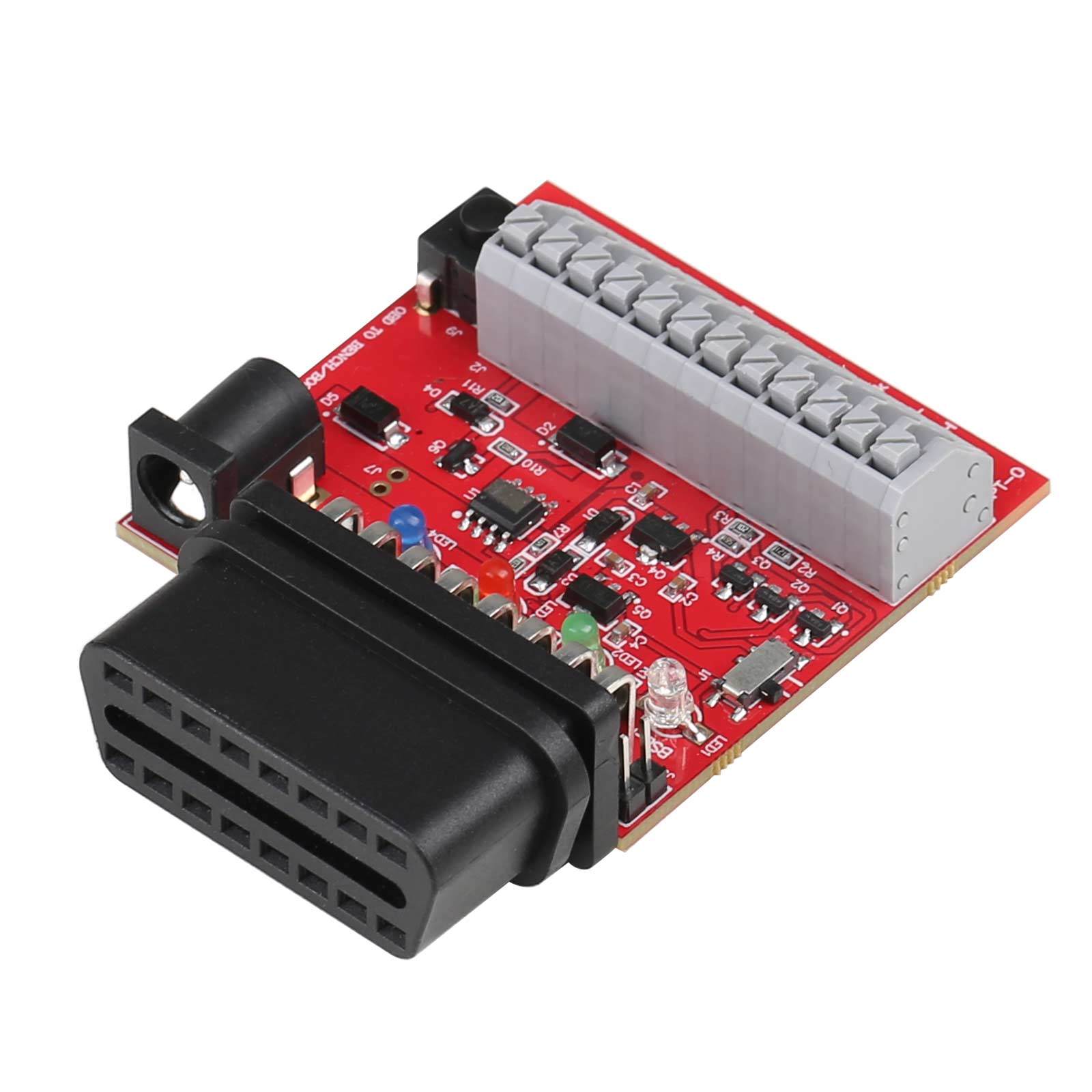

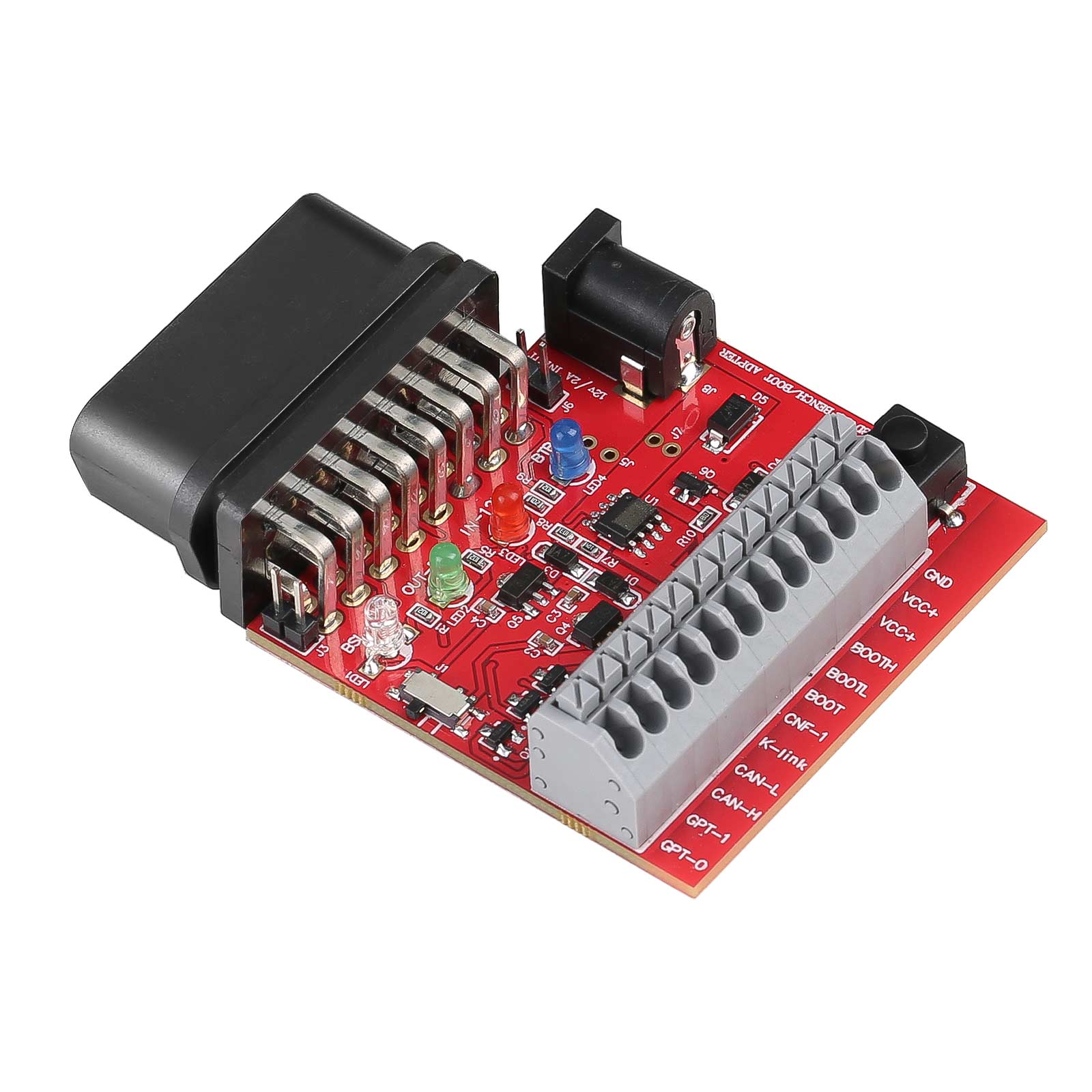

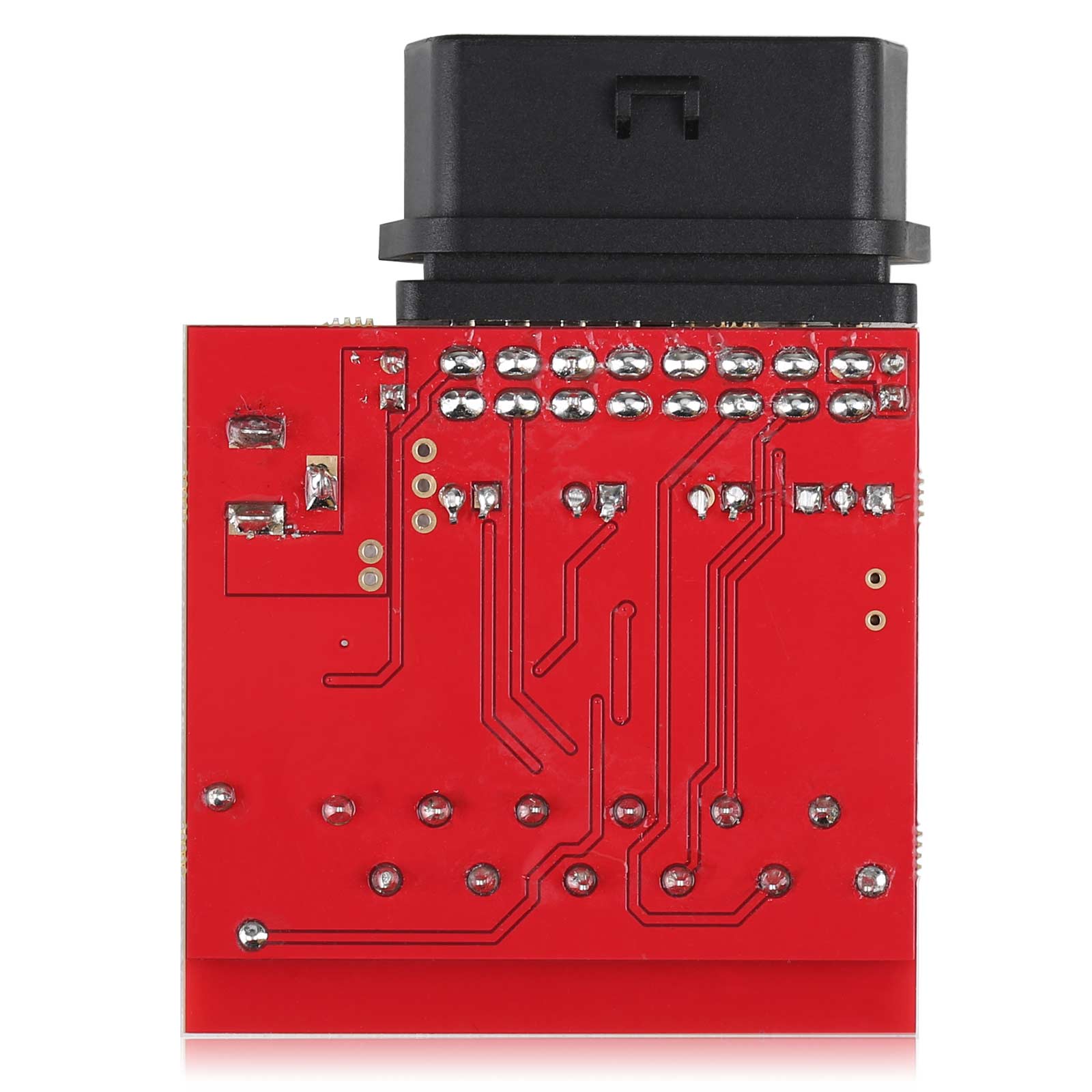

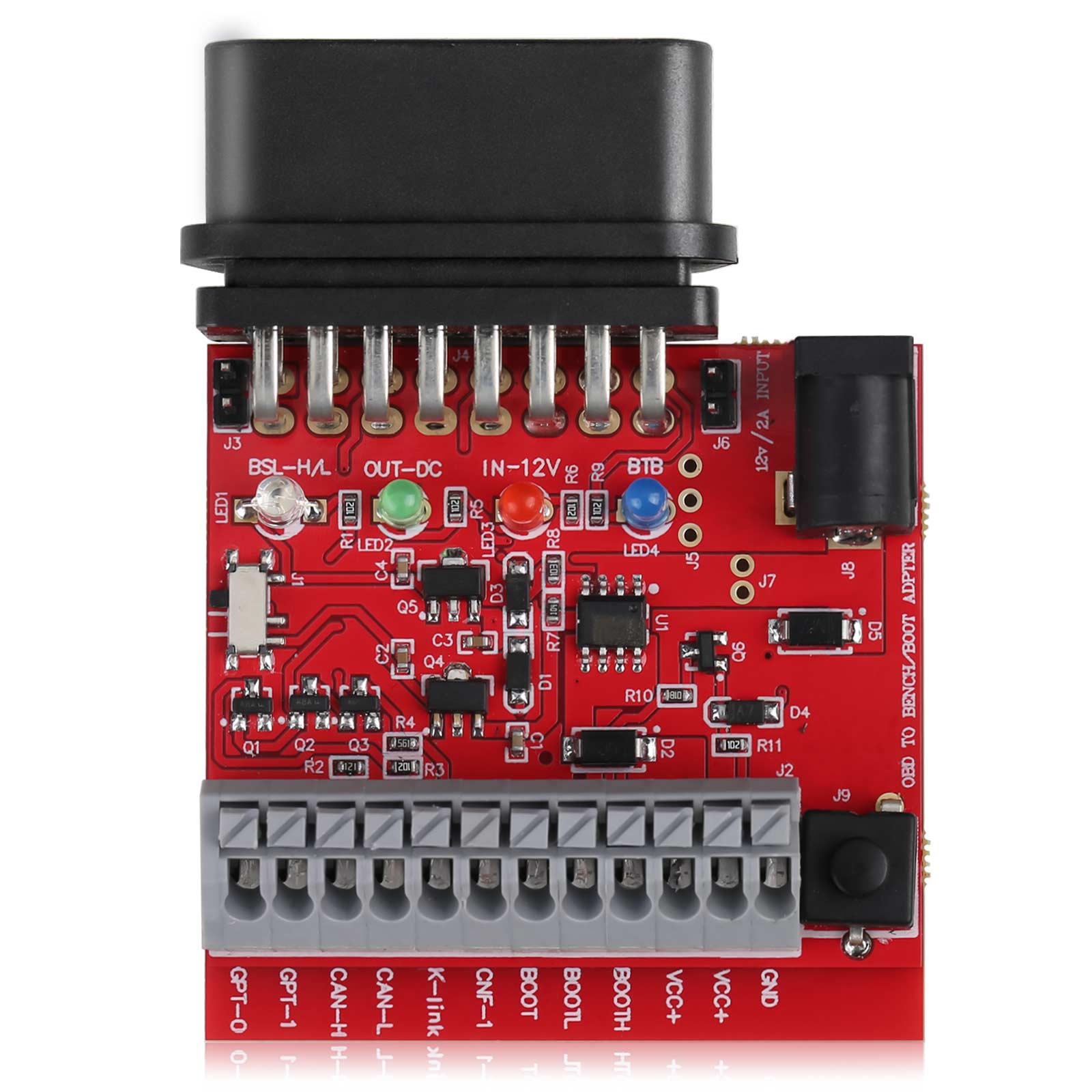

OTB 1.0 Expansion Adapter (OBD on Bench Adapter) For FoxFlash KT200 KT200II ECU TCU Programmer Tagflash Programmer Tool

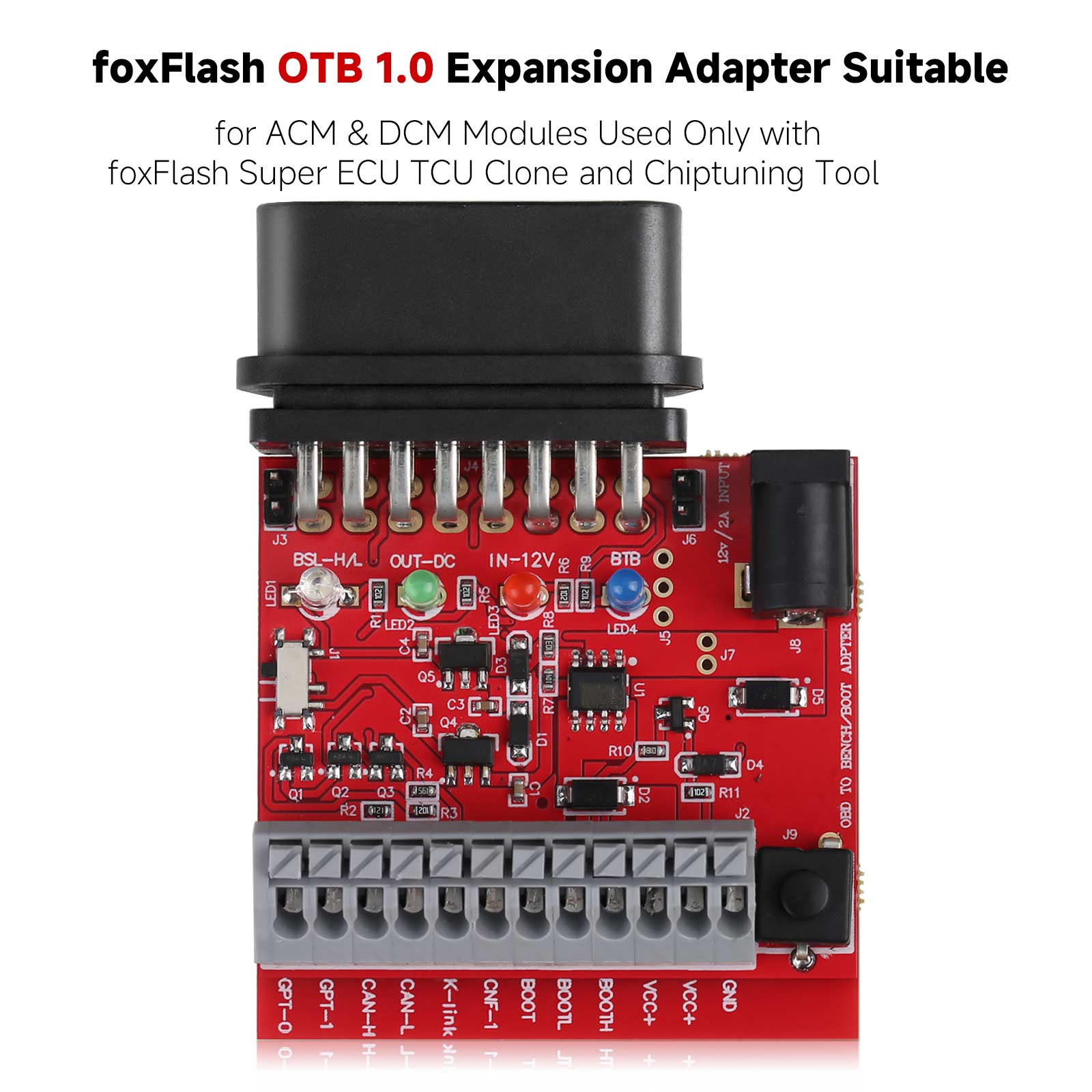

The OTB 1.0 Expansion Adapter is suitable for foxFlash extended application engine and transmission computers, and is also suitable for ACM and DCM computer modules.
OTB= OBD mode via bench pinout (OBD on bench) Don't need to connect with bench box.

Notice:
OTB 1.0 Expansion Adapter can work with FoxFlash KT200 KT200II ECU TCU Programmer Tagflash Programmer Tool

Supported Functions:

1: Dual-channel high-speed CAN
2: Three-way BOOT
3: Dual VCC power supply
4: GPT encryption and decryption function
5: Adaptive resistance
6: Adaptive CNF signal adjustment

Product Design Purpose:

1: Ensure that foxFlash can be expanded to the OTB mode of BENCH PLUS in any OBD working mode
2: Achieve high-speed reading and writing
3: Ensure communication security and prevent the possibility of ECU brick due to voltage instability.
4: OTB reading and writing in OBD offline mode
5: ECM, TCM, ACM, DCM direct desktop mode reading and writing
6: Improve the reading and writing speed of some OBD drivers

Supported Models List:

Search OTB coverage on Foxflash ECU/TCU Driver List, official website: https://www.dfb-technology.com/driver-list.html

Log in to the browser at the above address and search for OTB to view the models and models that support OTB.

If the query mode cannot be displayed when opened, please clear the browser cache and reopen the website.

Wiring Diagrams:

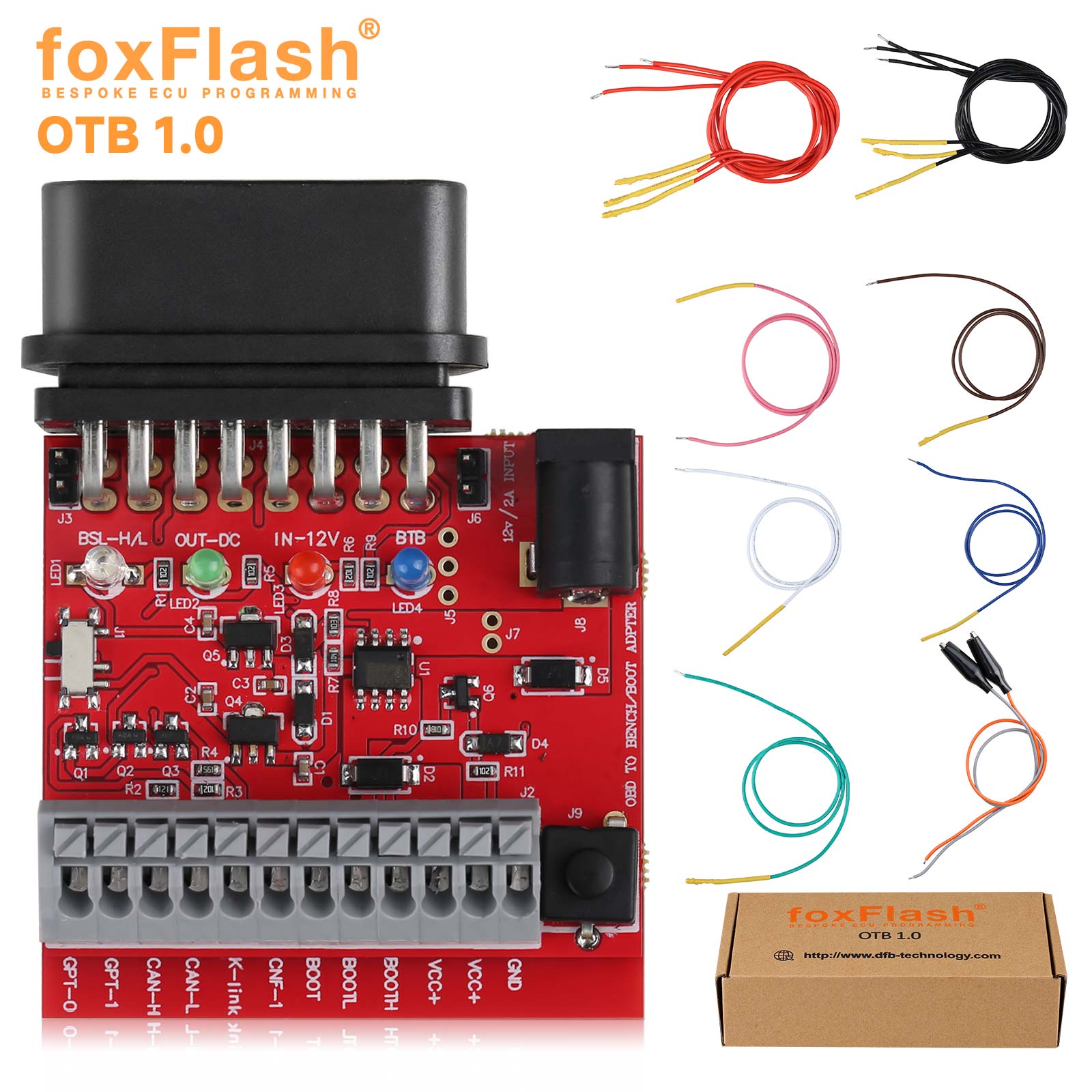

Package List:

1pc x OTB 1.0 expander
1set x OTB 1.0 conversion cable
1pc x Carton
