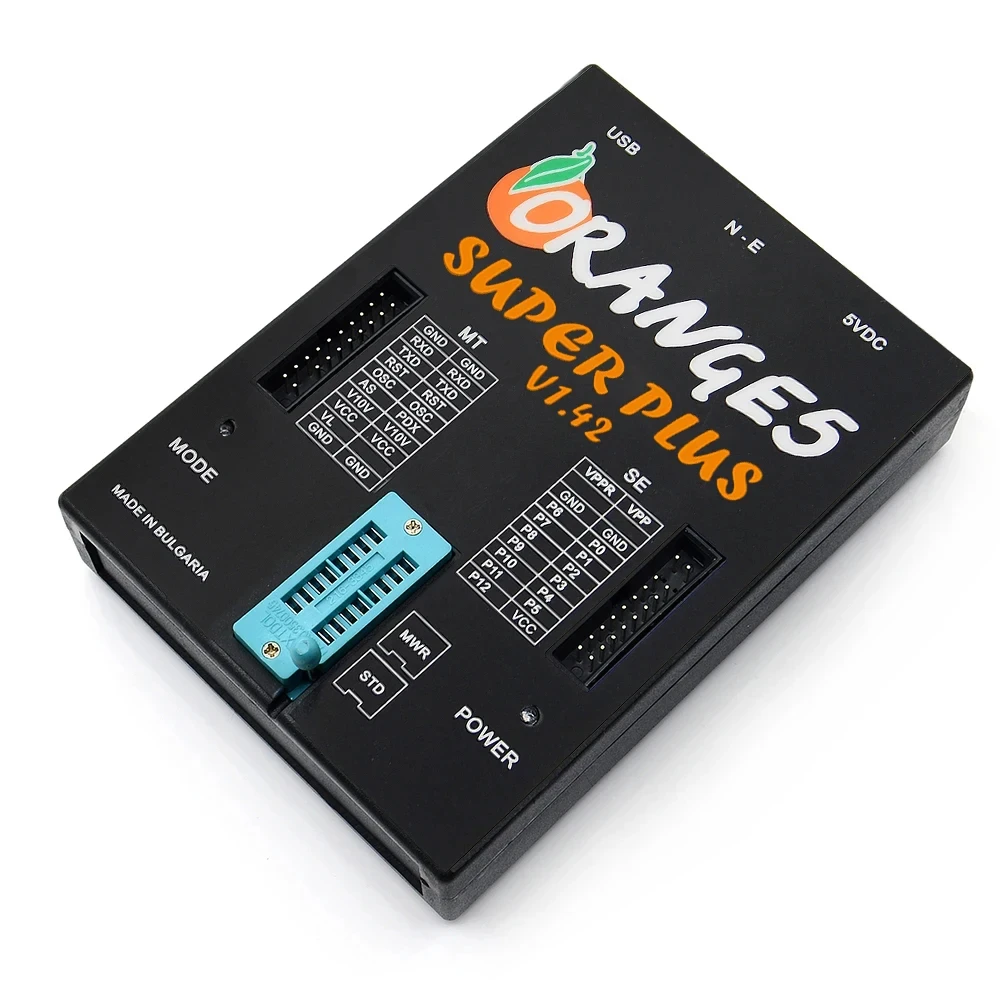

Orange 5 super pro programmer is a professional programming device for memory and microcontrollers. Unique feature of the current series programmers is built-in macro language for writing down protocols, which gives fast and easy capability to add new types of micro schemes, precisely meeting manufacturers' requirements to read/write algorithms.
NEWEST Version:V1.42
1,Updated on the basis of v1.38, adding more supported chips, compatible with 1.38 hardware, it is more professional and the programmer you want.
2,V1.42 dongle and V1.42 software need to be used together.
3,If you want detailed information about 1.42, please contact us.
4,add V850E2-S BYPASS Adapter
Software Version:orange5 super plus v1.42 full function
Language:English,Russian
Systems:WIN 10/WIN7 (32bit and 64 bit)

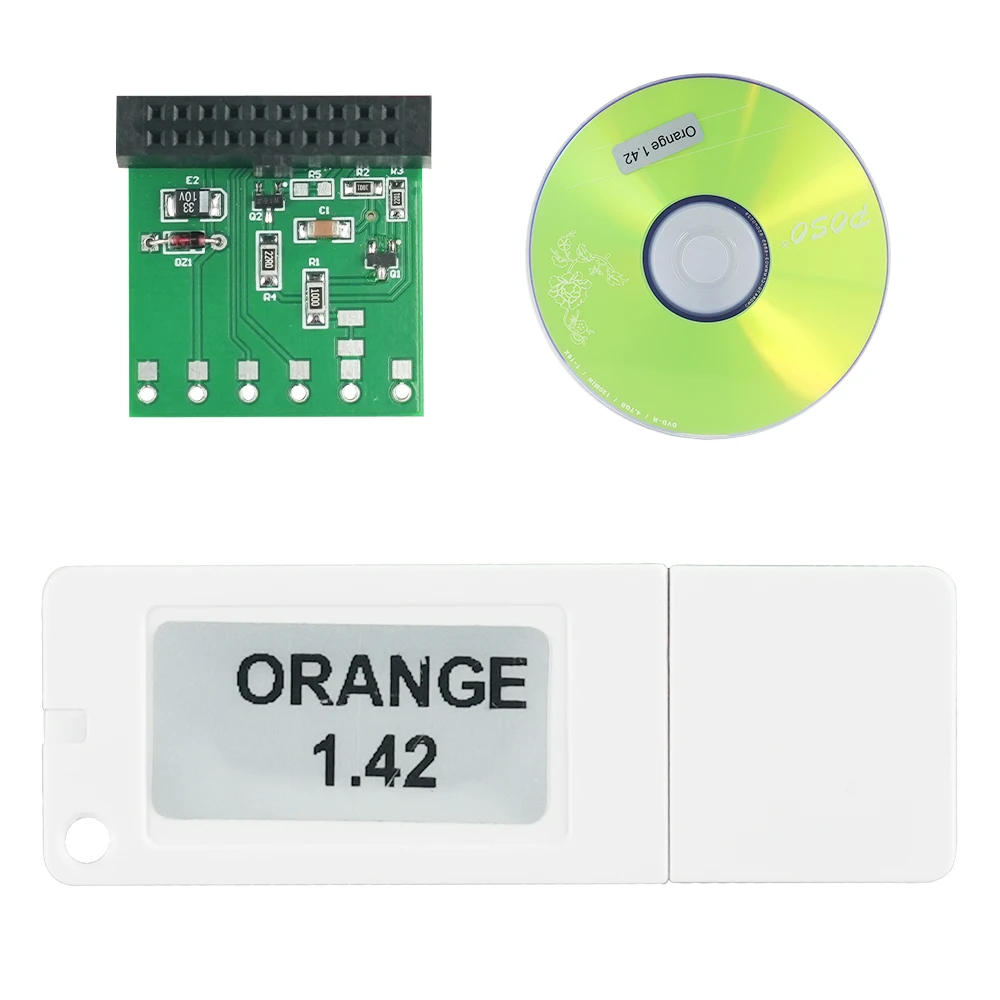

Add new 1.42 dongle Licenses:
1,RH850-V4 Display:
2,RL78 V1.3 Display:
3,V850E2S-BYPASS V3.9 Display
4,FUJITSU V7 Partial Display:
Orange5 Technical Info:
* USB power supply (USB2.0/3.0)
* Universal easy to plug panel ZIF16 for EEPROM
* Control of contacts in the sockets
* Two expansions compatible with Orange4 and Omega MTRK
* Protection against overcurrent
* Overload voltage protection
* Two types of power supply: Standart (USB) and enhanced (USB + external power supply)
* Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional static 10V for microcontrollers
* High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
* Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0...5.0V) adjustment
* Capability of functional emulation of class CDC USB devices
* Built-in 32-bit virtual machine
* Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)
* Programmer is encolsed in a functional box. Supported working under Windows 10/7 32bit and 64bit.
- Installation and Work with Orange-5 under Windwos 7 and Windows 10
CnCterm - Terminal program for work with COM ports.
Feature:
Supports any COM ports, including virtual ones from 1 to 20
Works with text (ASCII) and HEX mode
Creating a list of commands that allows editing and fast sending
Fine-tuning the exchange rate
Saving files including command and port settings.
Saving incoming data in binary files
File transfer via serial port.
Delay settings for bytes and blocks
"Echo" mode
Delay settings between incoming data
Management of DTR, RTS chains, visualizing DSR, CTS, CD, RI
The program doesn't need to be installed
Supports Orange5 programmer in emulation mode.
Orange5 Programmer Chip List:
Immo HPX 9V0
EEPROM:
MicroWire,4Wire,Adesto,AKM,Altera,Amic,Atmel,BOSCH,Catalyst,Chingis,Dallas/Maxim,EON,ESMT,EXEL,Fairchild,Fujitsu,GI,GigaDevice,Grundig,HOLTEK,Hynix,ITT,KHIC,Macronix,MicroChip,Micron,for Mitsubishi,for Motorola,NEC,NSC,Numonyx,OKI,PCT,Philips,Pioneer,PMC,Ramtron,Rohm,Samsung,Seiko,for Siemens,Sony,Spansion,SST,ST,Winbond,Xicor,XUSSR,YMC,MCU,Atmel,Infineon,MediaTek,MicroChip,Nordic,NSC,Philips,for Renesas,for Samsung,SiLabs,ST,TI,for Motorola, for Freescale,MC68HC11,MC68HC12

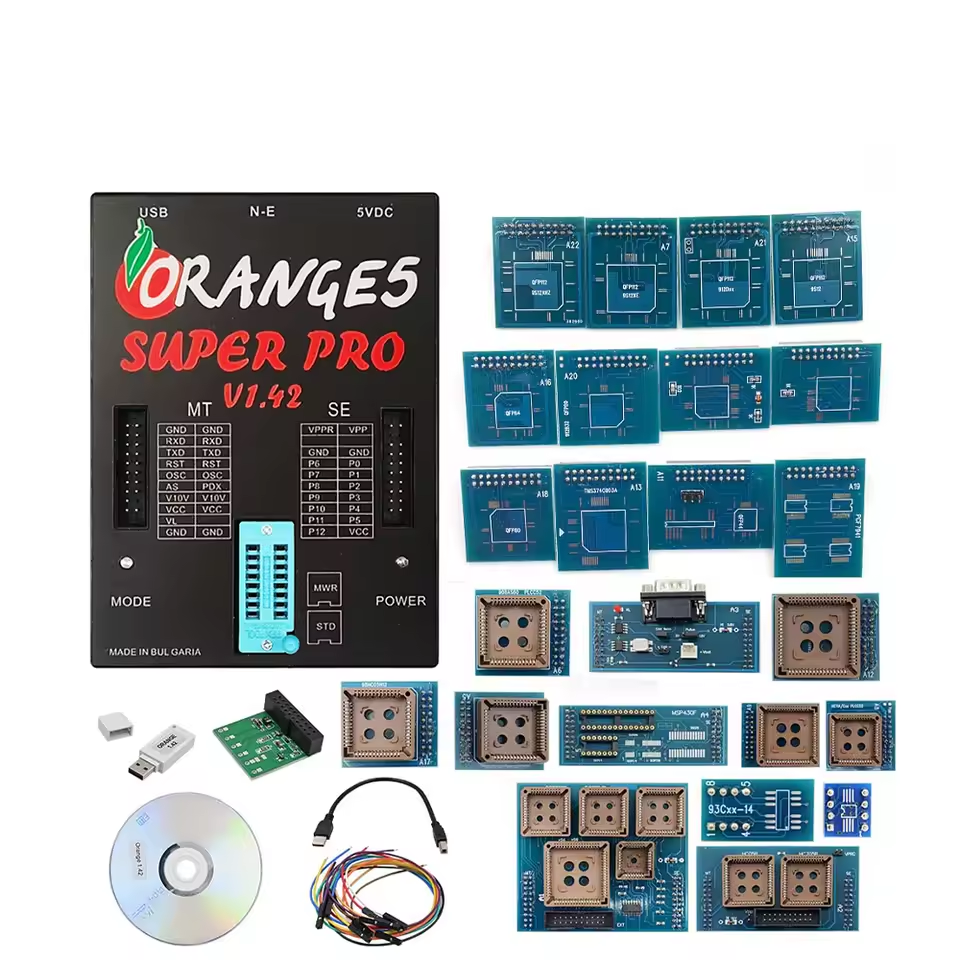

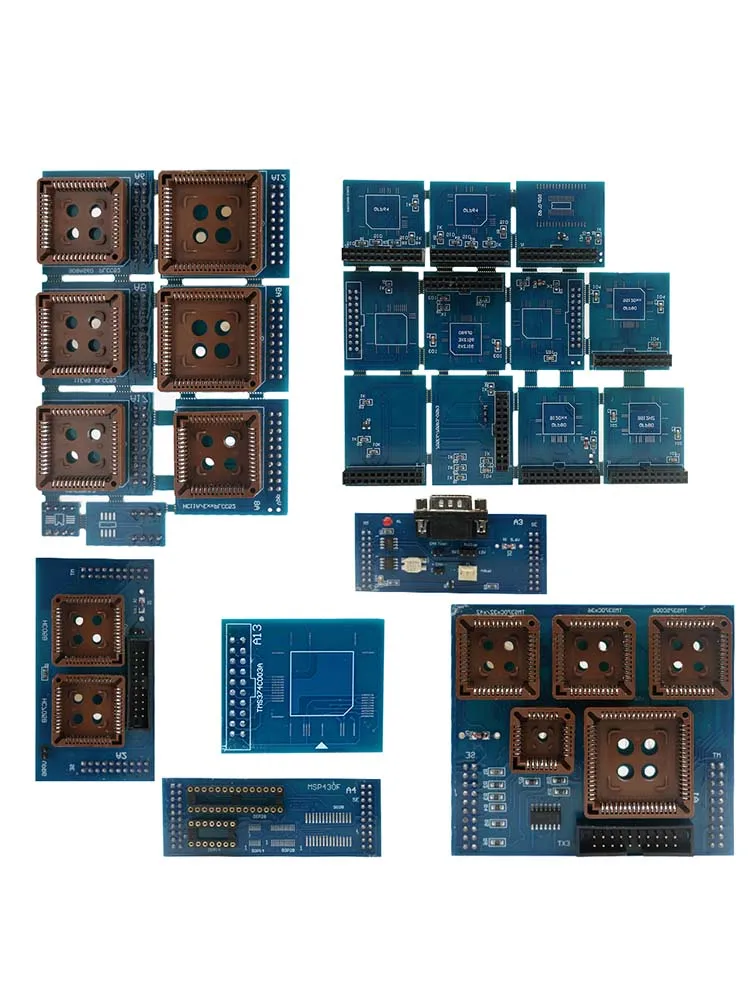

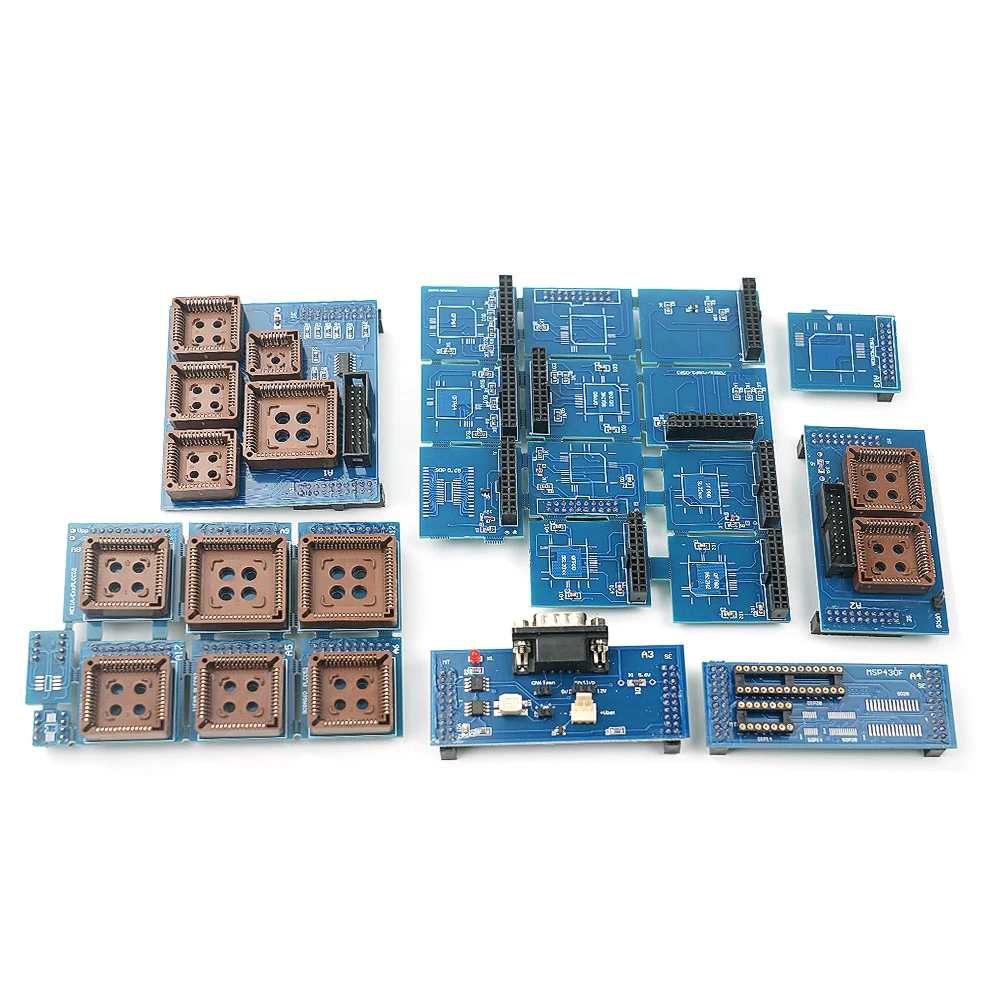

Packing List:
1 x Orange 5 super plus Programmer
1 x TMS375C006/TMS370CX36/TMS370CX32/X42 A1
1 x HC05B/HC705B A2
1 x Adapter 11EA9/PLCC52 A5
1 x Adapter 908AS60 PLCC52 A6
1 x Adapter QFP112/9S12XE QFP80/9S12XE/9S12XS A7
1 x HC11A/EXX PLCC52 A8
1 x Adapter HC11F1 A9
1 x Adapter 908AS60/AZ60 QFP64 A10
1 x 705E6/705P3/05P3 A11
1 x Adapter 68HC11L6 A12
1 x Adapter TMS374C003A A13
1 x Adapter 05B/X_705B/X QFP64 V2 A14
1 x Adapter QFP112/9S12 QFP80/9S12DXX A15
1 x Adapter QFP64 A16
1 x Adapter 68HC05H12 A17
1 x Adapter QFP64/QFP80 A18
1 x Adapter PCF7941 A19
1 x Adapter 912B32 QFP80 A20
1 x Adapter 912Dxx A21
1 x Adapter 9S12HZ/QFP80 1 9S12XHZ /QFP112 A22
1 x Adapter 93CXX-14
1 x USB cable

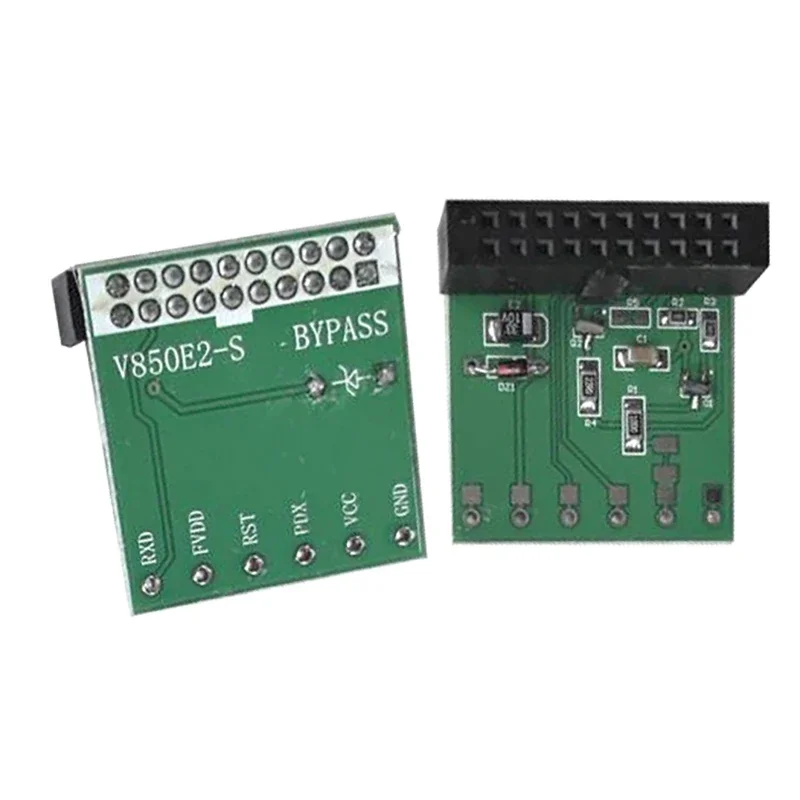

1 x V850E2-S BYPASS Adapter
