Universal  EEPROM Tool CAR PROG for all M35080 and BMW CAS

CAR PROG is a  universal EEPROM tool that allowes to read, write, edit and erase various types  of EEPROM memories. I2C, SPI and Microwire memory interfaces are supported.  Device is communicating with PC through USB port. It allowes you to fully adjust  main programming parameters like programming voltage, pull-up resistors, clock  speed and read/write delays. It can load, edit and save files in *.bin, *.epp,  and *.sec formats. CodiProg USB software includes ability to upgrade device  firmware to enable support for new memory types. It is also possible to use  CodiProg erasing function without PC computer control.

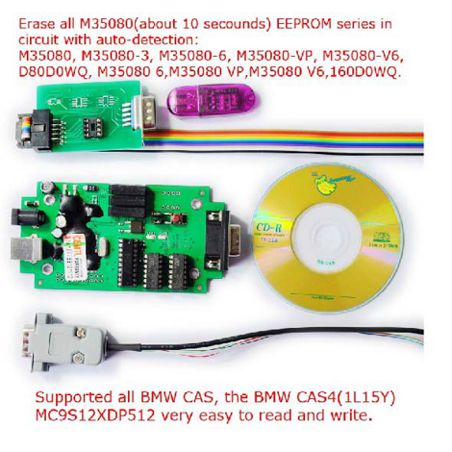

Fast erase all  M35080 (about 10 secounds) EEPROM series in circuit with  auto-detection:

M35080, M35080-3,  M35080-6,M35080-VP, M35080-V6, D80D0WQ, M35080 6, M35080 VP, M35080 V6,  160D0WQ

Erase  EEPROM:
24C01, 24C02, 24C04,  24C08, 24C16, 24C32, 24C64, 24C128
25C040,  25C080, 25C160, 25C320, 25C640, 25C128, 25C256
M95040, M95080,  M95160, M95320, M95640, M95128, M95256, SP08 M9306, M9346 93C06, 93C46, 93C56,  93C66, 93C76, 93C86 93CS46, 93CS56, 93CS66, 93CS76, 93CS86


Supported memory  types:
MC68HC912D60A,  MC68HC912DC128,
MC68HC912DG128,  MC68HC912DC128A,
MC68HC912DG128A,  MC9S12D64,
MC9S12DB128B,  MC9S12DG128B,
MC9S12DT128B,  MC9S12A128B,
MC9S12H128,  MC9S12H256,
MC9S12DG256C,  MC9S12DP256C,
MC9S12DT256C,  MC9S12XDP384, MC9S12XDP512.

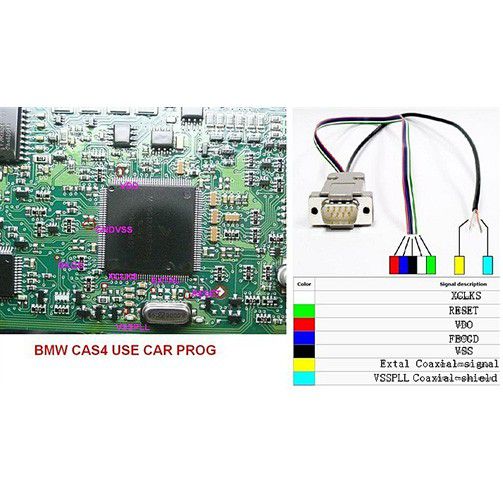

Supported  all BMW CAS, the BMW CAS4(1L15Y) MC9S12XDP512 Very easy to read and  write.
