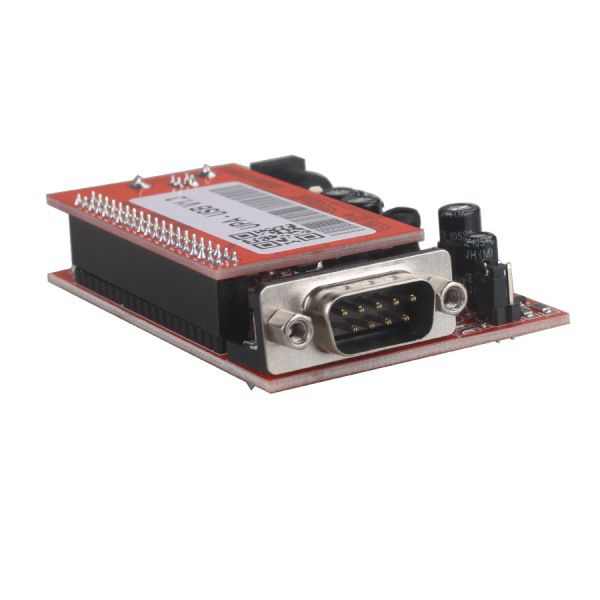

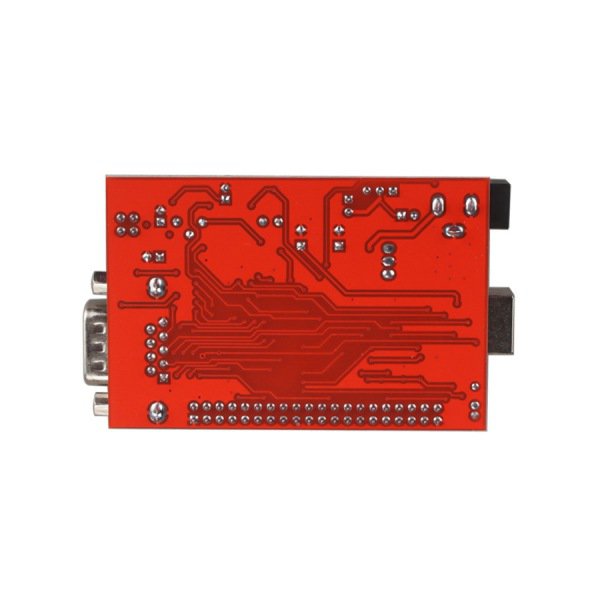

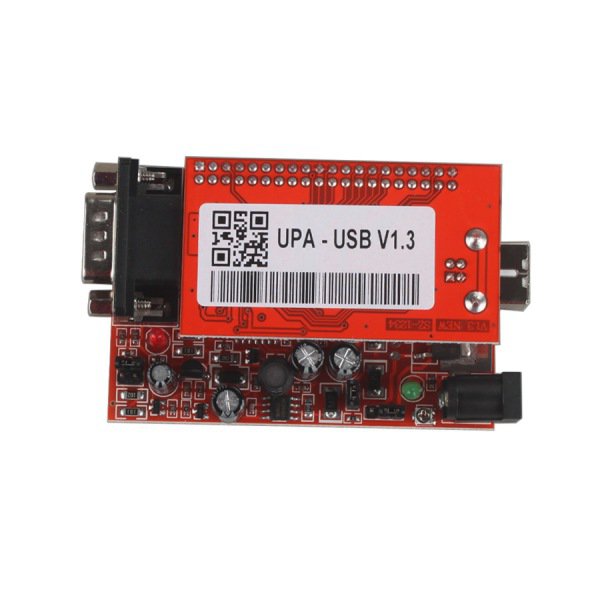

New UPA USB Programmer for 2013 Version
Top 2 Reasons to Get the
UPA:
1.This
set of New UPA USB Programmer main unit used for main unit
damaged
2.Software
version: V1.3
Note: This set of New UPA USB
Programmer main unit, do not contain Adapters.
EEproms
Simply
connect the mainboard to the UPA programmer directly or by using a DB9 male /
female extension cable (1:1). Insert the correct config key into the slot of the
mainboard and start programming either via the ZIF or SOIC Socket. You can also
use the included DIL to 10pin Flat-ribbon header, put it inside the ZIF socket
and wire up an SOIC clip or clamps for ISP use from there.
Motorola MCU's
Pick
the Adapter you want to use, attach the flat cable to the Adapter (PIN1 is
always indicated, on both the cable and also the Adapter) and also to the main
board's 10pin ISP connector. Select the VCC supply source by the jumper on the
mainboard next to the ISP connector (on = target supplied from upa, off = target
got own supply). Slide the Adapter over the soldered PLCC MCU on the target PCB.
(No soldering, no pinout reviewing, no pin counting, saves lots of time and
hassle and let's you make your job faster, precise and easier)
Once
your workshop is equipped with our Adapter Set you will have a all new UPA
Experience.
STMicroelectronics
ST62*:
ST6240,
ST6245, ST6249
NSC
CR16*: CR16HCS5(9), CR16MCS5(9), CR16MES5(9), CR16MFS5(9), CR16MCT5/9,
CR16HCT5/9
for
Motorola HC05*: MC68HC05B6, MC68HC05B8, MC68HC05B16, MC68HC705B16, MC68HC05B32,
MC68HC05E6, MC68HC705E6, MC68HC05H12, MC68HC05L28, MC68HC05P3,
MC68HC705P3*,MC68HC05X16, MC68HC05X32
for
Motorola HC08*: MC68HC08AS20, MC68HC08AS32, MC68HC08AS60, MC68HC08AZ32,
MC68HC(9)08AZ32A, MC68HC908AZ60, MC68HC908AZ60A
for
Motorola HC11*: MC68HC11A1, MC68HC11A8, MC68HC11E9, MC68HC11EA9, MC68HC11E20,
MC68HC11F1, MC68HC11K4, MC68HC11KA2, MC68HC11KA4, MC68HC11KG4, MC68HC11KS2,
MC68HC11KS8, MC68HC11L6, MC68HC11P2, MC68HC11PA8, MC68HC11PH8
for
Motorola HC12*: MC68HC912B32, MC68HC912BE32, MC68HC912D60, MC68HC912D60A,
MC68HC912DC128A, MC68HC912DG128, MC68HC912DG128A
for
Motorola HCS12*: MC9S12D64, MC9S12A128, MC9S12DG128, MC9S12DG256, MC9S12H128,
MC9S12H256
Atmel
8051 Architecture: AT89S51, AT89S52, AT89S53, AT89S8252, AT89S8253
Atmel
AVR 8-Bit Risk: AT90S1200, AT90S2313, AT90S2323, AT90S2333, AT90S2343,
AT90S4433, AT90S4434, AT90S8515, AT90S8535, ATmega8, ATmega16, ATmega161,
ATmega162, ATmega163, ATmega323, ATmega64, ATmega103, ATmega128, ATtiny12,
ATtiny15, ATtiny2313
Microchip
PIC12: PIC12F508, PIC12F509, PIC12F629, PIC12F675
Microchip
PIC16: PIC16F627(A), PIC16F628(A), PIC16F648A, PIC16F72, PIC16F73, PIC16F74,
PIC16F76, PIC16F77, PIC16F818, PIC16F819, PIC16F83, PIC16F84(A), PIC16F870,
PIC16F871, PIC16F872, PIC16F873(A), PIC16F874(A), PIC16F876(A),
PIC16F877(A)
EEPROMs
I2C: 24C01, 24C02, 24C04, 24C08, 24C16, 24C32, 24C64, 24C65, 24C128, 24C256,
24C512, 85C72, 85C82, 85C92, BAW574252, GRM-003, GRM-004, GRM-005, KKZ-06F,
MCM2814, PCA8581, PCF8581, PCF8582, PCF8594, PCF8598, PCF85102, PCF85116,
SDA2516, SDA2526, SDA2546, X24C00, X24C01
EEPROMs
Microwire: 7002, 93C06, 93C14, 93C46, 93C56, 93C57, 93C66, 93C76, 93C86, 93S46,
93S56, 93S66, GRN-001, GRO-002, KKZ-01, S220, S2914, ST61907, XLS93C46
EEPROMs
SPI: M35080, 25C010, 25C020, 25C040, 25C080, 25C128, 25C160, 25C256, 25C320,
25C640, M25P05, M25P10, M25P20, M25P40, M25P80, ST95010, ST95020, ST95040,
ST95080, ST95160, ST95320, ST95640, ST95P02, ST95P04, ST95P08, X5043,
X5045
EEPROMs
Miscellaneous: CXK1011, CXK1012, CXK1013, M6M80011, M6M80021, M6M80041, SDE2506,
TC89101, TC89102
*EEPROM
Only
NEC
..uDP780828A uDP780948 uDP780949 uDP780973 uDP780974
TMS...TMS370CX02
TMS370CX32 TMS370CX36 TMS370CX42 TMS370CX56 TMS370CX56 TMS370CX56
78K0/HC912
TMS370CX58
TMS370CX58 78K0/HC912 TMS375C006
Package
including:
1x
UPA programmer
1x

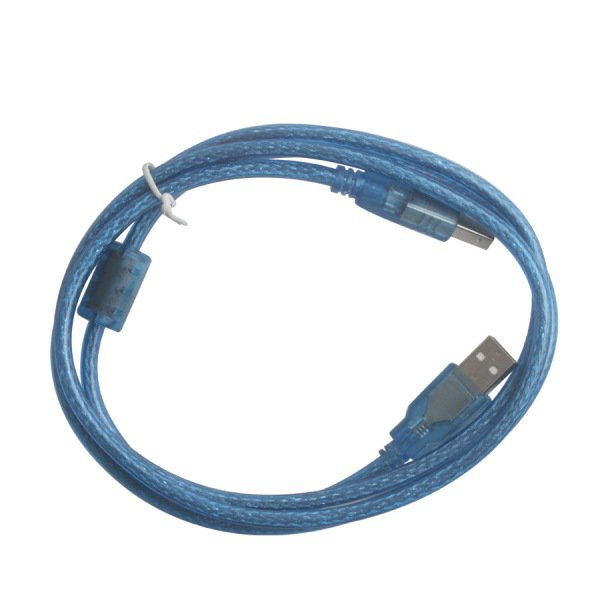

USB cable
1

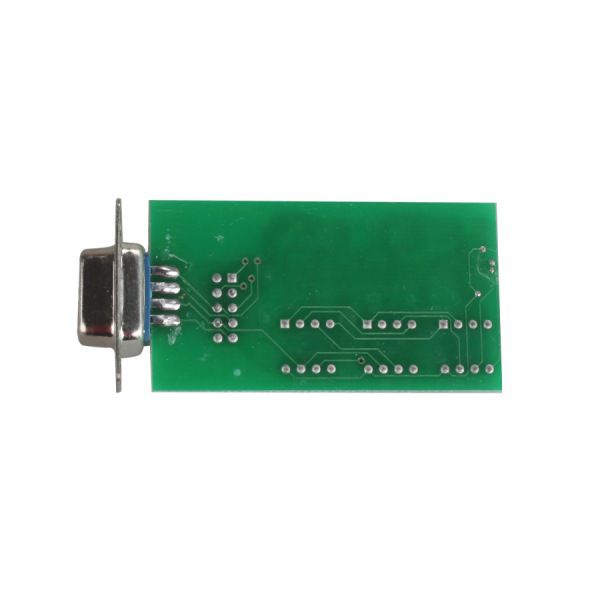

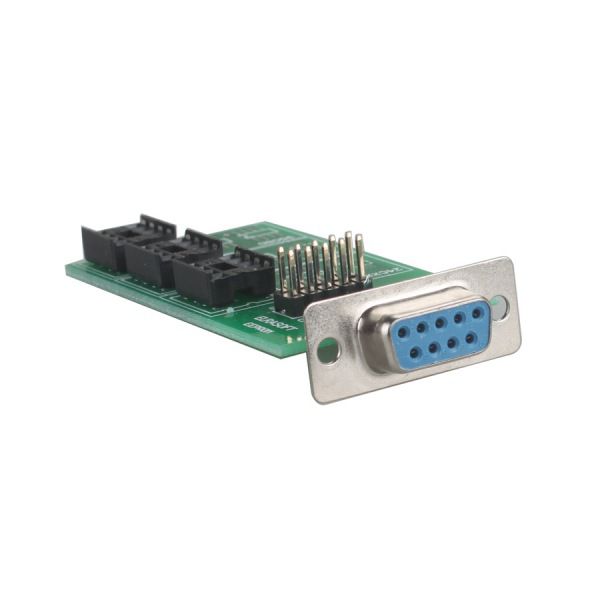

x Mainboard with 40pin DIL ZIF (600mil) socket and 14pin SOIC ZIF (150mil)
socket
