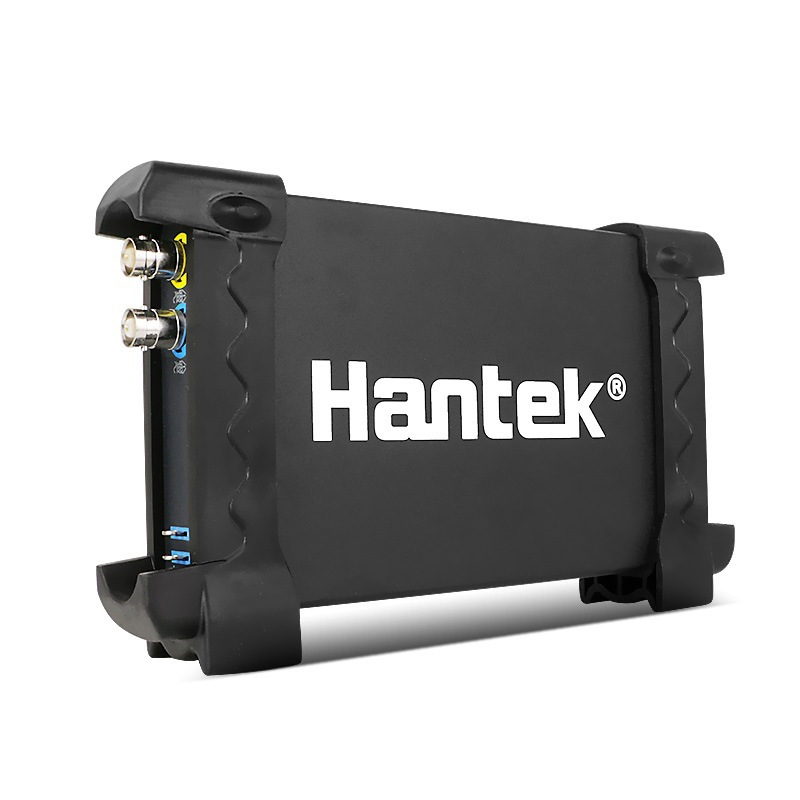

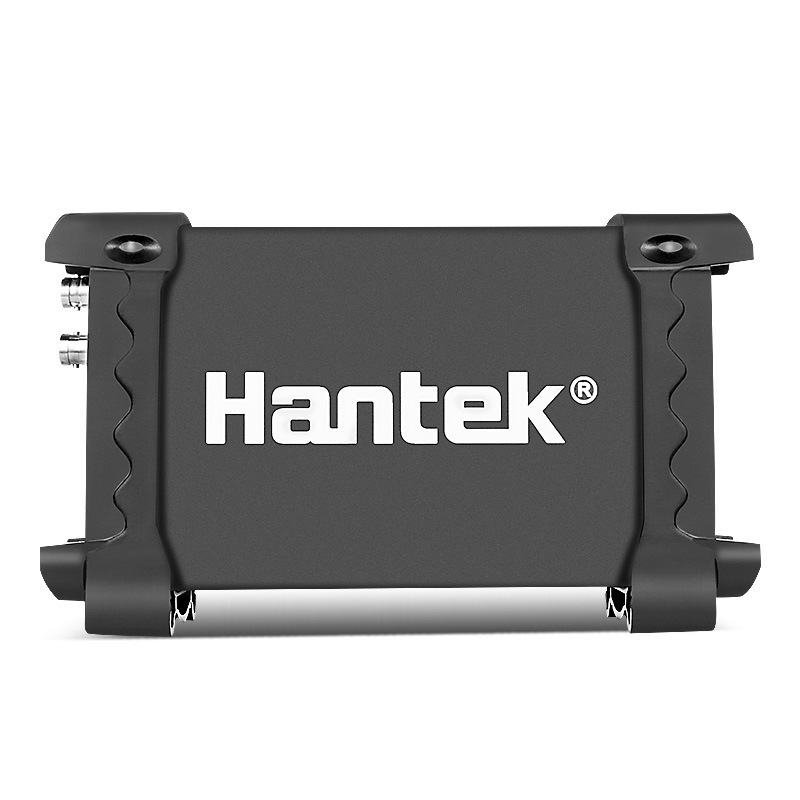

Hantek 6022BE USB Digital Storage Oscilloscope, 48MSa 20MHz  s 2-channel USB virtual oscilloscope, used for laptop computers

Item Description:

Features:
- Small size, easy to carry.
- High refresh rate and high sampling rate.
- More than 20 kinds of automatic measurement functions,built-in multiple languages can be operated, convenient to measure.
- Two channels, both economical and high performance.
- The shell adopts anodized aluminum, which is not only beautiful, but also greatly improves the surface hardness of aluminum alloy, with good heat resistance and abrasion resistance.
- The USBXITM standard interface is convenient to insert the USBXITM chassis, which comprises a combination of instruments, USB2.0 interface, power free, and desktop oscilloscope similar to interface, easy to handle.
- High performance, 48MS/s real-time sampling, 20MHz Bandwidth.
- Be suitable for notebook computer, product line maintenance, be used easily on business.
- Operating System: Windows 7, Windows NT, Windows 2000, Windows XP, VISTA, Windows 8.
- 23 measurement functions, PASS/FAIL Check, be suitable for technical application.
- Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.
- Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.
- One computer can connect many DSO, extend channel easily.

Model: Virtual Oscilloscope

Channel: 2 Channels

Band Width: 20MHZ

Record Length: 10-60K/CH

Input Impandence: 1MΩ 25pF

Max Sample Rate: 48MS/s

Vertical Resolution: 8 Bit

Gain Range: 20mV-5V, 8Steps

DC Accuracy: ±3%

Timebase Range: 1ns-9000s, 39 Steps

Vertical Adjustable: Yes

Input Protection: Diode clamping

X-Y: Yes

Trigger Mode: Auto, Normal and Single

Trigger Slope: +/-

Trigger Level Adjustable: Yes

Trigger Type: Rising edge, falling edge

Pre/Post Trigger: 0-100%

Waveform Display: Port/line, waveform average, persistence, intensity.

Network: Open/Close

Vertical Mode: CH1, CH2, Dual, ADD

Math: FFT, addition, subtraction, multiplication, division.

Cursor: Frequency, Voltage

Compensation Range: 15~45pF

Operation Environment: 0~50°C,0~80%RH

Storage Environment: -20~60°C,0~90%RH

Product Weight: 716 G / 25.26 Ounces

Product Dimensions (L*W*H): 230*170*75 MM / 9.06*6.69*2.95 Inches

Package Weight: 716 G / 25.26 Ounces

Package Dimensions (L*W*H): 230*170*75 MM / 9.06*6.69*2.95 Inches

Retail Packaging: Yes, Colored Box

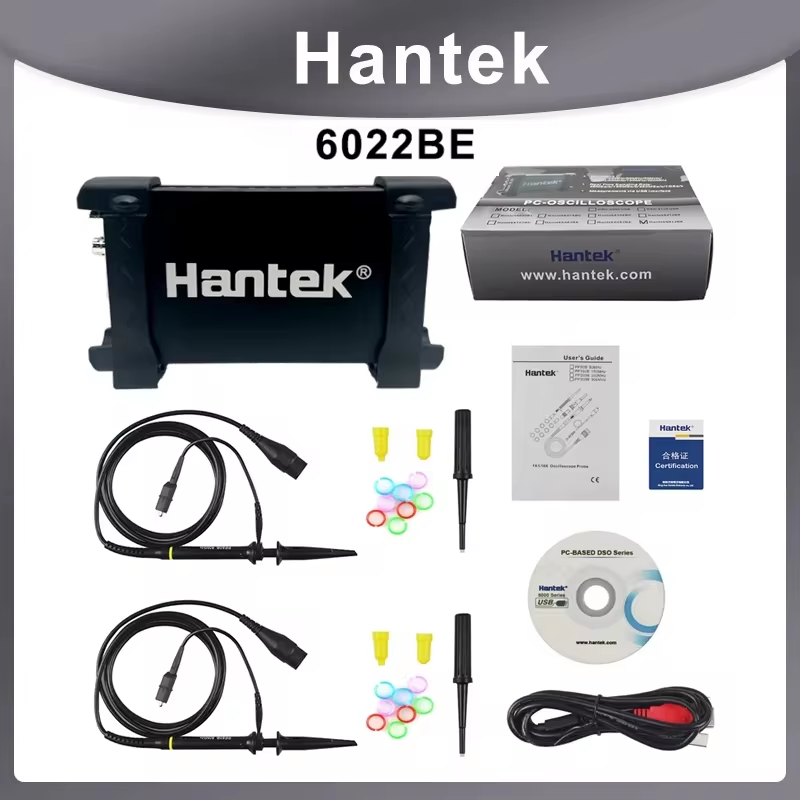

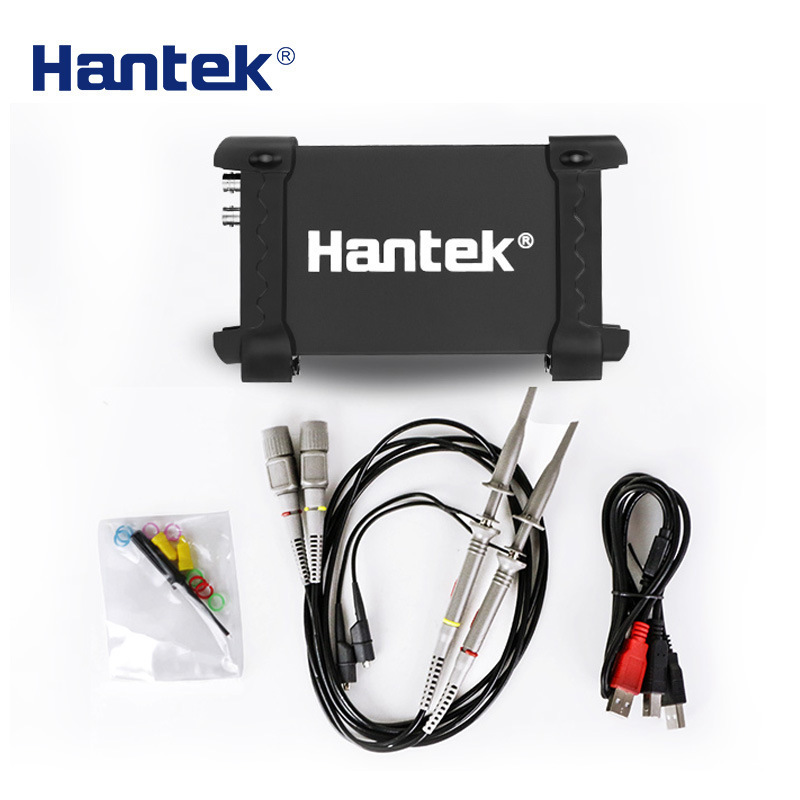

Package Including:

1 x Virtual Oscilloscope

1 x USB Data Cable

1 x Oscilloscope Probe

1 x Plastic Part
