Pico Noise Vibrator NVH Standard Diagnostic Set EP039

Feature:

*An economical tool for real-time NVH diagnosis.
*Including two 3-axis accelerometers and two microphones.
*Full screen and high-resolution results are displayed clearly and accurately.
*No external storage required - save directly to laptop or PC
*Record up to 500 seconds of data
*Automatic analysis
*Detecting multiple vibrations of the vehicle
*Including customer reporting function

Noise, vibration, and abnormal noise

For current technicians, PicoDiagnostics developed by Pico Technology ®NVH Condoms provide low-cost and efficient solutions for many NVH issues. It provides real-time diagnosis in the following ways: a bar chart, a frequency chart, a 3D frequency chart, and an RPM or vehicle speed window. It can start recording before the road test and replay the recording for analysis after returning to ensure that the driver's attention is focused on the road. Saving records with it is very simple, just like our other car software, you can easily save files to your computer's hard drive.

PicoDiagnostics ® NVH The suit is compatible with PicoScope 4000A series automotive oscilloscopes and is suitable for various configurations of vehicles (inline, V-type; manual, automatic) to meet your needs (excluding J2534 scanning tool or VCI). Because software upgrades are free for life with no additional expenses, ensuring that you can benefit from this investment. If you already have the PicoScope 4000 series car oscilloscope, you already have half of this device.

Classic applications:

Typical use

Customer complaints about noise/vibration are at most subjective, and even face challenges before technicians begin diagnosing and correcting them. By applying NVH kits to vehicles, technicians can conduct road tests with customers to obtain all vibration and noise levels. Once these valuable data are collected, they can be analyzed and compared to previously captured data or donation tools. In fact, customers typically perceive this as' problem vibration ', which may be a characteristic. Now, you can present the target data and compare it with the test results of the donated vehicles to ensure that your customers are doing well. Alternatively, comparing data may highlight issues with the vehicle, and the measurements taken can provide technicians with the information they need to confidently carry out repairs.

Here are several typical solutions for NVH kits that can save you time and money:

High speed vibration in the engine compartment
Engine vibration throughout the entire RPM range
Clutch shaking or vibration
Transmission and bearing noise
Auxiliary drive noise
Brake trembling
Steering vibration

Case: Volkswagen Golf NVH Diagnosis - Golf vibration is caused by damage to the suspension coil spring. Clearly visible in the picture

remarks:

The oscilloscope must be unlocked before using NVH software. A set of NVH suits only provides one key for unlocking an oscilloscope. To unlock additional oscilloscopes, you need to purchase the corresponding key or add an NVH suite.

The Pico NVH kit is only compatible with the car PicoScope and requires an unlock key to enable your PicoScope to work with NVH software. After receiving the NVH kit, please follow the instructions provided in the kit to obtain a unique key. This unlocking key is limited to one PicoScope oscilloscope used for cars and is non transferable. The supported PicoScope models are: 4425A. The engine speed data can be extracted from a scanner tool or VCI (not provided) that complies with J2534.

The recommended VCI is Mongoose Pro - ISO/CAN-3-TA512. This J2534 cable is used to obtain motor speed.
More technical information can also be found on this website.

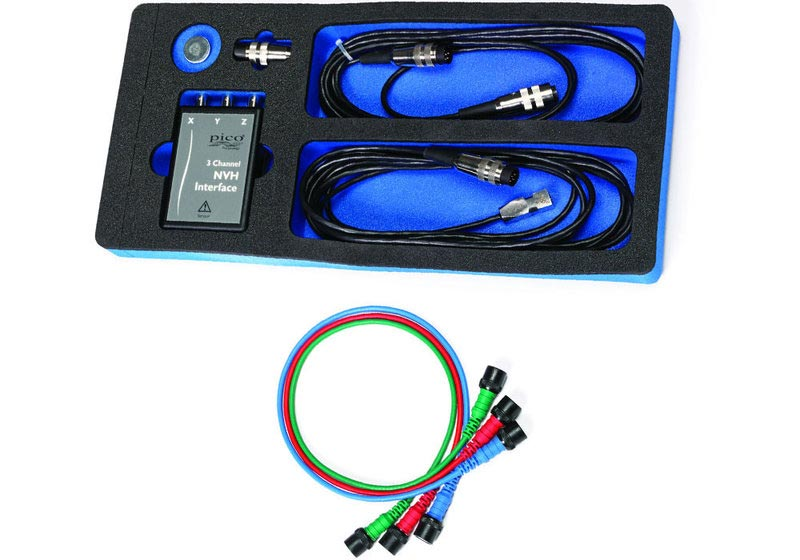

The content of the basic kit:

2 x TA259- Micro NVH interface -3 outputs
2 x TA143- MEMS accelerometer
2 x TA096- Magnetic installation of accelerometer
2 x TA144- Microphone
2 x TA145- Sensor extension cable
1 x TA243- Insulated Cable - BNC to BNC -0.5m Length - Blue
1 x TA244- Insulated Cable - BNC to BNC -0.5m Length - Red
1 x TA245- Insulated Cable - BNC to BNC -0.5m Length - Green
1 x PA047- briefcase
