W10 Excavator Truck Engineering Agricultural Machinery Injector Throttle Step Urea Pump Motor Solenoid Valve Tester

This gricultural machinery injectors features a digital display that shows real-time output voltage and drive current. The unit is set to factory parameters, including throttle stepper motor speed, solenoid frequency, injectors frequency, and duty cycle, without the need for tedious adjustment or direct use. Support test excavator throttle stepper motor, test urea pump stepper motor, test PWM-controlled speed control motor and test other small stepper motors. Support test diesels common rail injectors, test various solenoid valves, such as metering valves, proportional valves, etc., and test engine throttle actuator. Wide applications, perfect fot excavators, construction machinery, agricultural machinery, truck maintenance and testing, etc.

Features:

[Digital Display & Ready to Use]: Features a digital display that shows real-time output voltage and drive current. The unit is set to factory parameters, including throttle stepper motor speed, solenoid frequency, injectors frequency, and duty cycle, without the need for tedious adjustment or direct use.

[Adjustable Parameters]: You can reset the factory parameters to suit your needs, including changing the default power-on function, stepper motor initial speed, solenoid valves and injectors initial frequency and duty cycle, Hall and magneto signal initial frequency, PWM signal initial frequency, and duty cycle.

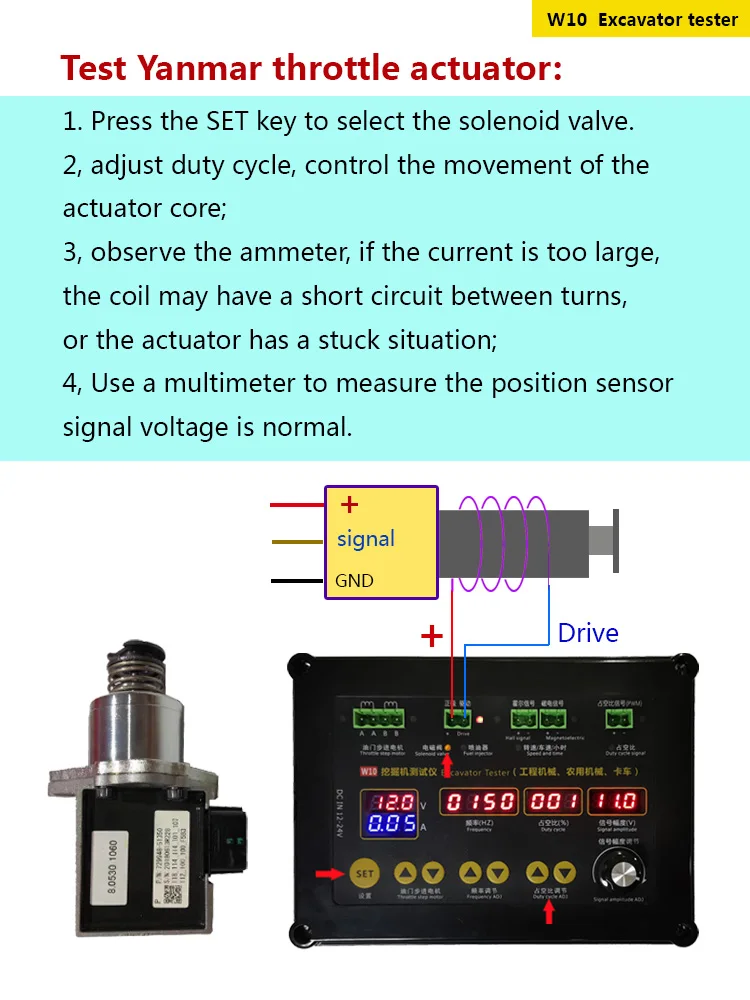

[Driver Test Function]: Support test excavator throttle stepper motor, test urea pump stepper motor, test PWM-controlled speed control motor and test other small stepper motors. Support test diesels common rail injectors, test various solenoid valves, such as metering valves, proportional valves, etc., and test engine throttle actuator.

[Signal Simulation Function]:Supports the output of Hall sensor and magneto-electric sensor signals to simulate RPM, vehicle speed, and hour meter signals. Frequency ranges 1-10KHz, signal amplitude 1.2-24V. Output frequency, amplitude, duty cycle adjustable PWM signal, frequency 1-10KHz, amplitude 1.2-24V, duty cycle 1-100%. Analogue duty cycle type sensor signal. Analogue electronic throttle PWM signal.

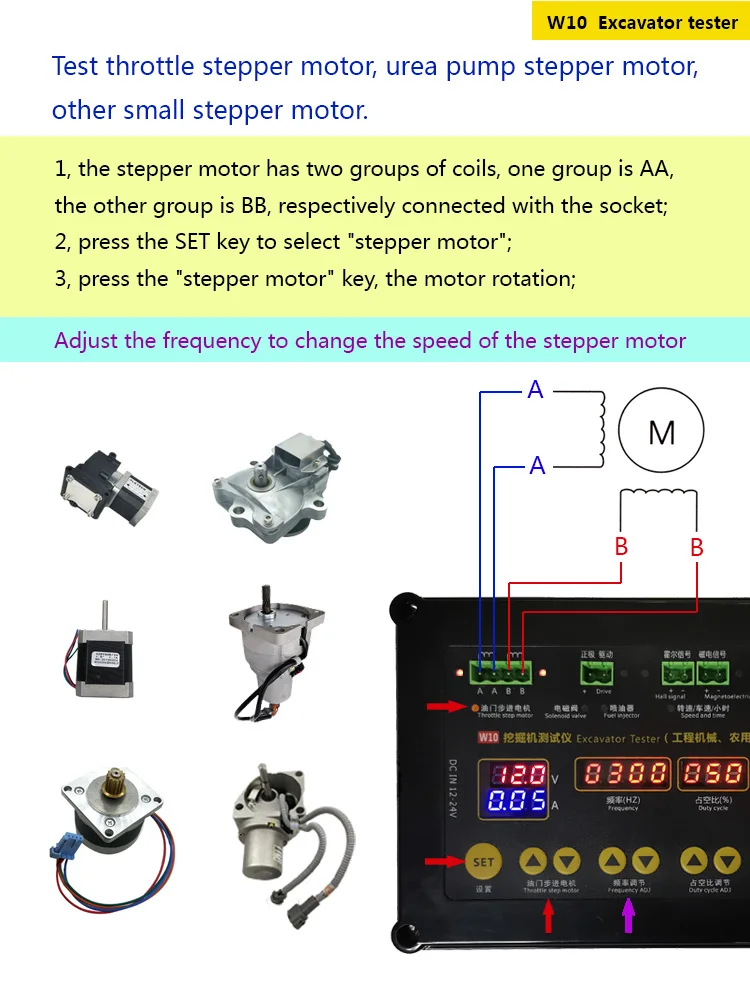

[Stepper Motor Test Function]: Test stepper motor, throttle stepper motor, urea pump stepper motor, other small stepper motor, motor forward and reverse adjustable, motor speed adjustable.

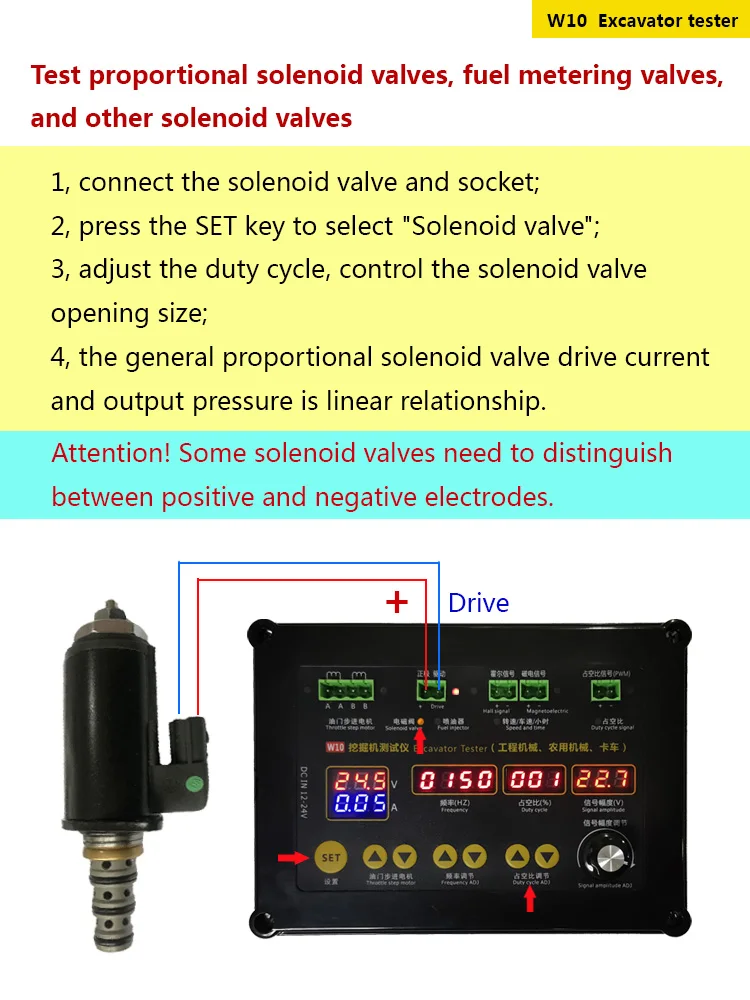

[Solenoid Valves Test]: Test proportional solenoid valves, fuel metering valves, and other solenoid valves drive current display in real time, solenoid valves opening each control.

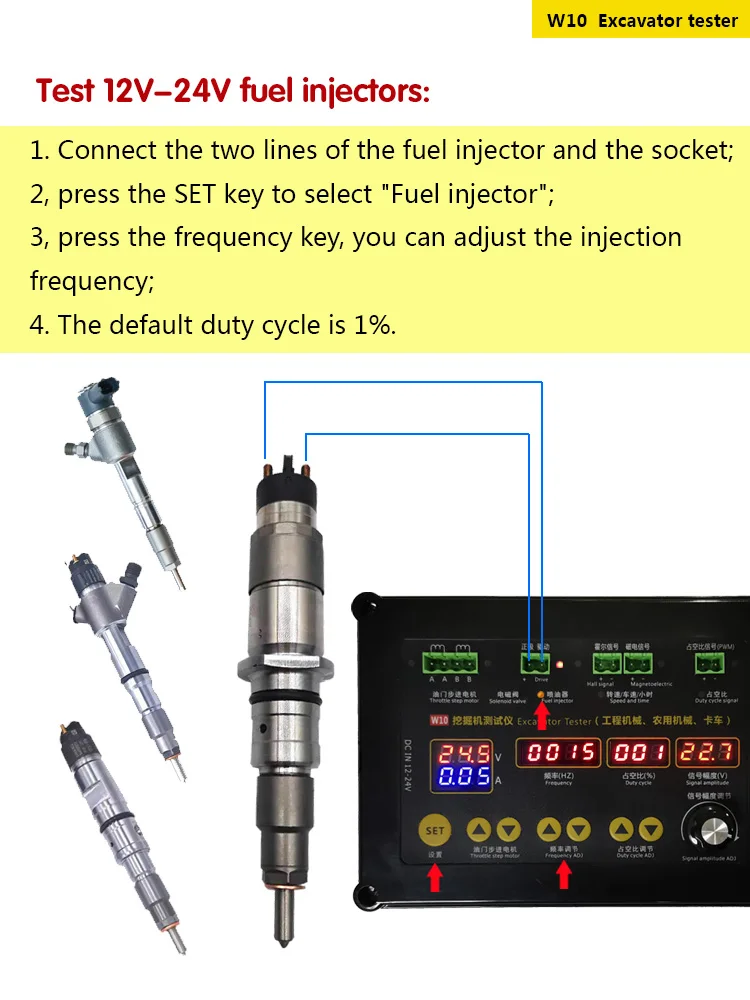

[Injectors Test]: 12-24V diesels solenoid injectors, press the frequency button, and you can adjust the injection frequency; duty cycle default 1%, generally do not need to adjust.

[Analogue Hall and Magneto Sensor Signal Testing]: Engine speed, speed, hour meter signal. Hall signal socket, + signal output, - ground line from the car to the magneto signal is an AC signal, generally does not distinguish between positive and negative poles.

[Duty Cycle (PWM) Signal Output]: PWM speed motor signal; PWM electronic throttle signal; analogue various duty cycle type sensor signals; signal frequency, amplitude, duty cycle, signal amplitude arbitrary adjustment.

[Application Areas]: Wide applications, perfect fot excavators, construction machinery, agricultural machinery, truck maintenance and testing, etc.

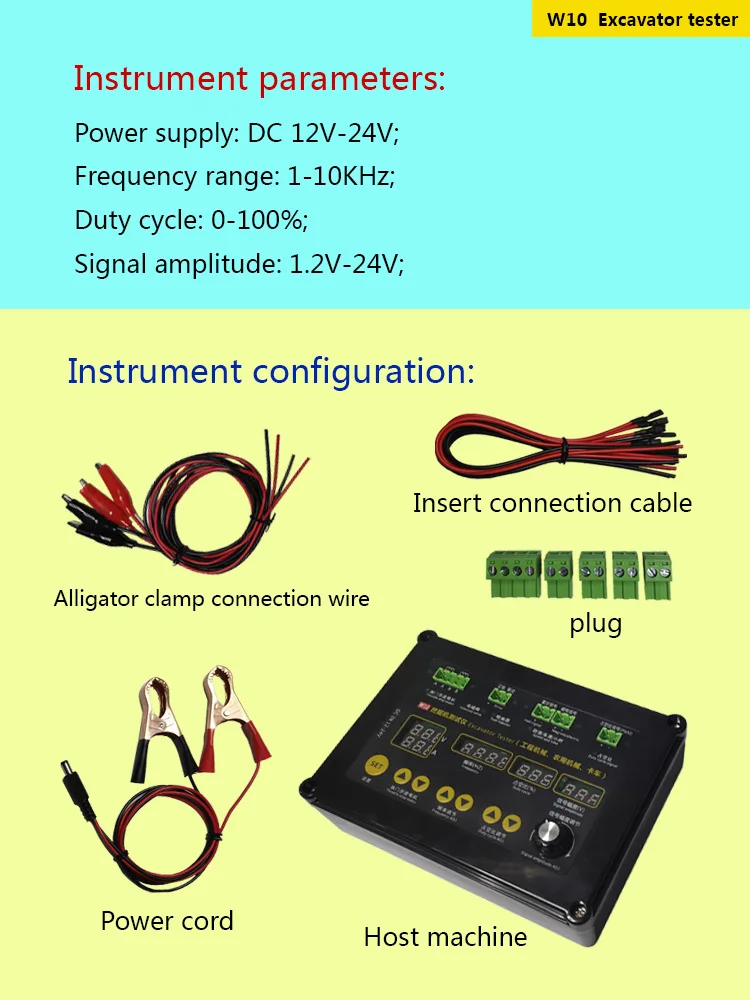

Specifications:

Name: Injectors Throttle Tester
Material: plastics
Voltage: 12-24VDC
Frequency: 1-10KHz

Duty cycle: 0-100 %
Signal amplitude: 1.2V-24V
Item size: 180 * 130 * 45mm / 7.09 * 5.12 * 1.77in
Package size: 250 * 150 * 60mm / 9.84 * 5.91 * 2.36in
Package weight: 655g / 1.44lb

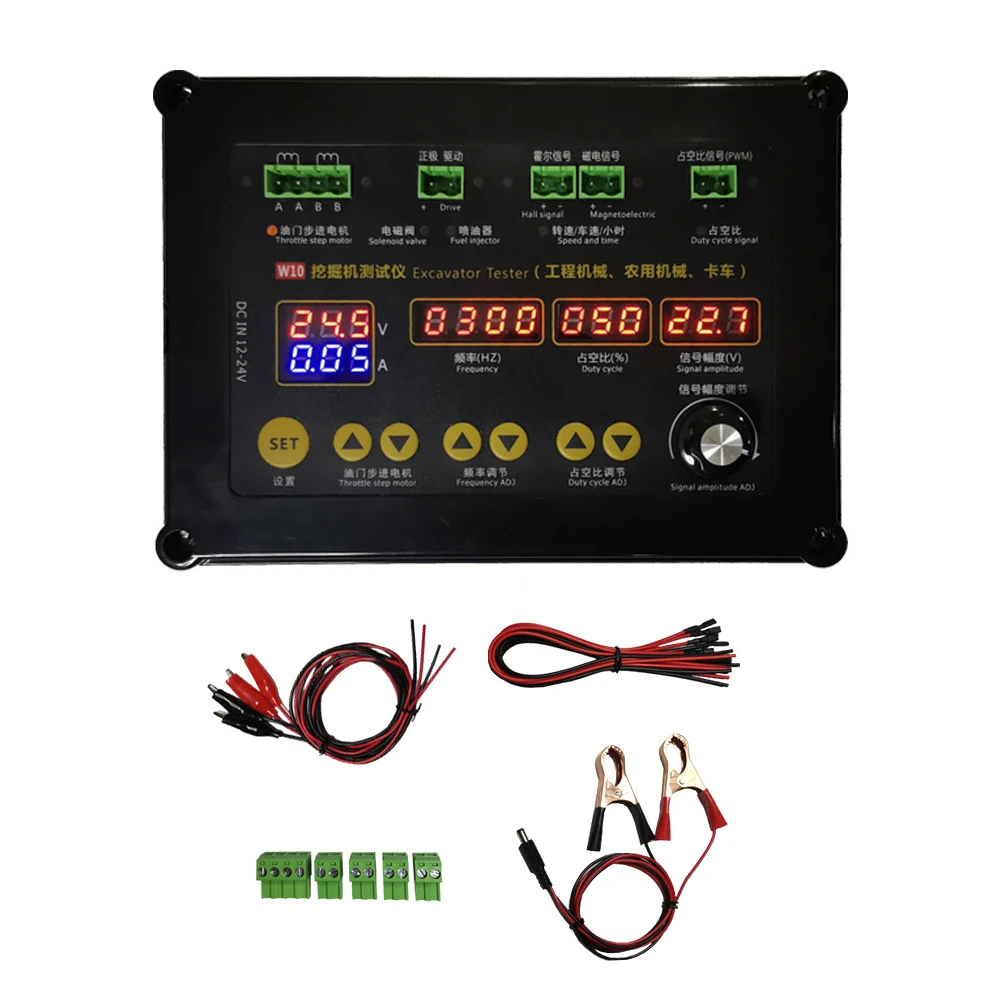

Packing List:

1 * Injectors Throttle Tester
3 * Cable
5 * Pins
