AUTOOL BT860 12- 24V Car Battery Tester with Printer & Real Time Temperature Monitoring 3.2inch Color Screen Battery Tester Tool

Description:

AUTOOL BT860 Color Screen Car Battery Tester is designed with color screen and easy printer for better using experience. It is an automotive battery tester with real time temperature monitoring, which is able to determine the exact degree of influence of temperature on the battery performance.

*Supports 12V and 24V batteries with 4 buttons;

*Battery standards: CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB;

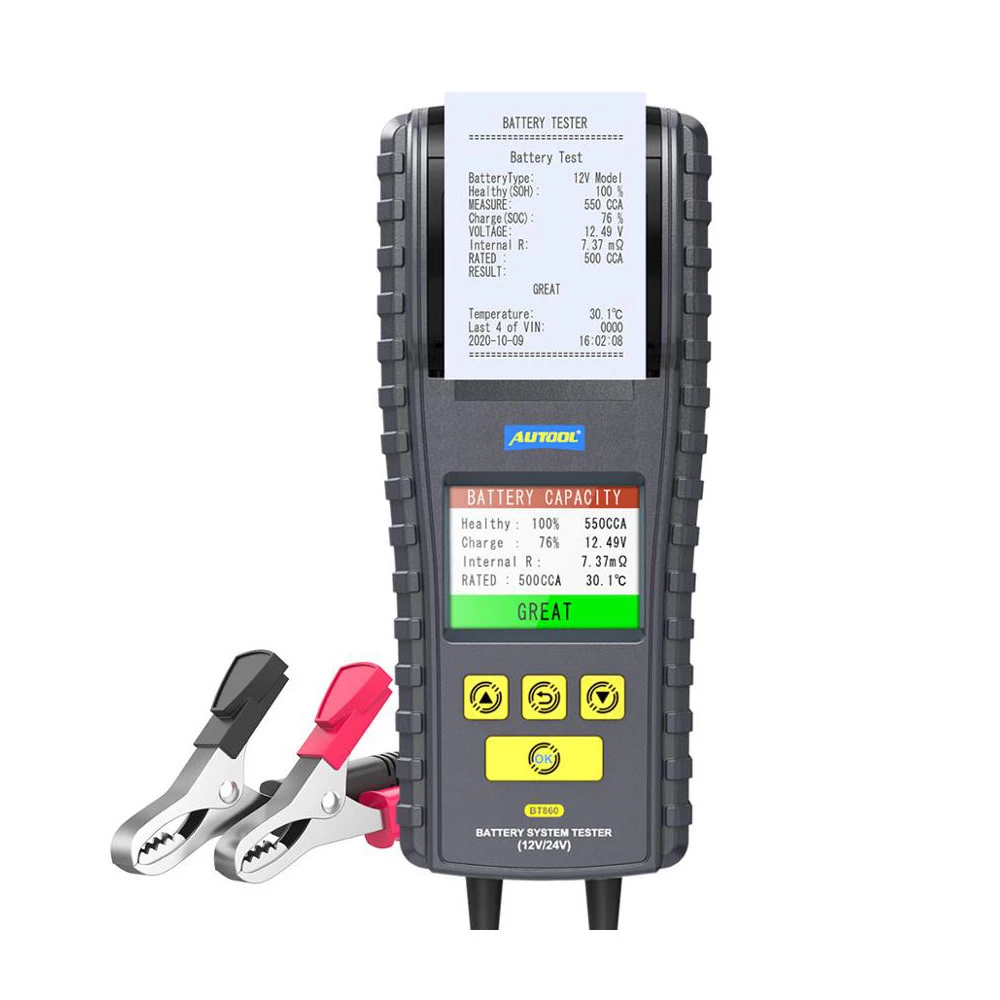

*Build-in thermal printer for reports and thermometer;

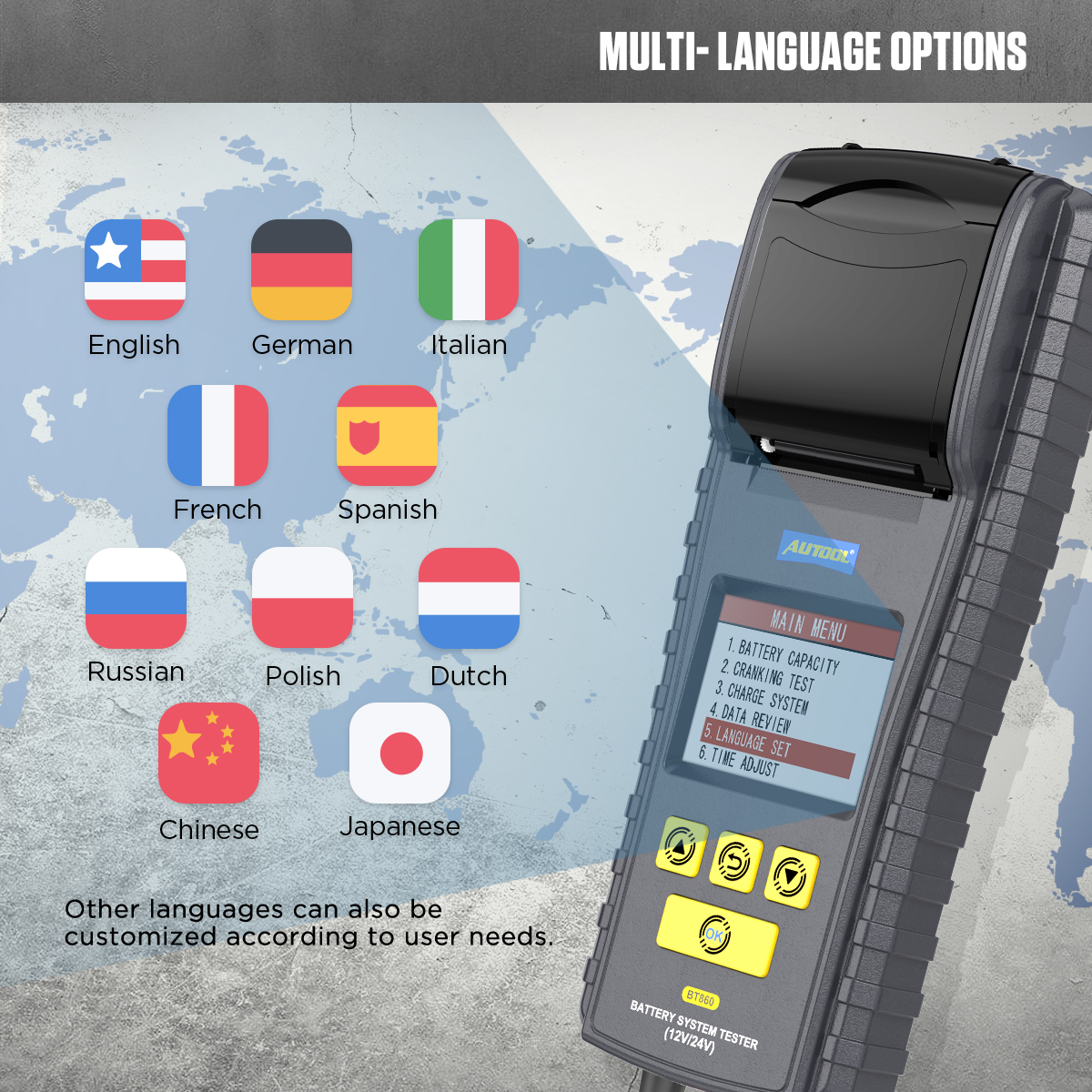

*10 Languages: English, German, French, Spanish, Polish, Russian, Dutch, Italian, Japanese, Chinese;

*3.2-inch HD color display and 50cm of power cables,backup battery for RTC (time and date);

AUTOOL BT860 12-24V Car Battery Load Tester Features:

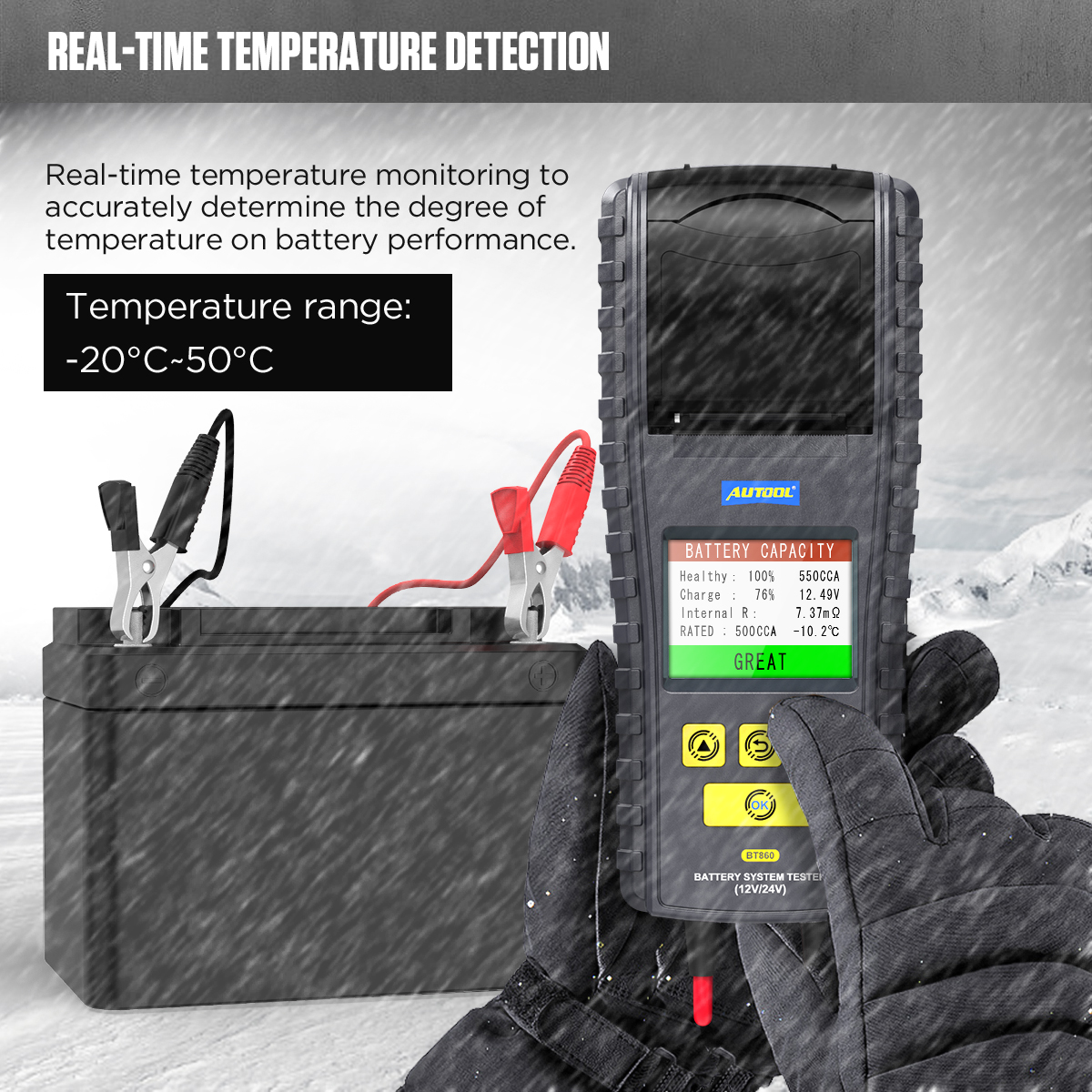

1.With real time temperature monitoring, BT860 is able to determine the exact degree of influence of temperature on the battery performance.

2.3-YEAR WARRANTY.

3.Anti-reverse connection and high voltage protection prevent the user from damaging the instrument in the event of mis-operation.

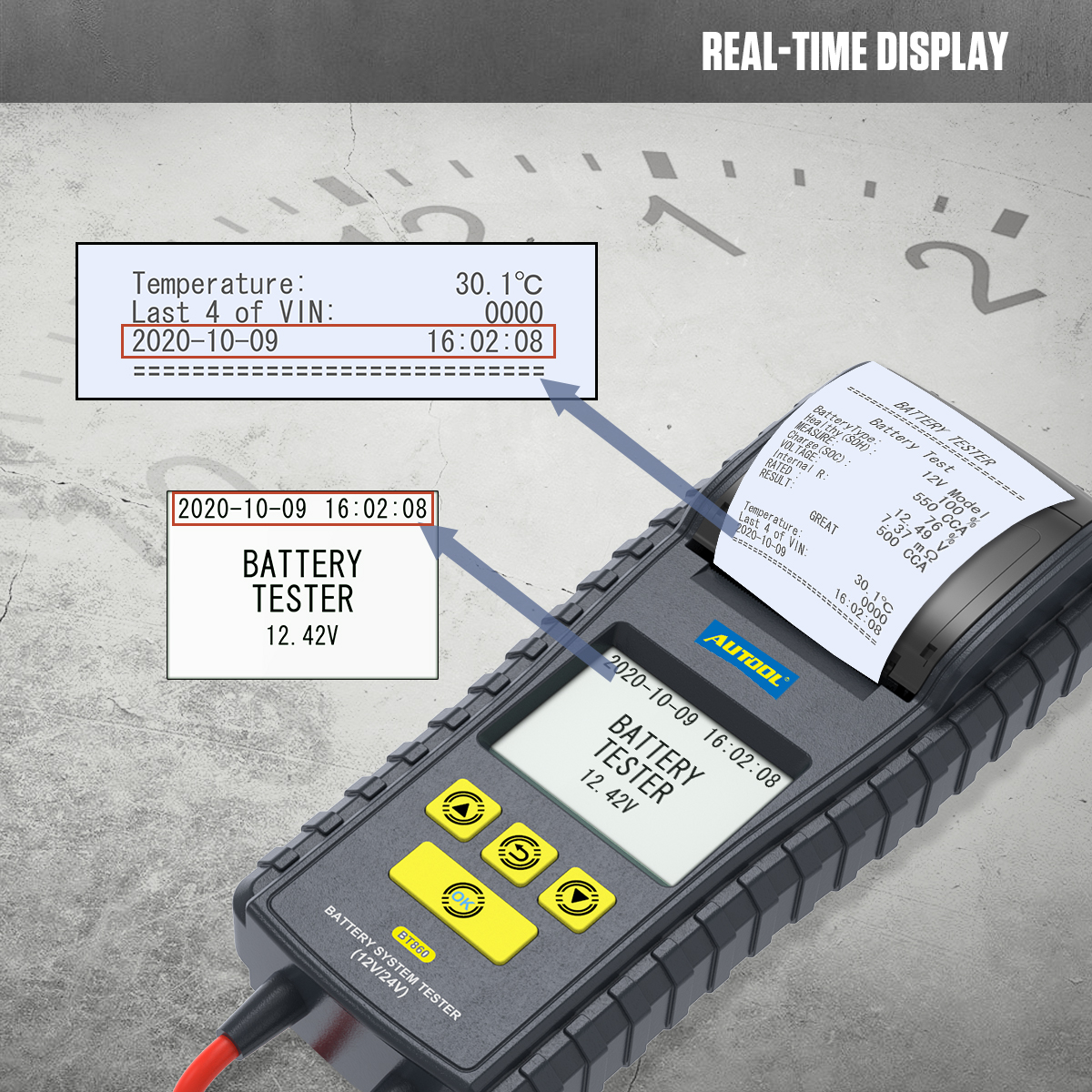

4.Real-time display and supports for 10 languages.

5.With data storage, previously measured data can be reviewed at any time.

6.3.2-inch HD display.

7.Test standards are in line with most battery standards in the world.

AUTOOL BT860 Car Battery Tester Functions:

Step 1. Connect the 12V battery, red clips to positive pole and black clips to negative pole.

Step 2. Battery Test: Firstly select the type of battery to be tested, then the test criteria and the test range, and then you have the results within few seconds.

Step 3. Cranking Test: After selecting the cranking test function, follow the prompts to start the engine. Test completed.

Step 4. Charging Test: After entering the charging test function, follow the prompt to increase the speed to 2500 RPM for 5 seconds, then press OK. Test completed.

Step 5. Max Load Test: Select the max load test function, turn on the car's electrical appliances, start the car engine and click OK.

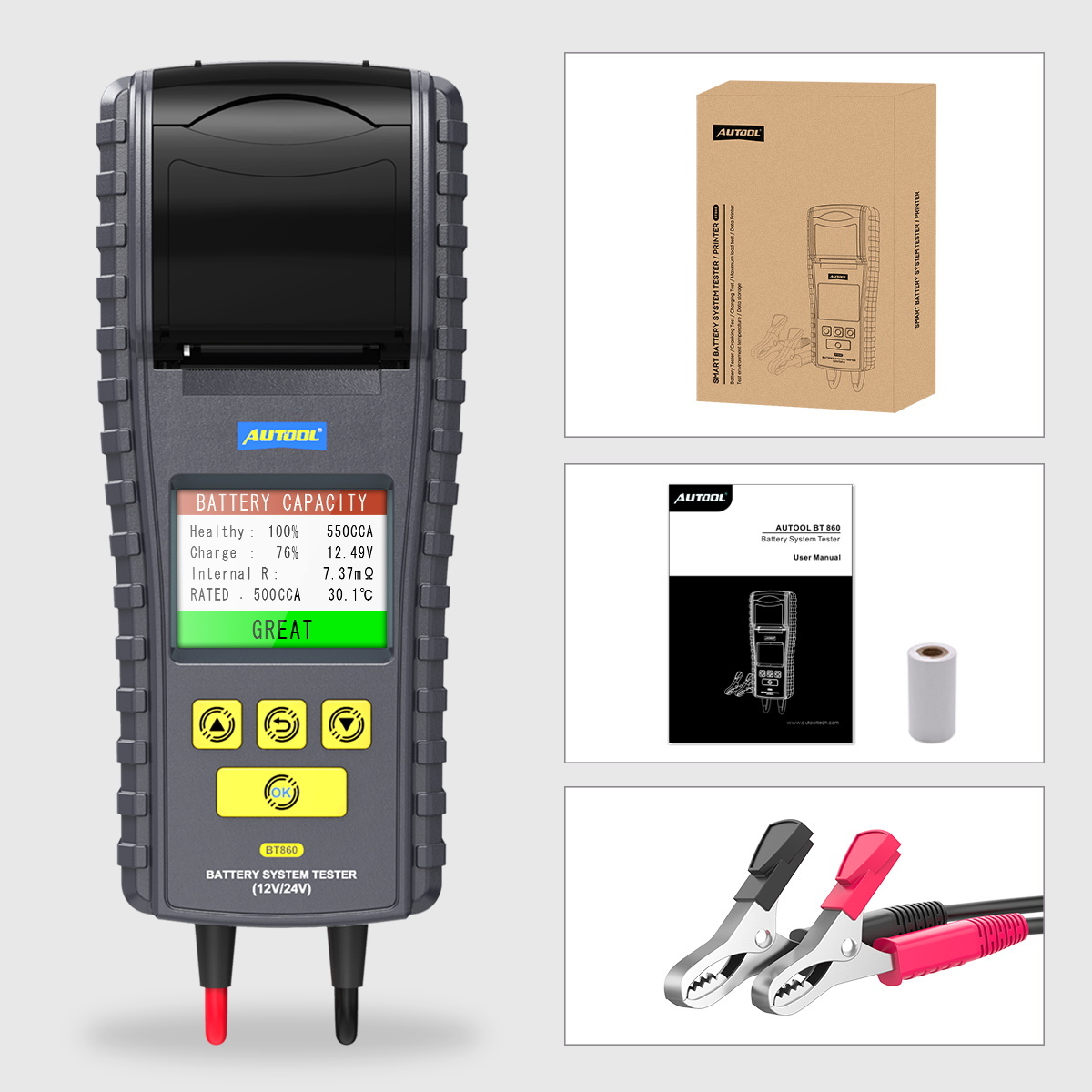

Package List:

1pcs * AUTOOL BT860 Color Screen Car Battery Tester

2pcs * Full copper core kelvin clip

1pcs * Manual

1pcs *Printing paper

1pcs * Tool package
