INTERFACE DISPLAY

Oscilloscope mode is a complete itelligent measurement system,which includes signal input, data sampling, data processing and automatic search, with the waveform test bandwidth of 500KHZ. With a variable sampling frequency, the slowly varying signal amount can be measured. It is applicable to measuring and observing various signals on the automobile circuit during the car overhaul, including the motor drive signal and motor power voltage of new energy vehicle, fuel car engine ignition pulse signal, camshaft signal, crankshaft signal, wheel speed sensor signal, oxygen sensor signal and so on.

2.8 INCH COLOR DISPLAY

Adjustable screen brightness, clear and intuitive data, suitable for various working environments.

12 Languages

As so far, DM303 ontains English, Spain, Italy, French, Russian, Deutschland, Portuguese, Poland, Netherlands, Japanese, Korean and Chinese.

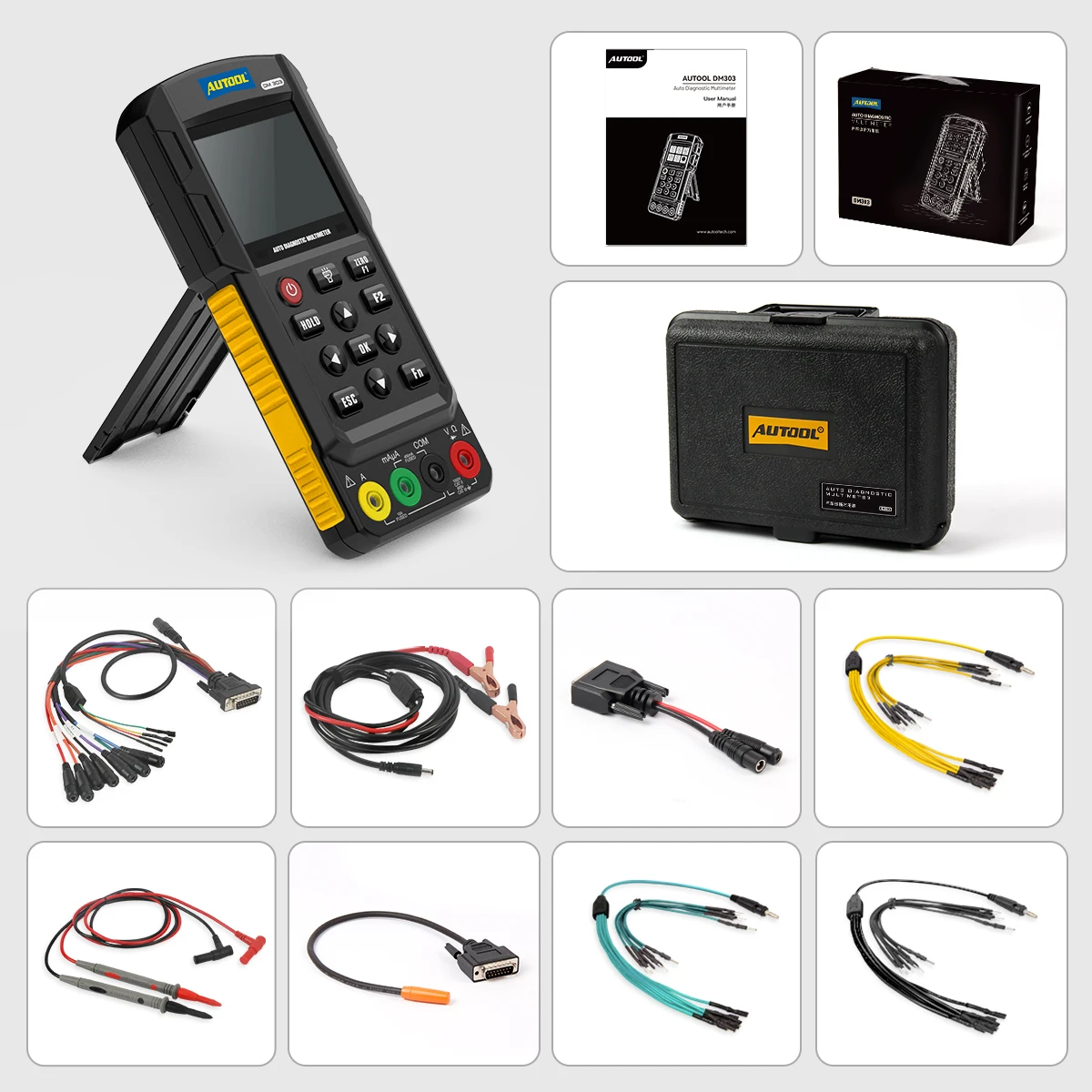

PORTABLE TOOLBOX

The main unit and accessories can be well stored, easy to carry, and the box is resistant to flling and crashing, effectively protects the instrument.

SOFTWARE UPGRADING

The instrument can update the application software with SD card and copy the updated file to SD card.

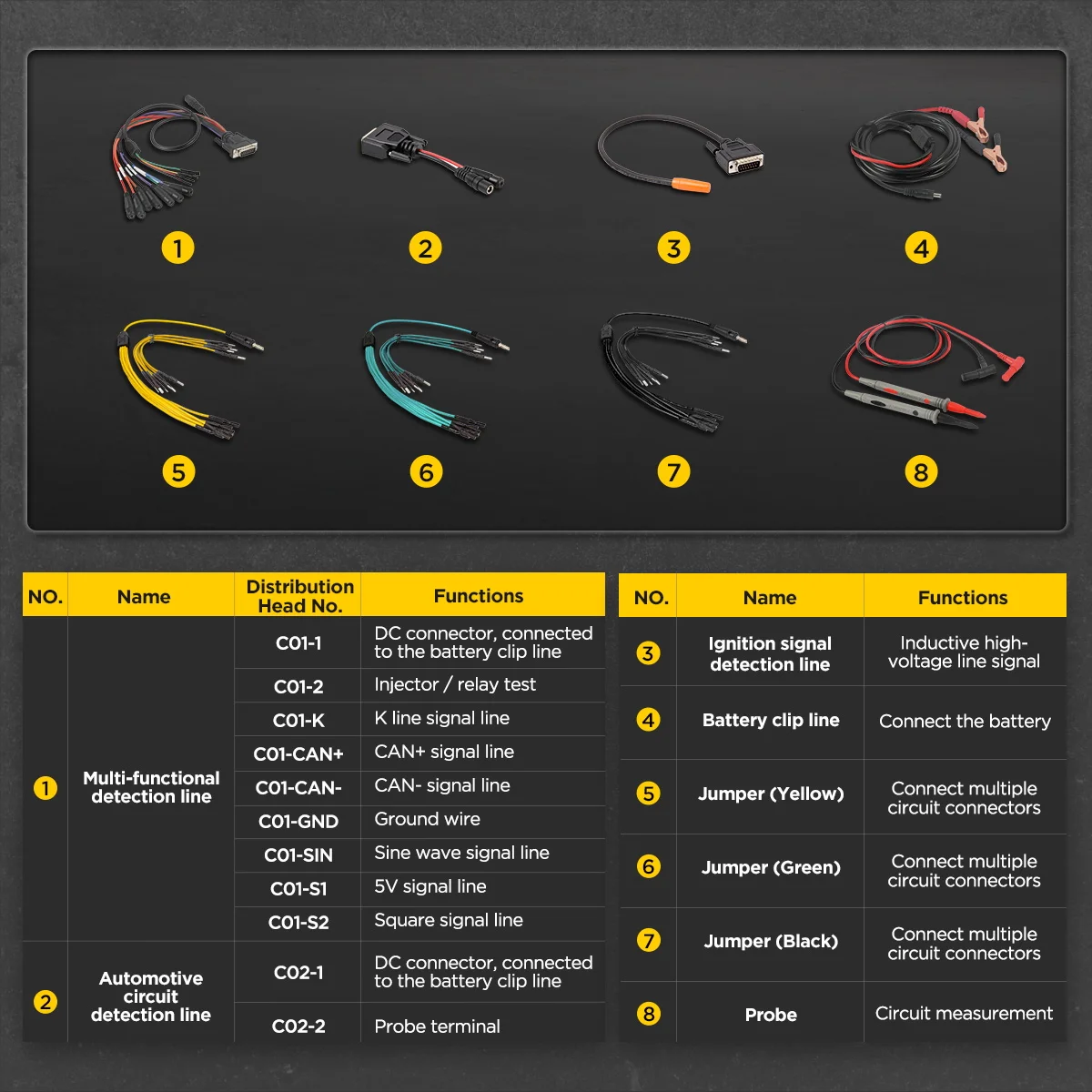

Multi-functional detection line

C01 - 1 DC connector, connected to the battery clip line
C01 - 2 Terminals for injector test and Automobile relay test
C01 - K K line signal line
C01 - CAN+ CAN+ signal line
C01 - CAN- CAN- signal line
C01 - GND Ground wire
C01 - SIN Sine wave signal line
C01 - S1 5V signal line
C01 - S2 Square signal line
C02 - Battery clip line
C03 - Ignition pulse signal detection line
C04 - 1 DC connector, connected to the battery clip line
C04 - 2 Probe terminal
C05 - Jumper(Black)
C06 - Jumper(Green)
C07 - Jumper(Yellow)

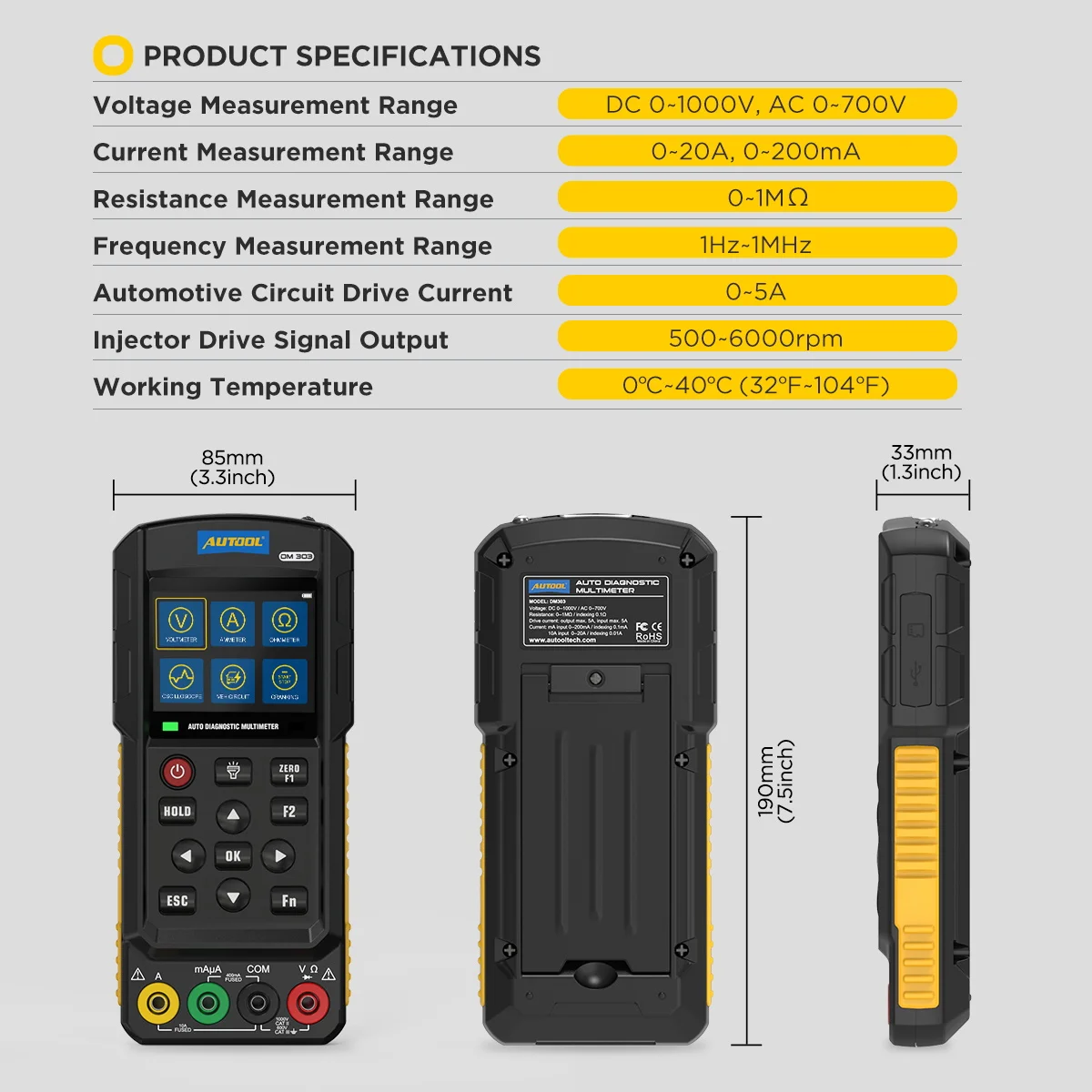

Input impedance for the voltage measurement: it is 2~3MΩ  when the voltage is lower than 160V; it is 10MΩ when the voltage is higher than 160V.

The maximum input voltage is 1000Vpp; The analog bandwidth is 500KHz; The voltage range is converted automatically; The 10A terminal fuse for current measurement is 15A self-recovery fuse, and the maximum measurable current is 20A; The current measurement mA/uA terminal fuse is 0.5A self-recovery fuse, and the maximum measurable current is 200mA

Working temperature: 0~40°C(32~104°F) Humidity: ≤75%;

Storage temperature: 10~50°C(14~122°F) Humidity: ≤70%;

Altitude: 2000m.
