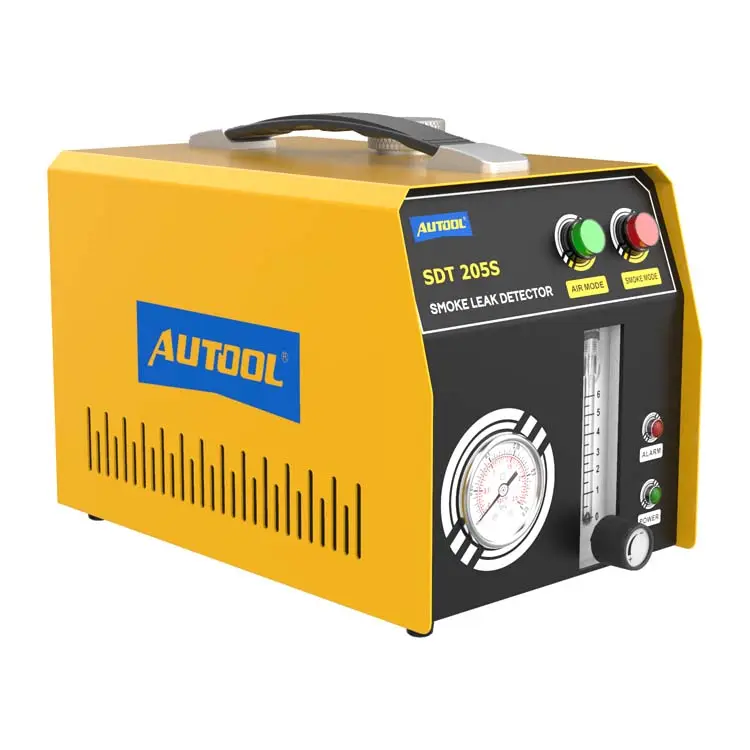

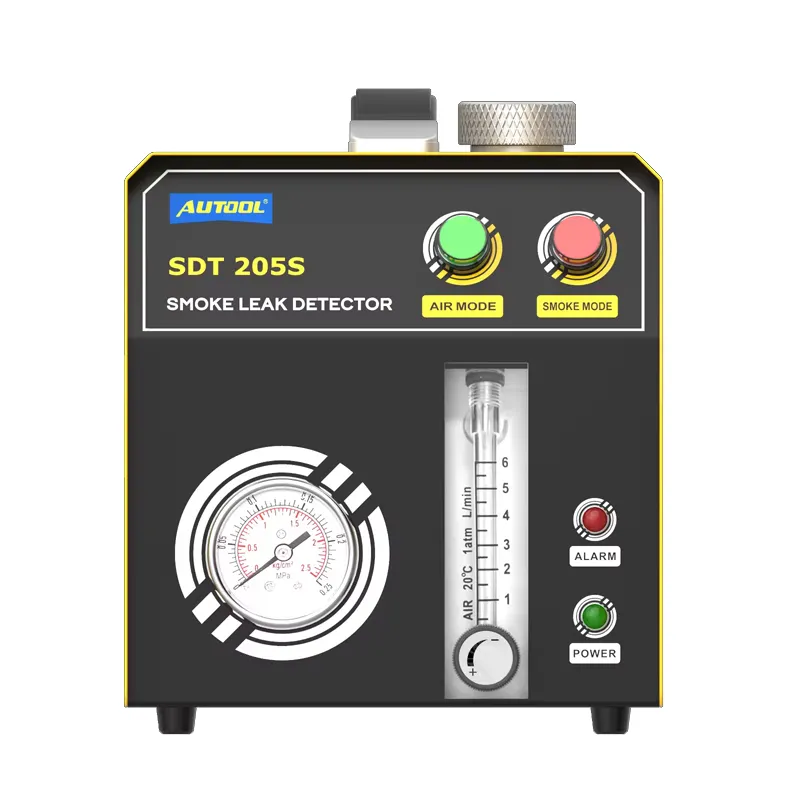

AUTOOL SDT205S Car Smoke Leak Detector Pipe Leak Locator Motorcycles Smoke Leakage Analyzer Detector Automotive EVAP System

Description:

The AUTOOL SDT 205S automotive smoke leak detector is a professional tool for detecting leaks in automotive pipelines. It will help us quickly and accurately locate the location of pipeline leaks in cars and motorcycles, suitable for pipeline system leak detection of all vehicle models.

AUTOOL SDT205 Supports Multi-system Testing

1. intake system testing,

2.exhaust system testing,

3. crankcase system testing,

4..automotive sealing testing,

5.fuel tank system testing,

6.turbocharging system testing,

7.and various pipe fittings testing.

Why choose AUTOOL SDT205S?

1.[Wide Range of Applications]: For detecting the leakage of pipe systems on cars, motorcycles, snowmobiles, off-road vehicles, ATVs, light trucks and speedboats boats. Suitable for all car models.

2.[Powerful and Easy to Operate] : The AUTOOL SDT 205S has its own Air Pump without relying on other machines and Pressure Gauge with precise scales. Simply connect the detector with the DC12V battery, it can output thick smoke within 30s after turning on.

3.[Advanced Technology]: It works on the EVAP system. (Provided with another version that specially designed for EVAP system). Equipped with dual flow meters for accurate data display & Independently controlled Air mode and Smoke mode.

4.[Overheat & Anti-frost Protection]: This smoke detector has an intelligent protector, if it exceeds the working limit, such as over 75 ℃, it will automatically turn off the power to secure the safety of both the operator and device.

5.[3 Years Warranty]: For damage caused by non-human factors, we promise to resend parts for free within 3 years. For any needs, you are warmly welcomed to contact us and we will get back to you ASAP within 24 hours.

How to do a leakage test ?

1.Fill 10ml baby oil into the detector for the first time. Open the engine cover, and hang the detector in the cover.

2.Disconnect the pipe that needs to be connected with detector.

3.Connect detector with DC12V battery, turn on the power switch, and the detector starts to work

4.In about 30 seconds, the pipe will be filled with smoke. Check the leak points. Please use a headlamp if necessary.

Caution:

When using the AUTOOL SDT205 car smoke leak detector for the first time, please top up 10ml of oil (test fluid: liquid paraffin and baby oil can both be used). Each filling should not exceed 20ml.

Before injecting new oil, please pour out the remaining oil in the detector and regularly replace the detector oil.

1. Do not run the detector continuously for more than 8 minutes. It requires intermittent rest.

2. The detector has an intelligent protector, and if it exceeds the working limit, such as 75 ℃, it will automatically turn off the power. In this case, please proceed with the operation later.

3. The circular part of this detector has temperature, please be careful to avoid burns.

4. If the test tube needs to be disconnected in the middle, please secure the other side with a rubber stopper.

Attention: During the leak detection process, please stay away from smoke sensitive components.

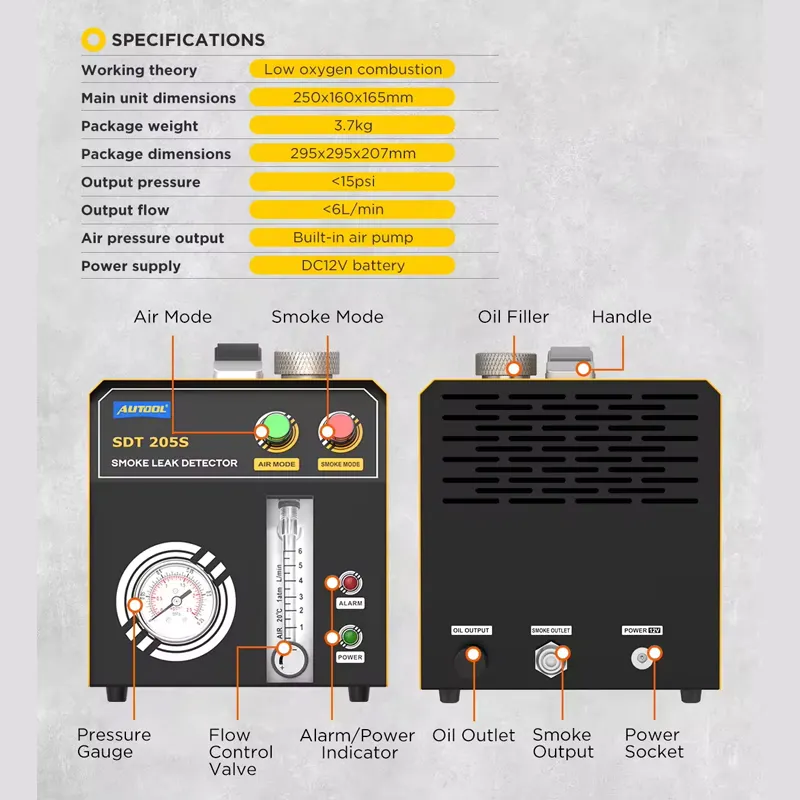

Specifications:

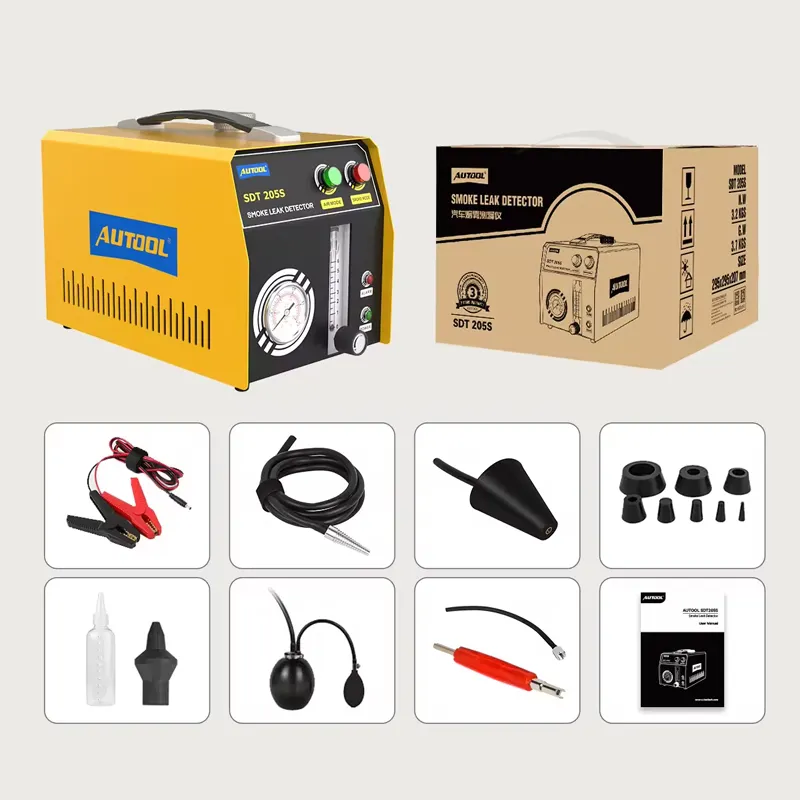

AUTOOL SDT205 Car Smoke Leak Detector Package Includes:

1* AUTOOL SDT205 Car Smoke Leak Detector Main Unit

1* Power Cord Clamp

1* Smoke hosae

1* Standard Cone adapter

1* Hard rubber kits

1* 30ml Test oil refill bottle

1* Valve Cord wrench

1* Universal airbag adapter

1* EVAP special connector

1* User manual
