AUTOOL CS603 Automotive OBD2 Scanner Diagnostic Scanner Four-System Diagnostic Scanner Diagnostics Engine Transmission ABS SRS

Why Us for AUTOOL CS603?

1. AUTOOL CS603 provides an economy solution for the professional automotive technicians and DIY fans to find out the failure of the car in engines, Transmission, ABS and airbags system
2. AUTOOL CS603 supports OE level car makes covering Europe, America and Asia with the latest 2021 models
3. AUTOOL CS603 supports complete OBDII functions including Reading Codes, Erasing Codes, Data Stream, I/M Readiness Status, Read Live Data Stream, View Freeze Frame Data, O2 Sensor Test, On-Board Monitor Test, Read Vehicle Information, Active Test
4. AUTOOL CS603 provides lifetime free updates, no need any extra charge to keep your device with the latest software
5. AUTOOL CS603 supports multiple languages including but not limited in English, Portuguese, Hungarian, Russian, Polish, Dutch, Italian, Spanish, French, German,Turkish, Simplified Chinese, Traditional Chinese etc.

6. AUTOOL CS603 is performed with the menu driven and simple operation solution, which save your headache to choose the multi-functions
7. AUTOVIN function enables an easy and quick access to the vehicle diagnosis with VIN information
8. Live data stream in graphic makes a direct and intuitive vehicle diagnosis for some sensors and actuators

Large 7 inch TFT color display

●Ergonomic and fashionable design with the rugged rubber grip
●OBDII functions available
●Automatic VIN identification
●One click online upgrade
●One click screenshot display
●One key live data recording
①4 Diagnostic Systems for Engine System, ABS System, SRS System and Transmission System
②5 Special Service Resets for oil Reset, EPB Reset, SAS Calibration, ABS Bleeding, and Throttle Learn
●WIFI or USB connection enables the software update flexible
●The USB 2.0 Type-c interface with reinforced design can be plugged in and out stably for latest software update
●The communication interface supports USB / RJ45 / WLAN and other interfaces, which is flexible and easy to use
●Support 3-way can bus and 2-way K-line / L-line to realize multi-protocol high-speed concurrent communication

AUTOOL CS603 4 System Diagnosis :

Engine System
The AUTOOL CS603 auto diagnostic scanner can help detect the engine ignition, fuel injection, air and fuel ratio, and exhaust emission conditions in Engine system to enhance vehicle performance, save energy and reduce exhaust emission.

ABS System
Diagnosing an ABS problem should always start with a visual inspection of all brake components, next you will need to retrieve ABS codes to tell you where the problem is, and this is what this scanner does for you.

SRS System
SRS, Safety Restraint System, is made up of the compact sensors, a control module, and the airbags themselves, and this diagnostic device can detect every electronic parameter to check its health status.

Transmission System
It makes great sense in the safe driving when your car is slipping or difficult to shift. This diagnostic scanner can figure out the problems out via reading codes in the Transmission system, or check the health status via live data viewing.

AUTOOL CS603 5 Special Service Resets :

EPB RESET (Electronic Park Brake Reset)
EPB Service allows you to perform the service and maintenance of brake systems, including deactivation and activation of the brake control system, bleeding brake fluid, opening and closing brake pads, and setting brakes after disc or pad replacement on multiple brands of vehicles where electronic brake systems are fitted. Some tests display a command to the operator.

OIL RESET (Oil Service Light Reset)
Oil Light Reset allows you to reset the service lamps on the instrument cluster. The Service Indicator System is designed to alert the driver when the vehicle is due for a service.

SAS CALIBRATION (Steering Angle Sensor Reset)
To reset the steering angle, firstly find out the relative zero point position for the car to drive in straight line. Taking this position as reference, the ECU can calculate the accurate angle for left and right steering. After replacing the steering angle position sensor, replacing steering mechanical parts (such as steering gearbox, steering column, end tie rod, steering knuckle), performing four-wheel alignment, or recovering car body, you must reset the steering angle.

ABS BLEEDING (Anti-Brake System Bleeding)
This function allows you to perform various bi-directional tests to check the operating conditions of Anti-lock Braking System (ABS).

1. When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity.
2. If the ABS computer, ABS pump, brake master cylinder, brake cylinder, brake line, or brake fluid is replaced, the ABS bleeding function must be performed to bleed the ABS.

THROTTLE LEARN (Electronic Throttle Sensor Reset)
This function enables you to make initial settings to throttle actuators and returns the “learned” values stored on ECU to the default state.

Doing so can accurately control the actions of regulating throttle (or idle engine) to adjust the amount of air intake.

AUTOOL CS603 Auto Diagnostic Scanner Provides 10 Modes Obdii Function

Read Codes
Present some diagnostic trouble codes after scanning the vehicle.

Clear Codes
Clear the fault codes after doing the repair according to the prompt of the scanner.

Data Stream
Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

Read Live Data Stream
Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

I/M Readiness
Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for the inspection and maintenance testing.

View Freeze Frame Data
Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs. Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

On-Board Monitor Test
Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs. Retrieves and displays test results emission-related powertrain components and systems.

O2 Sensor Test
If your engine has unexpectedly started to run poorly, and O2 Sensor Test should be performed. When testing the O2 sensors, the engine will idle normally and with reasonable stability. This must be achieved by loading the original base map or a known good base map and clearing all learned conditions. After reloading the base map and clearing all learned conditions, if the engine does not idle reasonably well, the probability is VERY HIGH that there is a mechanical or electrical issue on the motorcycle causing the problem.

Read Vehicle Information
Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

Active Test
Certain vehicle components can be actuated by commands sent from the auto diagnostic scanner to test their operability

AUTOOL CS603 Special Function Supporting Car List :

OIL RESET (Oil Service Light Reset)
For AMFORD, EUROFORD, MERCEDES, BMW, CHRYSLER, CITROEN, DAEWOO, ALFA, FIAT, LANCIA, GM, ACURA, HONDA, HYUNDAI, INFINITI, ISUZU, JAGUAR, LANDROVER, MAZDA, MINI, MITSUBISHI, NISSAN, OPEL, VAUXHALL, PEUGEOT, DACIA, RENAULT, SUBARU, SUZUKI, LEXUS, SCION, TOYOTA, VOLVO, AUDI, BENTLEY, BUGATTI, LAMBORGHINI, SEAT, SKODA, VW

EPB RESET (Electronic Park Brake Reset)
For AMFORD, EUROFORD, MERCEDES, BMW, CHRYSLER, CITROEN, DAEWOO, ALFA, FIAT, LANCIA, GM, ACURA, HONDA, HYUNDAI, JAGUAR, LANDROVER, MAZDA, MG, MINI, OPEL, VAUXHALL, PEUGEOT, RENAULT, ROEWE, LEXUS, SCION, TOYOTA, VOLVO, AUDI, BENTLEY, BUGATTI, LAMBORGHINI, SEAT, SKODA, VW

SAS CALIBRATION (Steering Angle Sensor Reset)
For AMFORD, EUROFORD, MERCEDES, BMW, CHRYSLER, CITROEN, DAEWOO, DAIHATSU, ALFA, FIAT, LANCIA, GM, ACURA, HONDA, HYUNDAI, INFINITI, JAGUAR, LANDROVER, MAZDA, MG, MINI, MITSUBISHI, NISSAN, OPEL, VAUXHALL, PEUGEOT, DACIA, RENAULT, ROEWE, LEXUS, SCION, TOYOTA, VOLVO, AUDI, BENTLEY, BUGATTI, LAMBORGHINI, SEAT, SKODA, VW

ABS BLEEDING (Anti-Brake System Bleeding)
For AMFORD, EUROFORD, MERCEDES, BMW, CHRYSLER, FIAT, LANCIA, GM, ACURA, HONDA, HYUNDAI, INFINITI, JAGUAR, LANDROVER, MAZDA, MG, MINI, MITSUBISHI, NISSAN, OPEL, VAUXHALL, RENAULT, ROEWE, SUBARU, LEXUS, SCION, TOYOTA, VOLVO, AUDI, BENTLEY, BUGATTI, LAMBORGHINI, SEAT, SKODA, VW

THROTTLE LEARN (Electronic Throttle Sensor Reset)
For AMFORD, EUROFORD, BMW, CHRYSLER, CITROEN, DAEWOO, ALFA, FIAT, LANCIA, GM, ACURA, HONDA, HYUNDAI, INFINITI, JAGUAR, LANDROVER, MAZDA, MG, MINI, MITSUBISHI, NISSAN, OPEL, VAUXHALL, PEUGEOT, DACIA, RENAULT, ROEWE, SUZUKI, LEXUS, SCION, TOYOTA, VOLVO, AUDI, BENTLEY, BUGATTI, LAMBORGHINI, SEAT, SKODA, VW

AUTOOL CS603 Four-System Auto Diagnostic Scanner Supporting Car Brands (Some models up to 2020/2021)

Asian car makes (from 2005-2021)
ACURA, DAEWOO, DAIHATSU, HONDA, HYUNDAI, INFINITI, ISUZU, ISUZUTHAILAND, KIA, LEXUS, MAHINDRA, MARUTI, MAZDA, MITSUBISHI, NISSAN, PERODUA, PEUGEOT, SAMSUNG, SCION, SSANGYONG, SUBARU, SUZUKI, TATA, TOYOTA,

Europe car makes (from 2004-2021)
ABARTH, ALFA, ASTONMARTIN, AUDI, BENTLEY, BENZ, BMW, BUGATTI, CITROEN, DACIA, EURFORD, FERRARI, FIAT, GAZ, JAGUAR, LAMBORGHINI, LANCIA, LANDROVER, MASERATI, MAYBACH, MERCEDES-BENZ, MINI, OPEL, PAZ, PORSCHE, PROTON, RENAULT, ROLLSROYCE, SAAB, SEAT, SKODA, SMART, SPRINTER, UAZ, VAUXHALL, VAZ,
VOLVO, VW, ZAZ,

America car makes (from 1996-/2021)
BUICK, CADILLAC, CHEVROLET, CHRYSLER, DODGE, FORD, GM, GMC, HUMMER, JEEP, TROLLER,

China domestic car makes (from 1996-/2021)
Cheery, Geely, BYD, GWM, ROEWE, MG,

Australian car makes (from 1996-/2021)
AUSFORD, HOLDEN,

South of America car makes (from 1996-/2021)
FIATSA, GMSA,

OBDII (from 1996-/2021)
OBDII

AUTOOL CS603 Provides Two Ways Software Update

Via WIFI connection mode
1.Searching WIFI signal after selecting WIFI icon
2.The system will list all HOTSPOT on site
3.Input the password if necessary
4.Connect the Server according to the screen instruction
5.Select the car makes of the diagnostic software package according to the demands

Via USB connection mode
1.Go to the AUTOOL official website www.autooltech.com
2.Download AUTOOL Update Client to your PC according to the instructions. Make sure the update client has been installed in your PC (Windows 7/8/10 only)
3.Connect the PC to AUTOOL CS603 main unit with the USB cable
4.Input the necessary information during the first registration
5.Select the car makes and click Download according to the demands
6.Wait several minutes, update will be done, enjoy new software

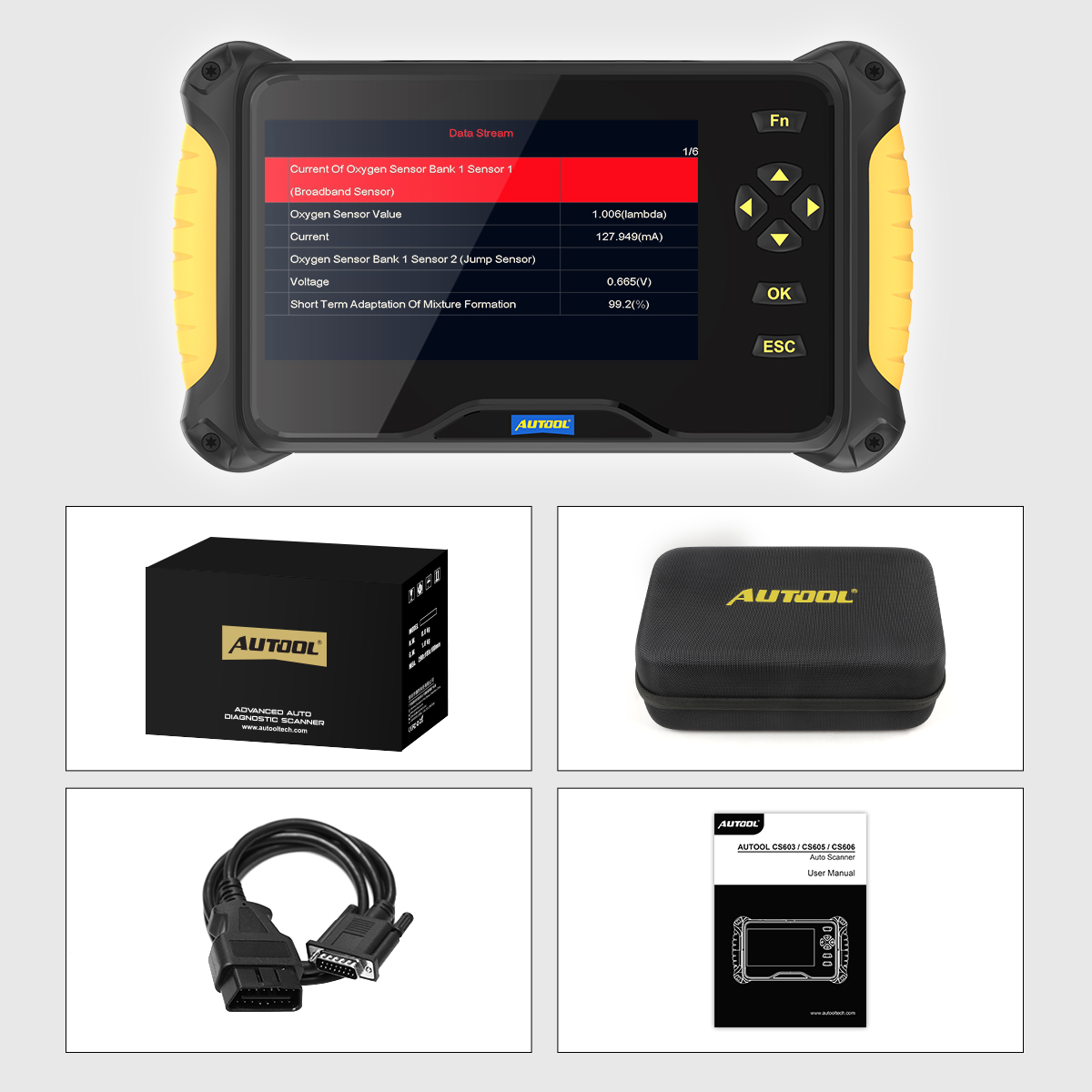

Package includes

1 * AUTOOL CS603 Main Unit
1 * USB Cable
1 * Main Cable
1 * User's Manual
1 * Carrying Bag
1 * Carton Box
