AUTOOL BT660 Car Battery Tester 12V 24V Vehicle Auto Battery Tester Analyzer Diagnostic-tool with Thermal Printer

Description:

AUTOOL BT660 Car Battery Load Tester with Printer is used for lead-acid starting battery, regular flooded, AGM flat plate, AGM Spiral, GEL and EFB.

Applying the advanced conductance testing technology and built-in thermal printer, BT660 can give you accurate testing results and print it in seconds.

Comparison of AUTOOL Seriels Battery Tester:

AUTOOL BT660 6-32V Car Battery Load Tester Features:

1.Battery Test
2.Cranking Test
3.Charging Test
4.Review Data
5.Print Data
6.Export Data :Contact to computer
7.multi-language

Language version1: English, French, German, Spanish, Italian, Polish
Language:version2:Chinese,English,Japanese,Russian ,Nederlands

8.Adjust system time

[ Battery & Cranking & Charging Test ]:

AUTOOL BT660 Car Battery Load Tester tests battery, cranking & charging directly for in-car or out of car battery, quickly and accurately measure the actual cold cranking amps capability of the vehicle starting battery, healthy status of the battery itself, and common fault for auto repair.

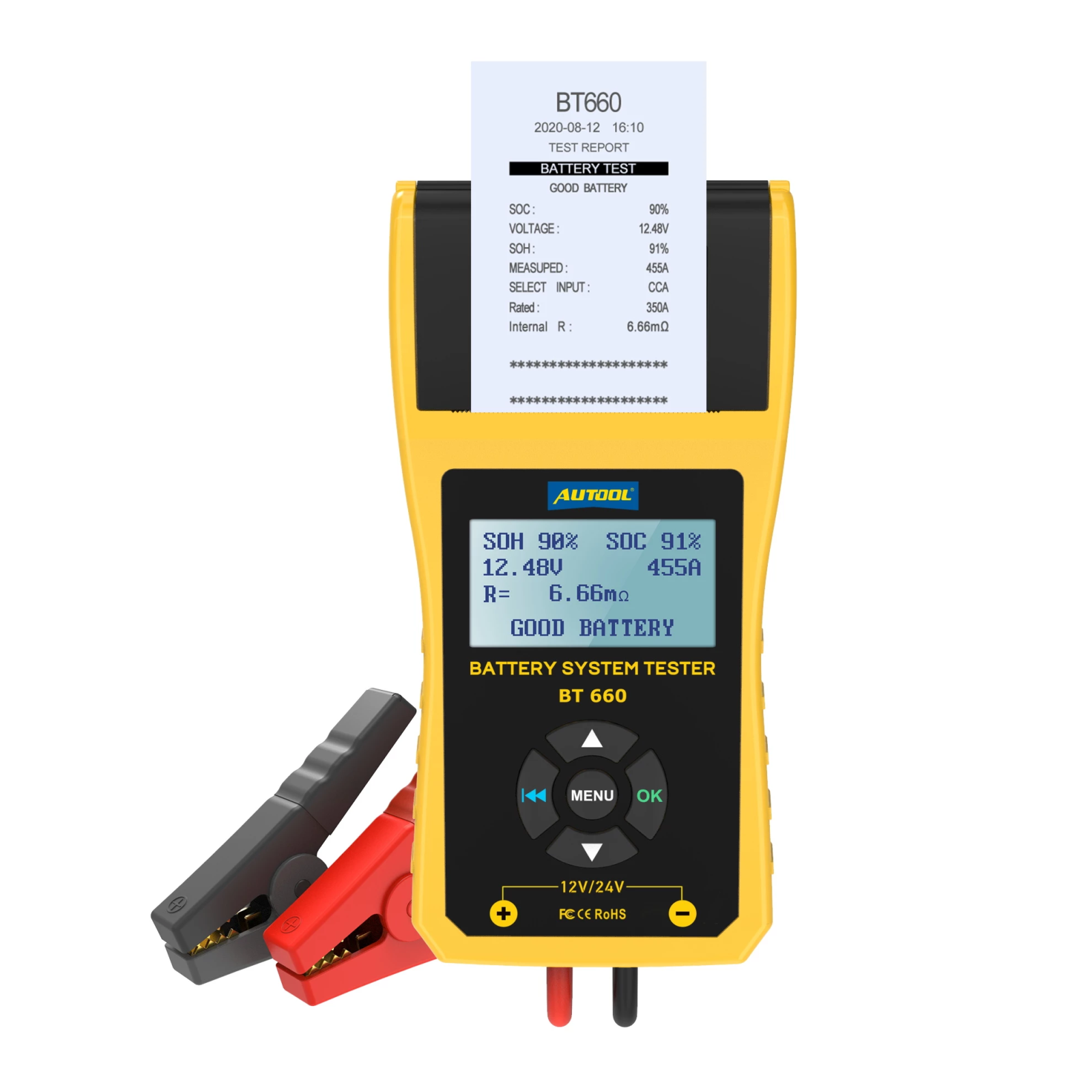

[ Built-in Printer & Data Download ]:

Quick and accurate test result in LCD display just millseconds,with printer you are allowed to review the result date and print the result report. Plus when it connects to a PC via a USB port, you can save data for easy reference next time.

[ Battery Trouble Shooting ]:

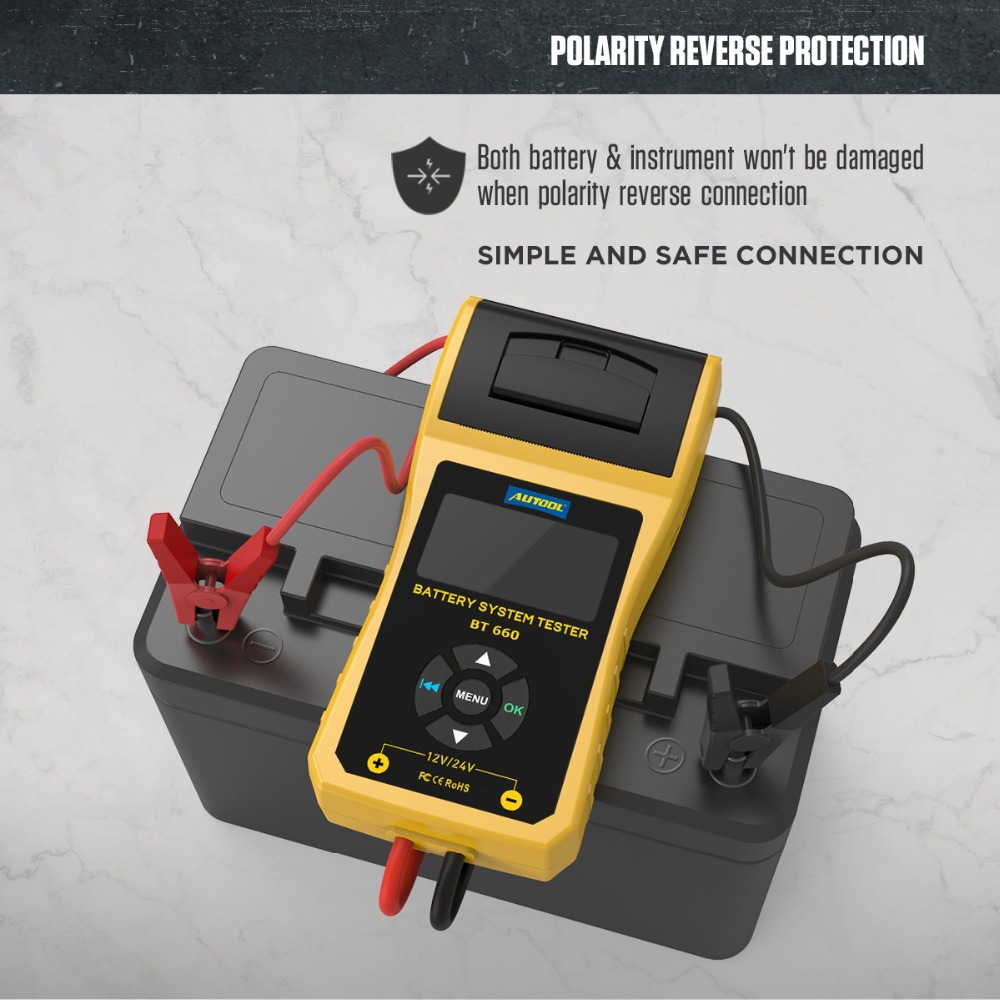

Test standards include most battery standards in the world, CCA IEC EN DIN JIS and OTHER SPECIES. Super wide range pro tester rated from 100 to 3000 CCA. Compatible with cars, motorcycles, trucks, RVs, ATVs, SUVs, boats, yachts, mowers and even golf carts. With Polarity Reverse Protection, both the battery and device won’t be damaged.

[ Multi-language Support ]:

10 Languages are available.

Available in English, Spanish, German, French, Russian, Chinese, Dutch, Japanese, Polish and Italian.

Version 1 supported languages: English, Spanish, French, Italian, German, Polish.

Version 2 supported languages: English, Japanese, Russian, Dutch, Chinese.

[ 3-year Warranty ]

For damage caused by non-human factors, we promise to resend parts for free within 3 years.
For any needs, you are warmly welcomed to contact us and we will get back to you ASAP within 24 hours.

Three Functions Test Operation Steps of AUTOOL BT660 Car Battery Load Tester with Printer

Step 1. Connect the 12V/24V battery, red clips to positive pole and black clips to negative pole.

Step 2. Battery Test: Firstly select the type of battery to be tested, then the test criteria and the test range, and then you have the results within few seconds.

Step 3. Cranking Test: After selecting the cranking test function, follow the prompts to start the engine. Test completed.

Step 4. Charging Test: After entering the charging test function, follow the prompt to increase the speed to 2500 RPM for 5 seconds, then press OK. Test completed.

Find every single test results about your car battery quickly here, clearly and accurately.

Product specification:

1.Measure Range
CCA-- 100-3000
BCI-- 100-3000
CA-- 100-3000
MCA-- 100-3000
JIS-- 26A17--245H52
DIN-- 100-2500
IEC-- 100-2500
EN-- 100-2500
SAE-- 100-3000
GB-- 30AH-220AH

2. Working Environment Temp:-10-50
3.Special test clipDouble conductance Kelvin clamp
4.Housing Material Acid-resistant ABS plastic
5.Measure Range30AH-200AH
6.Voltage Measure Range7-30VDC

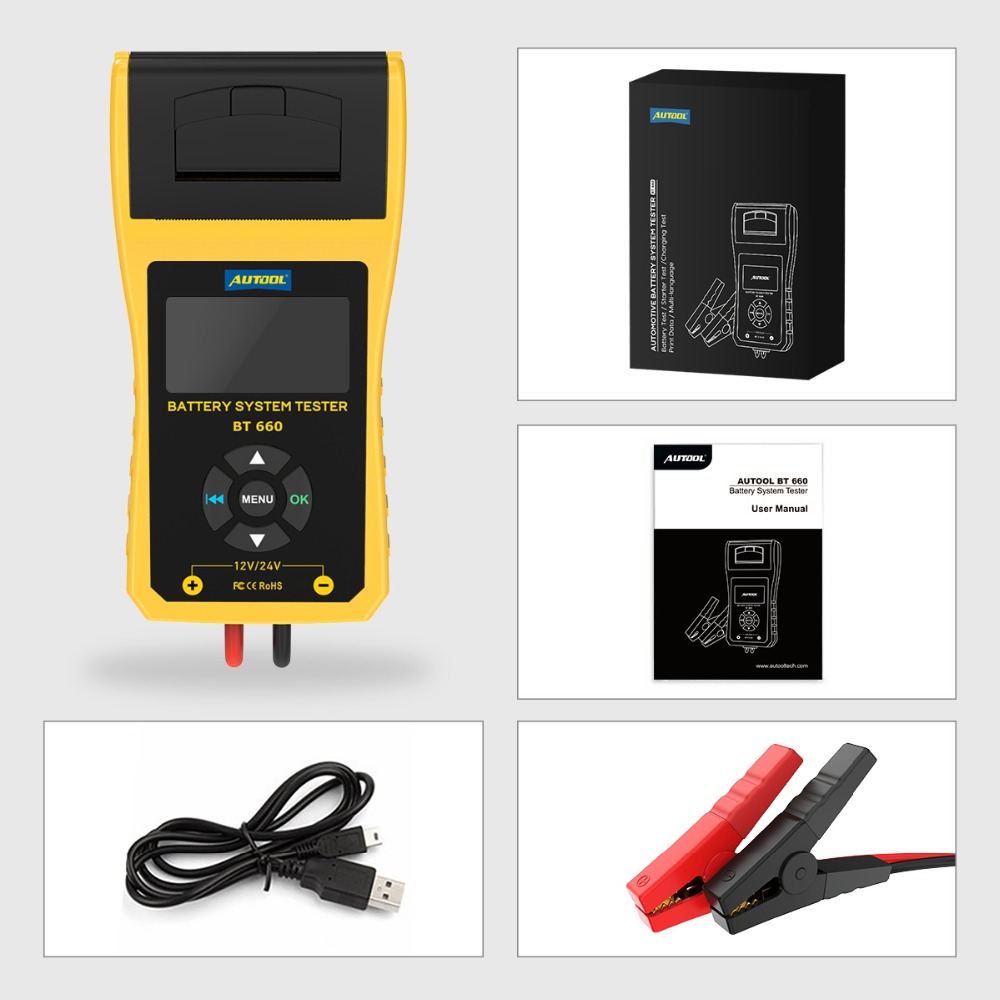

Packing List:

1pcs * AUTOOL BT660 Car Battery Load Tester
2pcs * Full copper core kelvin clip
1pcs * User Manual
1pcs * USB Cable
