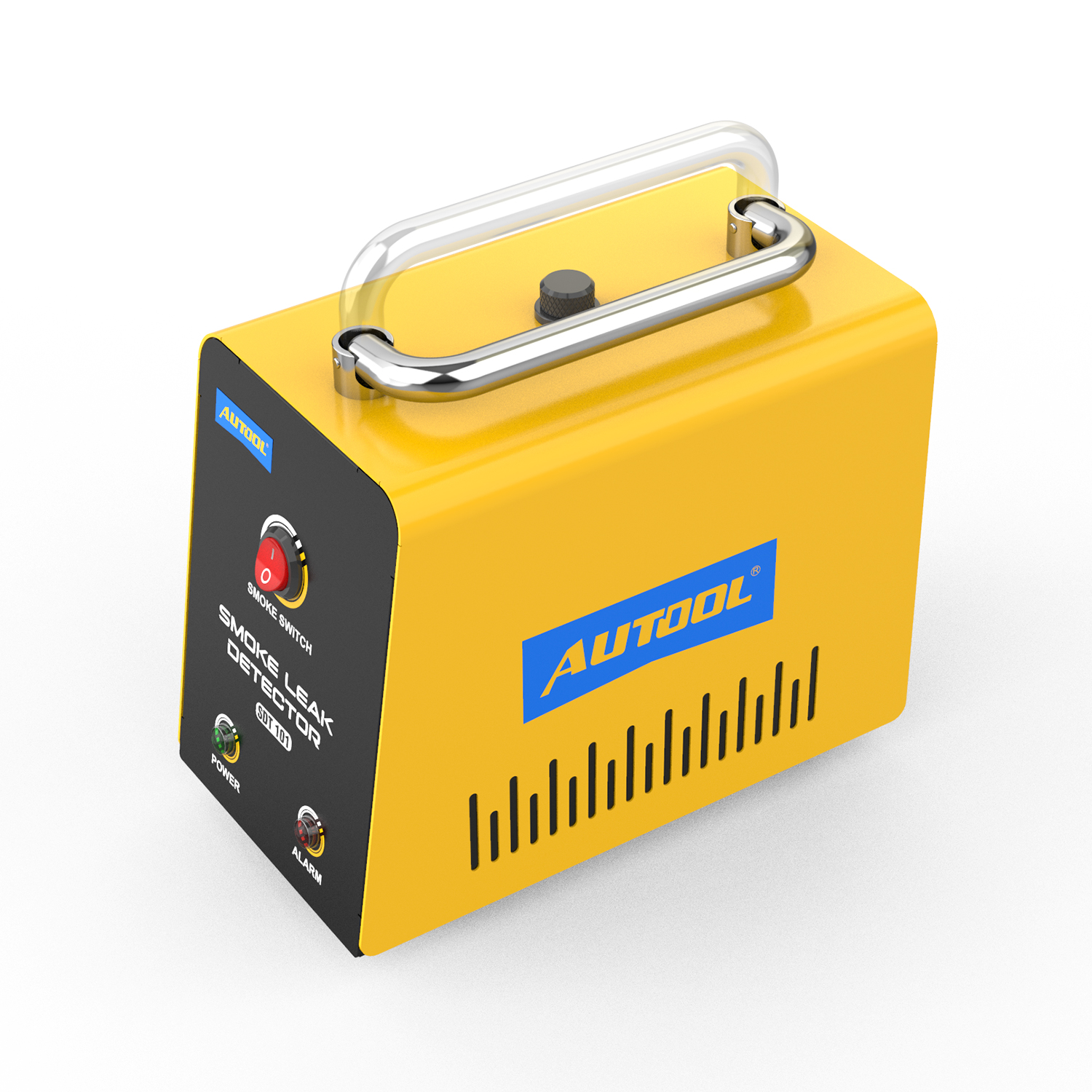

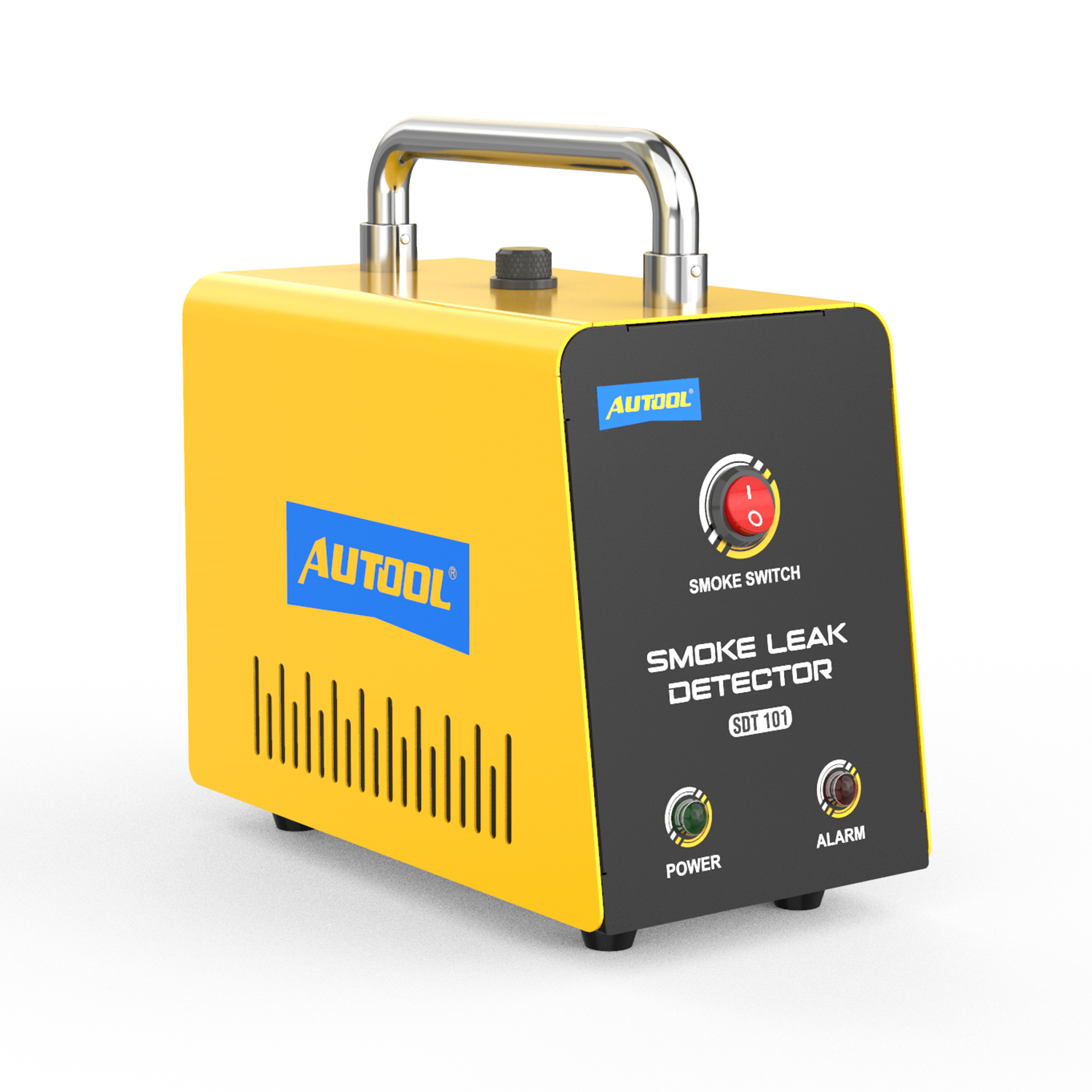

AUTOOL SDT101 Car Smoke Leak Detector 12V Automotive EVAP Leakage Gas Leakage Locator Oil Pipe Generator Diagnostic Tool

NOTICE: SDT101 Without Air Pump

AUTOOL SDT101 Car Smoke Leak Detector EVAP System Tester—an marvelously professional auto pipes Leak Smoke Tester, in line with the technical specifications of the car repair shop EVAP test. SDT101 greatly increases efficiency and helps us locate leaks from cars and motorcycles on our piping system within minutes, quickly and exactly, such as EVAP System Test,Intake System Test,Exhaust Systems Test, Crankcase system test,Car Sealing Test, Various Pipe Fittings Test.

WHAT IS EVAP?

EVAP is a fuel evaporation control system used to collect and deal with fuel vapor, to prevent fuel vapor leakage. If the leak will pollute the atmosphere and even cause the vehicle to spontaneous combustion.

Plus this set of accessories can detect the smoke of the EVAP system, check whether there is leakage, broken, enhanced traffic safety.

How to do leakage test?

1. Fill 10ml baby oil to the detector for the first time. Open the engine cover, and hang the detector in the cover.

2. Open the pipe that needs to be connected to the detector and access the adapter.

3. Connect detector with DC12V battery, turn on the power switch, and the detector starts to work

4. In about 30s, the pipe will be filled with smoke. Check the leak points. Please use head lamp if necessary.

Warm Caution:

1. When you use this AUTOOL SDT 101 Car Smoke Leak Detector for the first time, fill with 20ml oil . Please be careful NOT to beyond this range.

2.The testing liquid : both liquid paraffin and baby oil are OK.

3.Fresh oil can be filled with only when the smoke gets thin, and it can’t be filled over 20ml each time.

4.Before filling fresh oil, please pour out the left oil in the detector & replace the detector oil regularly.

5.During the process of leak detection, please keep away from smoke-sensitive parts.

6.Do NOT run the detector over 8 minutes continuously. It needs interval rest.

7.The detector has an intelligent protector, if it exceeds the working limit, such as over 75 ℃, it will automatically turn off the power. In this case, please operate it later.

8.The round part of this detector has temperature, please be careful to avoid burns.

9.If the test pipe needs to be disconnected in the middle, please secure the other side with a rubber stopple

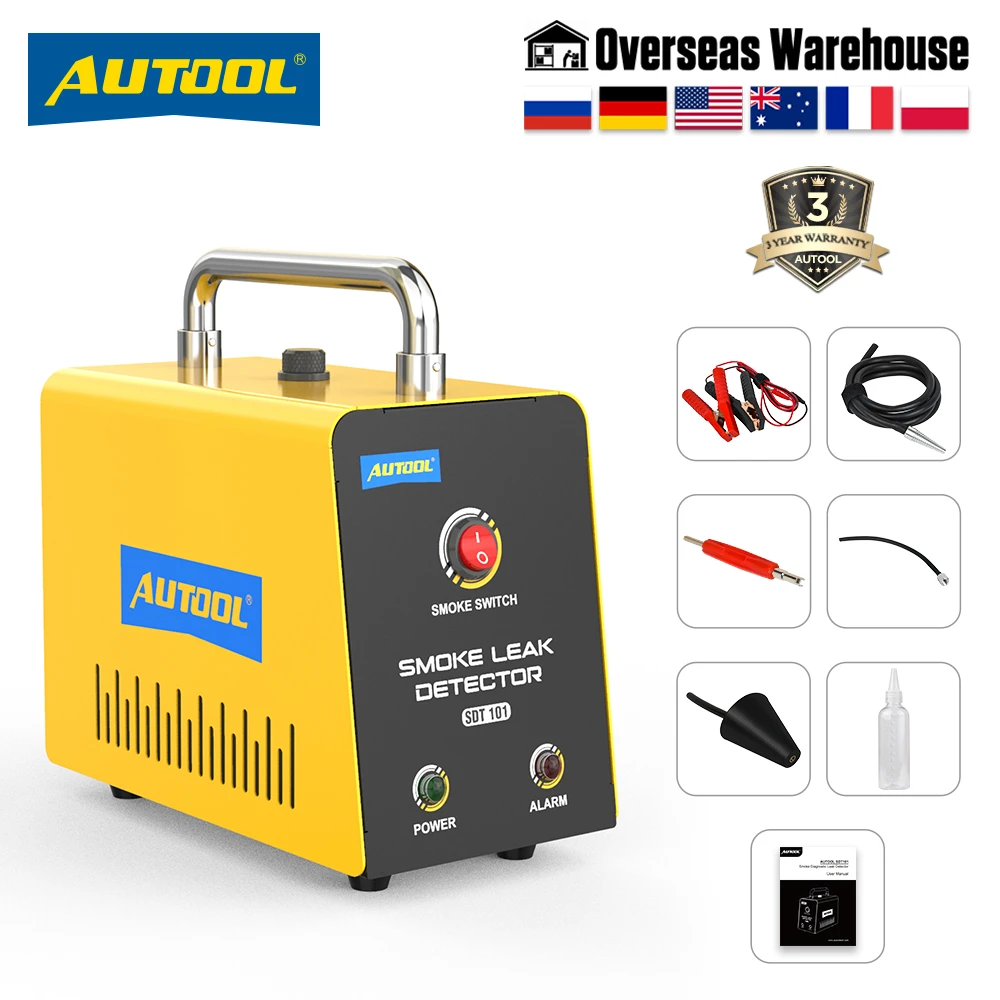

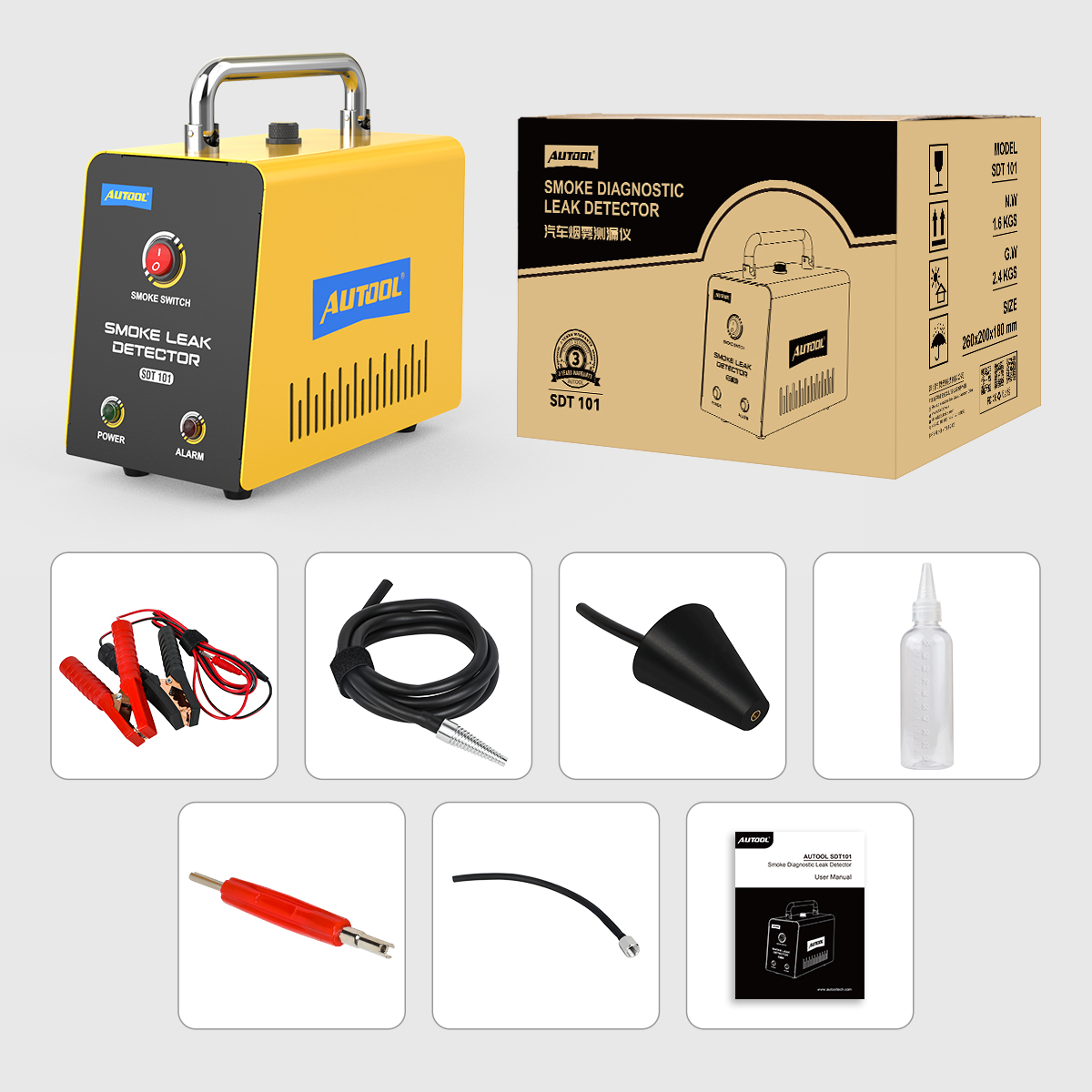

Packing List :

1pc * AUTOOL SDT101 Car Smoke Leak Detector Main Unit

1pc * EVAP Special Connector

1pc * Standard Cone Adapter

1pc * Power Cord Clamp

1pc * Valve Core Wrench

1pc * Test Oil Refill Bottle(oil not included)

1pc * Smoke Hose

1pc * User Manual
