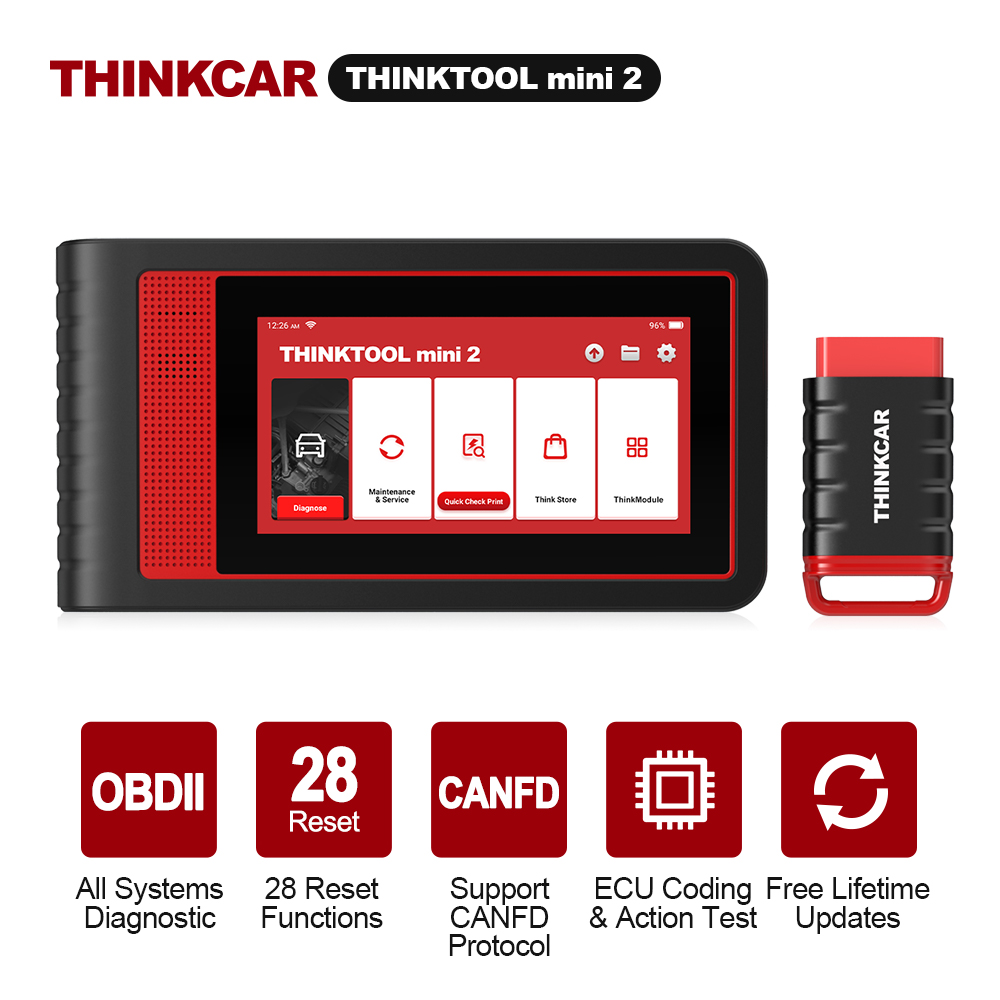

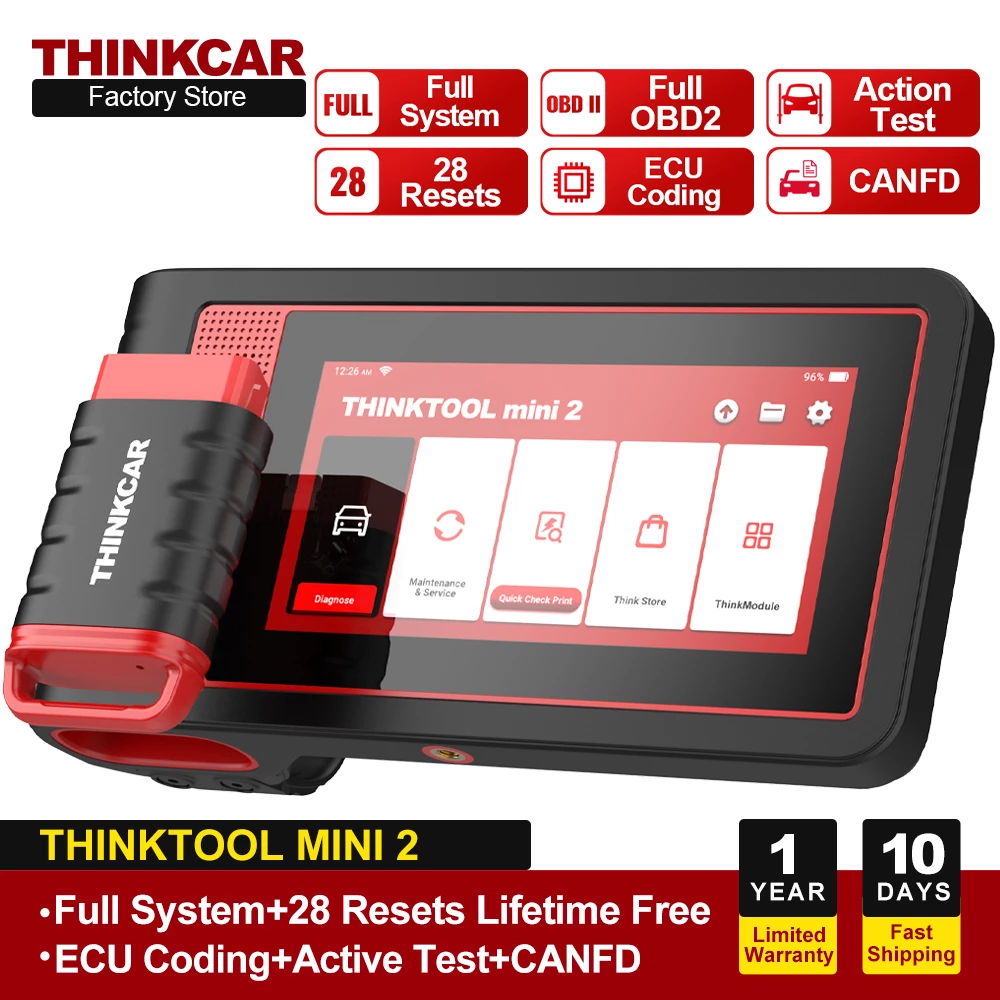

THINKCAR Thinktool Mini 2 Car Diagnostic Tool Obd2 Scanner Automotive Diagnosis ECU Coding Obd 2 Diagnost 28 Services

What is THINKTOOL Mini2?

"Thinktool mini is an intelligent diagnostic tool with modular design. The diagnostic function supports more than 220 car brands, supports rapid detection and printing, intelligent diagnostics and traditional diagnostics, and a full-featured diagnostic tool for the entire system.
The original modular design meets various application scenarios and deeply customizes the UI, combining the functions of each module to create the best interactive experience and make the use more user-friendly."

Why You Need THINKTOOL Mini2

"Thinktool mini as the Highest-level FULL OBD II Diagnostic Device For DIY users supported include Code Reading/Clearing data stream,Actuation Test ,Special Functions etc

1.Free system-wide code reading, code clearing, data streaming and upgrades for all models.

2.The full reset function is free to use (currently 16 and will be increased to 26-28 later).

3.After subscribing to the software, the whole system can be diagnosed with full functions (action test, special function, cding can be carried out).

4.Android system can be upgraded online.

5.The whole system diagnoses more than 93 automobile brands.

6.Diagnosis covers all models that support OBD protocol after 1996.

7.Equipped with VIN code intelligent identification models.

8.THINKCAR series design, dustproof, shockproof, easy to store

9.5.99-inch display is convenient for you to diagnose the car in real time

10.2G RAM/ 32G ROM,Support Bluetooth and WiFi connection

11.Pay for one Car model software can enjoy Free Upgrade 1 year the full system ,Such as :ECU Coding/ Action Test and other Special Function

Cost: $49.95/year (you can buy from ThinkCar Store directly)"

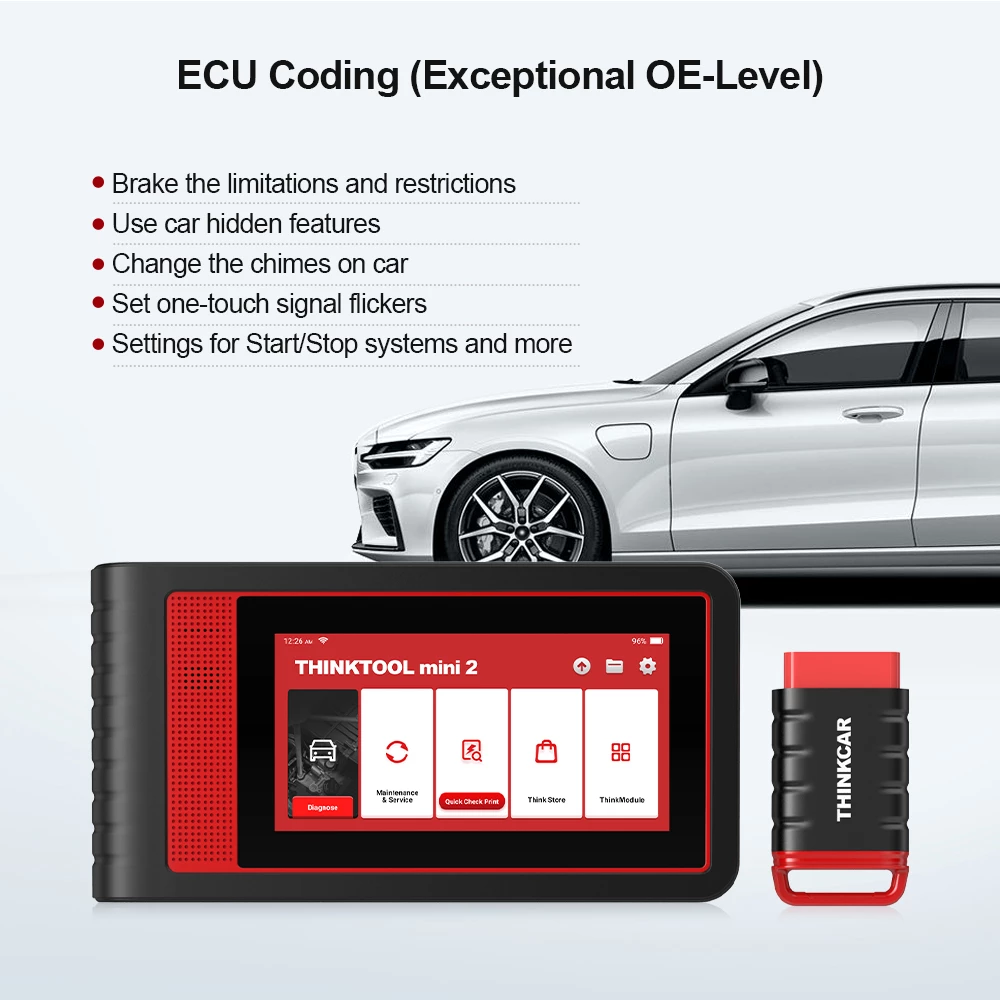

Support to ECU Coding

The Coding function is used to re-flash the vehicle control modules.It is used to reprogram adaptive data for vehicle control modules after repairs or replacements of vehicle parts;Provide solutions for the issues of Drivability, Fuel Efficiency, Power Loss, Fault Codes, Durability of Mechanical Parts etc.;Brake the limitations and restrictions; make full use of the car hidden features, like change the chimes on car, set how many times the one-touch signal flickers for one touch, remember settings for Start/Stop systems, and more.

Support Active Test (Actuation Test)

"Uses the ThinkDiag App to test if the actuator is normal, without using the vehicle’s controls, to get a significant boost in effectiveness:
[ Turn on the radiator fan | Modulate the throttle | Open/close windows | Operate mirrors | Turn on/off the lights | Turn on/off the sound horn | Test door lock … ]"

Support to IMMO Key Programming

the unique car key programming and read pin code function, it is mainly used to disable the lost vehicle keys and program a new replacement key fob.

All Cars Lifetime Free Full System Diagnostic:

"With superior all systems diagnoses, this multipurpose obd2 scanner can be used to read all available systems’ECU information to facilitate the vehicle diagnosis.The complete systems vary from different cars and they usually include engine, transmission, ABS, SRS, SAS, TPMS, EPB and chassis / body / electrical equipment system etc.

* Examinate your car like a professional mechanical technician

*Read DTCs from the vehicle’s all electronic control systems to locate problem areas, and offer solutions;

*Erase the codes easily after DTCs retrieving and certain repairs have been carried out and turn off fault Indicator lamp;

*Live data shows each sendor parameter item displayed in analog, text, waveform graph modes etc.;

*The active test used to access vehicle-specific subsystem and component tests."

All Cars Lifetime Free 28 Reset Services

"1. Oil Reset
The lightening of the car maintenance light indicates that the vehicle needs maintenance.Reset the mileage or driving time to zero after the maintenance, so the maintenance light will go out and the system will start a new maintenance cycle.

2. Elec.Throttle Adaption
Elec. Throttle Adaption is to utilize the car decoder to initialize the throttle actuator so that the learning value of the ECU returns to the initial state.

3.Steering Angle Reset
To reset the steering angle, first find the relative zero point position for the car to drive in straight line.Taking this position as reference,the ECU can calculate the accurate angle for left and right steering.

4. Battery Matching
This function enables you to perform a resetting operation on the monitoring unit of vehicle battery, in which the original low battery fault information will be cleared and battery matching will be done.

5. ABS Bleeding
When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity.

6.Break-pad Reset
lf the brake pad wears the brake pad sense line, the brake pad sense line sends a signal sense line to the on-board computer to replace the brake pad.After replacing the brake pad, you must reset the brake pad.Otherwise, the car alarms.

7.DPF Regeneration
DPF regeneration is used to clear PM(Particulate Matter) from the DPF filter through continuous combustion oxidation mode (such as high temperature heating combustion, fuel additive or catalyst reduce PM ignition combustion) to stabilize the filter performance.

8.Gear Learning
After the engine ECu, crankshaft position sensor,or crankshaft flywheel is replaced, or the DTC 'gear not learned' is present, gear learning must be performed.

9. IMMO Service
To prevent the car being used by unauthorized keys, the anti-theft key matching function must be performed so that the immobilizer control system on the car identifies and authorizes remote control keys to normally use the car.

10. Injector Coding
Write injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder so as to more accurately control or correct cylinder injection quantity.

11.TPMS Reset
Note:Cooperate with wireless tire pressure diagnosis tool to realize TPMS activation, programming and learning functions

12. Suspension Matching
This function can adjust the height of the body. When replacing the body height sensor in the air sus pension system, or control module or when the vehicle level is incorrect, you need to perform thisfunction to adjust the body height sensor for level calibration.

13. AFS Reset
This feature is used to initialize the adaptive headlamp system.

14.A/T Learning
This function can complete the gearbox self-learning to improve gear shifting quality.

15.Sunroof Initialization
This function can set the sunroof lock off, closed when it rains,sliding /tilting sunroof memory function,temperature threshold outside the car etc.

16. EGR Adaption
This function is used to learn the EGR valve after it is cleaned or replaced.

17. ODO Reset
ODO reset is to copy, write, or rewrite the value of kilometers in the chip of odometer by using a car diagnostic computer and data cable, so that the odometer shows the actual

18. Airbag Reset
This function resets the airbag data to clear the airbag collision fault indicator.

19. Transport Mode
ln order to reduce power consumption, the following functions may be disabled, including limiting the vehicle speed, not waking up the door opening network, and disabling the remote control key, etc.At this time, the transport mode needs to be deactivated to restore the vehicle to normal.

20. A/F Reset
This function is applied to set or learn Air/Fuel ratio parameters.

21. Stop/Start Reset
This function is used to open or close the automatic start-stop function via setting the hidden function in ECU(provided that the vehicle has a hidden function and supported by hardware).

22. NOx Sensor Reset
NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) in engine exhaust. lf theNOx fault is re-initialized and the NOx catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine Ecu.

23. AdBlue Reset (Diesel Engine Exhaust Gas Filter)
After the diesel exhaust treatment fluid (car urea) is replaced or filled up, urea reset operation is required.

24.Seat Calibration
This function is applied to match the seats with memory function that are replaced and repaired.

25.Coolant Bleeding
Use this function to activate the electronic water pump before venting the cooling system.

26.Tyre Reset
This function is used to set the size parameters of the modified or replaced tire.

27.Windows Calibration
This feature is designed to perform door window matching to recover ECU initial memory, and recover the automatic ascending and descending function of power window.

28. Language Change
This function is used to change the system language of the vehicle central control panel."

Free Full OBDII Functions:

"*-Read extensive current, pending and permanent codes in OBD system quickly

*-Clear detected fault codes and turn off the Check Engine Light efficiently

*-View graphical live data of vehicle's computer module(s) for easy analyses

*-View the vehicle's operating parameters at the moment a DTC is detected

*-Read I/M readiness status to have a vehicle inspected for state emissions compliance

*-Perform O2 sensor test to check fuel efficiency and vehicle emissions

*-Read the results of on-board diagnostic monitoring tests for specific components/systems

*-Retrieve the vehicle information of VIN, CINs, and CVNs completely

*-Perform the component Test by allowing initiating a leak test for the vehicle's EVAP system"

New Version 15 Languages

English,French,German,Spanish,Italian,Portuguese,Japanese,Russian,Polish,Hungarian,Arabic,Greek,Slovak,Traditional Chinese,Korean

Cover Up to 126 Major Vehicle Manufacturers, more models are updating:

- For American car brand

For Ford(Australia), LINCOLN, BUICK, Chrysler, GM, FORD, CHRYSTER, CADILLAC, CHEVROLET, DODGE, FIAT(BRAZIL), GM(BRAZIL), Jeep, SGM, etc...

- For European car brand

For AstonMartin, For Benz, For Sprinter, For BMW, For Ferrari, For Fiat, For LandRover, For Maserati, For Opel, For Peugeot, For Porsche, For Lancia, For LT3, For Maybach, For Mini, For Seat, For Skoda, For Vauxhall, For Volkswagen CV, For Renault, For Saab, For Smart, For Volvo, For Volkswagen, For Abarth, For Alfa, For Audi, For Bentley, For Bugatti, For Citroen, For Dacia, For Jaguar, For Lambor Ghini, etc...

- For Asia car brand

For Acura, For Daewoo, For Daihatsu, For Honda, For Hyundai, For Infiniti, For Isuzu, For Kia, For Lexus, For Maruti Suzuki, For Mazda, For Mitsubishi, For Nissan, For SsangYong, For Subaru, For Suzuki, For Toyota, For GTR, For Scion, etc...

Generate a diagnostic report&Print vehicles diagnostic report

MUCAR CS6 support do a OBD vehicles diagnostic report, and print the vehicles report from PC it help you to understand car's problem.and make you know how to repair car.

Product Parameters:

"Display Screen :5.99-Inch/TFT(IPS)
Connection :Wi-Fi/Bluetooth
RAM:2G
ROM:32G
Working Temperature : 32℉~122℉
Storage Temperature: -4℉~144℉

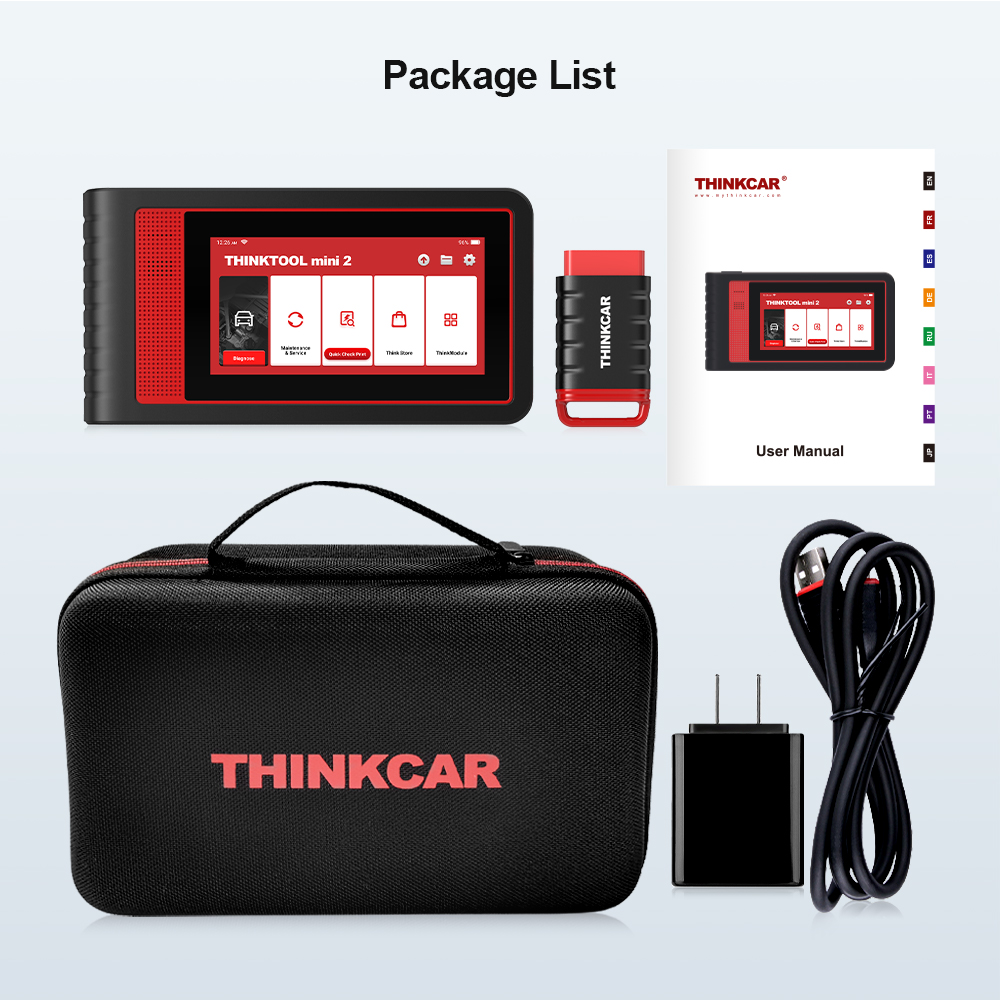

Packing List:

"1*Thinktool mini Host
1*Diagnostic dongle
1*Charging cable
1*power adapter"
