ANCEL S300 Car Evap Smoke Machine Oil Pipe Leaks Analyzer Tester Fuel Pipe Leakage Generator Auto EVAP System Diagnostic Tools

The difference of S200 and S300

Ancel S300 supports multi-system testing, especially EVAP system

EVAP System Test
Intake System Test
Exhaust Systems Test
Crankcase system test
Car Sealing Test
Fuel Tank System Test
Turbo System Test
Various Pipe Fittings Test

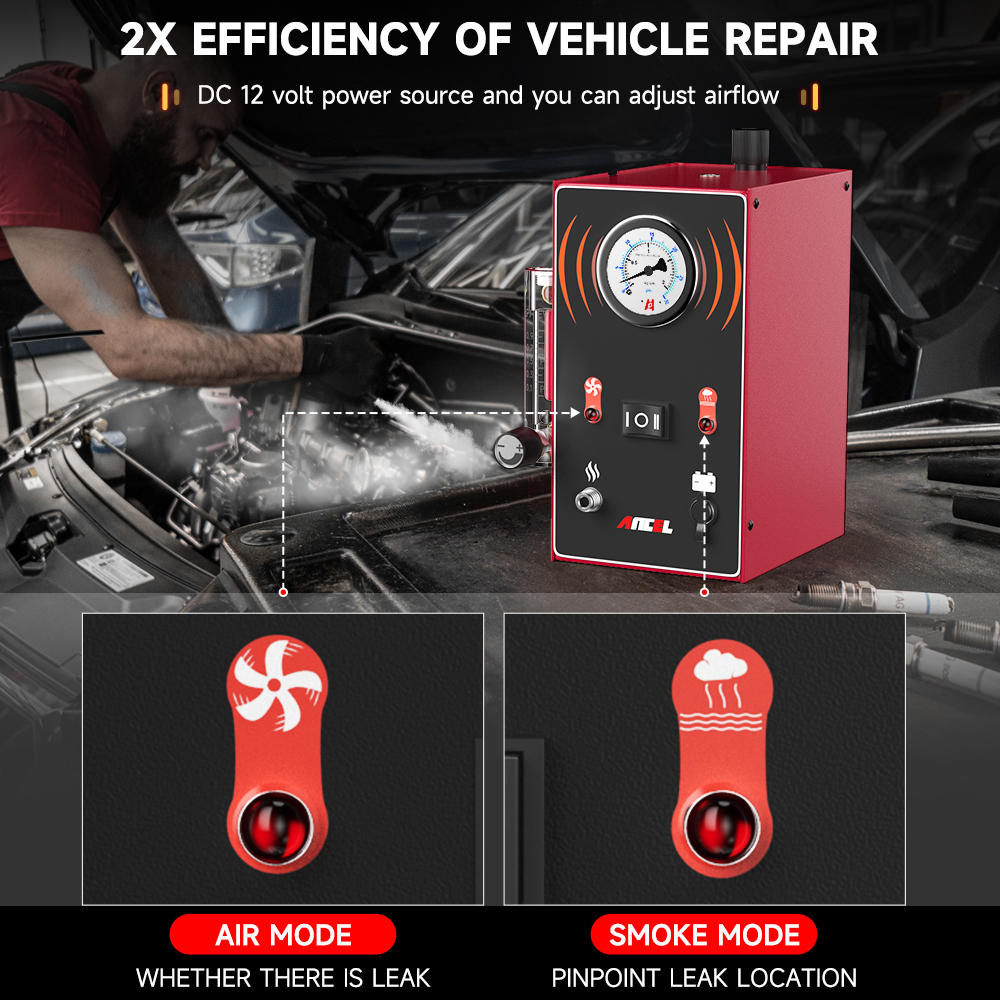

2 kinds of modes: AIR model+Smoke mode

Air mode :First, use the air mode to directly measure the leak, and judge whether there is a leak by the pressure gauge value. If it is less than 0.5bar, it will inevitably leak. If it reaches 0.8bar and above, the pipeline tightness is very good.Then there is no need to waste baby oil

SMOKE MODE:After the air mode determines that there is a leak, use the smoke mode to find the leak.

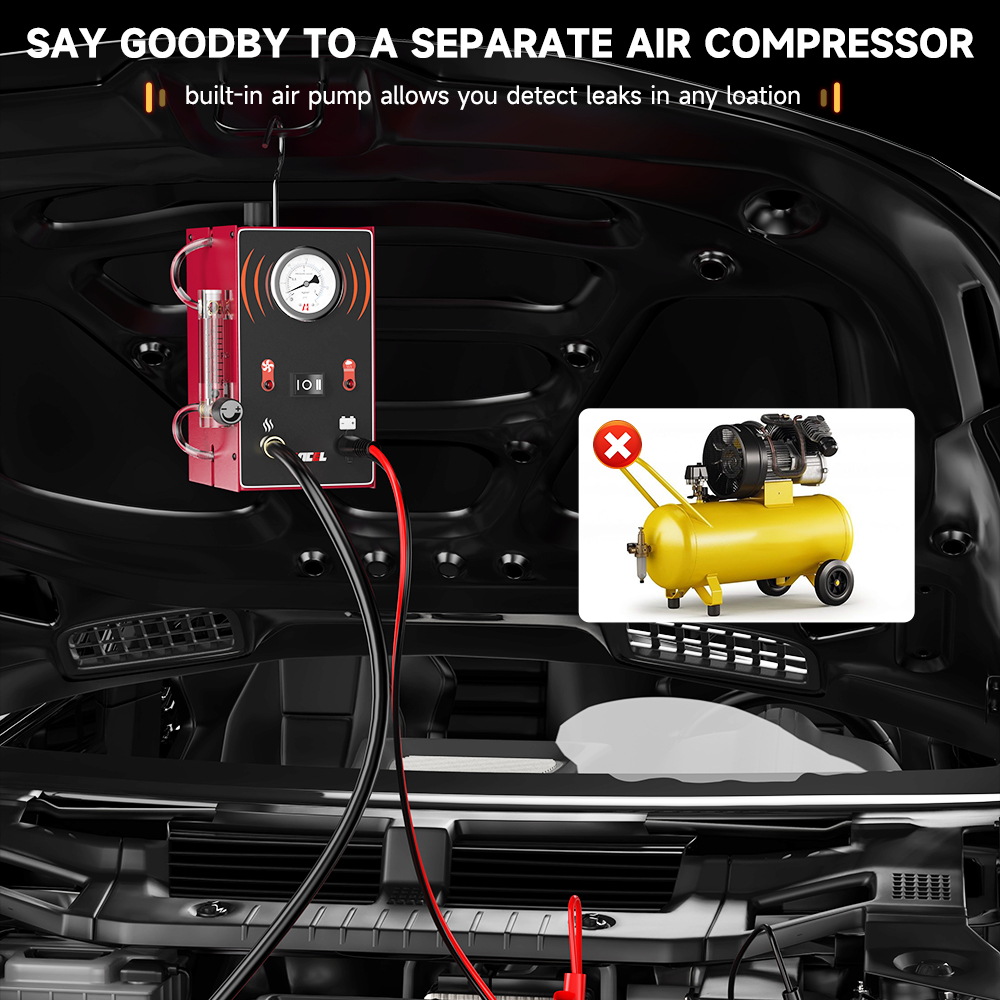

Built-in with air pump

ADDITIONAL CAP PLUGS KIT

Wide Range of Applications

Free to choose Air/Smoke method to find leaks

how to use Ancel s300?

Step1: Fill in 20ml test oil (baby oil) to the detector

Step2: Disconnect the pipe that needs to be connect with the detector

Step3: Connect detector with DC12V battery,device starts to work

Step4: The pipe will be filled with smoke,check the leak points

How to judge leakage- through the pressure gauge?

NO Leak: When the value of the pressure gauge remains unchanged and the flow meter will read zero (ball at bottom of scale), it means that there is no leakage in the system.

Small Leak: When the value of the pressure gauge drops and the ball in the flow meter slowly fall to the bottom of the scale, it indicates a small leak in the system.

Massive Leak: When the value of the pressure gauge reaches zero and the flow meter ball never falls to the bottom of the scale, it indicates a large leak in the system.

Adjustable Smoke Output Help To Pinpoint Leaks Quick

Adopt The Latest 5th Generation Technology

Overheat & Anti-frost Protection

Overheat Protection
When the temperature of the device exceeds 75℃, power protection will be intelligently activated to turn it off.

Anti-frost Protection
The device can also work normally at -20℃.

Specification

Power source:12V Fully Charged vehicle battery
Current:6A
Flow rate: <6 L/min
Pressure output:0.8-1.0 bar (0.8-14.5psi)

Diagnose All Types Of Leaks With Adapters
