Ancel A202 On-board Computer For Car OBD2 Digital Display Fuel Consumption Speed Voltage Water Temperature Gauge OBD HUD Display

A202 OBD mini car trip computer is a small car instrument with powerful functions, which is especially suitable for vehicles without a tachometer, an engine temperature gauge and fuel consumption display functions.

A202 can display and monitor vehicle battery voltage, generator charging voltage, offering vehicle over speed alarm, high engine temperature alarm and monitoring and other functions.
It even can read vehicle data streams, read and erase engine fault codes.

Top reasons to choose Professional on-board computer ANCEL A202

1. Digital Display:

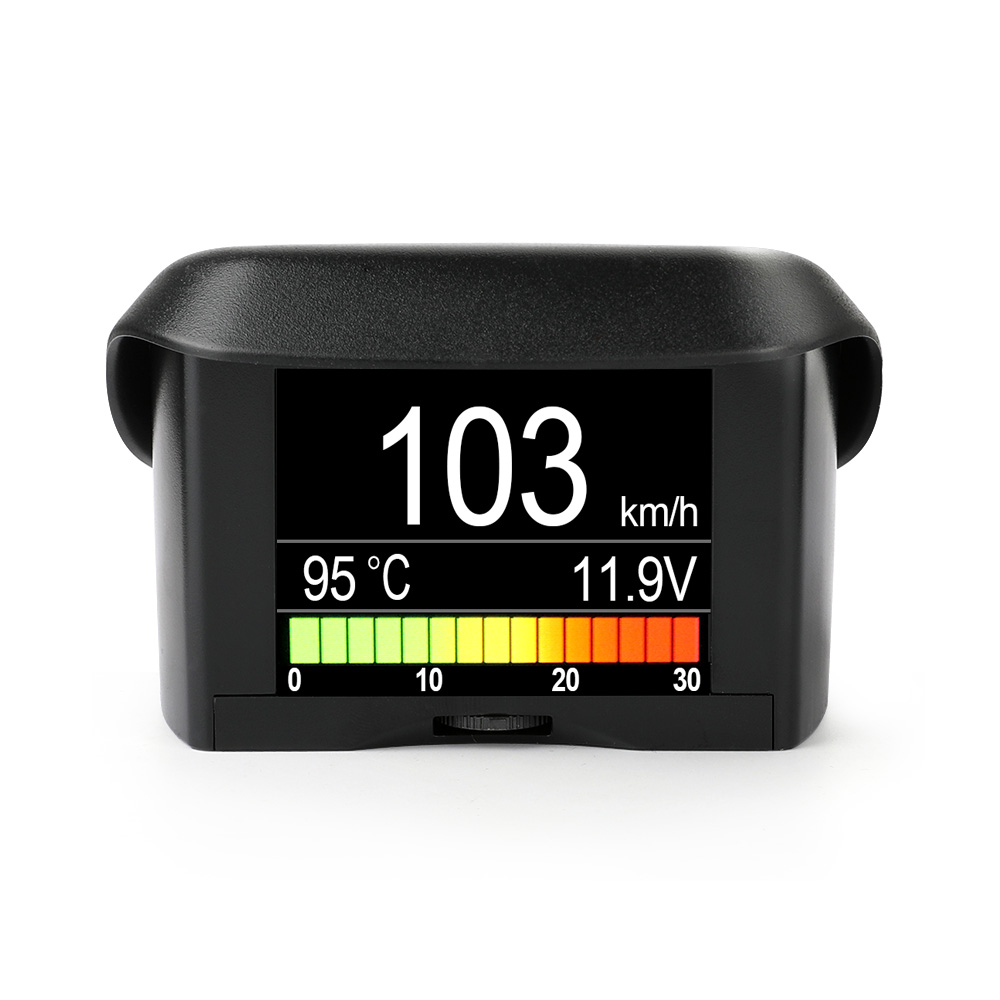

Display speed, water temperature, instantaneous fuel consumption, hour fuel consumption

2. Performance Testing:
Brake performance testing, vehicle acceleration test,

3. OBD2 Engine Diagnostic Functions:
Data flow function display, display color configuration, fault code scanning, fault code clearance and other functions,

4. Early warning function:

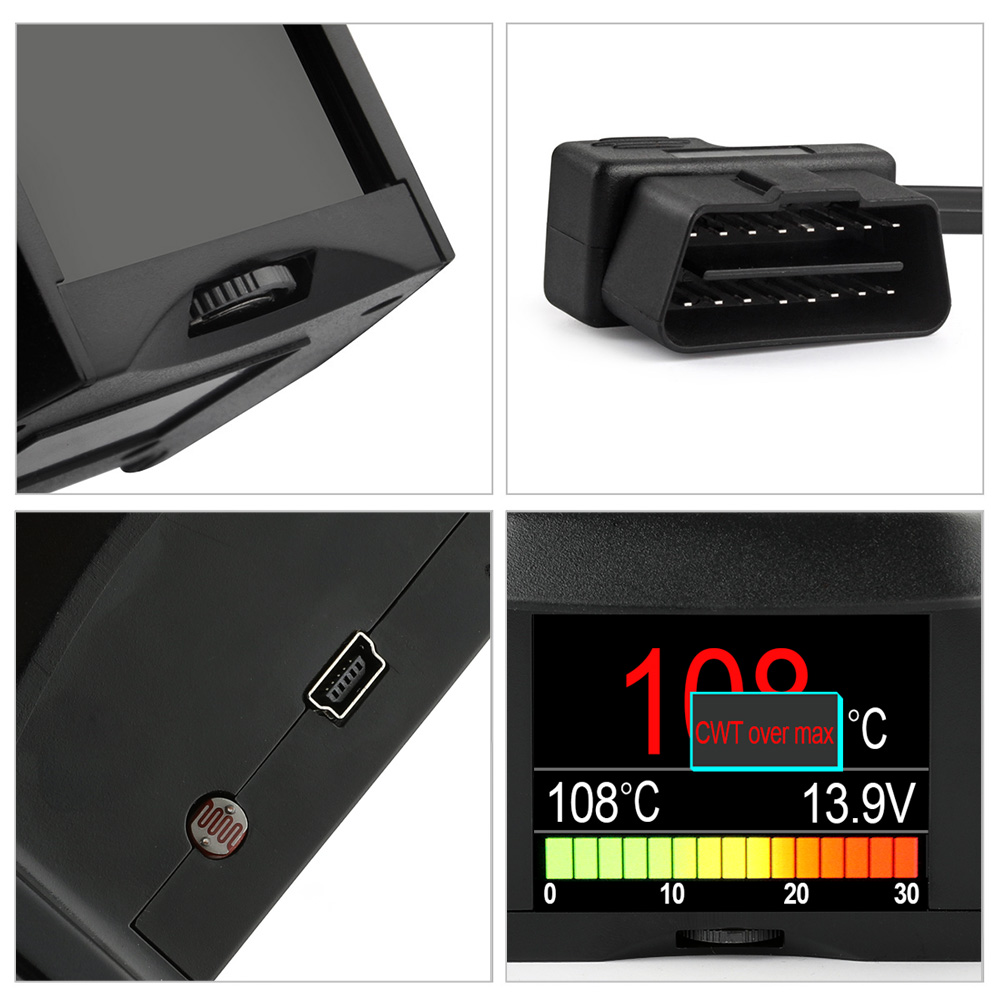

Water temperature warning, over speed warning, shift warning.

Ancel Car Computer Diagnostic Tool Advantage

1. OBD Plug-and-Play, easy to install

2. You can choose petrol and diesel vehicles .

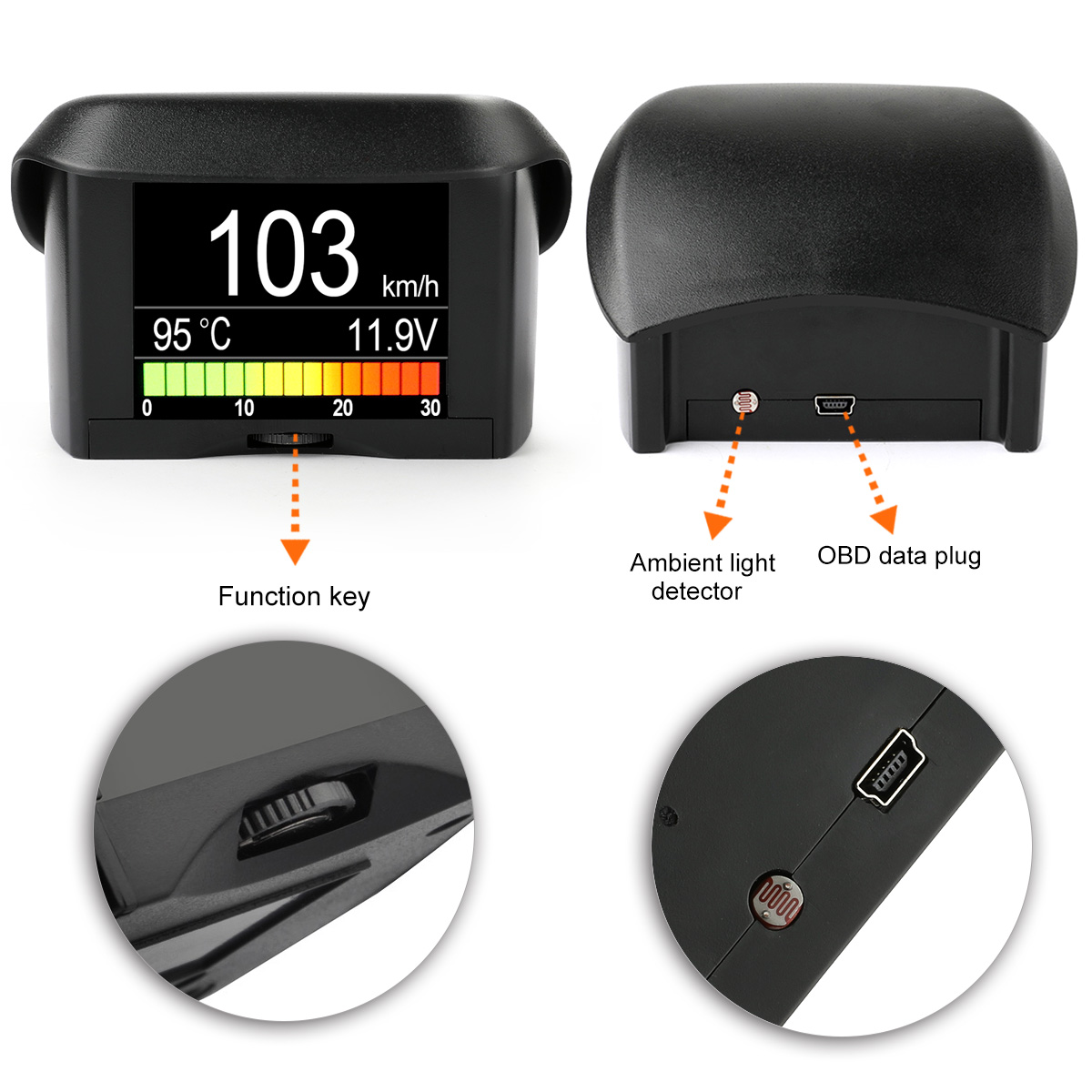

3. Highlight LCD display, automatic brightness.

4. Main Screen digital color: 8 colors choose(red, orange, yellow, green, cyan, blue, pink, white)

5. Unit selection:
Unit of SPD: km/h or MPH
Unit of CWT: ℃ or ℉
Unit of Fuel: L/100km or MPG

6. Sleep time set: You can set when the device will turn off after the engine is turned off.

7. Set engine displacement , fuel consumption more accurate.

8. Especially for vehicles without a temperature gauge, tachometer and fuel consumption meter.

How to Install the ANCEL A202 Car Computer

1. Insert the product into the check port on the vehicle OBD computer;

2. Insert the other end of the product into the data interface of the host;

3. After the product is inserted into the host and the car is started, wait for the communication linkage between A202 and the car;

4. After the linkage is successfully established, the host will send a "drop" sound, at the same the display screen displays vehicle protocols and then indicates that it is the first time the product is used to set up parameters. (International universal OBD plug protocol definitions stipulated by SAE).

Common problem:

Q1: Why does it automatically turn off after a period of time?

A1: Its default sleep time is 30s, So when your engine is turned off, it will automatically turn off after 30s .please choose "Sleep Time Set" to set the sleep time.

Q2: Why my car dashboard lights or fault alarm lights are caused to be lit up abnormally?

A2: When used in some cars, car dashboard lights or fault alarm lights are caused to be lit up abnormally, choose"Product inf" -"Matching inf" to see the solution, and use needle-nose pliers to twist off excess pins to eliminate such phenomena.

Ancel A202 OBD2 On-board Computer Function Display

More Function :

Note:Ancel A202 do not supportSAE J1850 Protocols.

1. Amercian Cars(From 2004)

for Chrysler, for Ford, for GM, for Jeep,For Chevrolet,for Cadillac,for Mustang,for Lincoln

2. European Cars(From 2005)

for Alfa Romeo, for SAAB, for Acura, for Opel, for Audi, for Seat, for Peugeot, for Bentley, for Skoda, for Daewoo, for Benz, for Daihatsu, for Land Rover, for BMW, for Vauxhall, for Citroen, for Volvo, for Fiat, for VW, for Ford, for Jaguar

3. Asian Cars(From 2008)

for KIA, for Isuzu, for Honda , for Mitsubishi, for Hyundai, for Dacia, for Lexus , for Mazda, for Nissan, for Subaru, for Suzuki, for Toyota,for BYD, for Chery, for Geely, for Great Wall, for Karry

NOTE!!!

1.If you not sure weather this meter supoprts your car,please kindly consult us first before purchase.Thanks!.

2.Not Support Russian Cars, VAZ,UAZ,LADA

Ancel A202 Specifictions :

Operating voltage: DC 9-18V
Operating current: <100mA
Sleep current: <10mA
Operating temperature: -20~85℃
Display: 2.4 inch
Resolution: 220*180
Product volume: 90mm*70mm*60mm
Cable Length: About 1.45m

Note: Due to the different measurement methods, there may be an error of 1-2 cm.

Features of product hardware: 32-bit ARM CORTEX-M3 CPU, with 72MHz maximum operating frequency, in support of multiple high speed automotive communication protocols

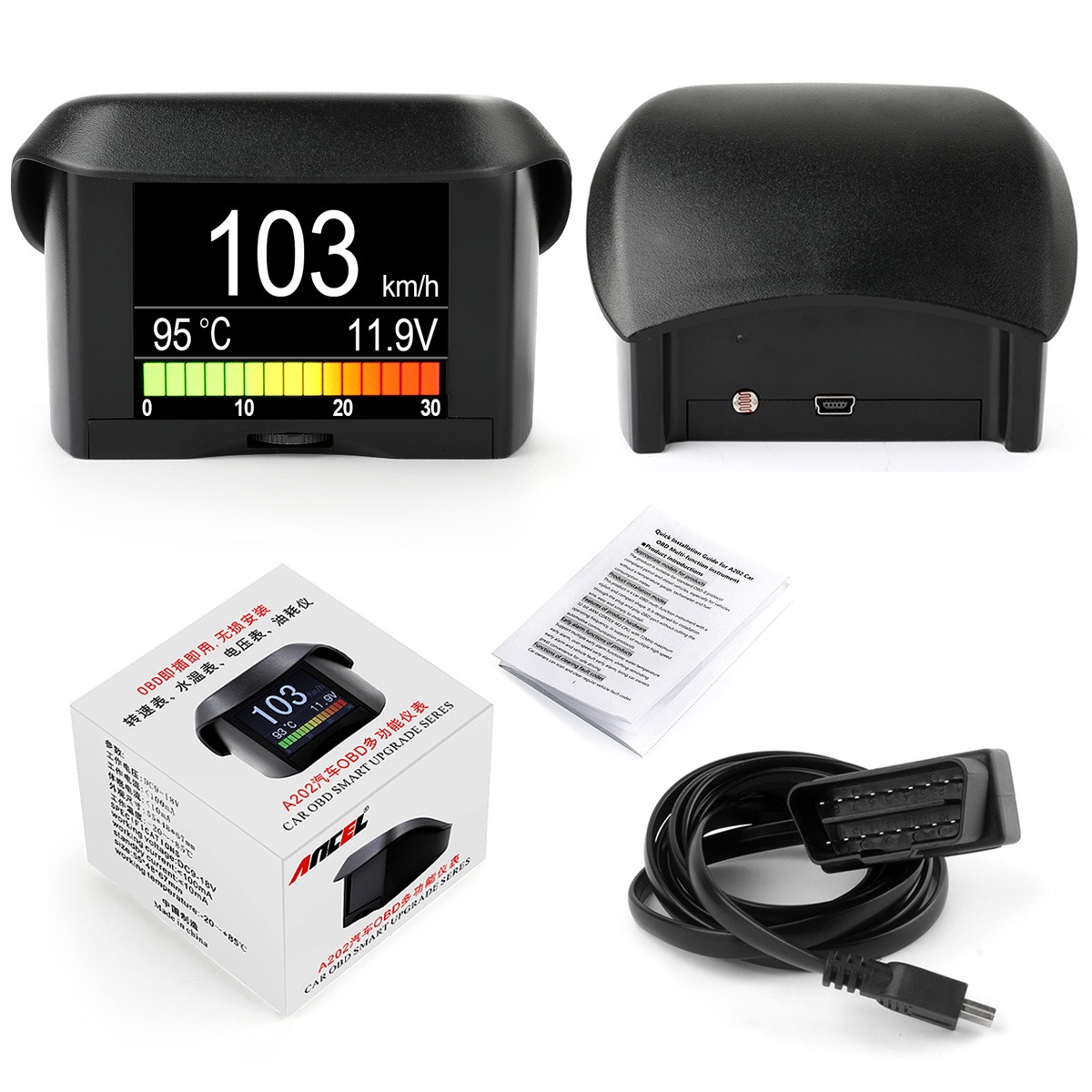

Package List :

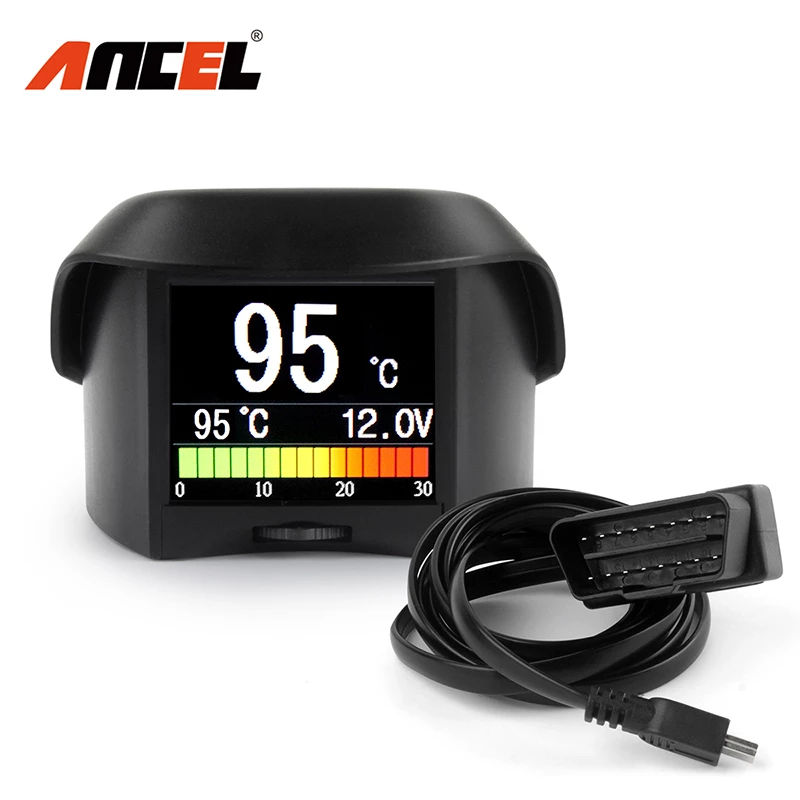

1 pc ANCEL A202 OBD Computer
1 pc OBD16pin to USB Cable
1 pc Instruction paper
