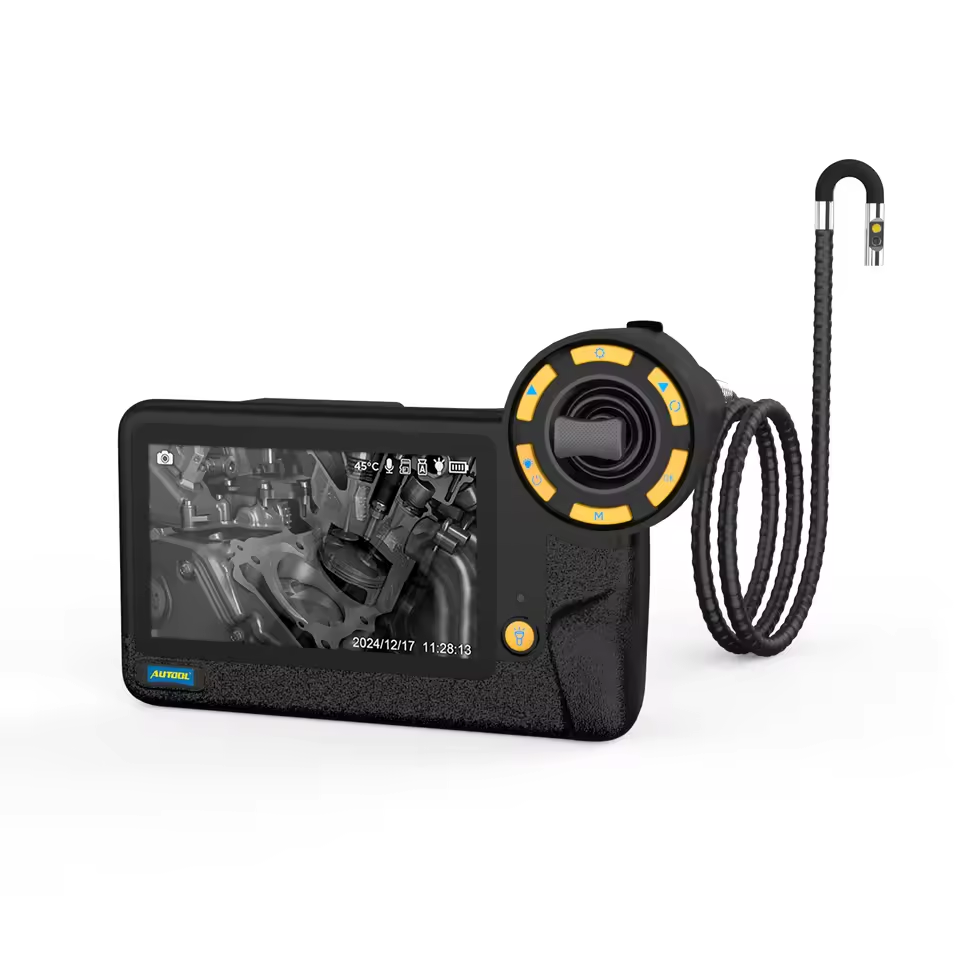

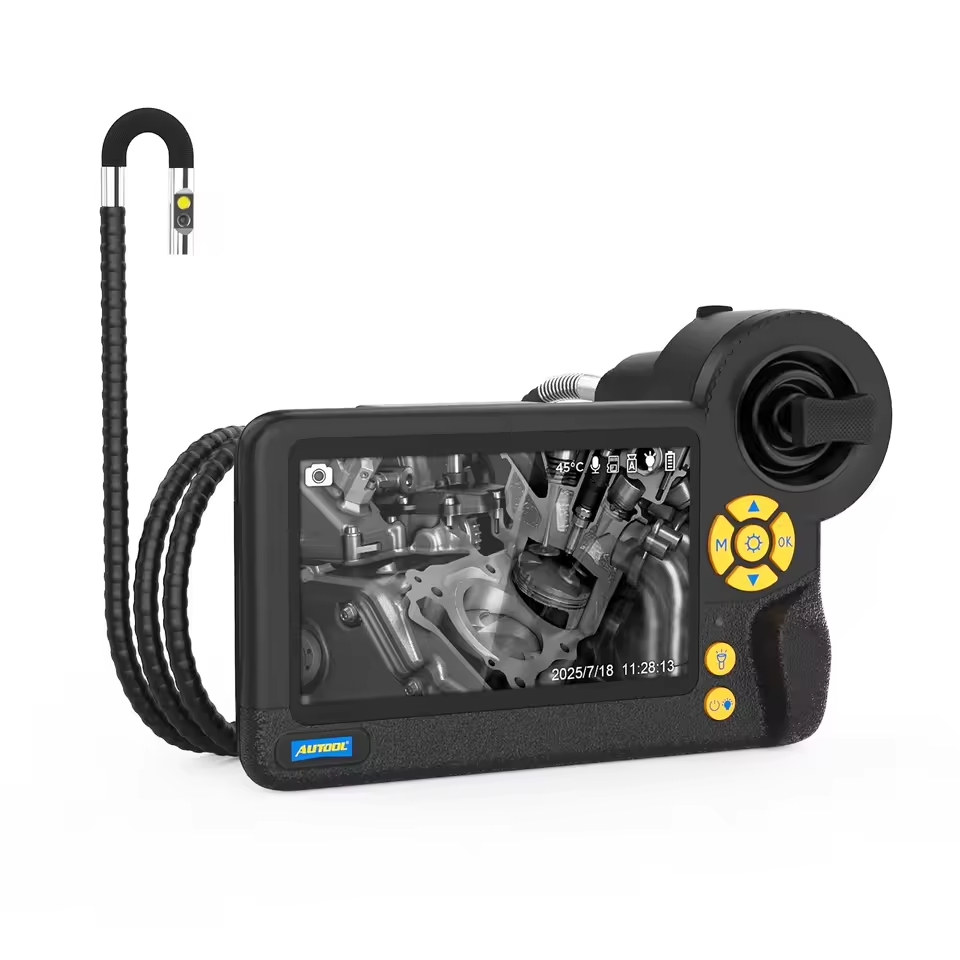

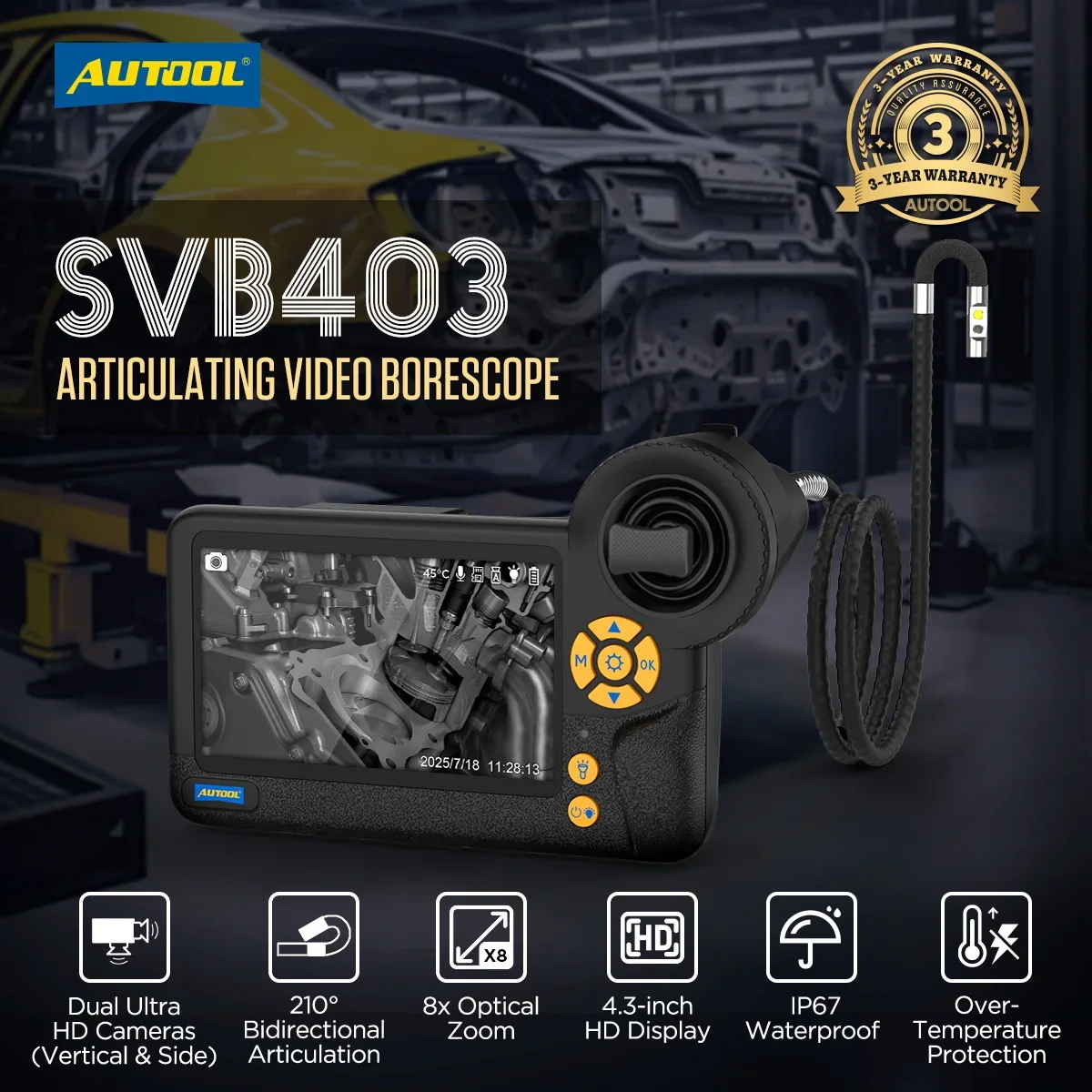

AUTOOL SVB403 1280*720 Dual Camera Articulating Video Borescope

The SVB403 Articulating Video Borescope is a key product recently launched for the global automotive aftermarket. It is specifically designed for inspecting hard-to-reach, narrow, and curved spaces such as automotive evaporators, combustion chambers, and catalytic sensor areas. The product features a 210° bidirectional rotation and detection function, along with a unique high-temperature alarm function. Users can insert the ultra-thin probe into tight spaces and view video and images on the screen, meeting the diverse inspection needs of various scenarios.

AUTOOL SVB403 Steering Endoscope Feature

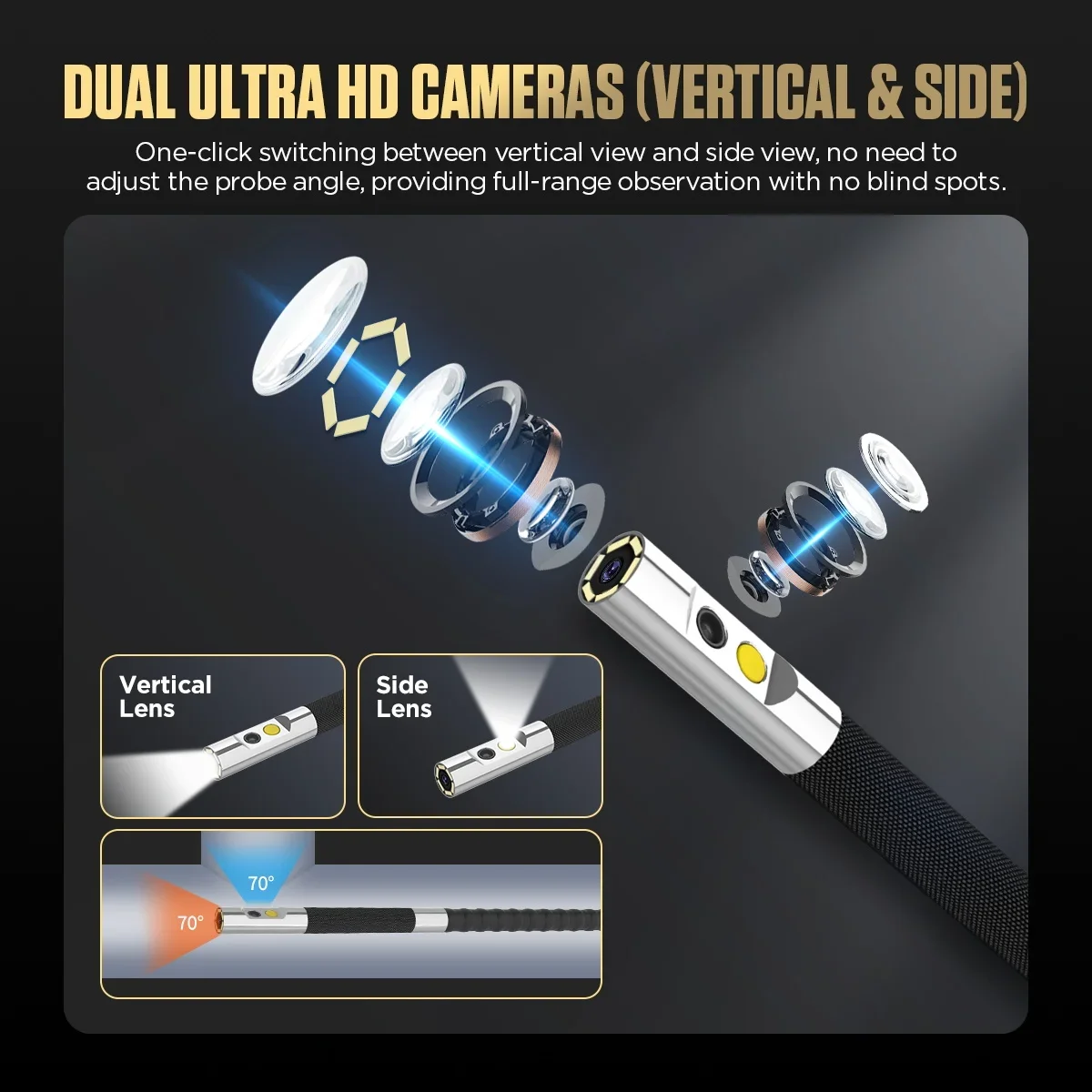

1.[DUAL ULTRA HD CAMERAS (VERTICAL & SIDE)] :
One-click switching between vertical view and side view, no need to adjust the probe angle, providing full-range observation with no blind spots.

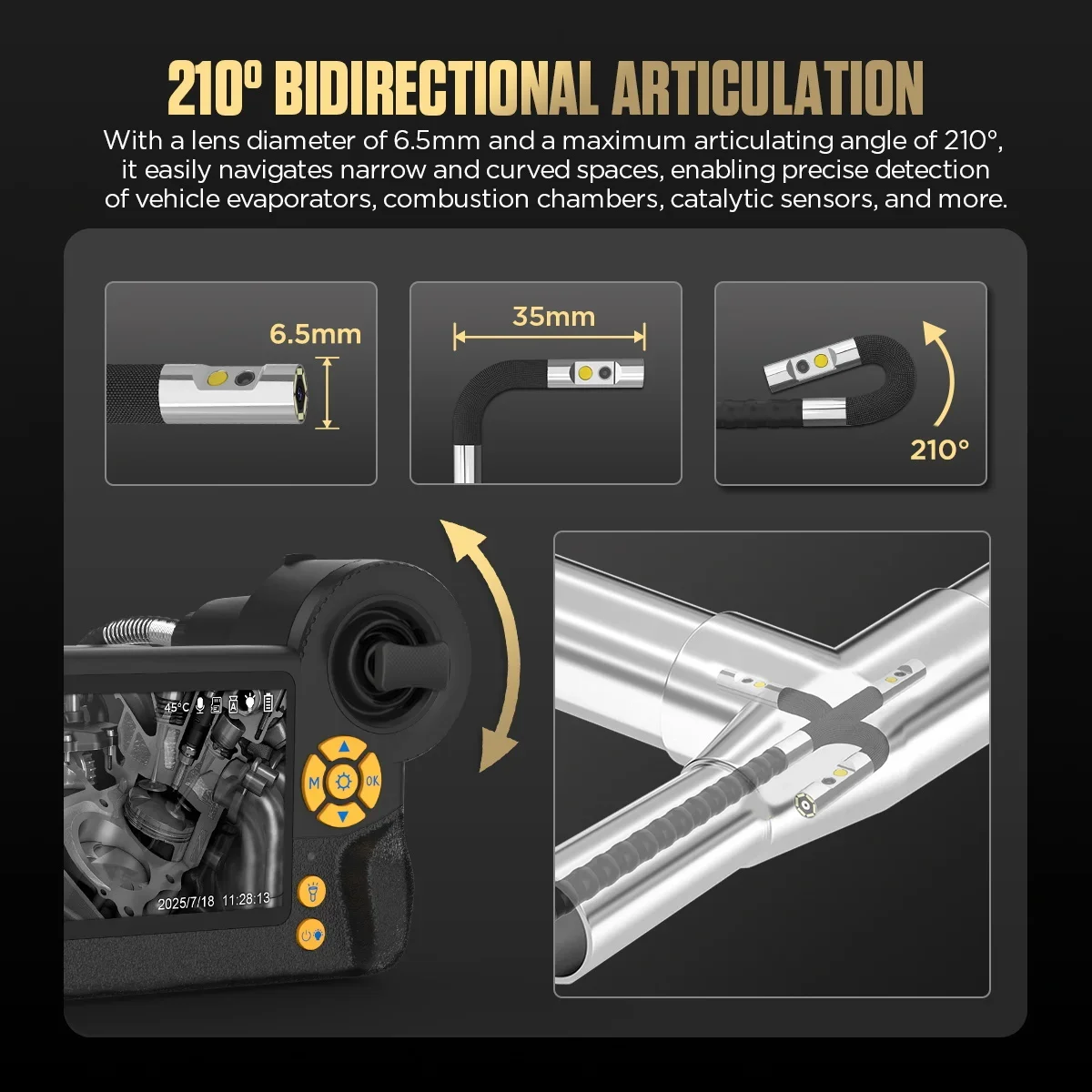

2.[210° BIDIRECTIONAL ARTICULATION]:
With a lens diameter of 6.5mm and a maximum articulating angle of 210°,it easily navigates narrow and curved spaces, enabling precise detection of vehicle evaporators, combustion chambers, catalytic sensors, and more.

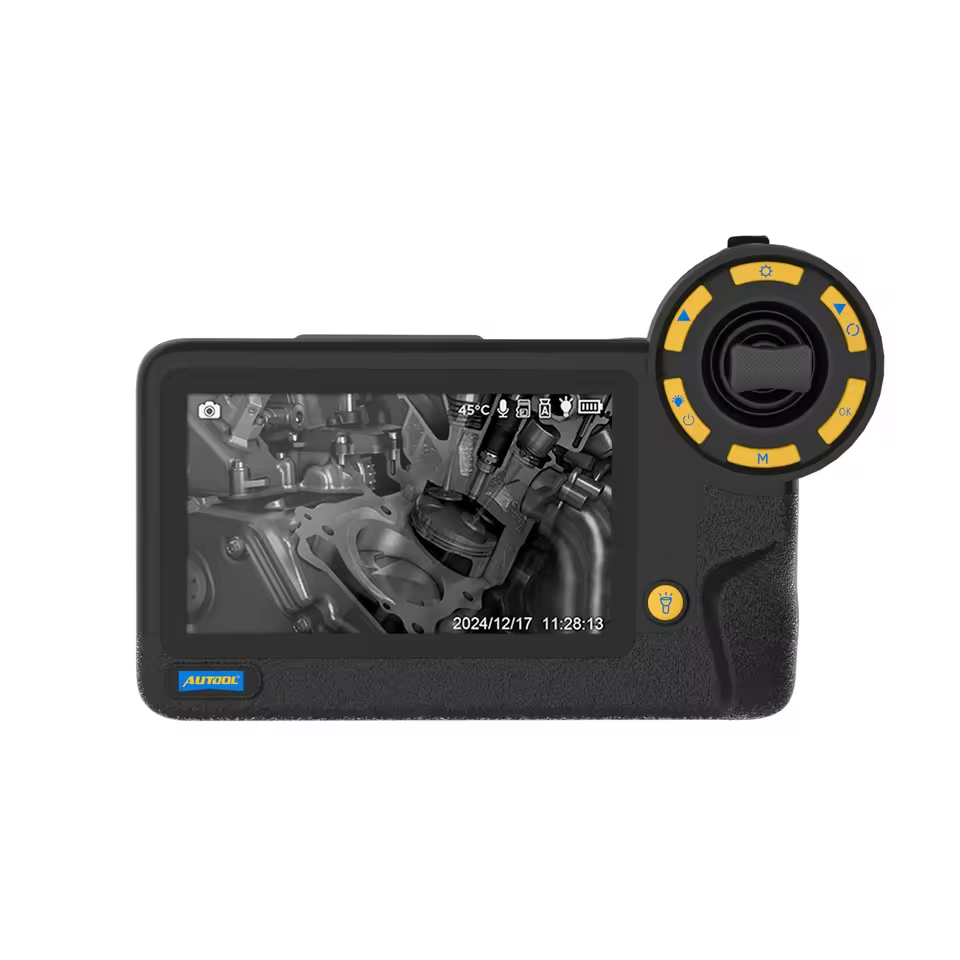

3.[4.3-INCH HD DISPLAY]:True color display, adjustable screen brightness,and 8x zoom
for clear detail viewing.

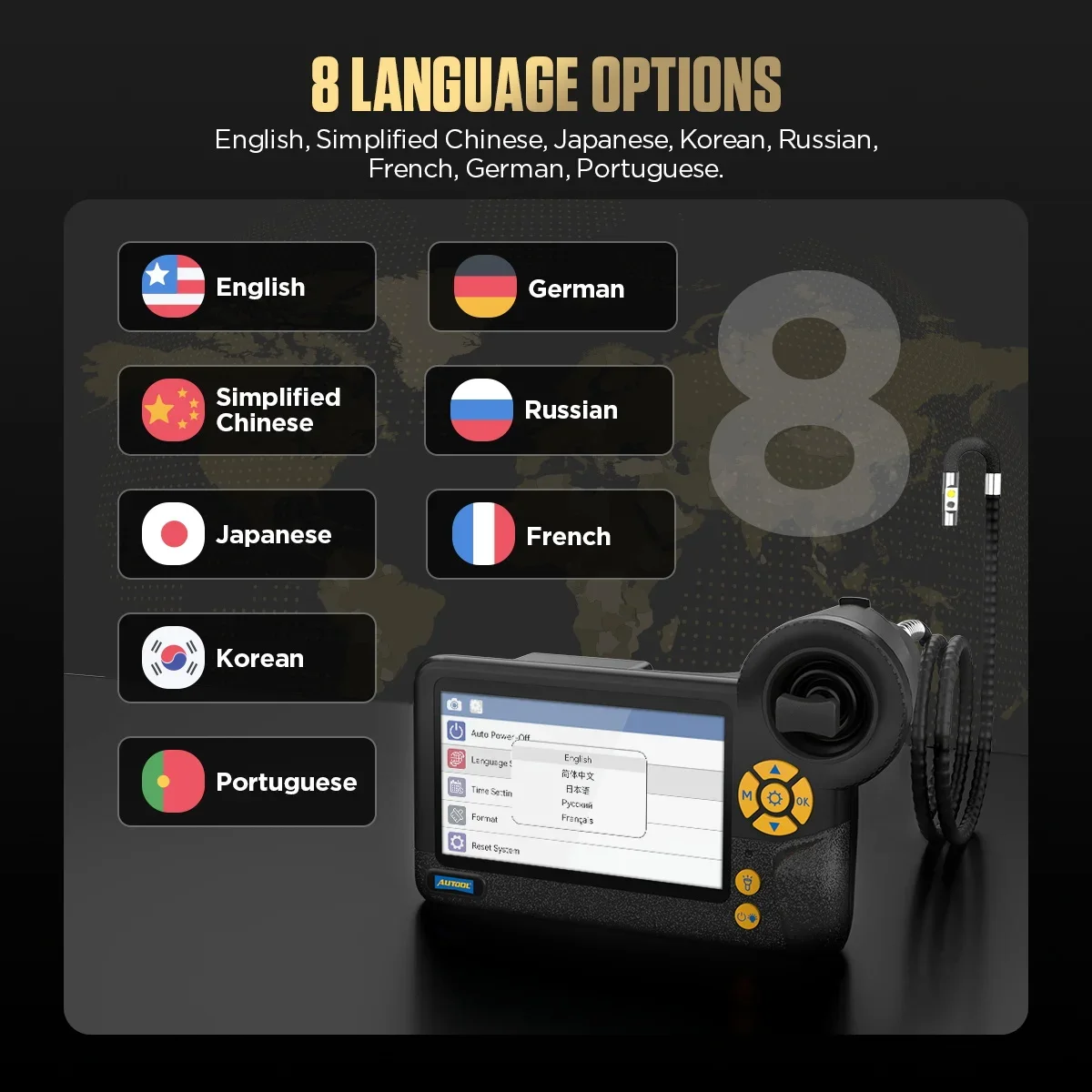

4.[8 LANGUAGE OPTIONS]
English, Simplified Chinese, Japanese, Korean, Russian,French, German, Portuguese.

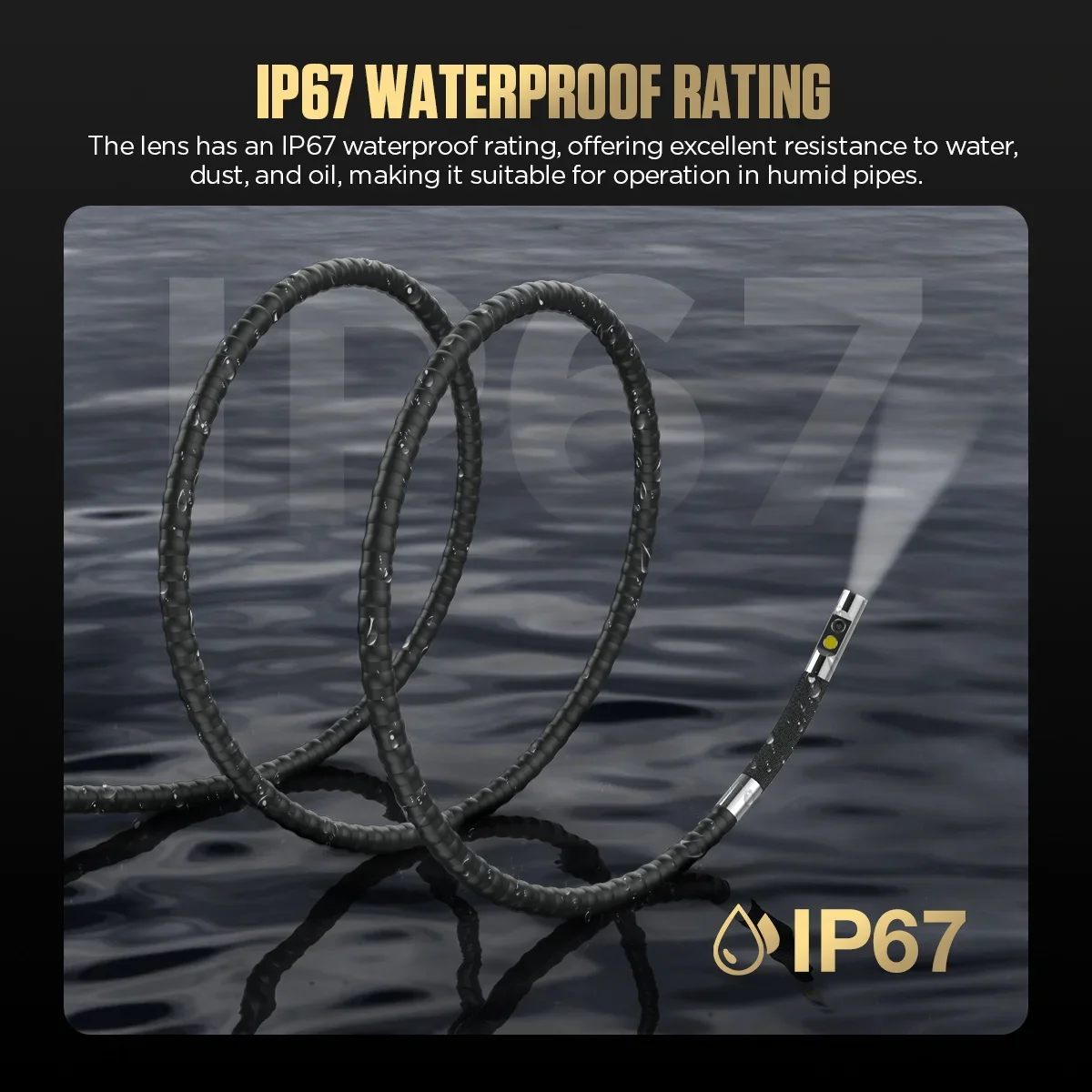

5.[IP67 WATERPROOF RATING]:The lens has an IP67 waterproof rating, offering excellent resistance to water,dust, and oil, making it suitable for operation in humid pipes.

6. [32GB HIGH-SPEED MEMORY CARD]:
Supports online image access, fast data reading and storage,capable of storing a large number of images and videos.

7.[OVER-TEMPERATURE ALERT]:
The lens features an smart temperature sensor that triggers a beeping alarm and displays a over-temperature warning when the temperature exceeds 80°C. The image will automatically resume once the temperature drops,ensuring safe operation.

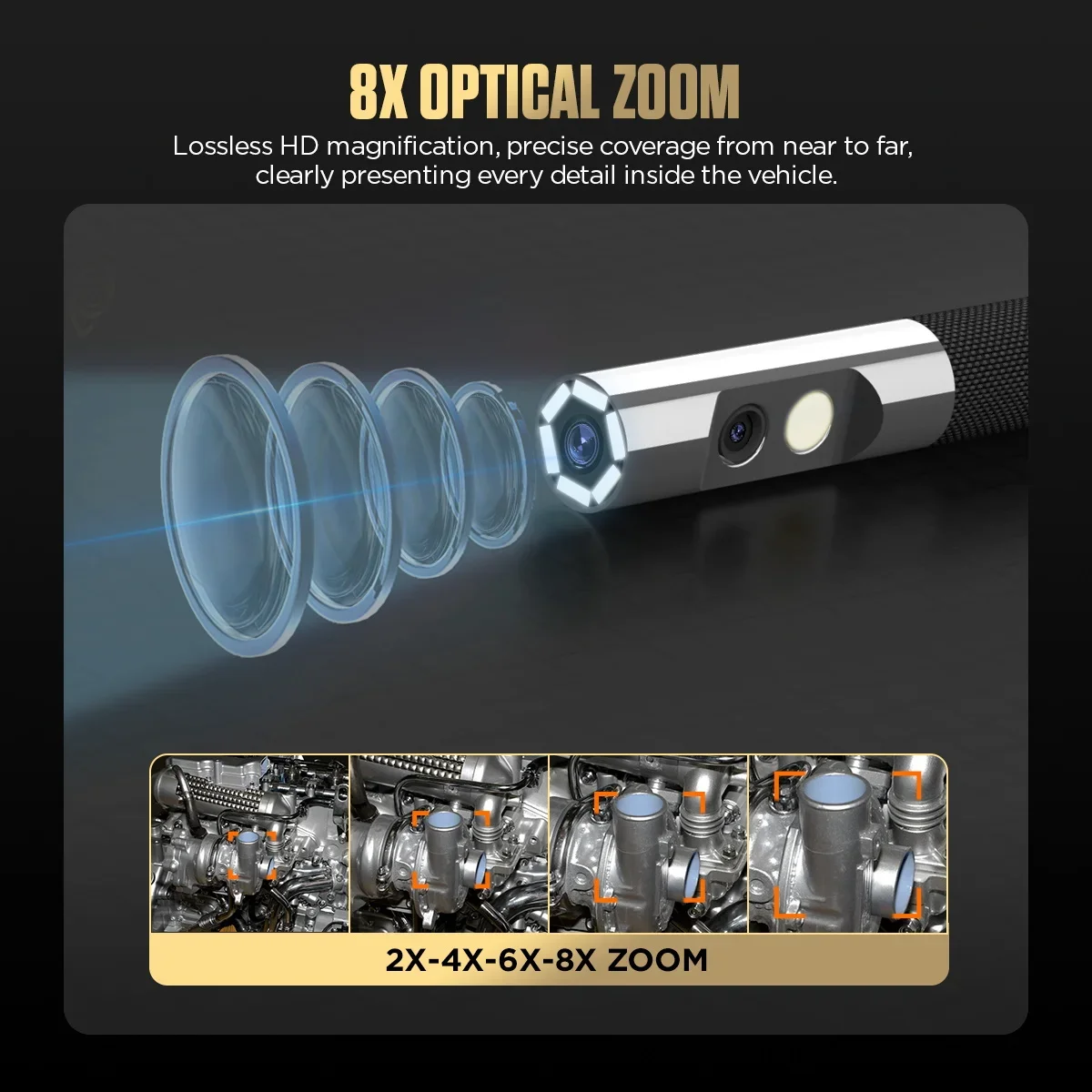

8.[8X OPTICAL ZOOM]:Lossless HD agnification, precise coverage from near to far, clearly presenting every detail inside the vehicle.

9.[MULTIPLE APPLICATION SCENARIOS]:
Suitable for automotive repair, motorcycle repair, mechanical repair,appliance repair,circuit maintenance, pipe repair,air conditioning repair, and more.

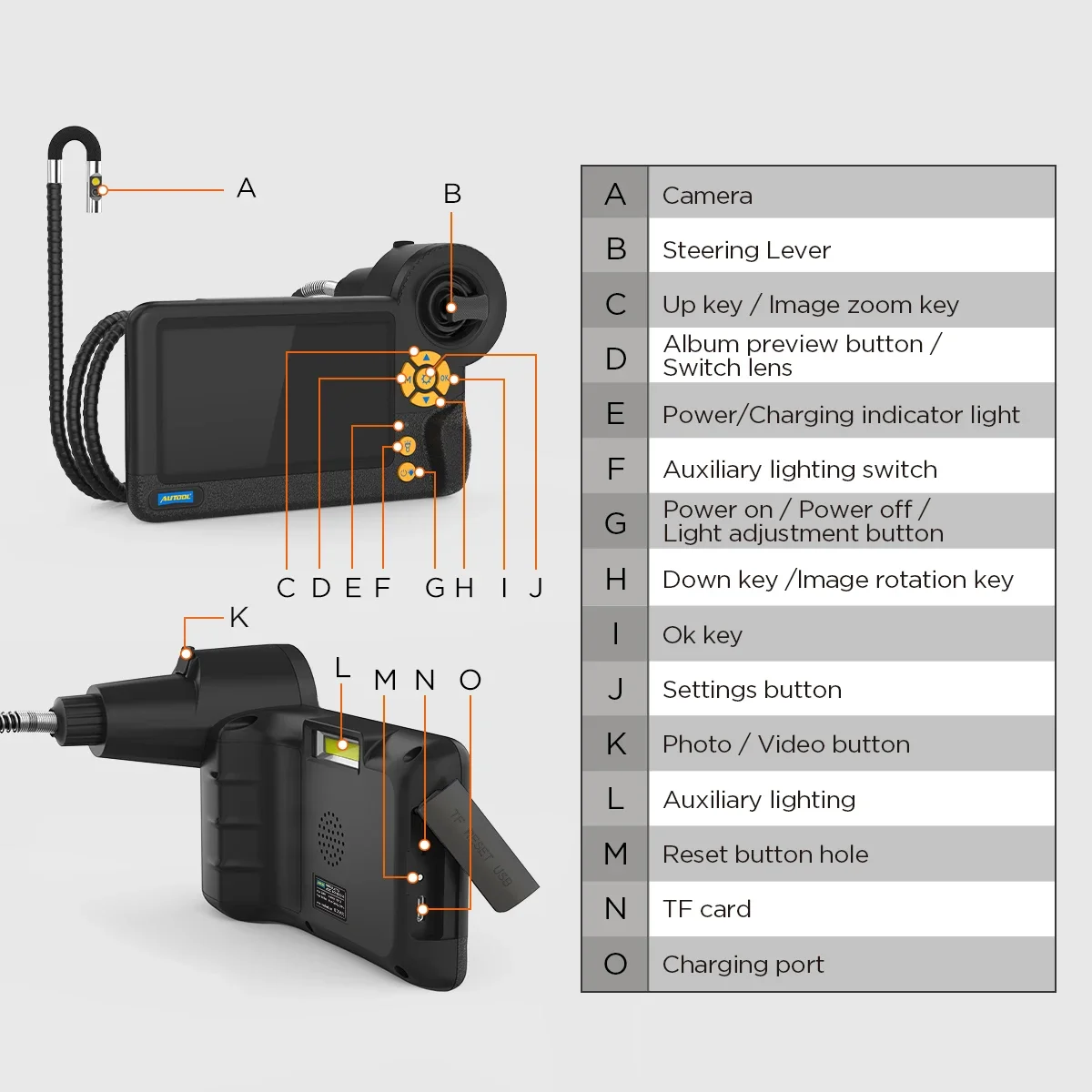

10[PRODUCT DETAIL DESIGN]

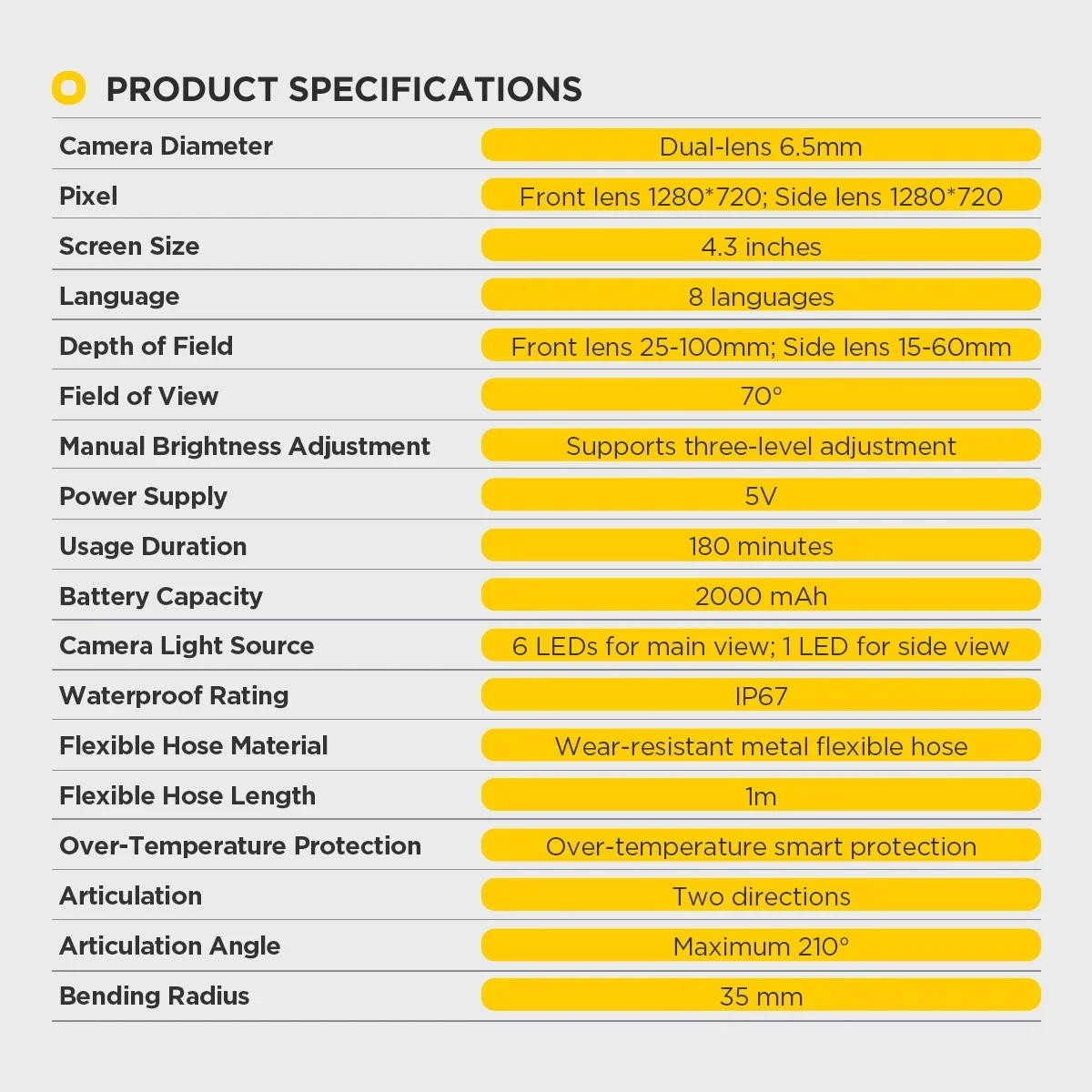

AUTOOL SVB403 Steering Endoscope Structure

Camera Diameter:Dual-lens 6.5mm
Pixel:Front lens 1280*720; Side lens 1280*720
Screen Size :4.3 inches
Language:8 languages
Depth of Field:Front lens 25-100mm; Side lens 15-60mm
Field of View:70°
Manual Brightness Adjustment:Supports three-level adjustment
Power Supply:5V
Usage Duration:180 minutes
Battery Capacity:2000 mAh
Camera Light Source:6 LEDs for main view; 1 LED for side vie
Waterproof Rating:IP67
Flexible Hose Material:Wear-resistant metal flexible hose : Over-Temperature Protection
Flexible Hose Length:1m
Over-Temperature Protection:Over-temperature smart protection
Articulation:Two directions
Articulation Angle:Maximum 210°
Bending Radius:35 mm

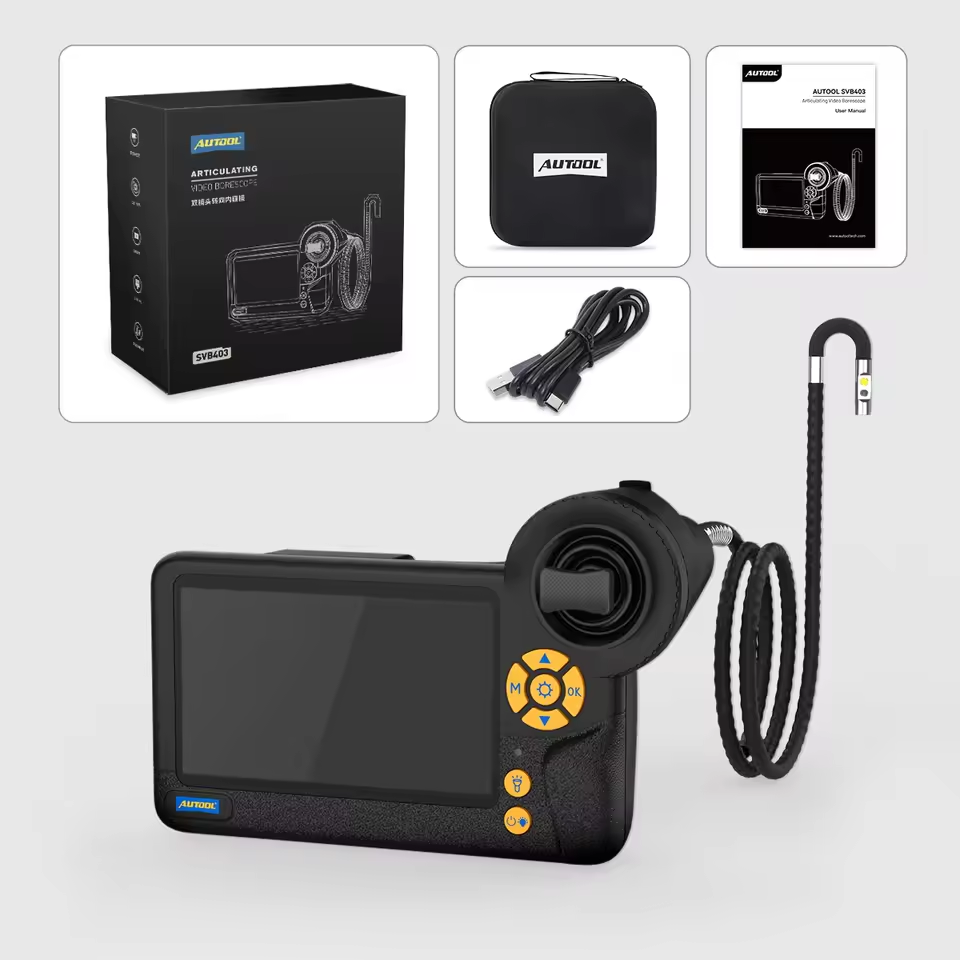

Packing List :

1* USB borescope

1*User Manual

1* USB Cable

1* Carrying box
