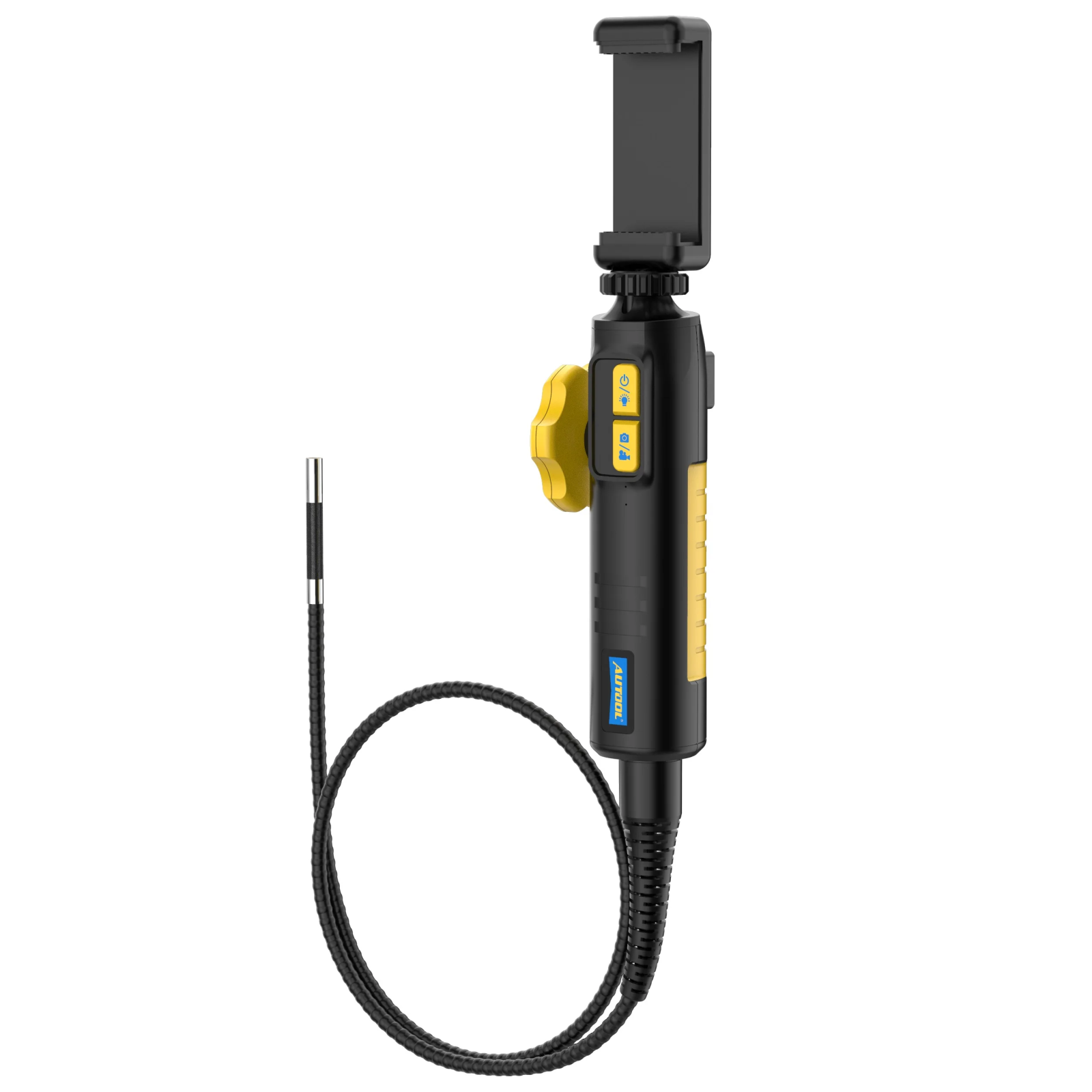

SVB302 Articulating Borescope is the latest professional product launched by AUTOOL for the global automotive market, which is specially used to detect narrow and bending spaces that are
difficult to enter, such as auto evaporator, combustion chamber, three-way catalytic,etc.

The product has the detection function with 180° rotation in two directions, and has a unique high-temperature alarm function, which makes it convenient for users to penetrate the small probe into the narrow space, and then transfer the vivid, clear and omnidirectional video and pictures to the mobile phone screen through the data line to meet your various detection needs.

Product Feature:

- [ONE-CLICK PHOTO & VIDEO]

The 1080P HD camera can penetrate into the narrow space,and then clearly show the videos and pictures on the 5-inch display.

- [SUPPORT MULTIPLE MOBILE DEVICES]

Support mobile devices such as Android or Applemobile phones, PADs, or laptops.

- [TWO-WAY 210°STEERING LENS]

Turn the steering wheel, and the small probe can penetrate into thenarrow and bending space that is difficult to enter, such as the autoevaporator, combustion chamber, three-way catalytic converter, etc.

- [LED LIGHT CONTROL]

The camera is equipped with 6 high-intensity LED lights.with 3 levels of adjustable brightness, for inspection in different darkness.

- [IPG7 WATERPROOF]

The waterproof grade of the camera is IP67, with waterproof andoil-resistant performance, which can work in wet pipes.

- [MULTILINGUAL]

Support multilingual settings: English, French, German,Italian, Spanish and Russian, Chinese, Japanese, etc.

- [3000MAH LITHIUM BATTERY]

Built-in 3000mAh rechargeable lithium batterycan be used continuously for up to 3 hours.

- [WIDELY USED]

It is applicable to auto inspection, mechanical maintenance.construction industry, power facilities, chemicalpipelines, security monitoring, etc.

AUTOOL SVB302 APP Installation

For Android mobile devices, please scan the QR code below todownload and install the APP.

For Apple mobile devices, please search“JCAM”in the Appstore,then download and install the APP: or scan the QR code todownload and install the APP.

Product Paraments:

Camera Diameter : 6.0mm(±0.35)
Resolution : 1920*1080
Depth of Field : 20-100mm
Viewing Angle : 70°
Manual Dimming : Three-level dimming
USB Interface : USB 2.0
Input Power : DC 5V
Service time : 3hr
Camera Light Source : Highlight LED
Camera Light Source : IP67
Waterproof Level : Flexible metal hose
Hose Material : 1m
Hose Length : Intelligent protection
High Temperature Protection : Two-way
Steering Direction : Max.210°
Steering Angle : 35mm
Bending Radius : -10-80°C
Operating Environment Humidity : 15-90%

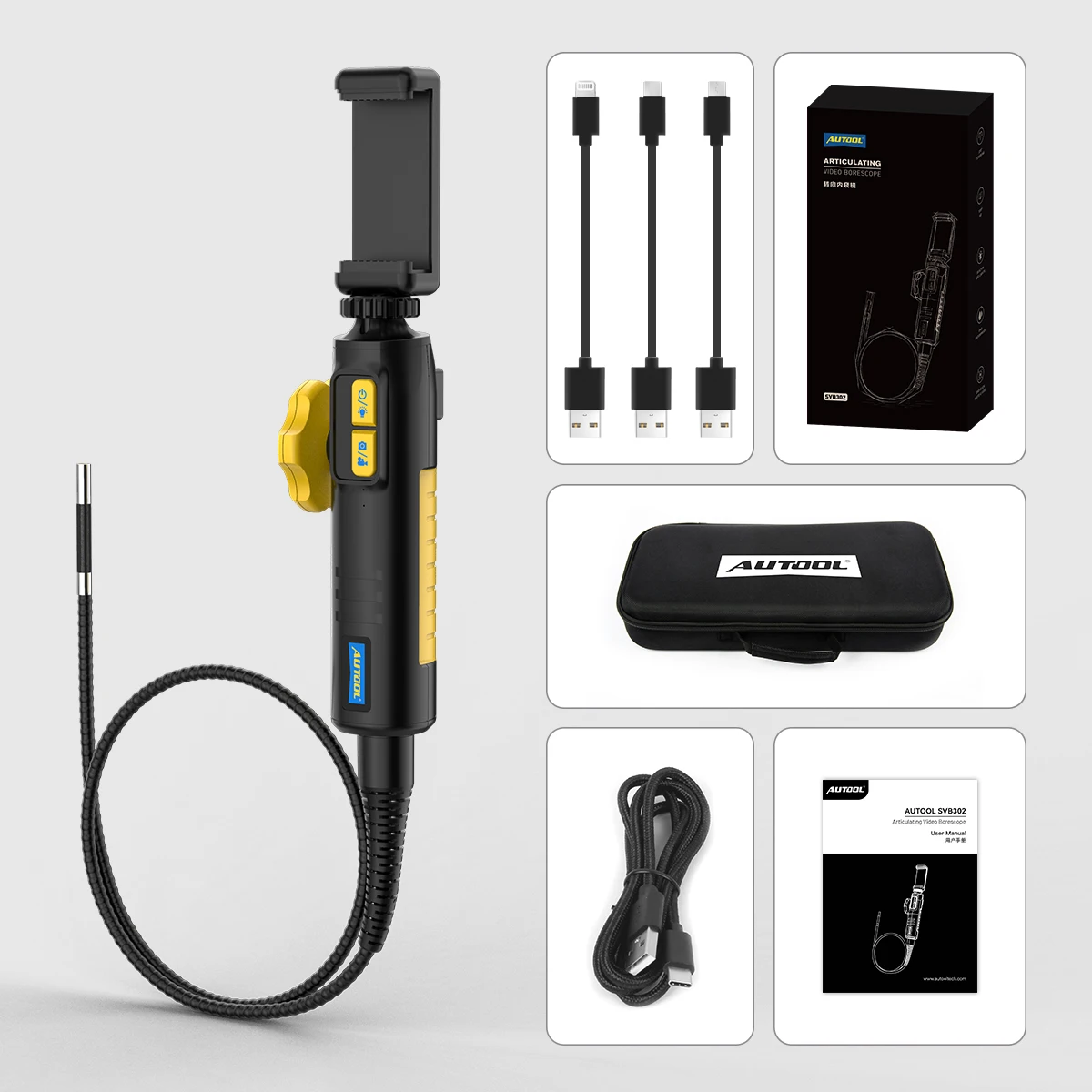

Package List:

1* USB borescope

1*User Manual

1* USB Cable

1* Carrying box
