Often, problems reported by customers can have many potential causes, and simply reading fault codes leaves you no closer to a solution. In addition to the comprehensive electrical testing provided by PicoScope, the addition of a WPS500X provides you with that same detailed insight into the engine system for accurate diagnosis of common problems such as:

• No start

• Loss of power

• Misfire

• Stalling

• Engine noise

• Emissions fault

• Backfire

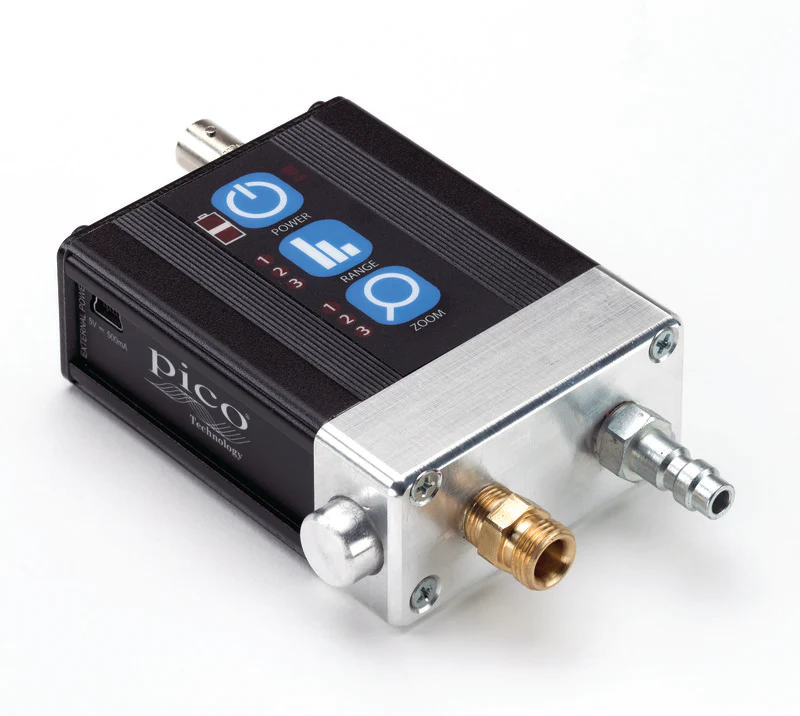

With the unparalleled resolution and accuracy of the WPS500X Automotive Pressure Transducer you can perform quick and accurate pressure analysis on many automotive systems.

• Accurately measure up to 500 psi (34 bar)

• Ultra-fast 100 µs response time

• Zoom function for enhanced analysis capabilities

• Internal rechargeable LiPo battery

• Integrated pressure relief / bleed-off valve

• Auto zeroing

• High noise immunity

• Temperature compensated

The WPS500X features an extremely fast 100 µs response time from 0% to 90% of full scale and sensitivity down to about 0.07 psi (5 mbar). This provides you with an accurate representation of rapidly changing signals that span a broad pressure range.

Use the WPS500X with PicoScope to reveal how your engine is actually performing with minimal intrusion. Compression, airflow, valve timing and back pressure can all be measured in one hit.
