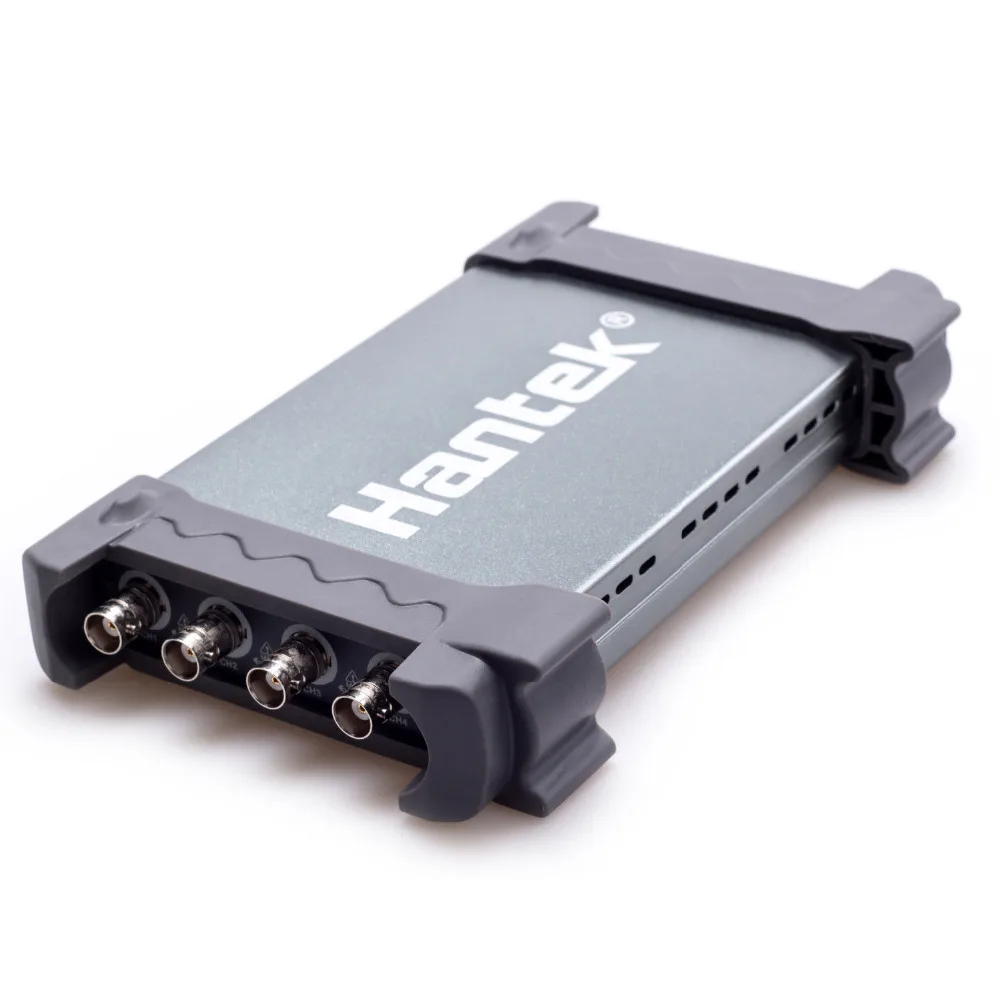

Hantek 6254BE Automotive Digital Diagnostic Oscilloscope USB PC 1GSa/s 250MHz 4CH Oscilloscope Equipped with HT25COP/CC65/CC650

Item No. AM207 In Stock. History sold.

    0 out of 5

    0 global ratings

    5 stars:0%
    4 stars:0%
    3 stars:0%
    2 stars:0%
    1 stars:0%

ratings| answered questions
Latest price:$659.00
Buy Now: $ 639.00 3% off

Fast Shipping & No Tax

US Check: Ship from US

UK Check: Ship from UK

EU Check: Ship from Czech

Looking for help? Please contact Whatsapp: +86-19892834301

Shipping:
Free Shipping
Express Shipping ServiceEstimated delivery time: 3-5 Working Days
Quantity:
- +
Stock:32
Add to Wish List
continue
Weight:
9 KG
Package:

Related Download Files

Share

Hantek 6254BE Automotive Digital Diagnostic Oscilloscope USB PC 1GSa/s 250MHz 4CH Oscilloscope Equipped with HT25COP/CC65/CC650





Standard equipped over 80 types of automotive measurement function (Ignition Action/The Sensor/Bus Diagnosis/Performer/Startup&Charge),USB 2.0 interface plug and play, and need no extra power supply, Support tablet PC, Support WIN10/ WIN8/WIN7 etc. Free software upgrading constantly, higher cost performance, Support USBXI, easy to operate. 4 isolated channels oscilloscope, 1GSa/s real time sampling rate, 2mV-10V/DIV high input sensitivity and large input range, 250MHz high bandwidth, small size, easy to carry. Dynamic cursor tracking, waveform record and replay function.




Features:


Standard equipped over 80 types of automotive measurement function:


First Diagnosis: Intake manifold vacuum & ignition, Petrol fumes adjusting valve vacuum & ignition, Idle exhaust ignition, Starting exhaust ignition;


Ignition: primary and secondary;


Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position;


Bus Diagnosis: CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus;


Performer: Petrol/Diesel;


Starter and charging circuits.


Fit for the portable computers, table PC, and suitable for wild mobile use and business trip use. Support WIN10/ WIN8/WIN7 etc.


USB 2.0 interface plug and play, and no need extra power supply.


Great function, More than 20 kinds of automatic measurement function, PASS/FAIL Check function. Resourceful trigger function, dynamic cursor tracking, waveform record and replay function.
Good mechanical design with small size which is easy for carrying. The outer case is made by Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved.


4 isolated channels oscilloscope, 1GSa/s real time sampling rate, 2mV-10V/DIV high input sensitivity and large input range, 250MHz high bandwidth.


The waveform data could be output to EXCEL,BMP,JPG.


Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display.
FFT spectrum analyzer.


One computer could connect with multiple oscilloscopes, expand the channel number easily.


Provide secondary development library DLL; Provide Labview/VB/VC/QT developing examples.







Specifications:


Brand Name: Hantek
Material: Aluminium Alloy + Plastic
Model: Hantek6254B
Bandwidth: 250MHz
Oscilloscope Probe Model: PP-250
Item Size: Approx. 210 * 125 * 37mm / 8.3 * 4.9 * 1.5in
Item Weight: Approx. 453g / 16.0oz
Package Size: Approx. 25 * 18.5 * 11cm / 9.8 * 7.3 * 4.3in
Package Weight: Approx. 1310g / 46.2oz







Characteristic:



Model

Hantek6254BE

Bandwidth

250MHz

Channel

4 CH

Real-time Sampling Rate

1GSa/s

Memory Depth

64K

Time BasePrecision

±50ppm

Time Base Range

2ns/div-1000s/div (1-2-4 sequences)

Input Impedance

1MΩ 25pF

Input Sensitivity

2mV/div~10V/div

Vertical Resolution

8Bit

Vertical Displacement Range

2mV ~ 10V/div @ x1 probe; 20mV ~ 100V/div @ x10 probe;
200mV ~ 1000V/div @ x100 probe; 2V ~ 10000V/div @ x1000 probe

DC Gain Accuracy

±3%

Bandwidth

20MHz

Trigger Mode

Edge, Pulse, Video, Alternative

Trigger Source

CH1, CH2, CH3,CH4

Waveform Signal Process

+,-,x,÷,FFT, Invert

Cursors Measurement

Cross, Trace, Horizontal, Vertical

Auto Measurement

Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle

Volume

175mm * 105mm * 25mm







Note:


Hantek 6074BE/6104BE/6204BE/6254BE Oscilloscope is for 3 years Warranty!


Please read the instruction manual data CD carefully to avoid injury and prevent damage to this product.

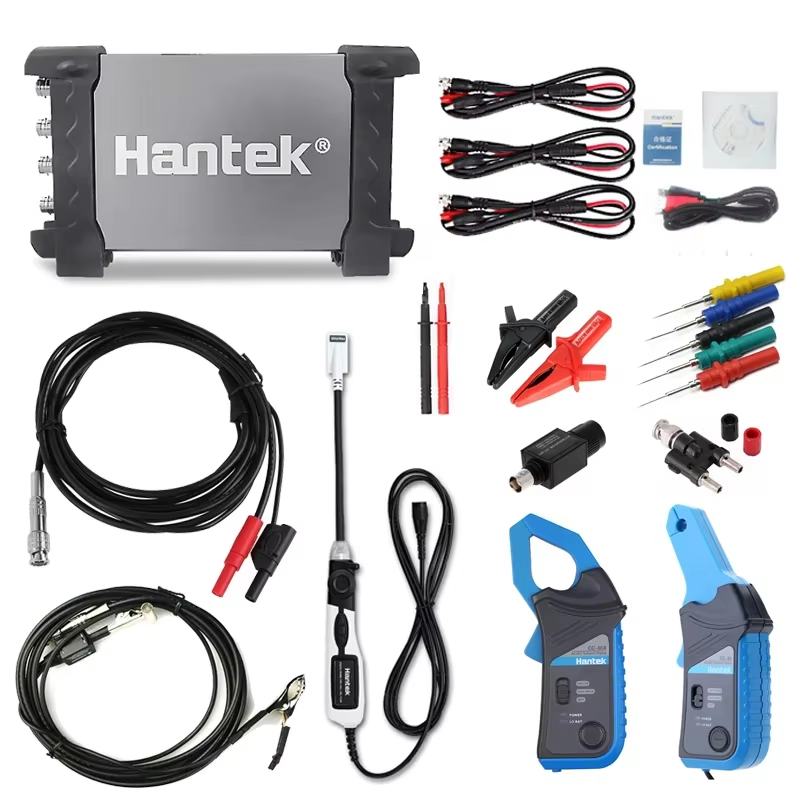

Package List:



1 *6254BE Automotive Diagnostic Oscilloscope
1 *HT25COP independent ignition probe
1 *CC650 AC and DC current clamp
1 *CC65 AC and DC current clamp
1 *HT30A dual banana head multi-purpose test line
1 *HT18A Dolphin/Alligator Clip
1 *HT19 multimeter probe
1 *HT25 automatic high voltage ignition
1 *HT307 Acupuncture Probe Set
1 *HTT201 signal generator 20:1
1 *Automatic test cable
3 *Dolphin/crocodile clip cable
1 *USB power cord
1 *PC software CD with user manual
