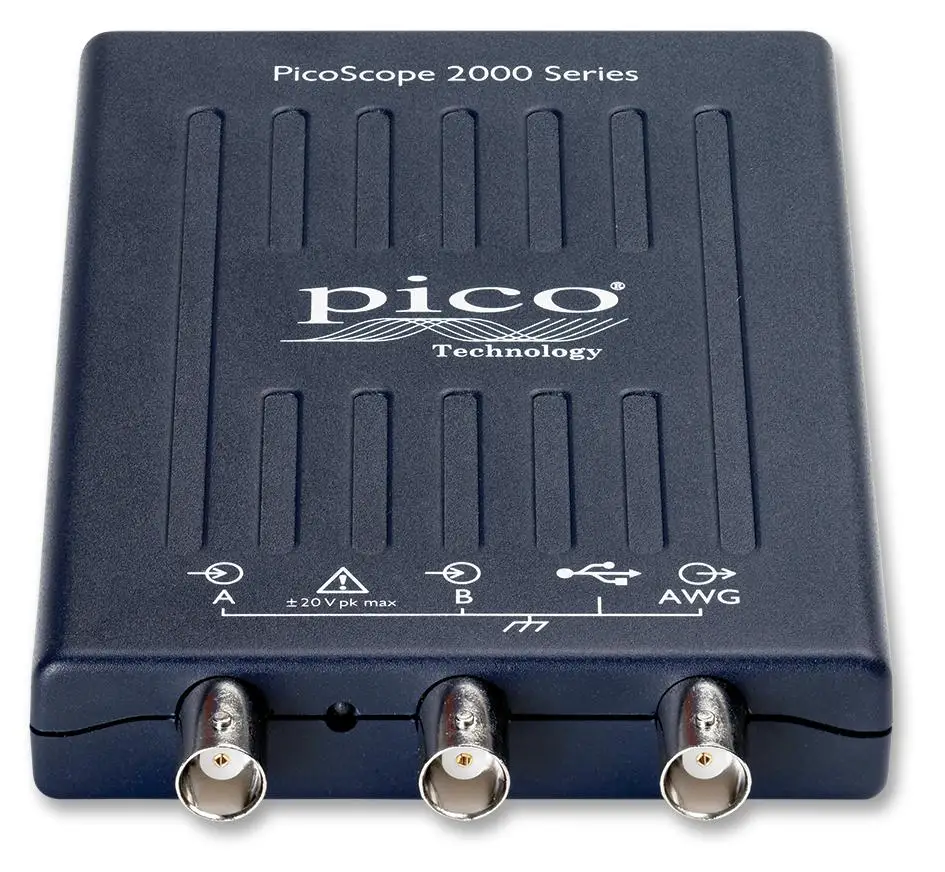

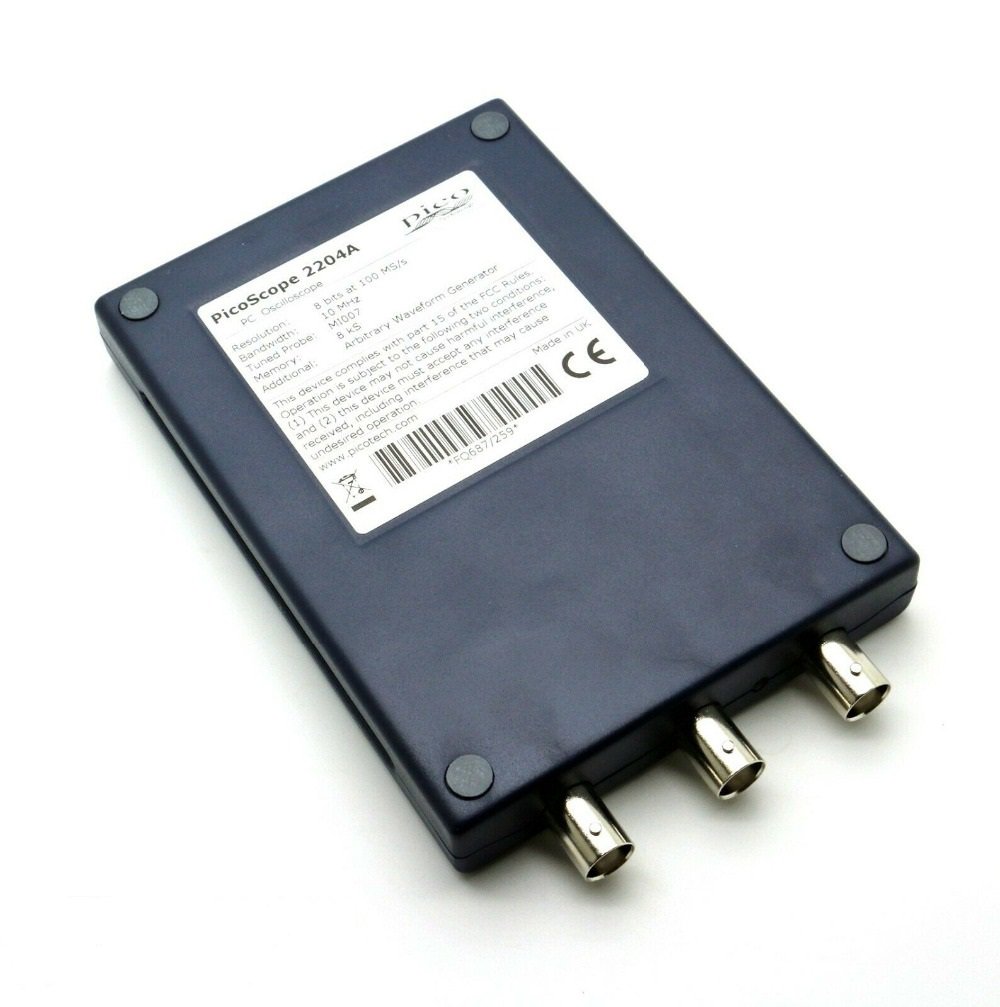

PicoScope 2204A USB PC
Oscilloscope
The
PicoScope 2204A Series PC oscilloscopes are small, lightweight, modern
alternatives to benchtop devices. Used on the bench, they take up little space
and can sit right next to the circuit under test. Used by engineers on the move,
they can easily be fitted into a pocket or laptop bag. Applications include
design, test, education, service, monitoring, fault-finding and repair. Pico
regularly delivers new functionality through free software upgrades, which are
optimised based on customer feedback.
PicoScope 6 software (download) enables
high-end features such as serial decoding and mask limit testing to be
incorporated as standard.
The
USB connection facilitates printing, copying, saving and emailing field
data.
The
high-speed USB interface provides fast data transfer and USB powering eliminates
the need to carry around a bulky external power supply.
Features & Benefits
The
PicoScope 2204A is a full-featured 2-channel PC oscilloscope
with:
• 2
channels
•
10 MHz bandwidth
•
100 MS/s sampling rate
•
8-bit resolution
•
Function generator / arbitrary waveform generator
•
Advanced digital triggers
•
Persistence display modes
•
Mask limit testing
•
Math channels
•
Spectrum analyser
•
Serial bus decoding
•
USB connected and powered
•
Free software upgrades
-
Sampling rate 100 MS/s real-time sampling rate, 2 GS/s in ETS mode
-
Buffer memory 8 kS, 100 MS in USB streaming mode
-
Waveform buffer Up to 10 000 waveform circular buffer
-
Trigger modes Edge, window, pulse width, window pulse width, dropout, window
dropout, interval, logic
-
Serial decoding 1-Wire, ARINC 429, CAN, DCC, DMX512, FlexRay, Ethernet 10Base-T,
USB 1.1, I²C, I²S, LIN, PS/2, SPI, SENT, UART/RS-232
-
Filters Highpass, lowpass, bandpass, bandstop filters
-
PC connection USB 2.0 (USB 3.1 compatible).
-
Powered from USB port
-
Software PicoScope 6 for Microsoft Windows 7, 8 and 10, PicoScope 6 (beta) for
Linux and OS X 32-bit and 64-bit SDK for Windows 7, 8 and 10.

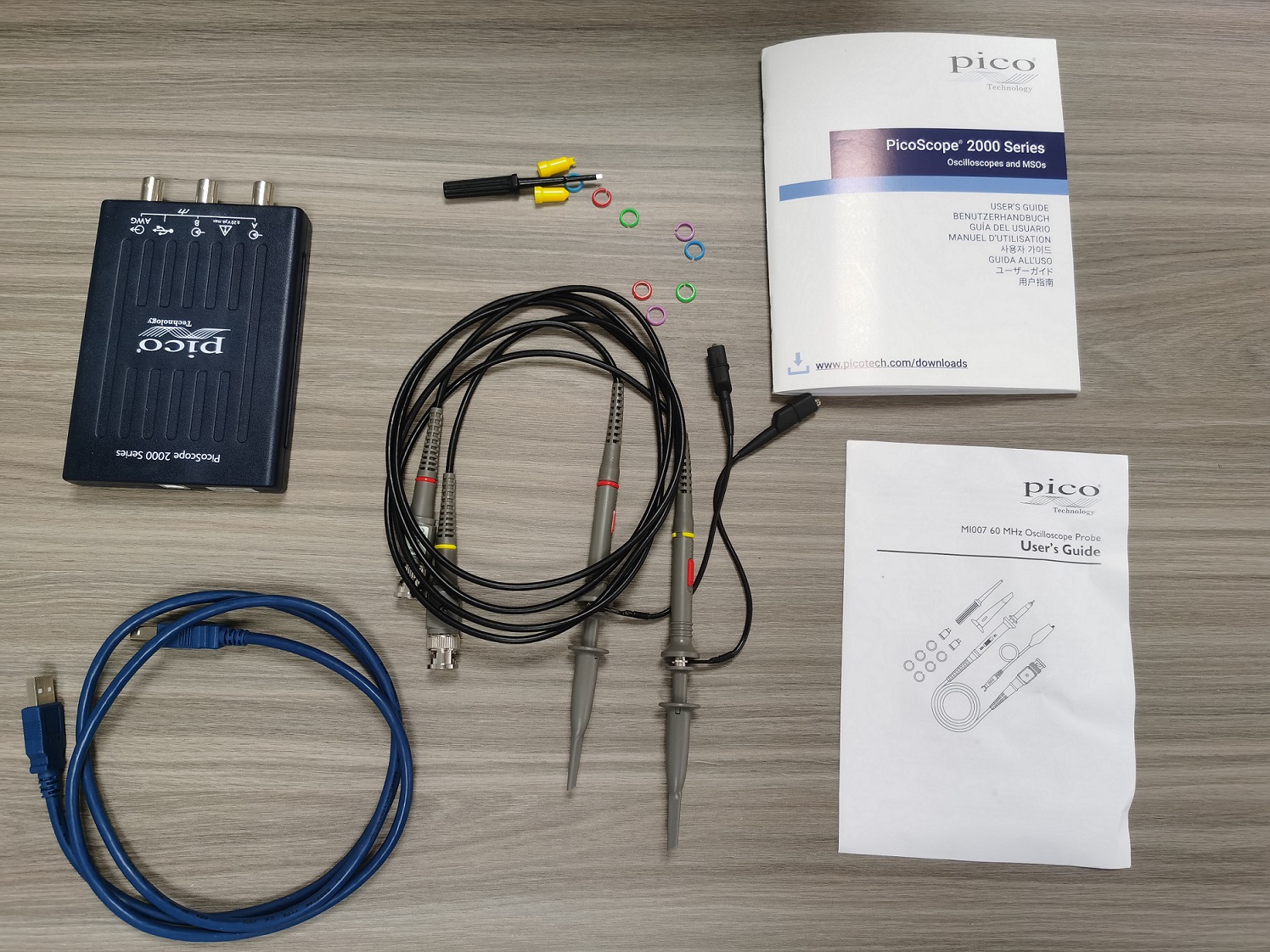

Includes two 100 MHz high-impedance passive
probes 1:1/10:1 with BNC connectors
Passive high-impedance oscilloscope probes
calibrated to work effectively with instruments that have an input impedance of
1 MOhm.
A
two-position slide switch on the probe handle allows the attenuation ratio to be
switched between 10:1 and 1:1.
The
probe is equipped with a basic accessory pack including a retractable hook tip,
compensation adjustment tool, locating sleeves, marker rings and a ground
lead.
Free Picoscope Software is available for
download from the manufacturers website.
