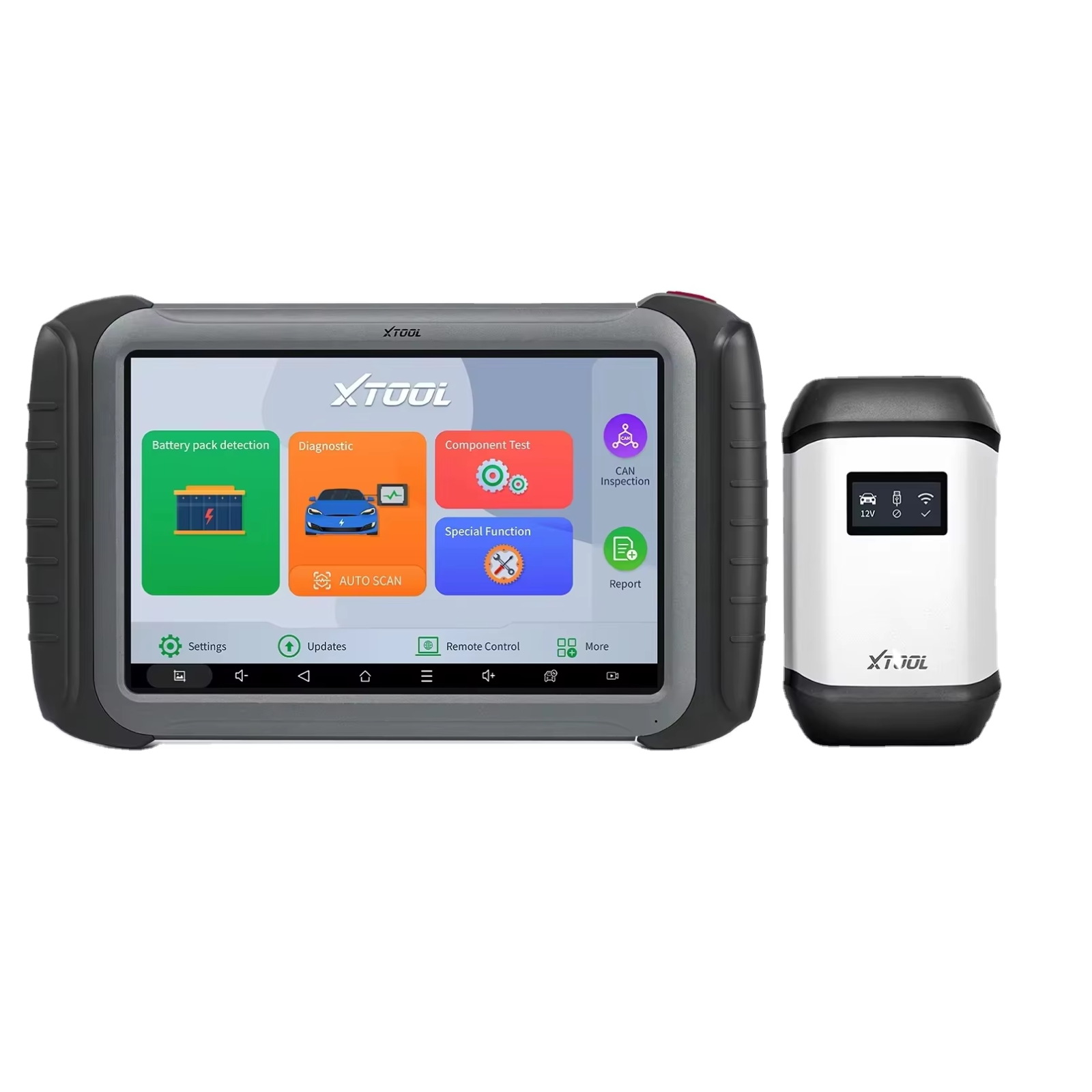

XTOOL E2S EV Smart Diagnostic System

Description

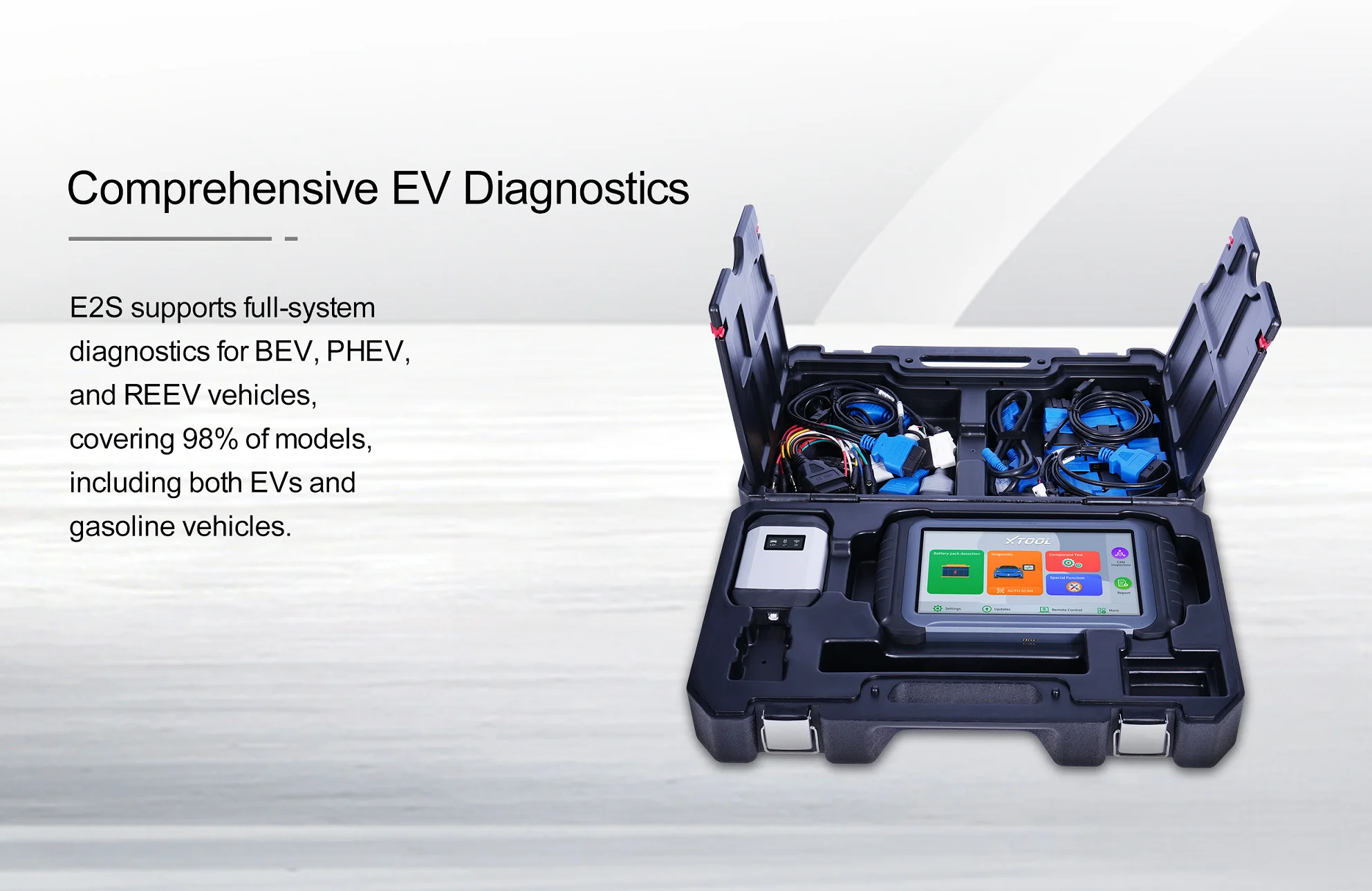

● All-in-One diagnostic solution for electric, gasoline, diesel, and hybrid vehicles across U.S., European, Asian, and Chinese markets.
● OEM-grade Tesla diagnostics with dedicated connectors, supporting DTC reading/clearing, live data, bi-directional control, and special functions.
● Rapidly inspects high-voltage EV systems, enabling fault code retrieval, clearing, and real-time monitoring.
● Battery pack diagnostics via OBD or direct connection with specialized cables and jumpers for precise voltage and temperature tracking.
● Expands battery pack compatibility effortlessly with CAN detection, allowing support for new models from various manufacturers.
● One-click off-vehicle testing for components like compressors, DCDC, OBC, and 48V motors, ensuring quick repair verification.
● Supports advanced communication protocols, including DoIP for Benz, Jaguar, Land Rover, and BMW, plus CAN FD for GM.
● Provides fault code guidance for VAG and BMW, offline programming for Ford, Lincoln, and Mazda, and online coding & programming for VAG, BMW, and Mercedes-Benz.

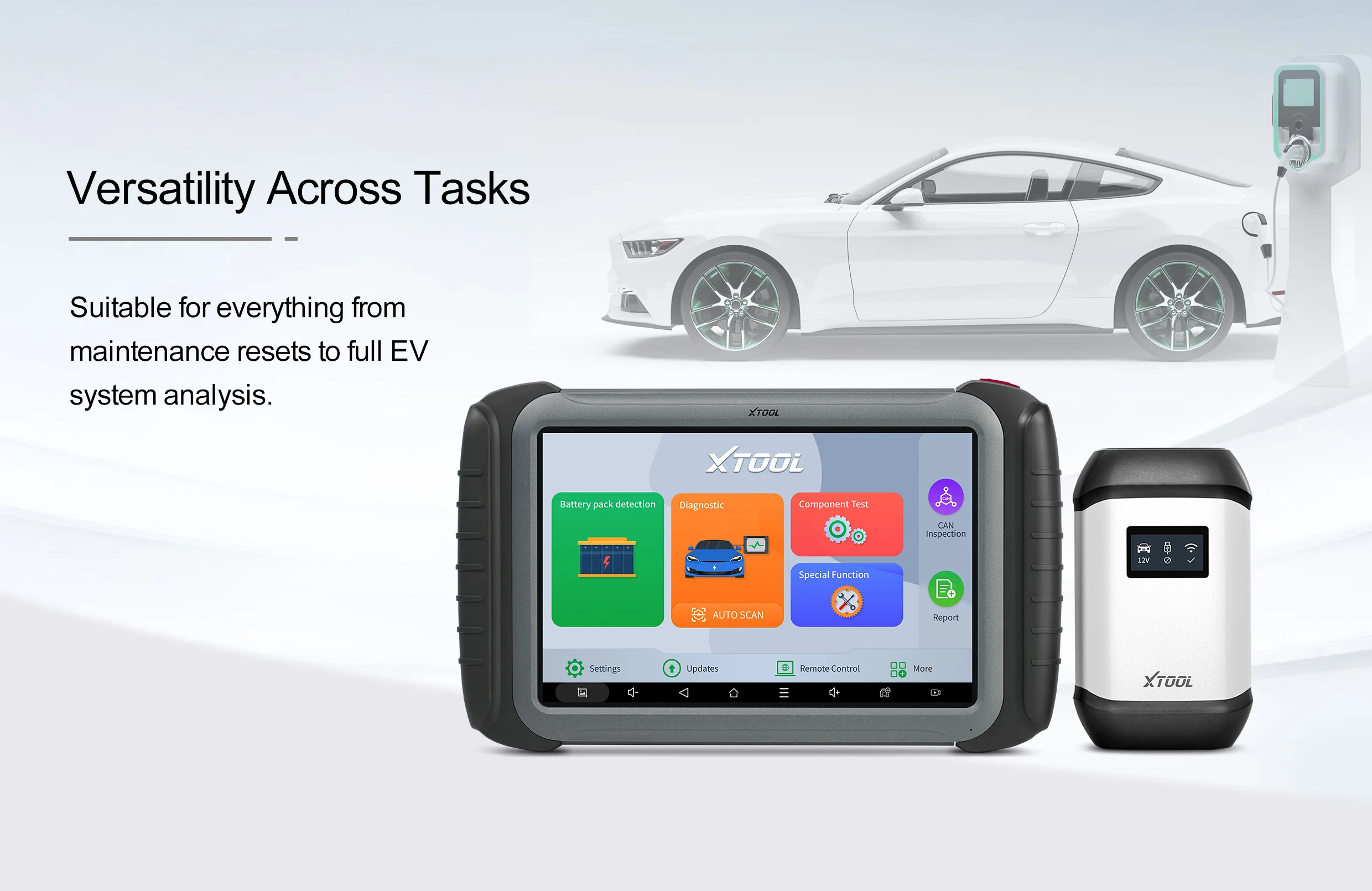

● Easily switch between EV diagnostic mode and standard vehicle diagnostic mode for enhanced versatility.

Comparison Between XTOOL E2 PRO, E2S and N9 EV

Parameters

Operating System:Android 10.0
Communication Method:Wi-Fi, Wired
Processor:8 Core, up to 2.2 GHz
Connectivity:USB Type-C
Memory:8G+128G
Working Voltage:9-36V
Display:10.1-inch, 1920x1200px
Battery:6400 mAh, 7.2V
Camera:8.0 Megapixel, AF with Flashlight
Working Temperature:0 to 40℃
Auto Input/Output:Microphone, Speaker
Storage Temperature:-40 to 60℃
VCI Screen Size:1.54-inch
Compatible Protocol:CANFD, DoIP, Dual CAN, etc.

Packing List

Accessories
Packing List
Tool Case
Quick Start Guide
Certificate of Quality
Carton

Main Units
Data Cable (Type-C to Type-B )
PD-12V Power Cable ( Type-C to DC)
Charging Adapter (EU)
Cigar Lighter Cable
Adapter (Type-C to Type-A)
Data Cable (Type-C to Type-C)
Tablet
Charging Adapter (UK)
Power Supply (PD)
VCI Box

Test Connectors
Universal Jumper Adapter
L1E02 (Tesla LAN Cable)
Main Cable (DB15 to OBD-II)
J1E04
L1E03 (Tesla CAN Cable)
Universal Jumper Cable
