The PicoScope 4000A Series of PC oscilloscopes is a second-generation upgrade and expansion of our high-resolution, deep-memory product portfolio.

With 2-, 4- and 8-channel models available, the PicoScope 4000A Series boasts 12-bit hardware resolution (to 16 bits with Resolution Enhancement), 256 MS deep capture memory, 20 MHz bandwidth with 80 MS/s sampling speed, up to 70 dB SFDR and a built-in 14-bit triggerable signal generator and 80 MS/s AWG. A SuperSpeed USB 3.0 interface powers the instrument and delivers up to 160 MS/s communications to the host PC.

With the PicoScope 4000A Series providing a choice of either 2, 4 or 8 high-resolution analog channels you can easily view audio, ultrasonic, vibration and power waveforms, analyze timing of complex systems, and perform a wide range of precision measurement tasks on multiple inputs at the same time. The scopes have a small, compact footprint, yet the BNC connectors with a minimum 20 mm spacing still accept all common probes and accessories. Despite their compact size, there is no compromise on performance. With a high vertical resolution of 12 bits, 20 MHz bandwidth, 256 MS buffer memory, and a fast sampling rate of 80 MS/s, the PicoScope 4000A Series has the power and functionality to deliver accurate results. With up to 8 channels, these oscilloscopes can analyze multiple serial buses such as UART, I2C, SPI, CAN and LIN plus control and driver signals.

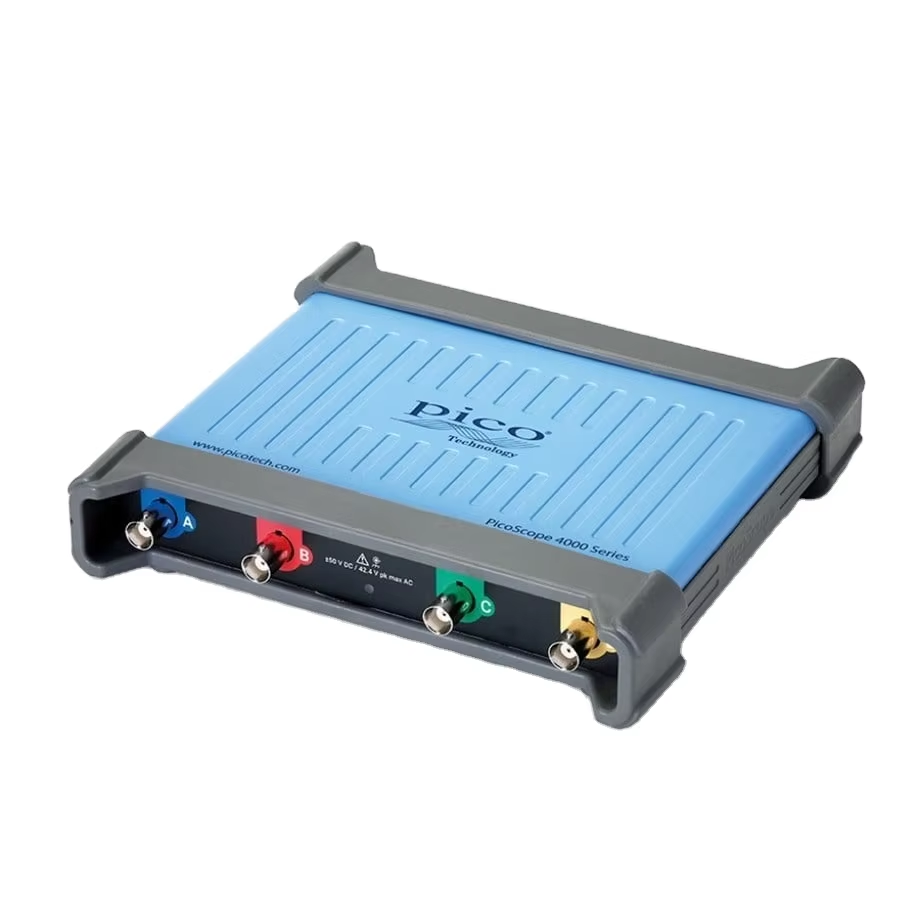

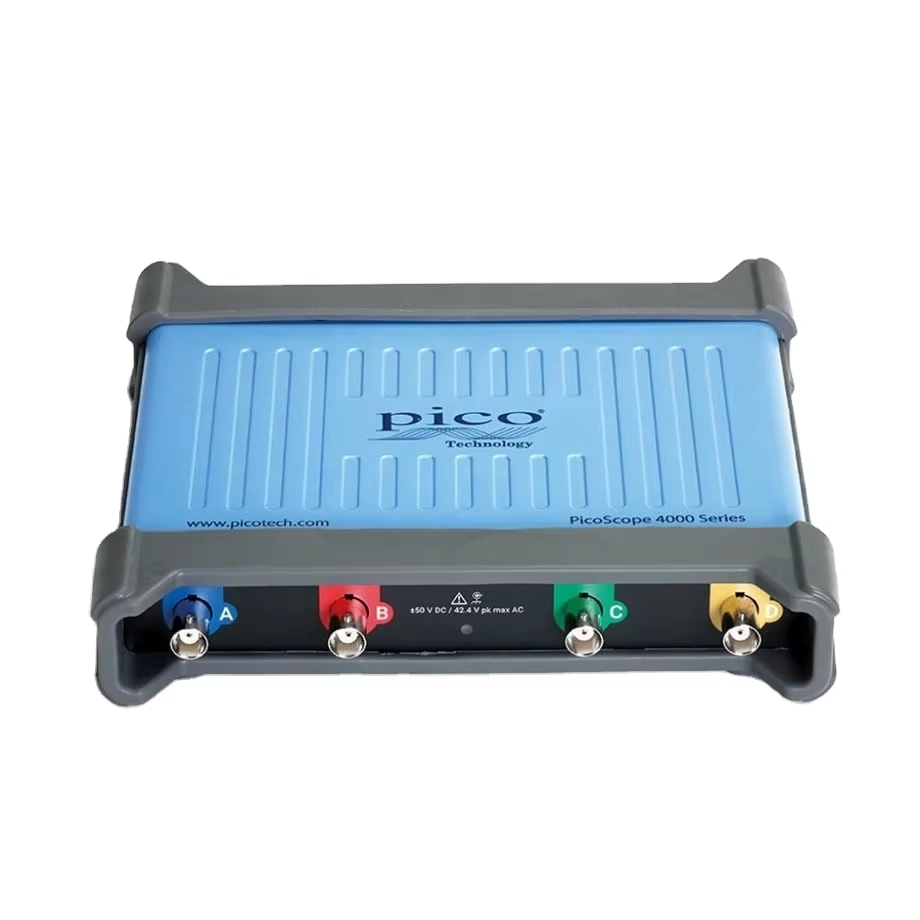

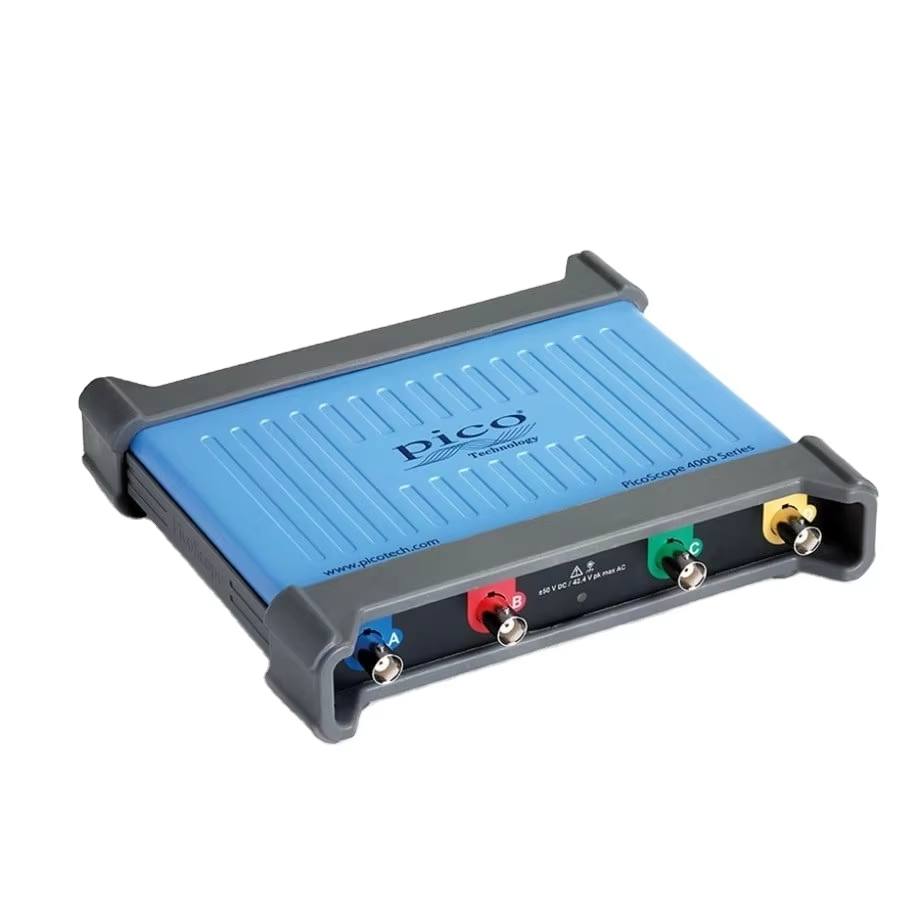

The PicoScope 4424A Series provides 20 MHz bandwidth, low noise, 12-bit resolution, deep capture memory and an integrated function and arbitrary waveform generator in a compact USB 3 connected PC-based package, together with a proven user interface. This series of oscilloscopes is especially suited to engineers, scientists and technicians working on a wide range of electrical, mechanical, audio, lidar, radar, ultrasonic, NDT and predictive maintenance systems who need to make precise measurements and analysis of repetitive or single-shot long-duration waveforms.

The PicoScope 4424A is unlike conventional oscilloscopes with 8-bit resolution and limited capture memory or card-based digitizers that require an expensive mainframe and offers the following benefits:

• Power supply start sequencing

• 7-channel audio systems

• Multi-sensor systems

• Multi-phase drives and controls

• Predictive/preventive maintenance

• Complex embedded system development

• Power harmonics analysis

• Vibration analysis and diagnostics

• Long-duration waveform capture

• Lubricant analysis

• Acoustic emission analysis

• Oil condition sensors

• Machine monitoring

• Motor condition monitoring overview and motor current signature analysis (MCSA)

• Model-based voltage and current systems

• Infrared thermography

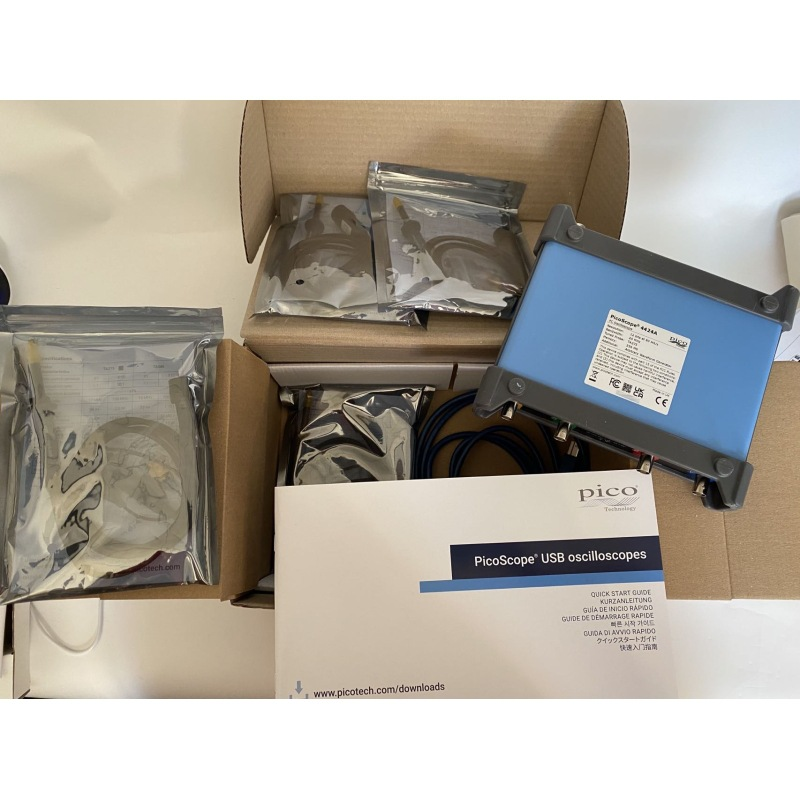

Pack contents

• PicoScope 4000A Series 2- ( PicoScope 4224A ), 4-( PicoScope 4424A ) or 8-channel ( PicoScope 4824A) oscilloscope

• Oscilloscope probes

• USB 3.0 cable 1.8 m

• Quick Start Guide:
