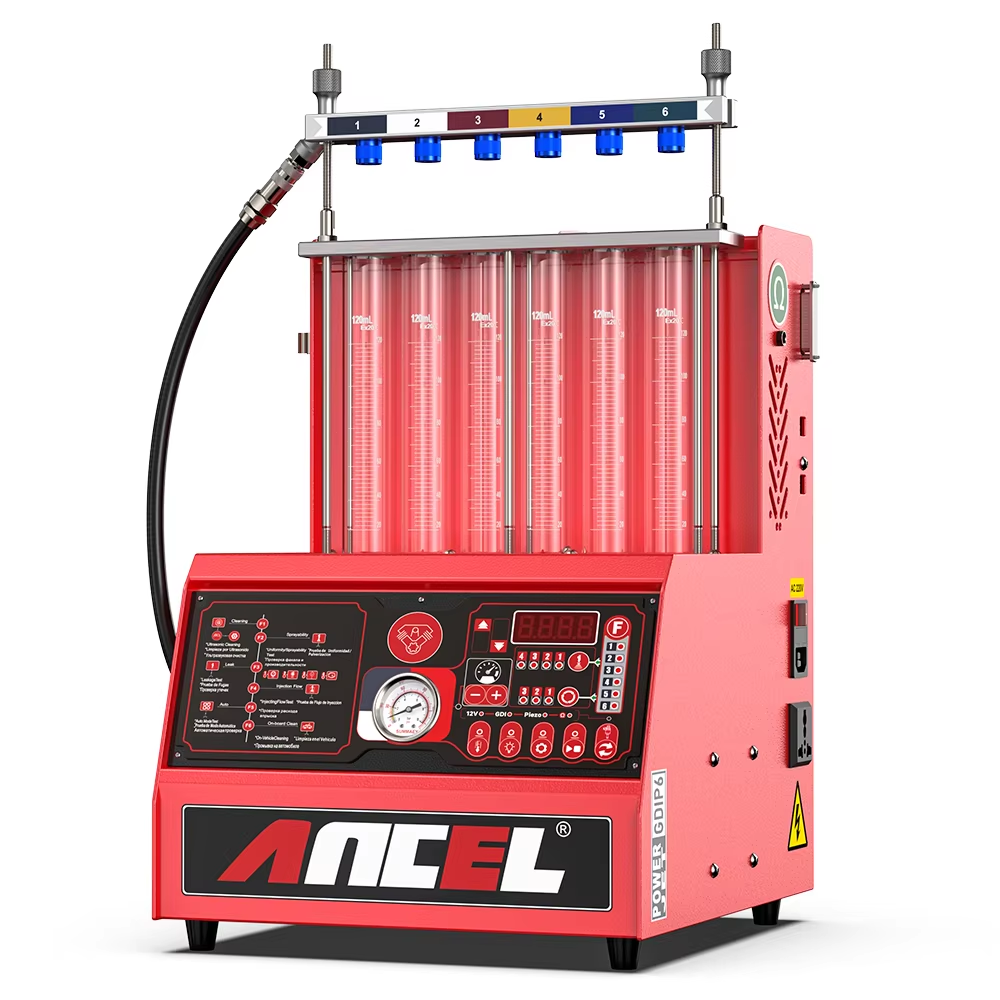

ANCEL AJ600 is a fuel injector cleaning machine newly developed by ANCEL TECH. It combines ultrasonic cleaning technology and microcomputer oil pressure closed-loop control cleaning and detection technology. This product simulates various engine working conditions and cleans and inspects various automobiles and motorcycle fuel injectors. Its unique design saves weight and volume, while further optimizing the product's functionality. With a larger cleaning tank and cleaning fluid heating effect, which can achieve better cleaning results.

Main functions

Ultrasonic cleaning:
To clean injectors to remove the carbon deposition on them completely.

Resistance test
To test the resistance of fuel injector

Uniformity / Sprayability test:
To test the uniformity of injecting amount of each injector, and to monitor the spraying status of each injector with the help of backlight.

Leakage test:
To test the sealing and dribbling conditions of injectors under system pressure.

Injecting flow test:
To check the injecting amount of the injector in 15 seconds of constant injection.

Working modes test:
To test injectors under different working conditions.

On-Vehicle Cleaning:

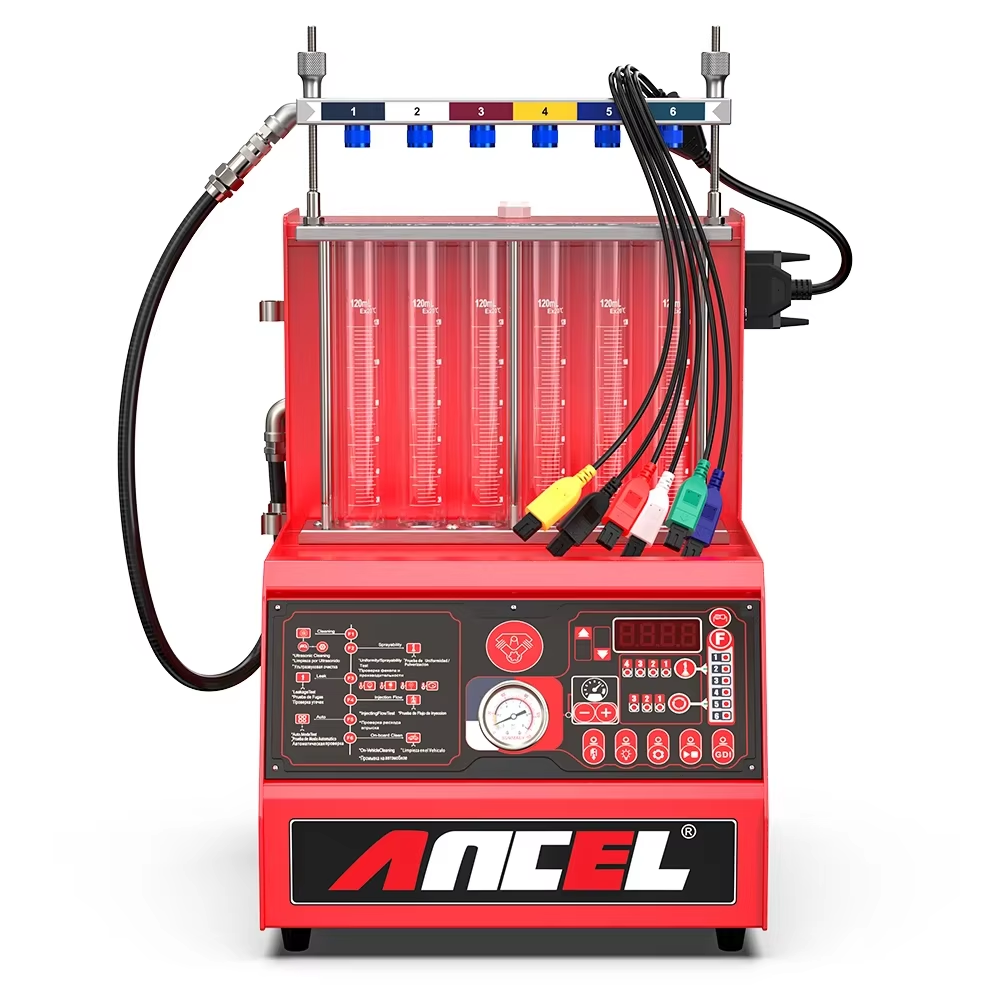

Coming with a variety of disassembly-free cleaning connectors, the device can be used to perform on-vehicle cleaning and maintenance for various vehicle models.

Low resistance injectors test function
Through the dedicated motherboard, it supports the full and long test of low resistant fuel injector such as 1 ohm.

Multi items Setting:
Set different parameters of the device, including the buzzer sound level, display brightness, and backlight brightness.

Version information:
to check the software version information of the current device.

Ultrasonic Cleaning

It works by sending an ultrasonic vibration signal to the injector through the pulse signal cable, which causes a strong vibration of the carbon inside and thus enables more thorough cleaning.

Procedures

1) Place the injector/pump which has gone through surface cleaning in the launder.

2) Add enough injector detergent into ultrasonic cleaner so that the liquid level is about 20mm above the needle valve of injectors / whole pump.

3) Plug the pulse signal wire to injector / pump respectively.

4) Select ultrasonic cleaning function and then set the time.

5) Press RUN key to start the procedure.

6) Turn on the ultrasonic cleaning switch on the left side of the machine.

7) When the time is up, it will stop automatically as the beeper rings.

8) Turn off the ultrasonic cleaning switch on the left side of the machine after cleaning procedure.

9) Take the injector / pump out of the launder and wipe them with a dry soft cloth. Get ready for next operation.

Leakage Test

Leakage test is to inspect the sealing conditions of the injector needle valve under system pressure and to find out if the injector is dribbling

Procedures

Installation refer to Uniformity/ Sprayability Test.
1) Before doing leakage test, please drain the rudimental residual test liquid from the measuring cup.

2) Select Leakage Test function and press Run key to start. At this time the system pressure can be adjusted by pressing + and – key to observe dribbling from the injector the pressure is adjusted preferably 10% higher than manufacturer’s specifications.

3) When the test is over, the equipment will automatically stop and the buzzer will ring simultaneously.

Uniformity / Sprayability test:

To test the uniformity of injecting amount of each injector, and to monitor the spraying status of each injector with the help of backlight.

Resistance test:

To test the resistance of fuel injector

Injecting Flow Test

Injecting flow test is to check if the injecting flow in 15 seconds meets the specifications for injecting amount. The deviation reflects the wear or clogging in the injector, instead of electrical parameter variation.

Procedures:

Installation refer to Uniformity/ Sprayability Test.

1) Before the test, drain all the test liquid in the measuring cups if there is any.

2) Select Modes function and choose the mode needed , then press Run key to start the test.

3) Adjust the fuel pressure by pressing + or – keys.

4) When the test is over, the equipment will auto stop at the ring of the buzzer.

Smart Control Panel

Working conditions:

Temperature: -10~+40℃ Relative humidity: <85%
Intensity of outer magnetic field: <400A/m
No naked flame within 2m.

Technical parameter

Main unit power supply: AC220V±10% 50Hz/60Hz or AC110V±10% 60Hz
Input power: 230W
Ultrasonic cleaner power: 100W
Resistance test accuracy: 0.1Ω
Simulated RPM range:100~9900rpm, step:10rpm
Time range: 5~300s, step:5s
Pulse width: 0.1~25ms,step: 0.1ms
Fuel tank capacity: 2000 ml
Work pressure: 0-7ba
