1.There is an indication of the power of the ECU, power management and automatic signals. An external power source is required to work with the cable.

2. New SM2 PRO+ bench cable with Kline. it can write the old Toyota and Lexus which car with LLINE.

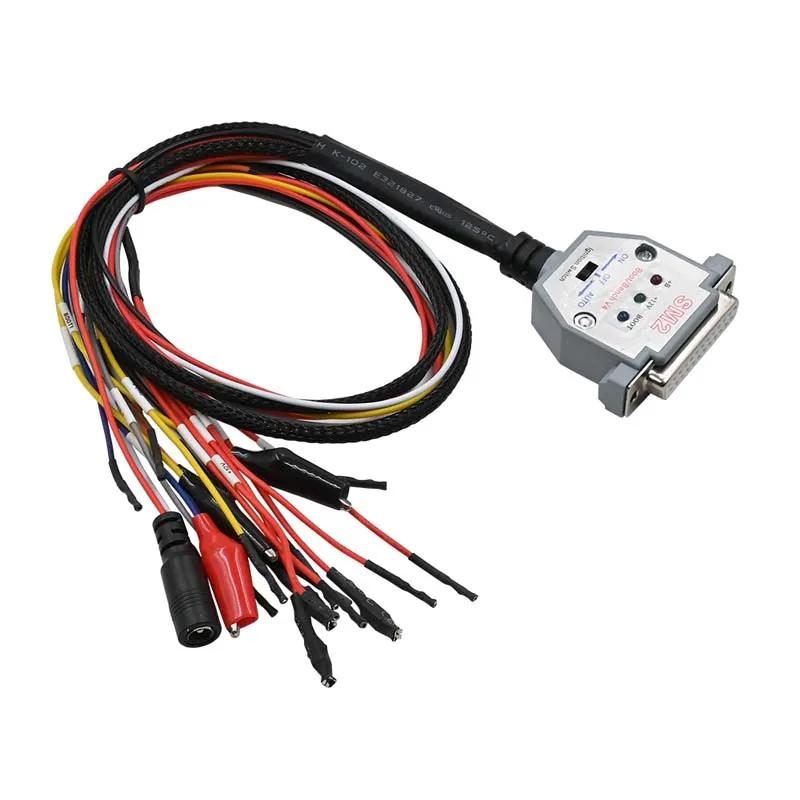

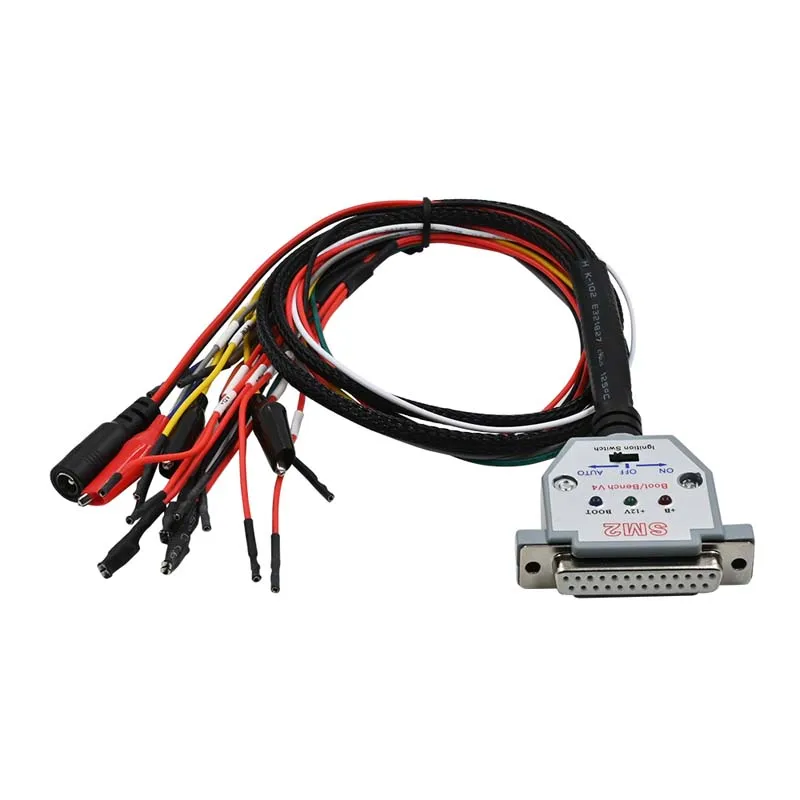

3. The bench cable with switch so that power supply can be controlled manually and automatically, and it is not easy to burn

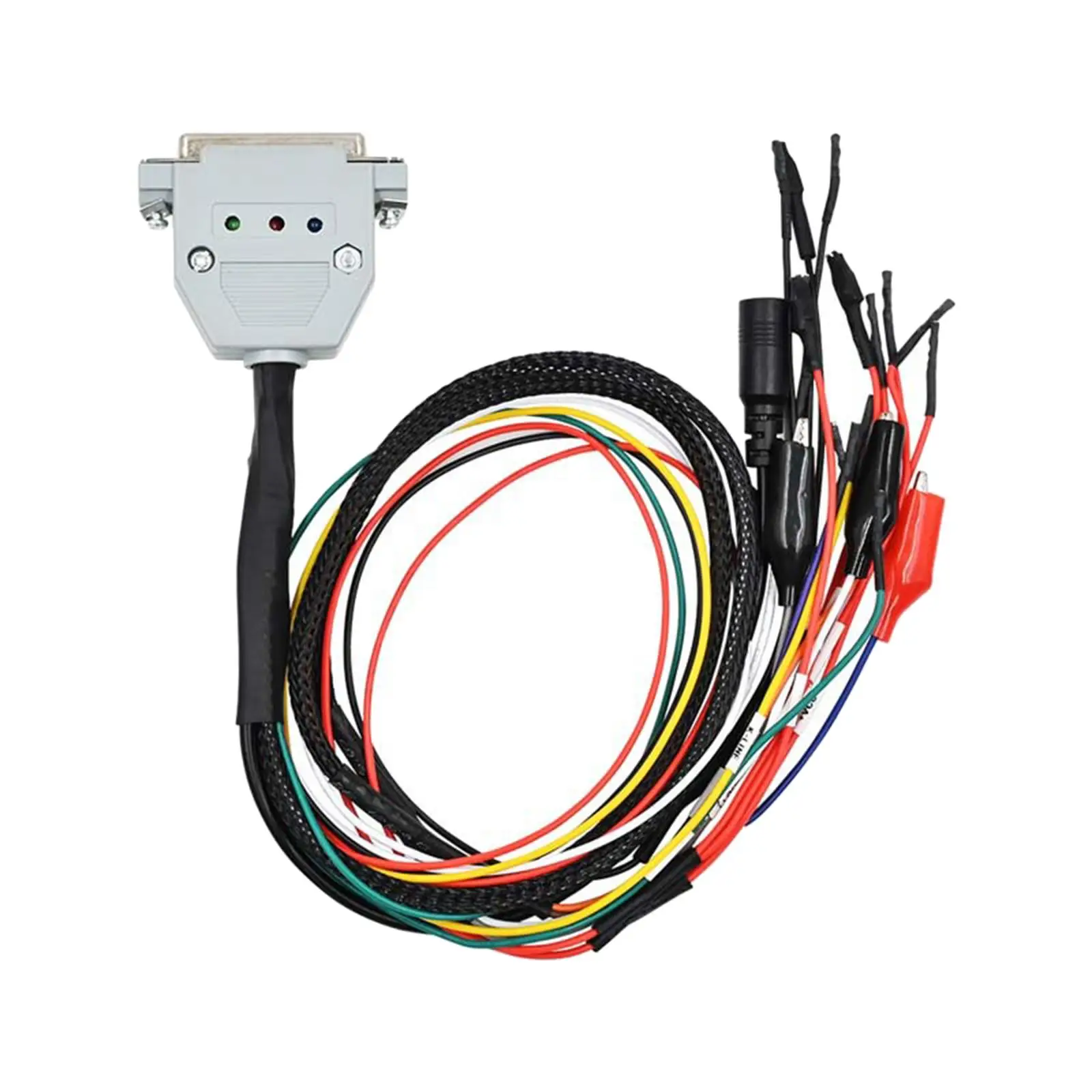

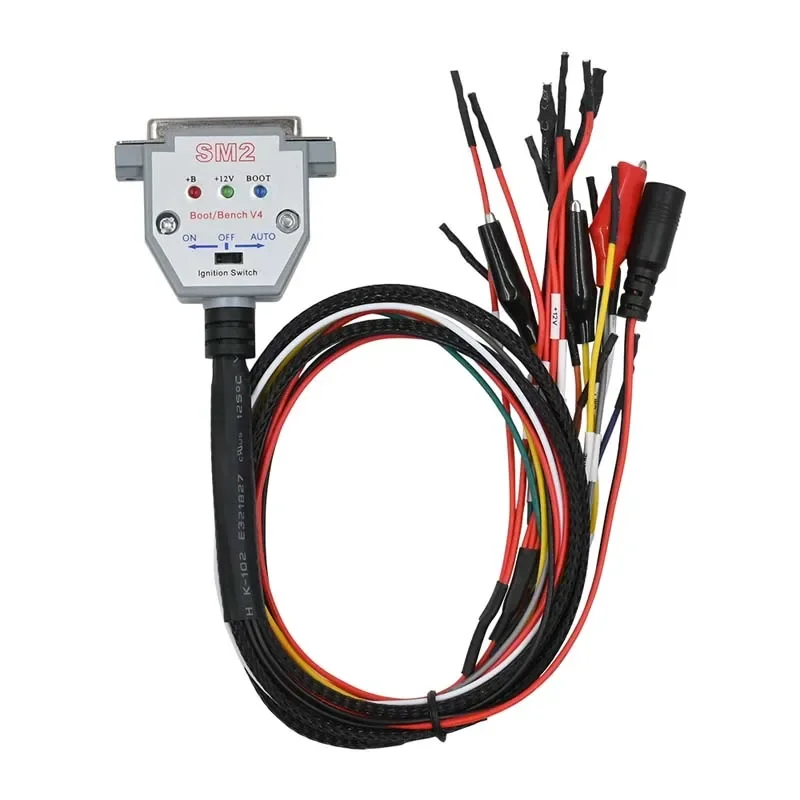

3 led lights:

Green: main power

Red:ACC power supply

Blue:Boot/cnf1 power supply

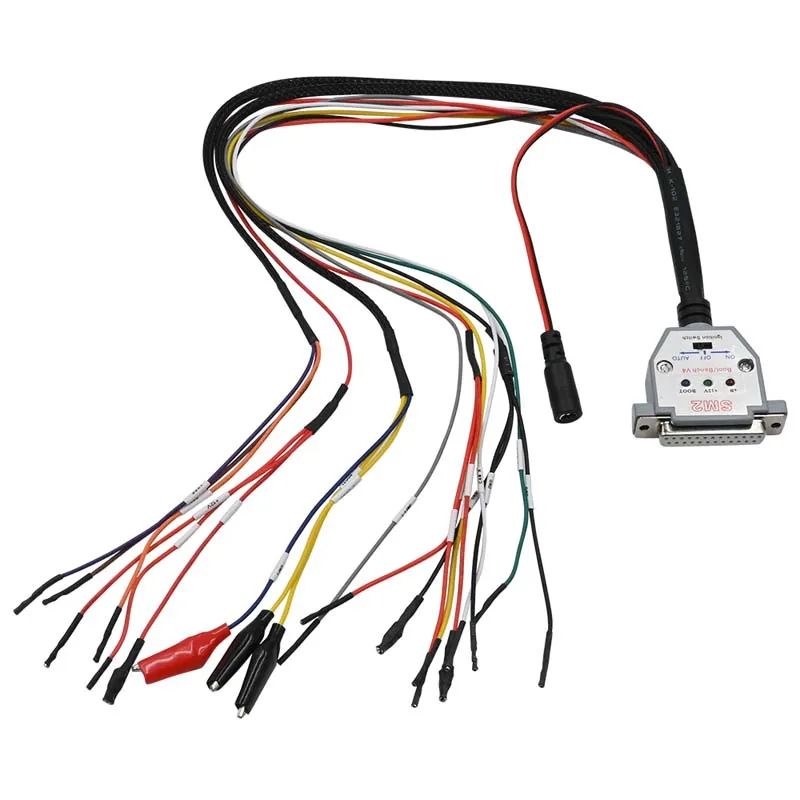

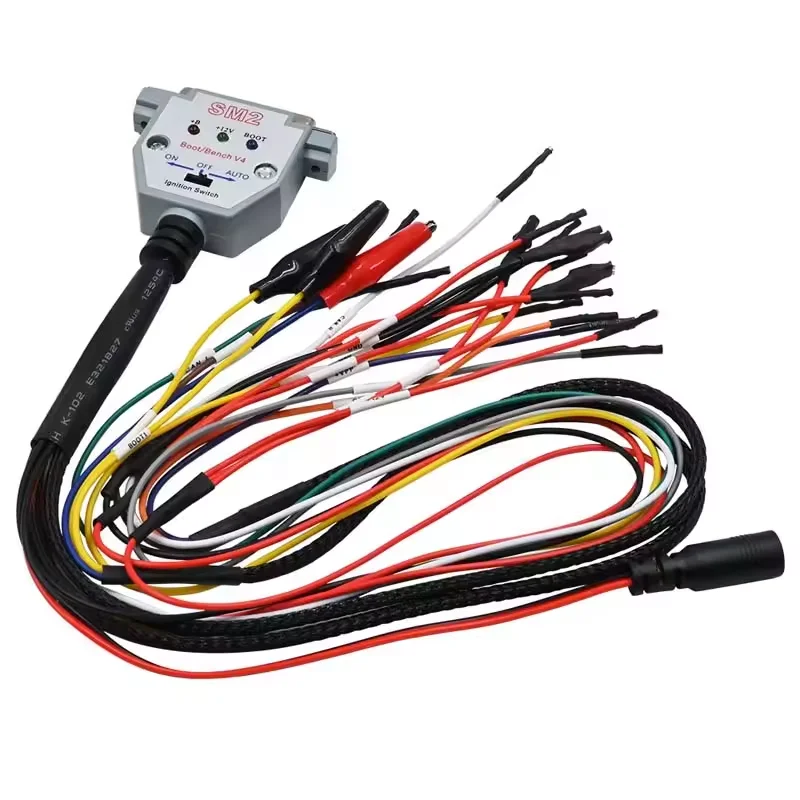

Pinout:

Red 1: +BATT

Red 2: +VCC

Yellow:KLINE

Green:CAN-L

White:CAN-H

Black 1:BOOT1

Red:CNF1

Black2:BOOT2

Black 3 cables:GND

Orange:GPT2

Purple:+VPP

Brown:GPT1

External power supply 12V

Package Includes:

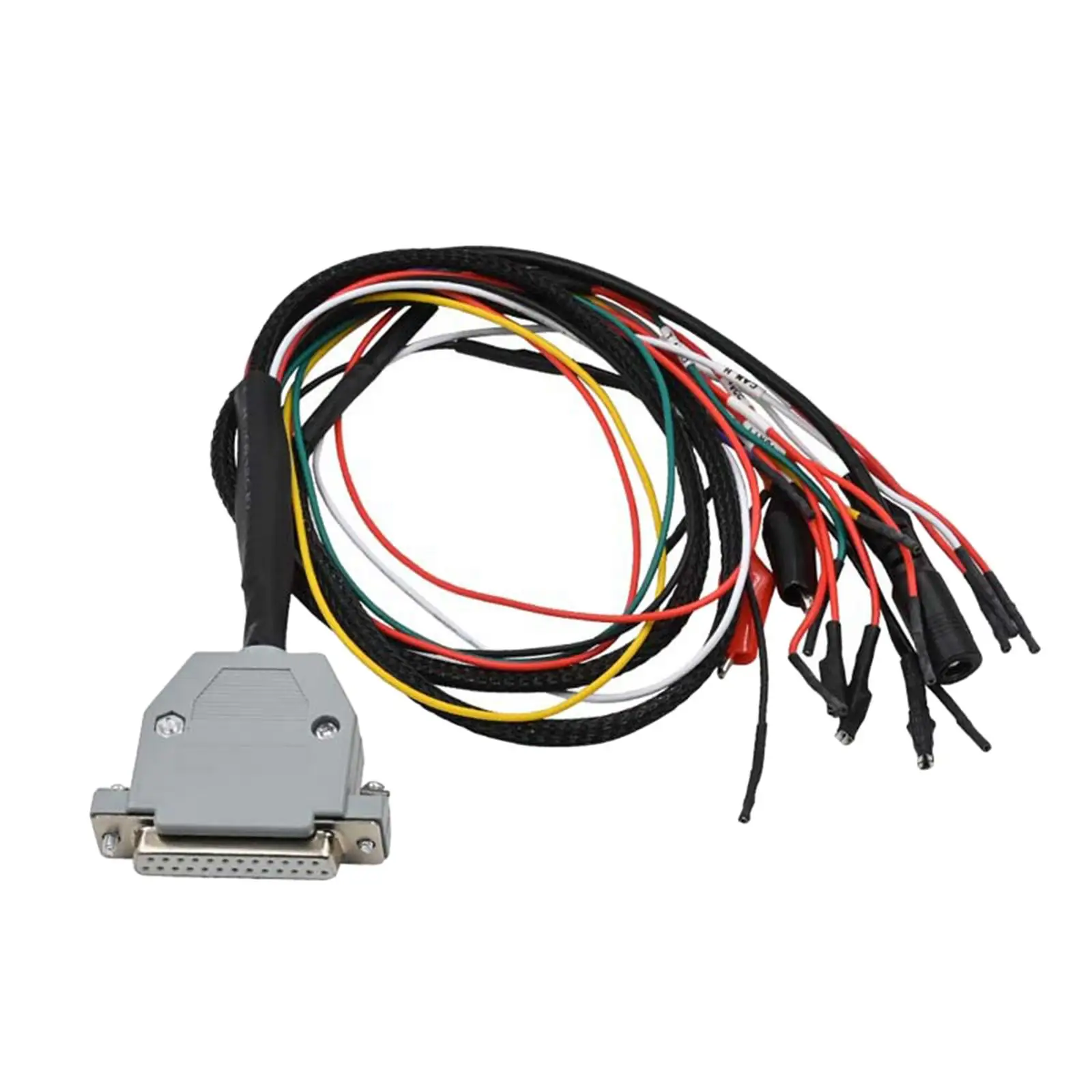

1 Piece DB25 Boot Bench Cable
