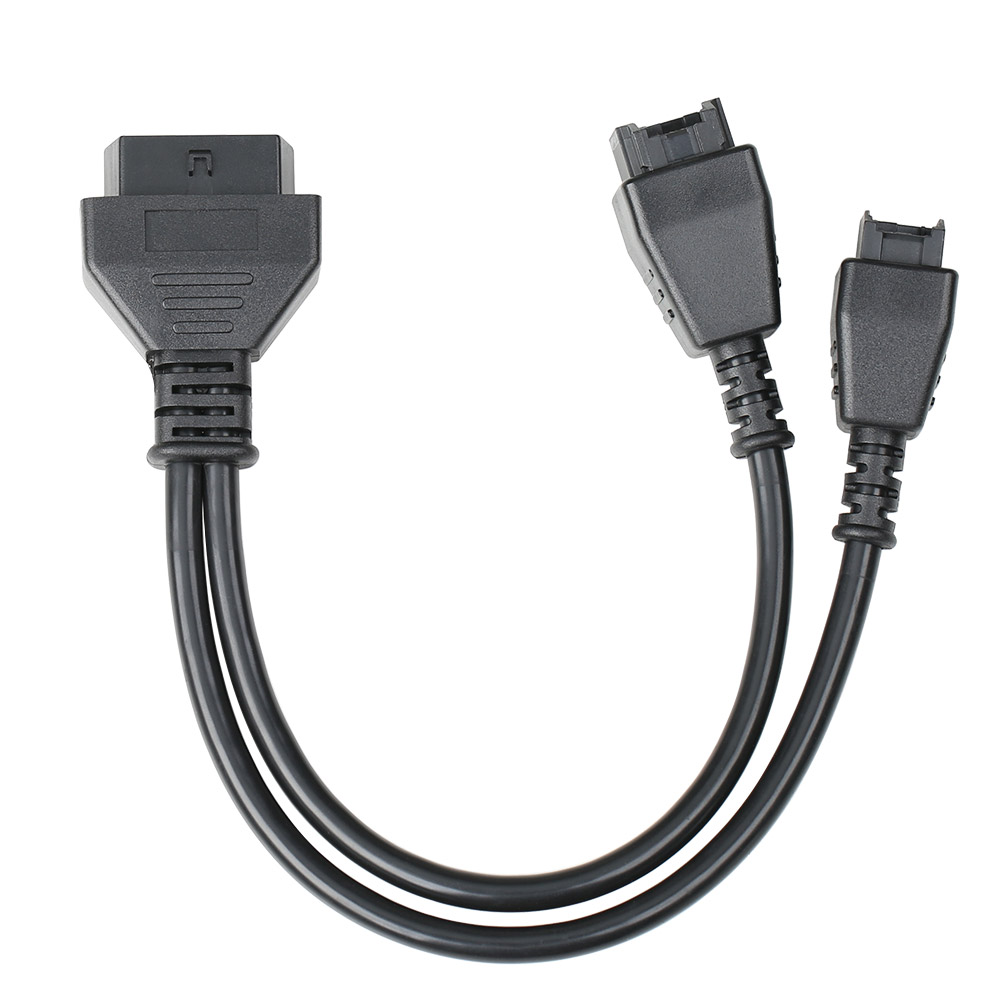

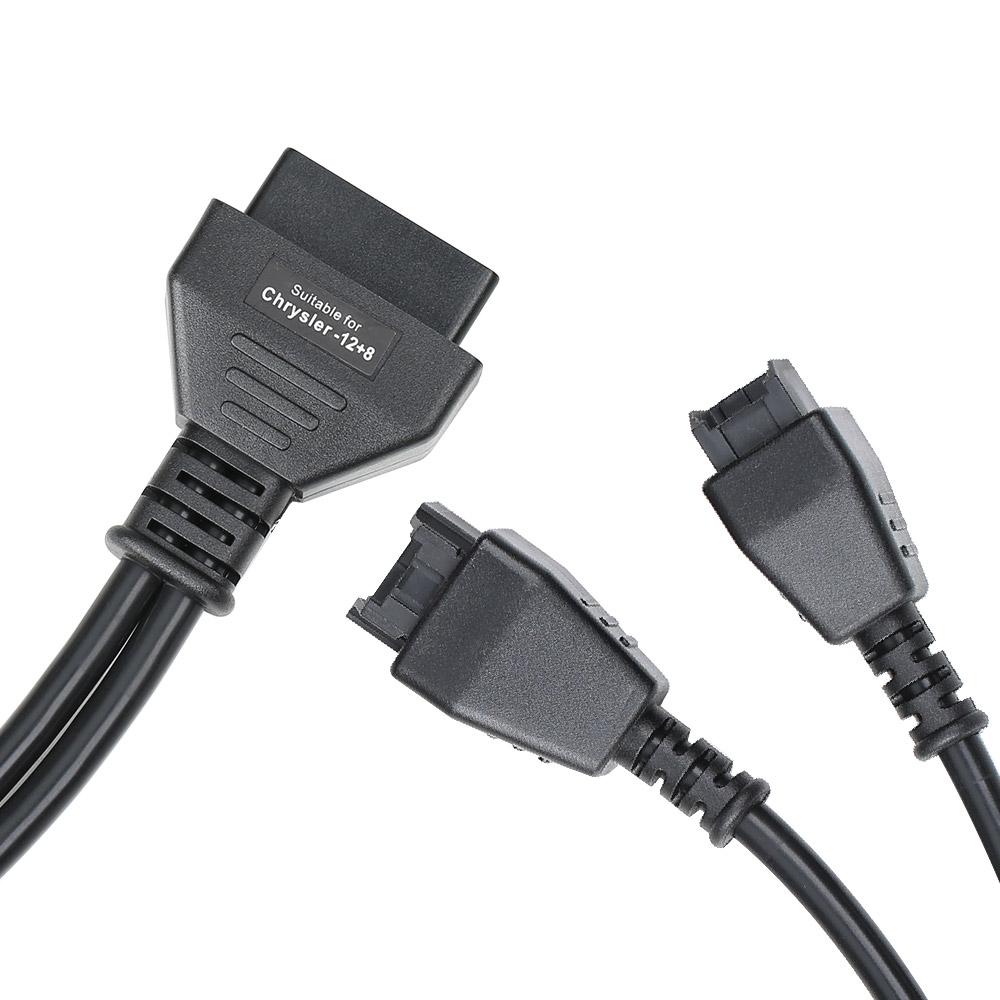

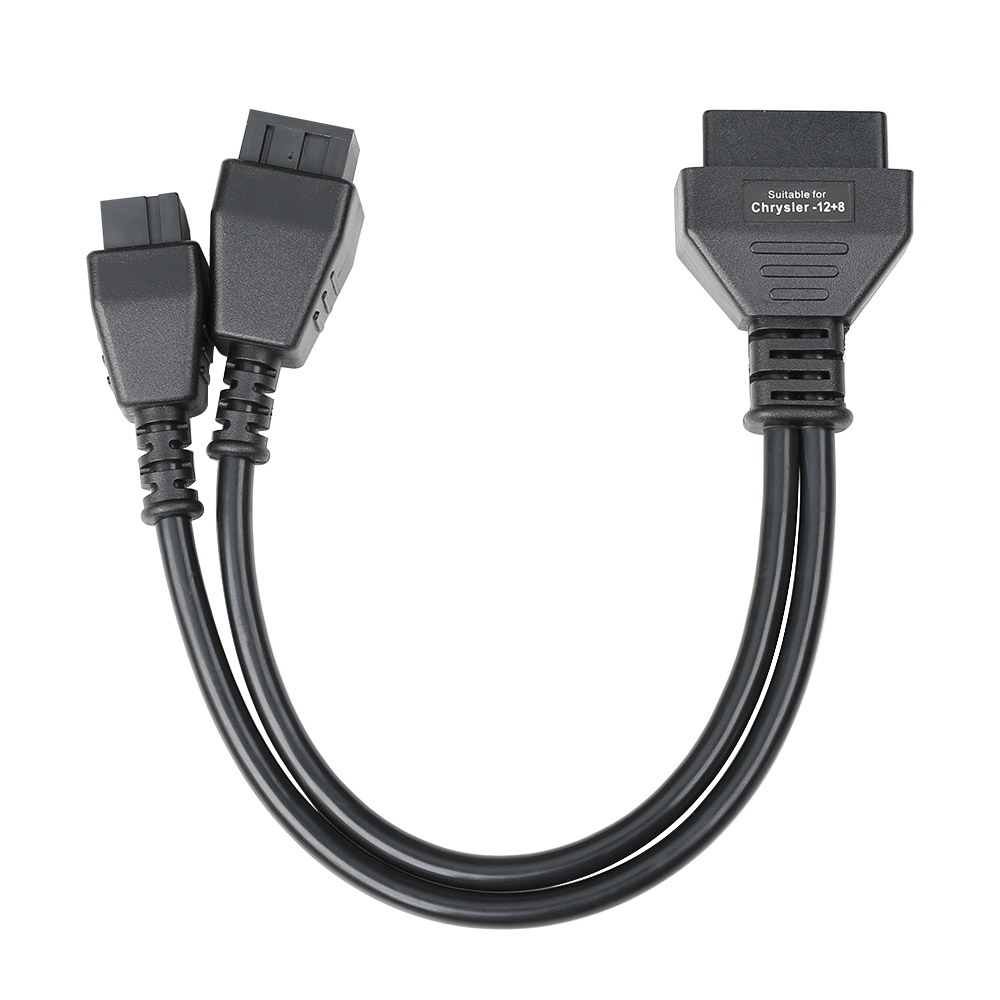

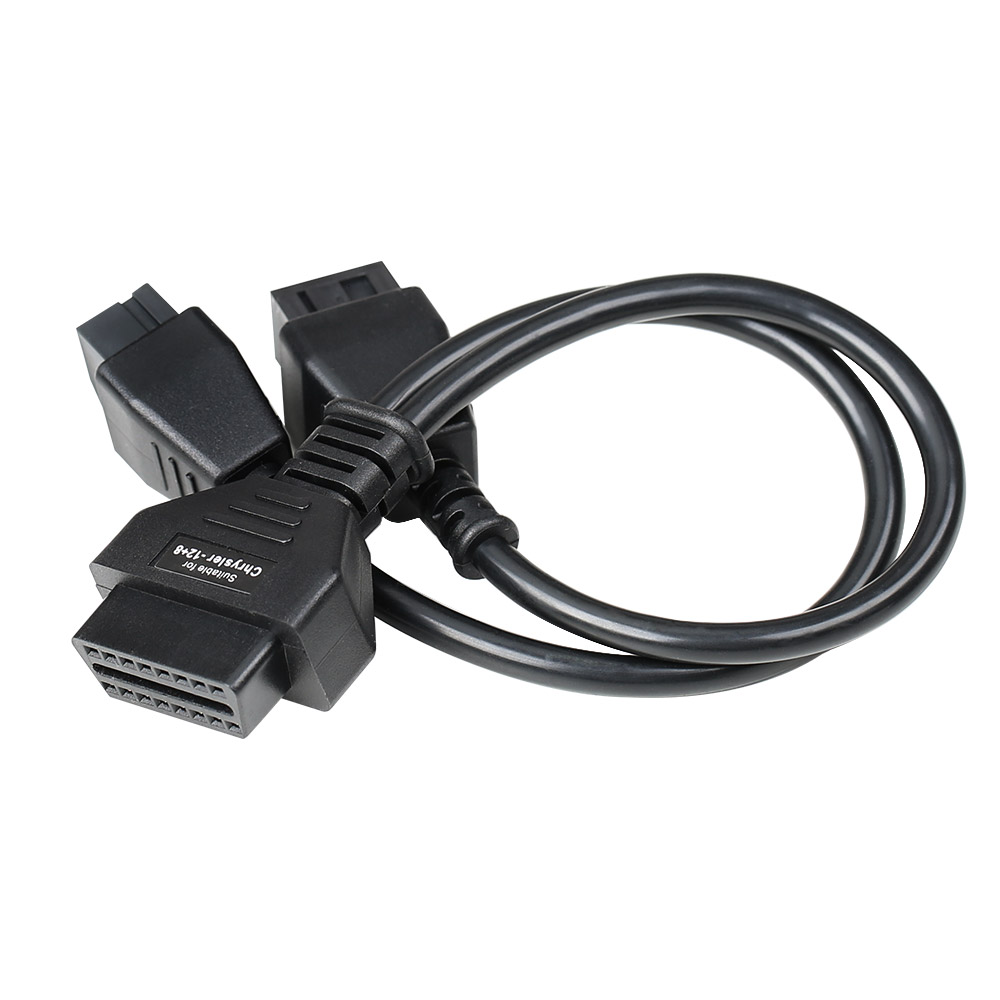

OBDSTAR FCA 12+8 UNIVERSAL ADAPTER for OBDSTAR X300DP or X300DP PLUS


FCA 12+8 ADAPTER Functions:

1. Used in key programming and cluster calibration via OBDII
2. Used with other diagnostic devices to read and clear fault code


Development Background:

Vehicles are equipped with sgw safety gateway modules to prevent access to the vehicle from the OBD2 port via a non-original diagnostic scanner.
The purpose of this module is to prevent attacks on the vehicle network via the CAN bus.


How to Use FCA 12+8:

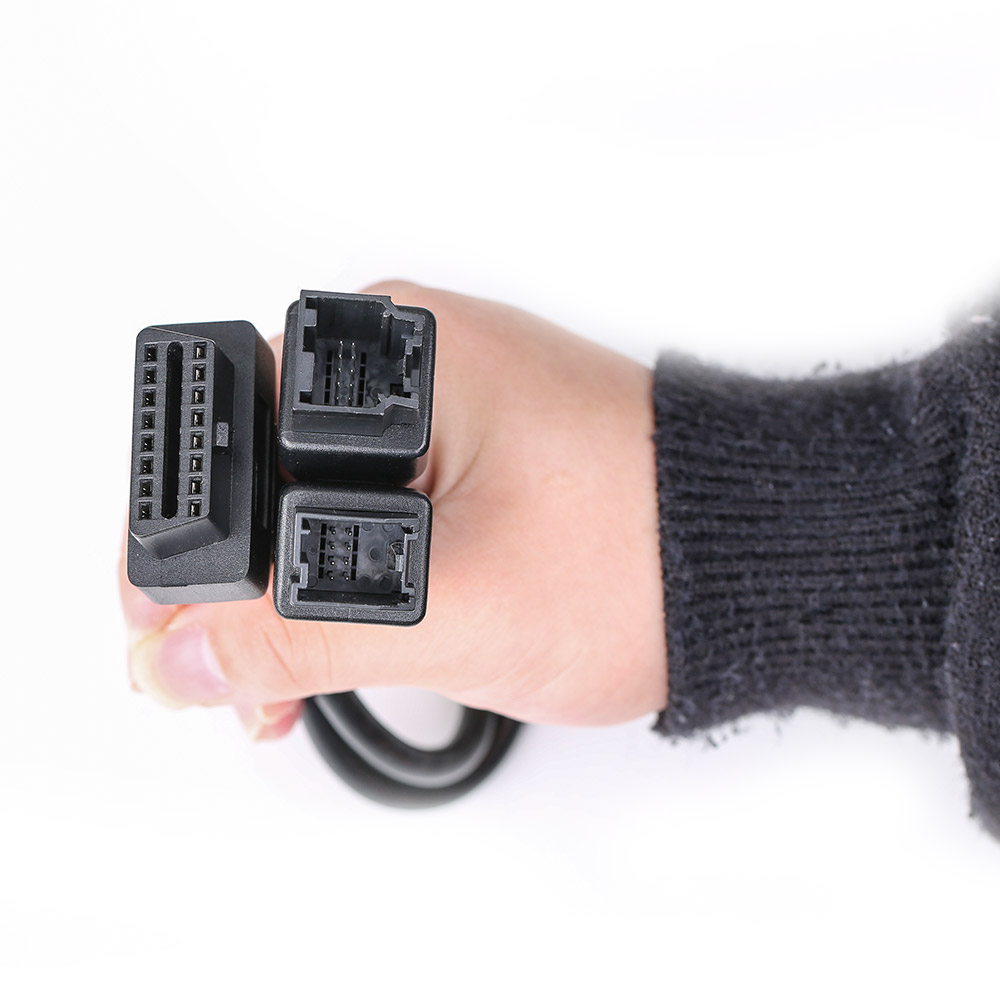

Locate and unplug the 12pin and 8PIN connectors of the SGW module, then connect the FCA 12+8 directly to the 12pin and 8pin (two connectors connected to the SGW) connector on the car. At this point, normal communication with the car can be achieved.


FCA 12+8 ADAPTER Vehicles List:


Examples of some models:

2018-DODGE RAM 1500/2500/3500

2018-DODGE DURANGO and 2018 JEEP GRAND CHEROKEE

2018 MASERATI GHIBLI SGW Location:
Remove the steering wheel guard, at the bottom of steering column

Package includes:

1pc x OBDSTAR FCA 12+8 UNIVERSAL ADAPTER for OBDSTAR X300DP or X300DP PLUS
