MB 38PIN Breakout Box

Description:

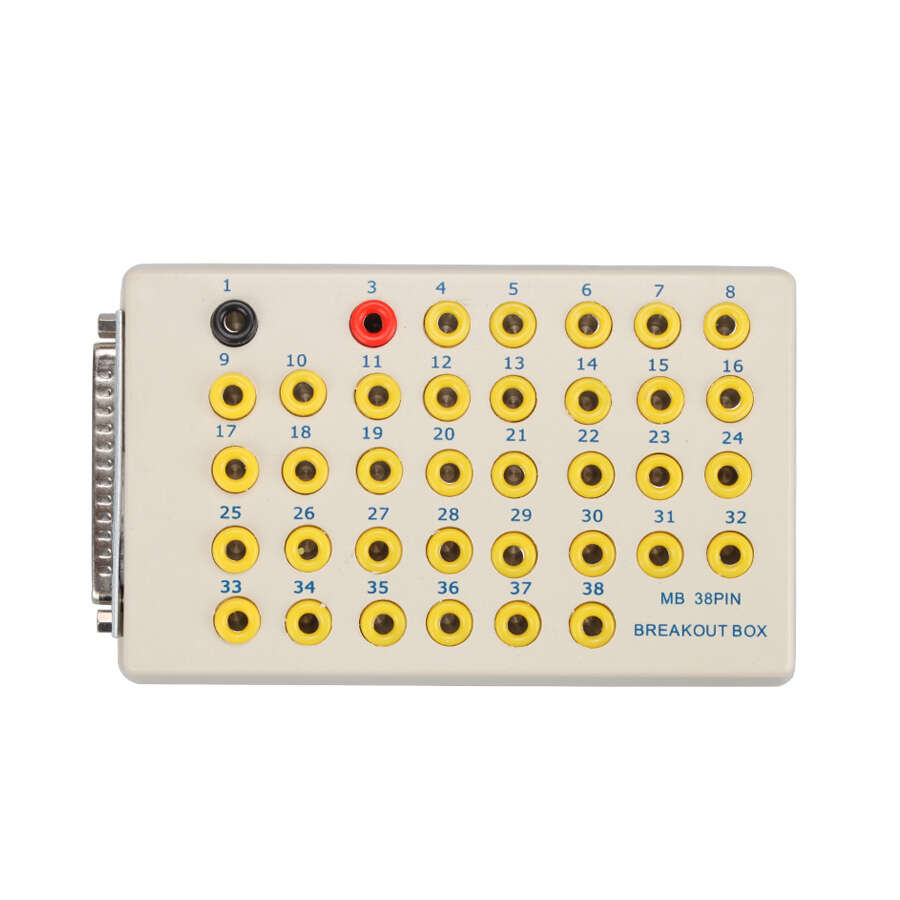

Special breakout box which enables you to access all pins on a 38 pin Benz diagnostic connector via 4mm female banana sockets

Since Benz use a lot of different K-lines for it's different systems like engine ECU, ABS, etc. this is needed for most scantools if you want to access all the systems just by pluging the K-line into the right socket of the system

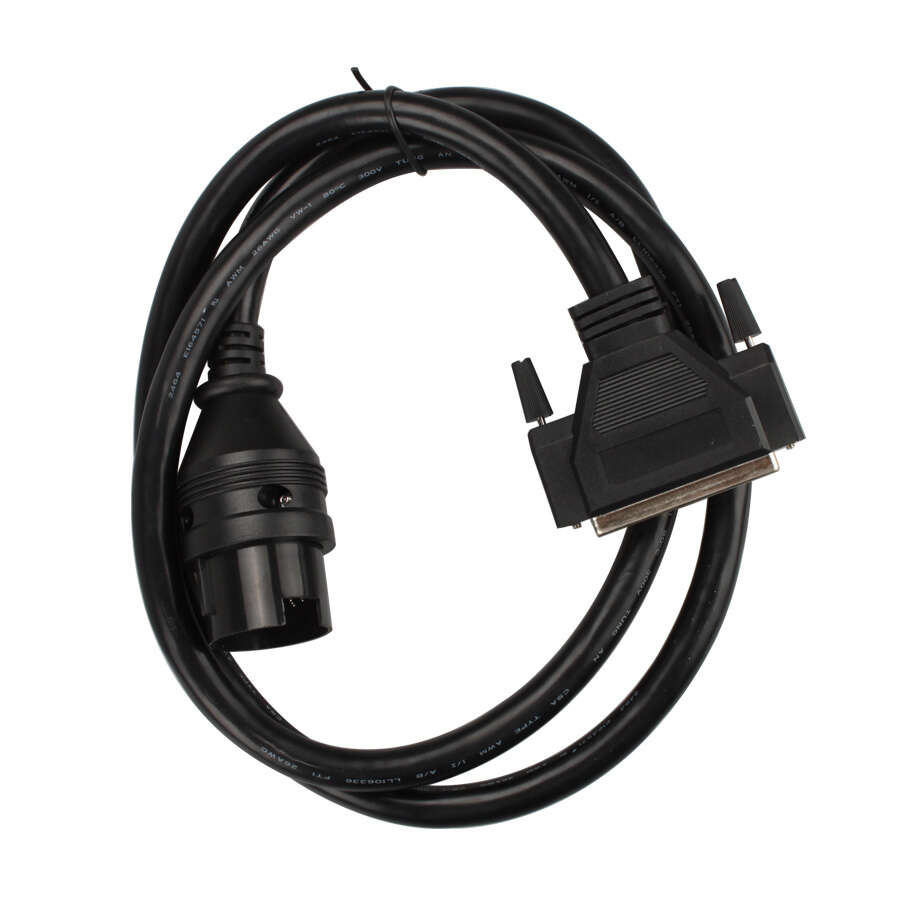

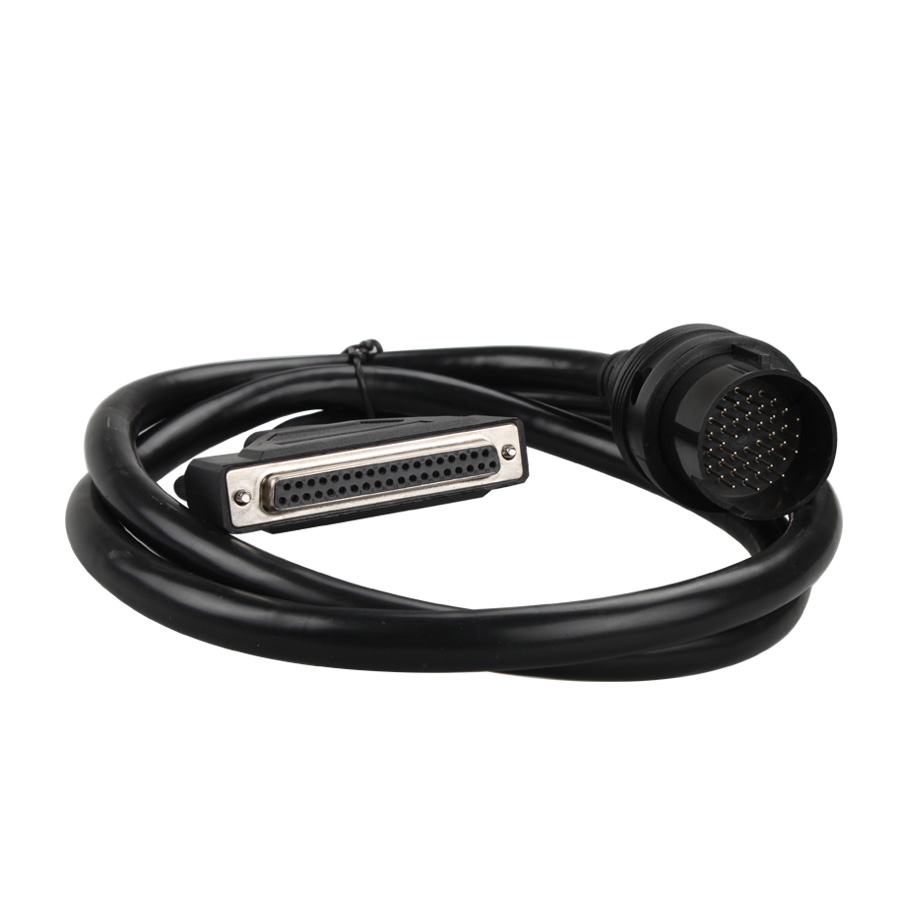

Cable length is 1,5 metres and the cable is interchangeable by a DB37 connector from the box

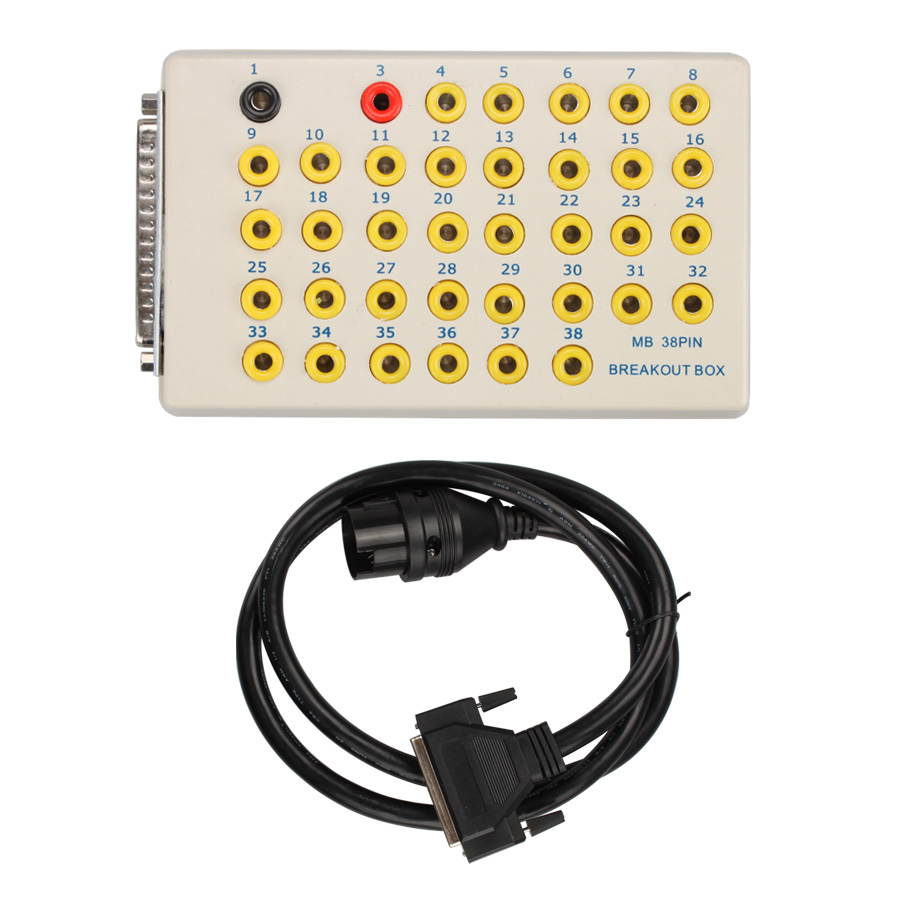

Package List:

1pc x MB 38PIN Breakout box
1pc x Serial connect cable
