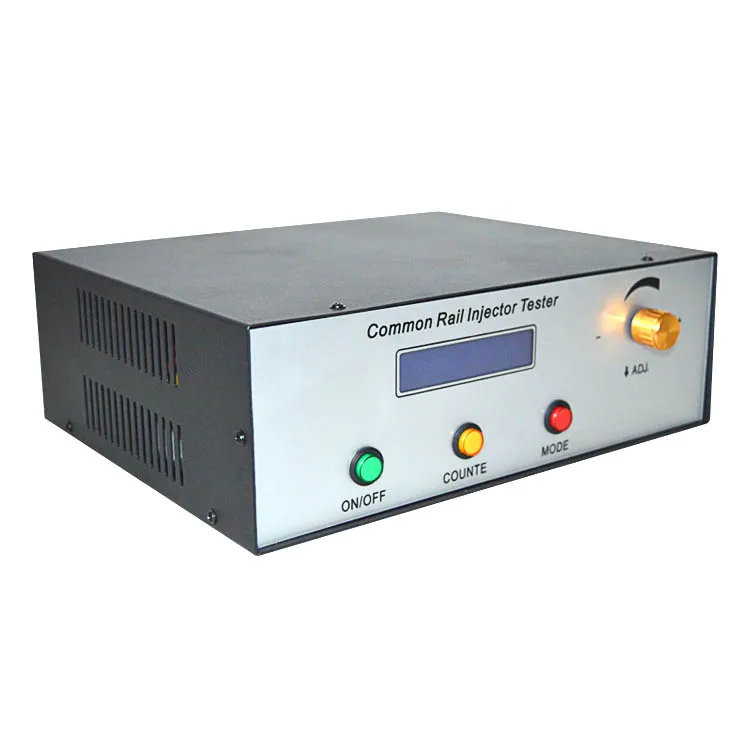

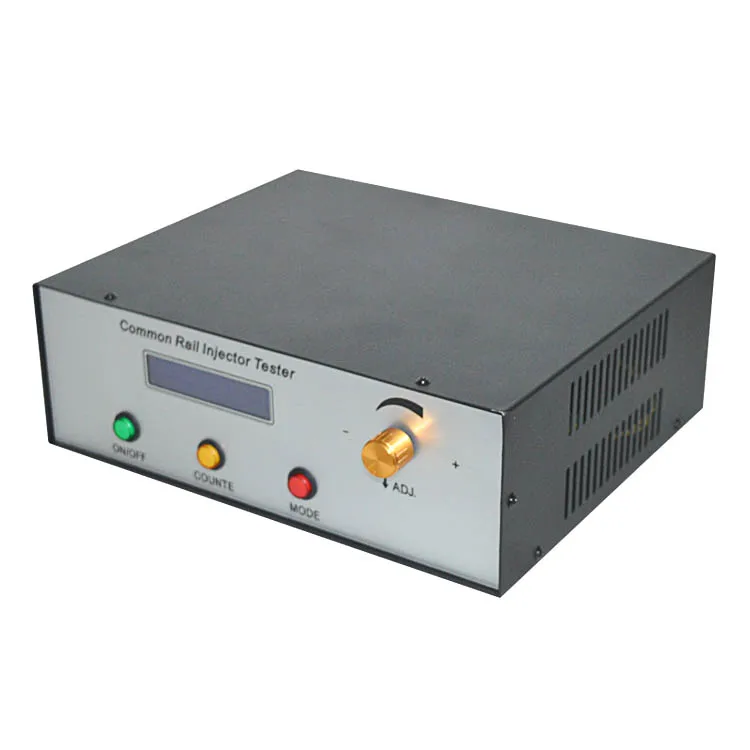

Common Rail Injector Tester Kit CRI200 Support Magnetic And Piezo Injector Test+SH60 Common Rail Nozzle Injector Tester

Brief introduction

CRI200 high pressure common rail injector tester function is used to drive common rail injector, while providing Bossch, Densso, Delphhi and other common rail injector control signal to drive the high pressure common rail injector to work, drive signal parameters can be carried out by the user according to their actual situation, and can be saved grouped for easy maintenance personnel to high pressure common rail injector in working condition to judge different conditions and maintenance.Support test injector resistance

Functions:

1, Chinese and English menu available;

2, Supports an electromagnetic injector
  (Bosich, Dennso, Deliphi, piezoelectric, Cart);

3, Supports a piezoelectric injector;

4, Supports the injector impedance measurement;

5. The amount of oil counting function;

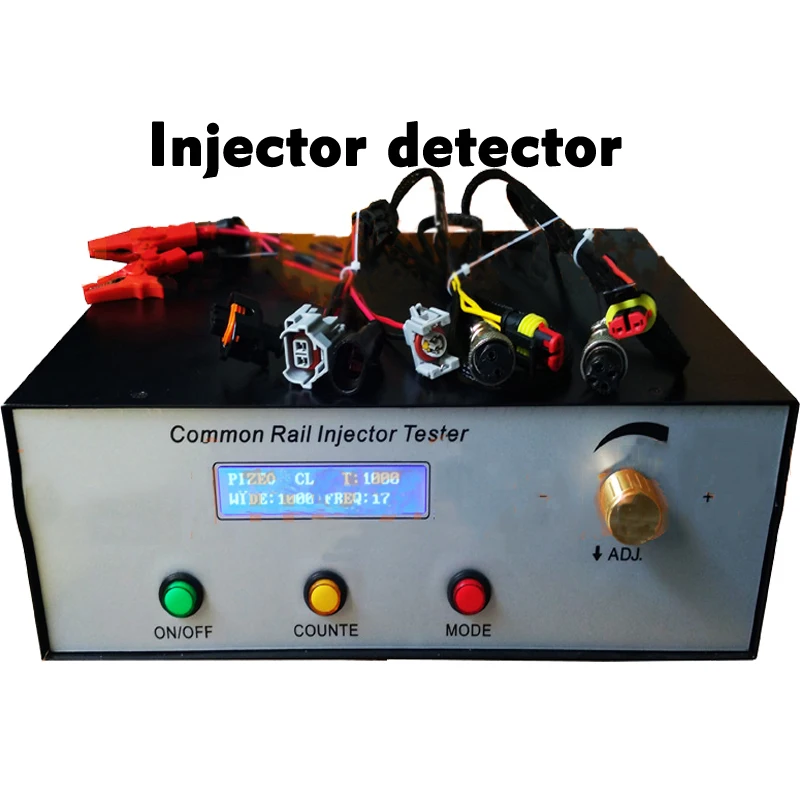

Display interface:

1.Select the type of injector:

BOSSCH  DENSSO  DELPHHI  PIZEO DENSSO2

2.Current Injector conditions:

CL, VL,VE,LL,TL,U1 ,U2

3.the injector count method:

T: according to the number of counts;

4.injector counting time:

T: 0-2000 times

5. injection signs: icon display indicates the beginning of the injector fuel injection;

6.pulse width: 100 ~ 3000uS;

7.injection frequency: 1 ~ 30Hz

8.the count flag: Icon display indicates the injector start counting;

The Back of the interface

1.   Electromagnetic injector :  2PIN interface

2.   Piezo injector   :   4PIN interface

3.   Count switch terminal   :   3PIN interfa

Speficications:
