Hantek 1008B 8CH PC Oscilloscope/DAQ/8CH Generator

Top 3 Reasons to Get 1008B 8CH PC Oscilloscope/DAQ/8CH Generator:

1. Highly efficient and cost-effective; 8 channels oscilloscope for vehicle testing
2. 2.4MSa/s real time sampling rate, 12bit vertical resolution; DAQ card function
3. 8 channels programmable generator which can analog signals of crankshaft, camshaft etc.

1) Oscilloscope
8 channels oscilloscope, 2.4MSa/s real time sampling rate
12 bits vertical resolution, spectrum analysis function

2) Programmable Generator
8 channels programmable generator
Can analog signals of crankshaft, camshaft etc.

3) Others
USB 2.0 interface plug and play, and no need extra power supply;
More than 20 types of automatic testing function, a similar interface with benchtop oscilloscope, easy to use;
Software support: Windows NT, Window 2000, Windows XP, VISTA, Windows 7, Windows 8.

Hantek 1008B Oscilloscope Functions List:

Set Oscilloscope
Set Vertical System
Set Horizontal System
Set Trigger System
Save/Load
Utility Function
Measure Signal
Display System
Waveform Generator
Zoom In/Out Waveforms
Acquisition
Print
Generate Square Waveform

Hantek 1008B Oscilloscope Software Display:

Hantek 1008A Oscilloscope Reviews:

Review 1:Software can be a bit flakey, but support is excellent as responding to problems. The sample rate is quite low, but it is well within the specs of the device. I just wish it were higher. Not a bad entry level basic scope.

Review 2:This devices is just what the doctor ordered! I know it's 'meant' for auto type diagnostic work but for me using just two channels for audio stuff the 12 bit resolution at the frequencies I care about is just right from my needs.

Review 3:I really couldn't tell because the item was purchased for someone else, but I'm sure it meets all expectations

Hantek 1008B 8CH PC Oscilloscope/DAQ/8CH Generator Parameters:

Model	Hantek 1008B
Oscilloscope Mode
Vertical System
Analog Channel	8
Input Impedance	Resistance: 1MΩ
Input Sensitivity	10mV/div to 5V/div
Input Coupling	DC
Resolution	12 bits
Horizontal System
Memory Depth	4K
Max. Input	400V (DC+AC Peak)
Real-Time Sampling Rate	2.4MSa/s
Time BaseRange	1ns/div to 20000s/div(1-2-5sequences)
Time Base Precision	±50ppm
Trigger System
Time Base Range	1ns/div to 20000s/div(1-2-5sequences)
Time Base Precision	±50ppm
Trigger Source	CH1, CH2,CH3,CH4, CH5, CH6,CH7,CH8
Trigger Mode	Edge
X-Y Mode
X-Axis Input	CH1
Y-Axis Input	CH2
Cursors and Measurement
Voltage Measurement	Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase,Vavg, Vrms, Vcrms, Preshoot, Overshoot
Time Measurement	Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Cursors Measurement	Horizontal ,Vertical, Track, Auto Measure Modes
Waveform Signal Process	+,- , x,÷, FFT, Invert
Voltage Range	10mV to 5V/div @ x 1 probe 100mV to 50V/div @ x 10 probe 10V to 5000V/div @ x 1000 probe 100V to 50000V/div @ x 10000 probe 200mV to 100V/div @ 20:1
Current Range	100mA to50.0A/div @ CC65(20A) 1000mA to500.0A/div @ CC65(65A) 1A to100.0A/div @ CC650(60A) 1A to200.0A/div @CC1100(100A) 10A to2000.0A/div @CC1100(1100A)
FFT	Rectangular, Hanning, Hamming, Blackman Window
Math	Addition, subtraction, multiplication, division
Programmable Generator
Channel	8
Output Level	LVTTL
Frequency Range	0-250kHz
Interface	USB 2.0(Full Speed)
Power	No need extra power supply
Size & Weight	185 x 150 x 27 (mm); 0.35kg

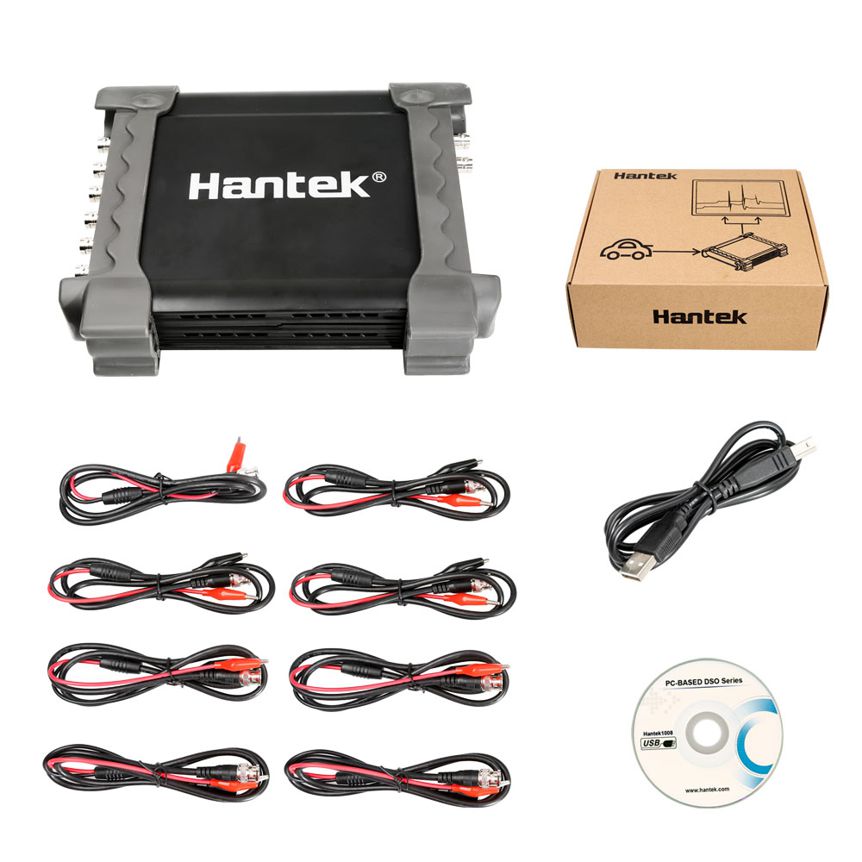

Hantek 1008B Package including:

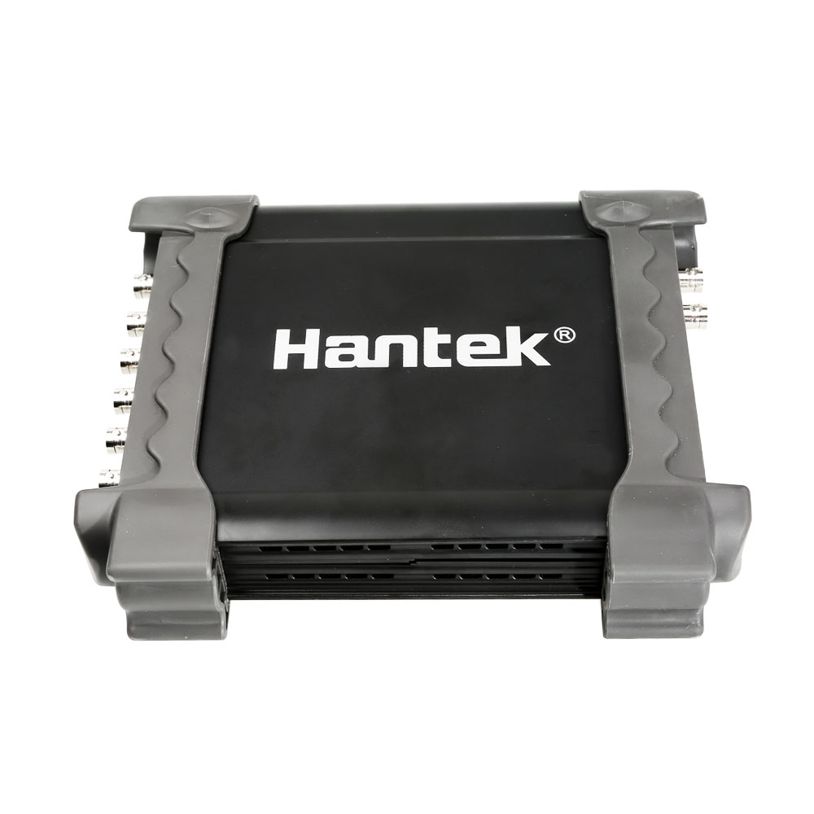

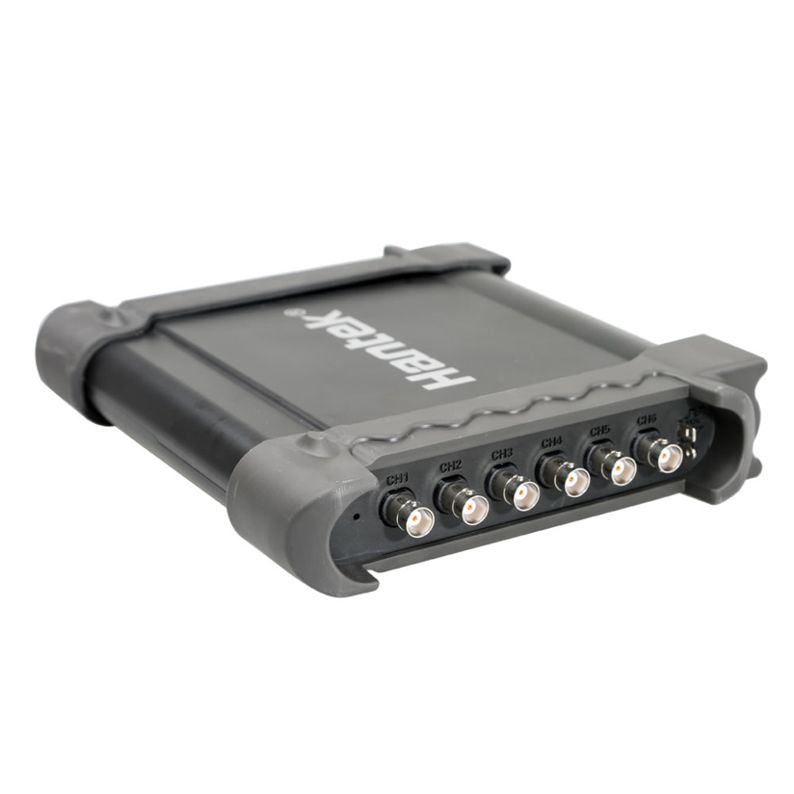

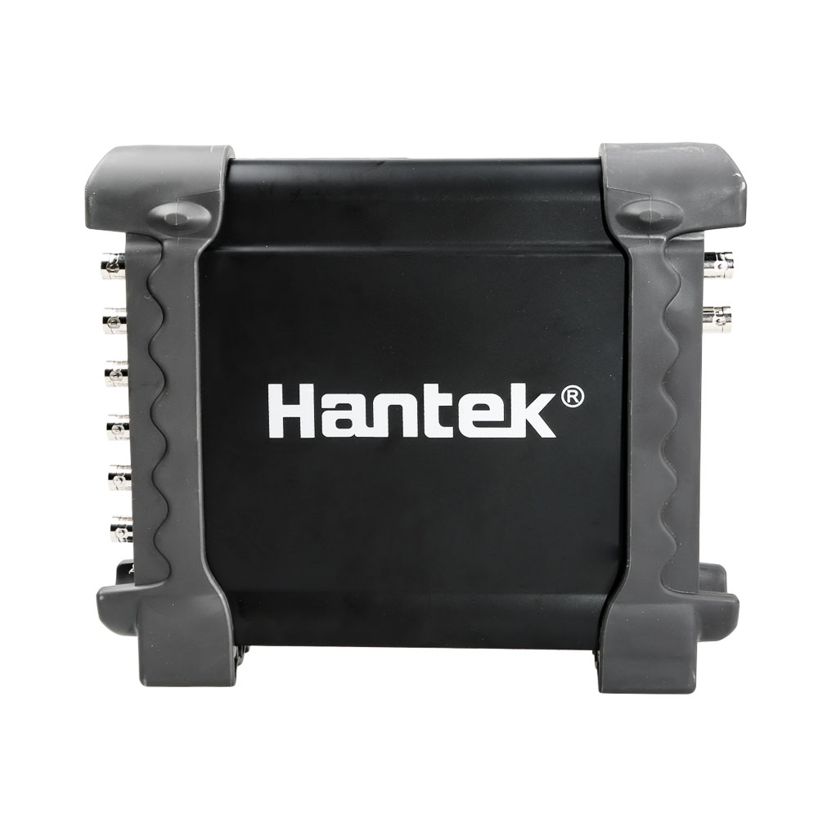

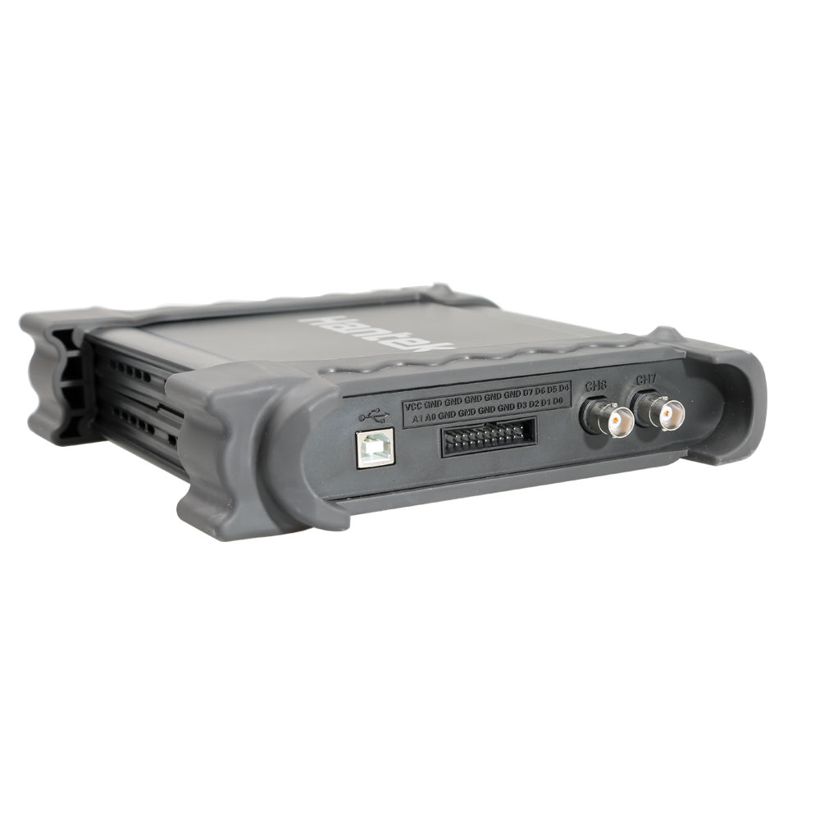

1pc x 8CH USB Auto Scope/DAQ/8CH Generator

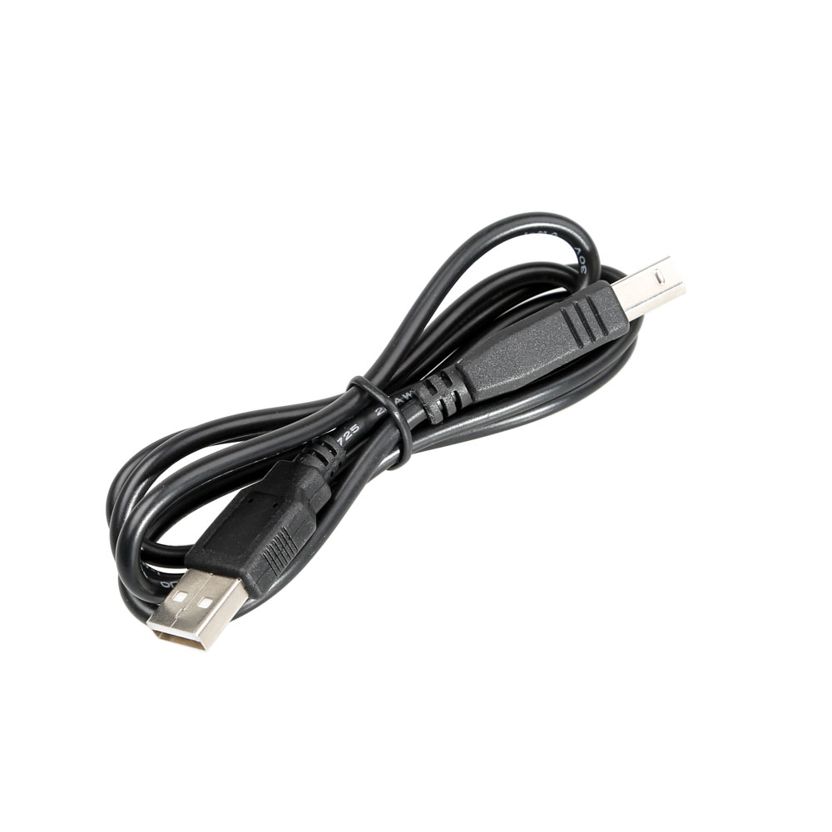

1pc x USB Cable

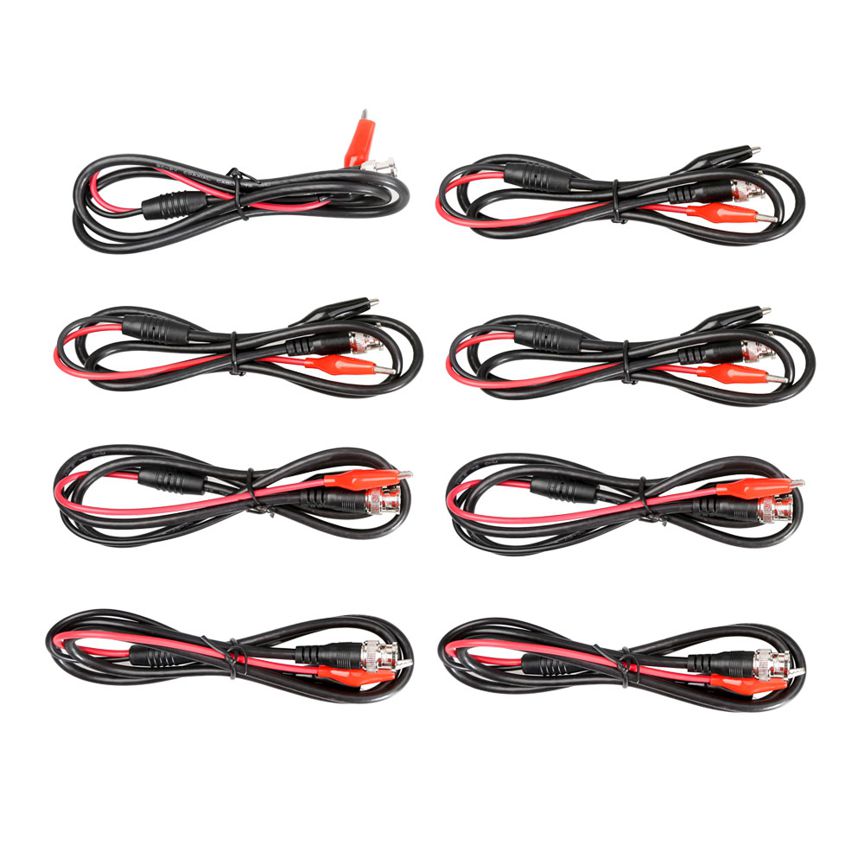

4pc x Connect cable

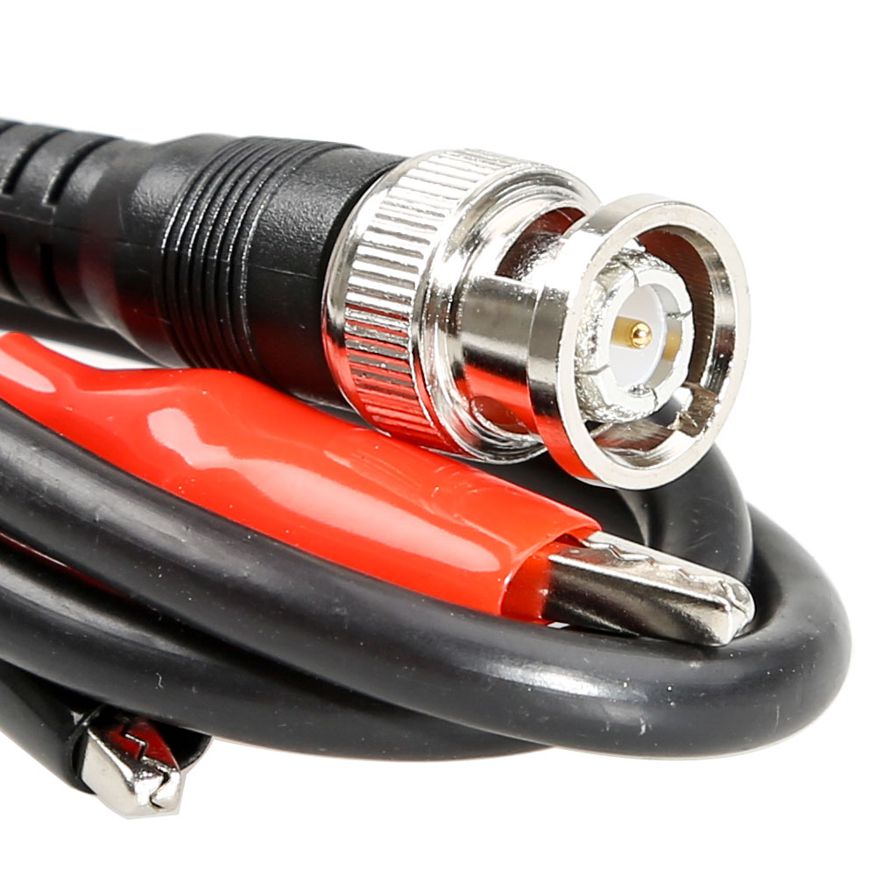

4pc x BNC Connector
1pc x CD for English software
