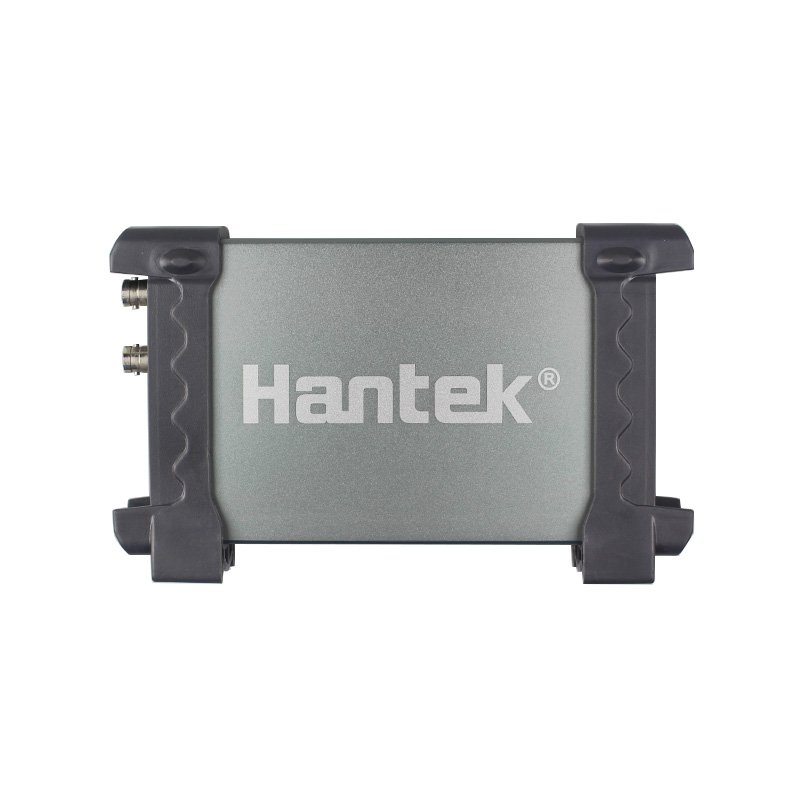

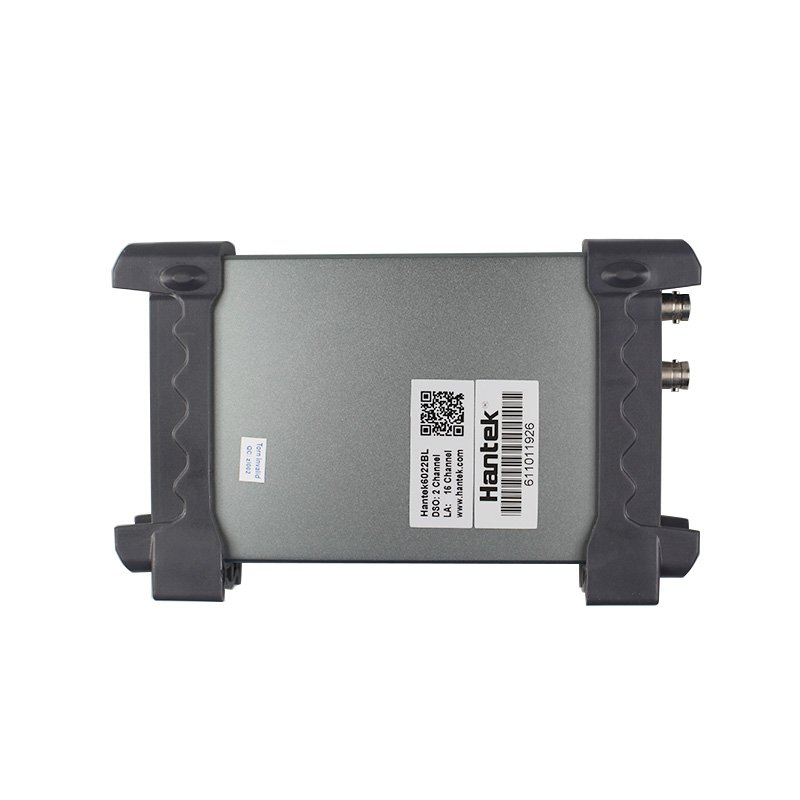

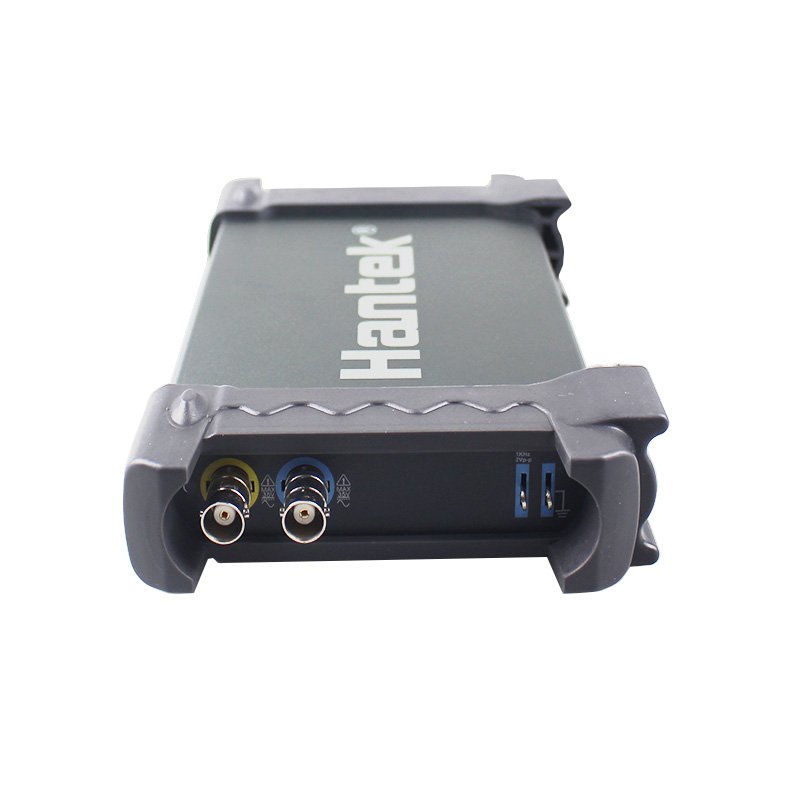

Hantek Official 6022BL PC USB Oscilloscope 2 Digital CH 20MHz Bandwidth 48MSa/s Sample Rate 16 Channels Logic Analyzer

Features:

1.Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.

2.Standard USBXITM interface, easily inserts into USBXITM housing to make up a combination instrument.

3.USB2.0 interface, no external power source required, easy to use.

4.Be suitable for notebook computer, product line maintenance, be used easily on business.

5.Dimensions (mm):205(L) x120(W) x35(H), be carried easily.

6.High performance, 48MS/s real-time sampling, 20MHz bandwidth.

7.16Channels Logic Analyzer, 20MHz Bandwidth;

8.Operating System: Windows8, Windows 7, Windows NT, Windows 2000, Windows XP, VISTA.
23 measurement functions, PASS/FAIL Check, be suitable for technical application.

9.Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.

10.Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.

11.FFT

12.One computer can connect many DSO, extend channel easily.

13.PID/VID Second Design instance.

Hantek 6022BL Parameters:

Model : Hantek6022BL

Oscilloscope Features

Bandwidth: 20MHz

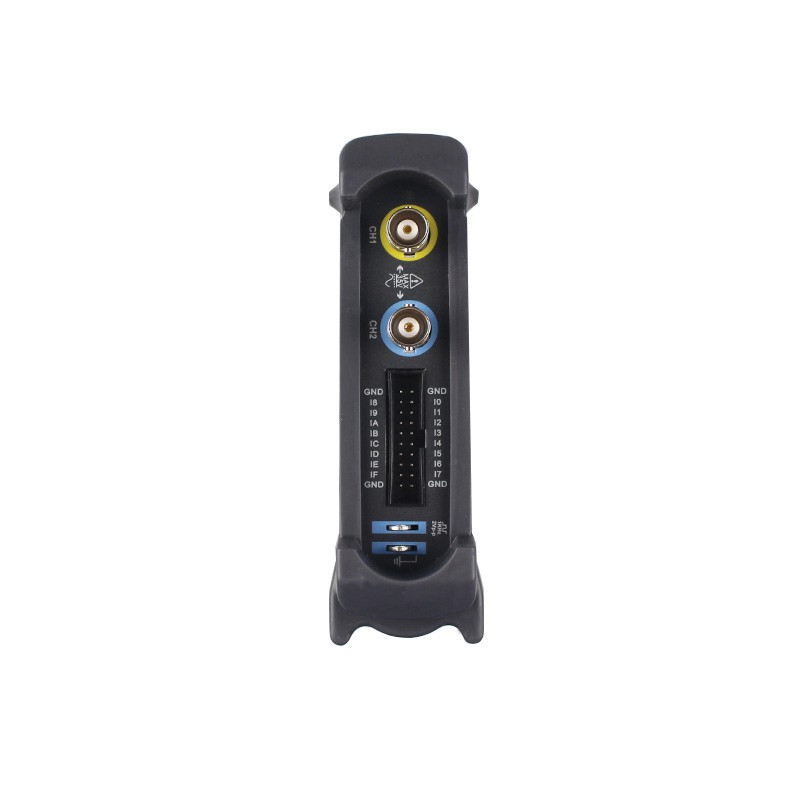

Channel : 2(Digital)+16(Logic)
Sample Rate : 48MSa/s
Memory Depth : 1M
Rise Time : 17.5ns
Time Base Precision : 50ppm
Time Base Range : 4ns/div-1h/div (Step by1-2-4)
Input Impendence : 1M 25pF
Input Sensitivit: 10mV/div-5V/div
Vertical Resolution : 8Bit
Vertical Position Range : 10mV ~ 5V/div x1 probe; 100mV ~ 50V/div x10 probe; 1V ~ 500V/div x100 probe; 10V ~ 5KV/div x1000 probe
DC Accuracy : 3%
Bandwidth Limited : 0MHz
Trigger Type : Edge, Alternative
Trigger Source : CH1, CH2, EXT, EXT/10

Cursor Measurement : Cross, Trace, Horizontal, Vertical
Auto Measurement : Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle

Logic Analyzer Features

Channel : 16
Max. Impendance : 1M(C=7.5pF)
Max. Voltage : 0V~5.5V
Max. Sample : 48M
Bandwidth : 10MHz
Compatible Input : TTL, LVTTL, CMOS
Memory Depth : 1M/CH

General Features

Power: USB Port
Dimensions : 205mm x120mm x 35mm
Weight : 0.382KG
Standard Probe : 2 x PP80

Package Contents:

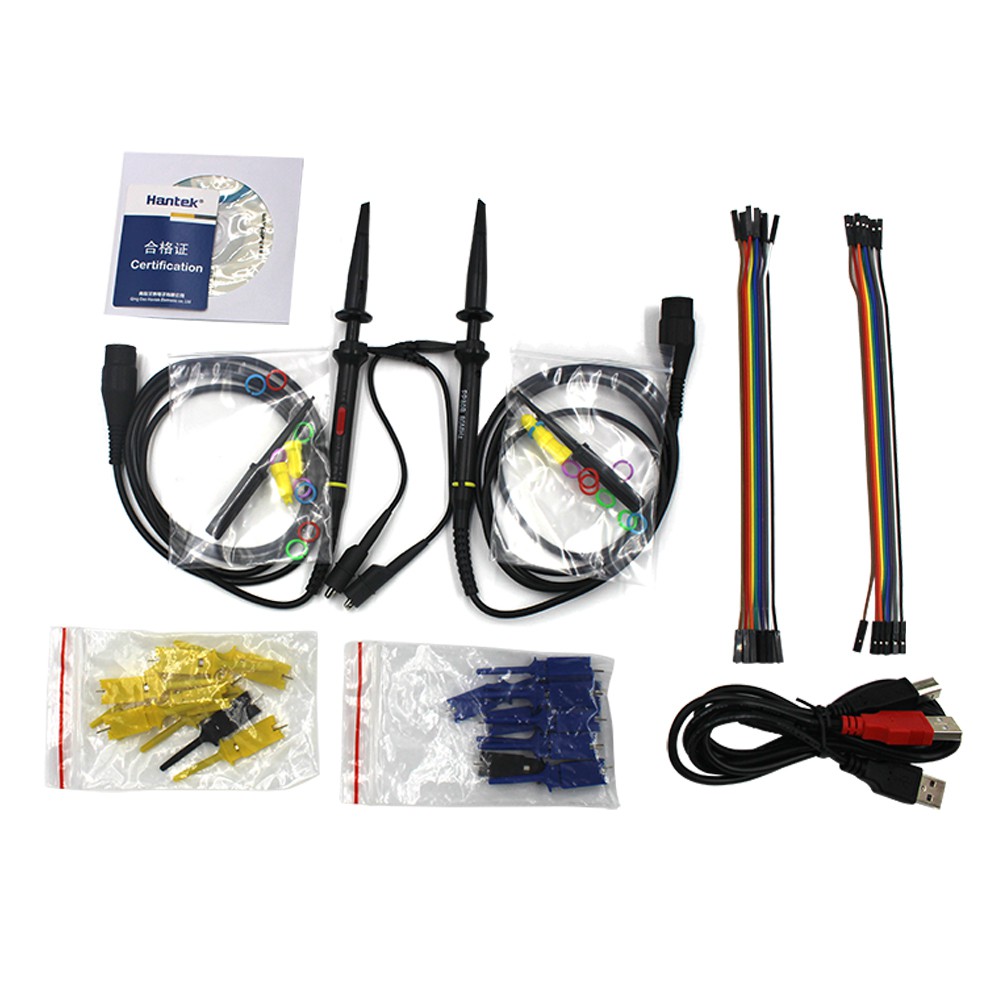

1 * 6022BL oscilloscope

2 * Oscilloscope probe

1 * USB cable

1 * jumper clip set (color is random)

2 * jumper cable

1 * CD(manual etc.)
