Thinkcar Heavy Duty Pack Support Pros/Pros+/THINKTOOL Master and THINKTOOL Master X 74+ Truck Brand 13 Special Function

Notice: This Heavy Truck Adapter needs to match ThinkTool Pros/ThinkTool Pros+ Product to use it.

UNBEATABLE 24V HD COVERAGE VS OTHER AFTERMARKET GENUINE HD SCANTOOL'S !!!!

DESCRIPTION

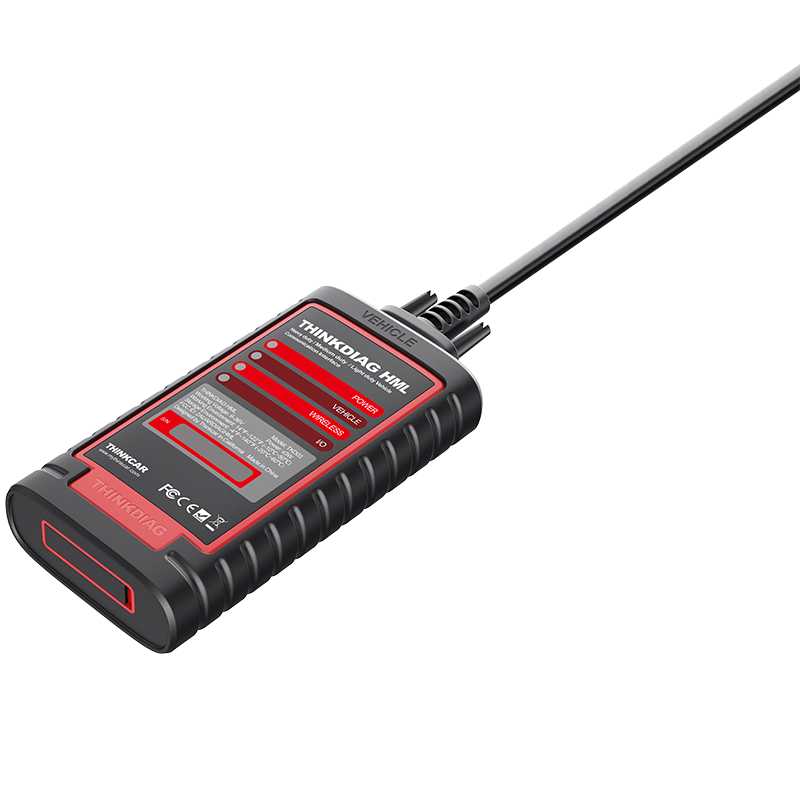

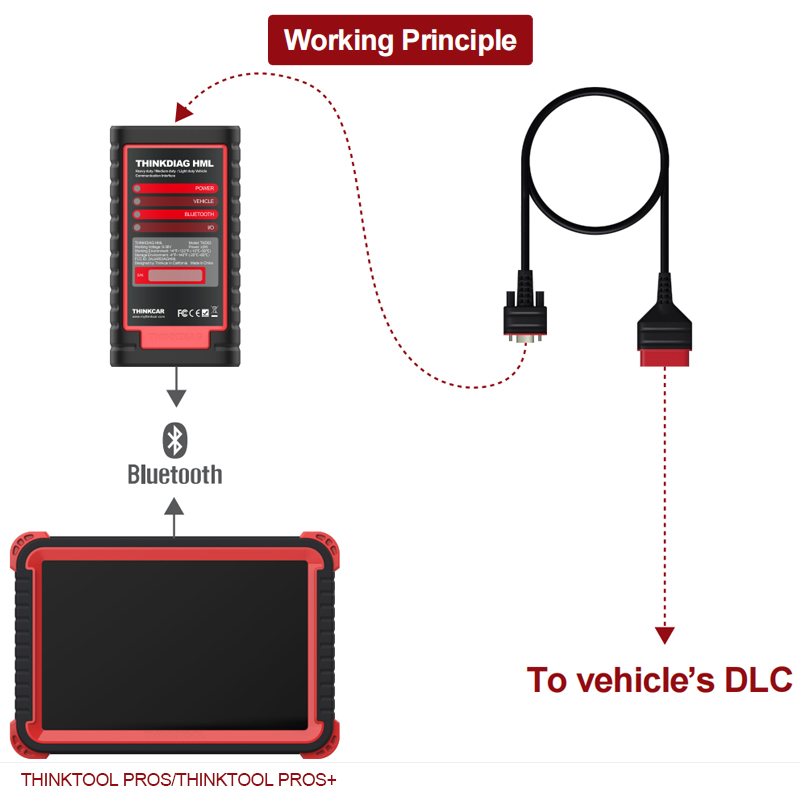

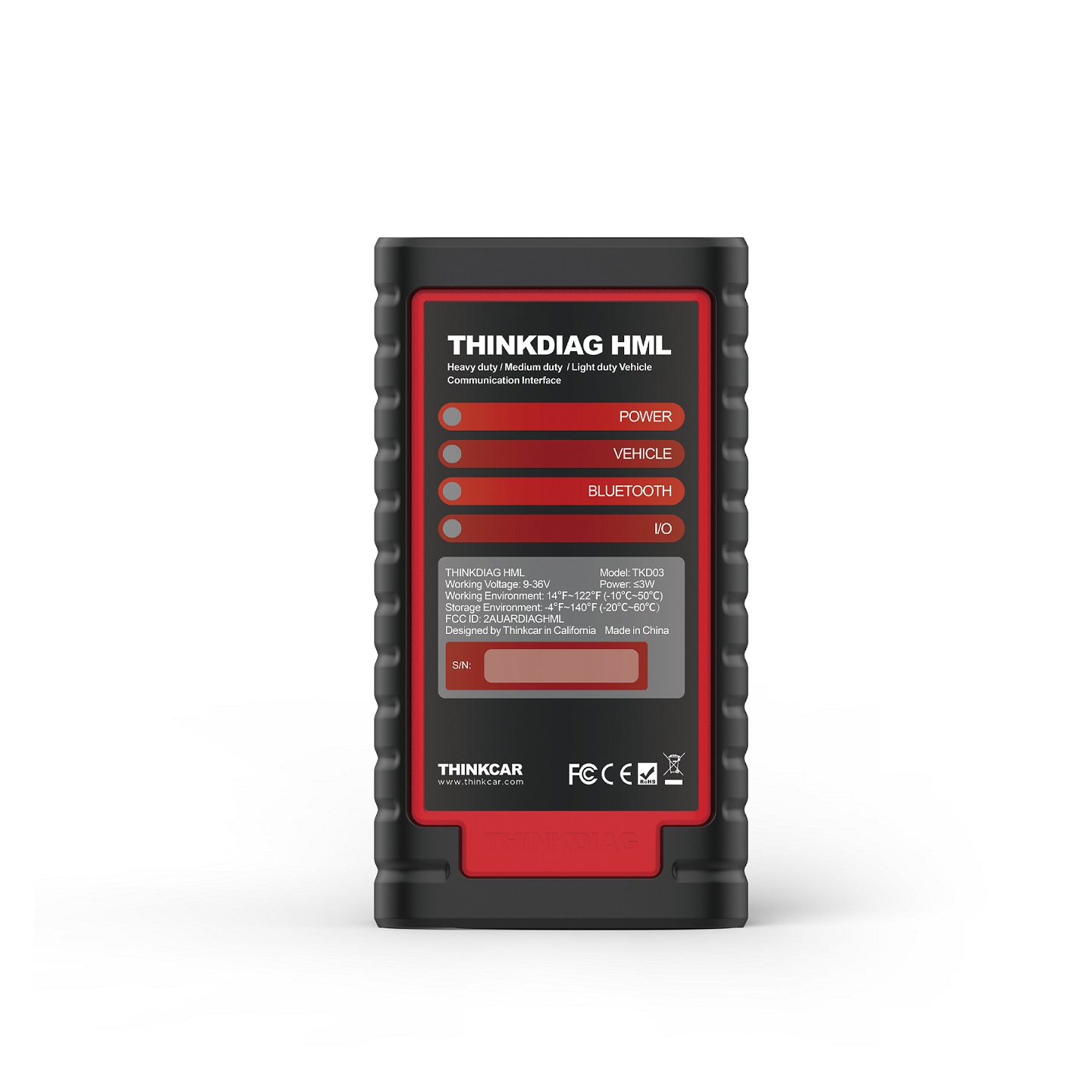

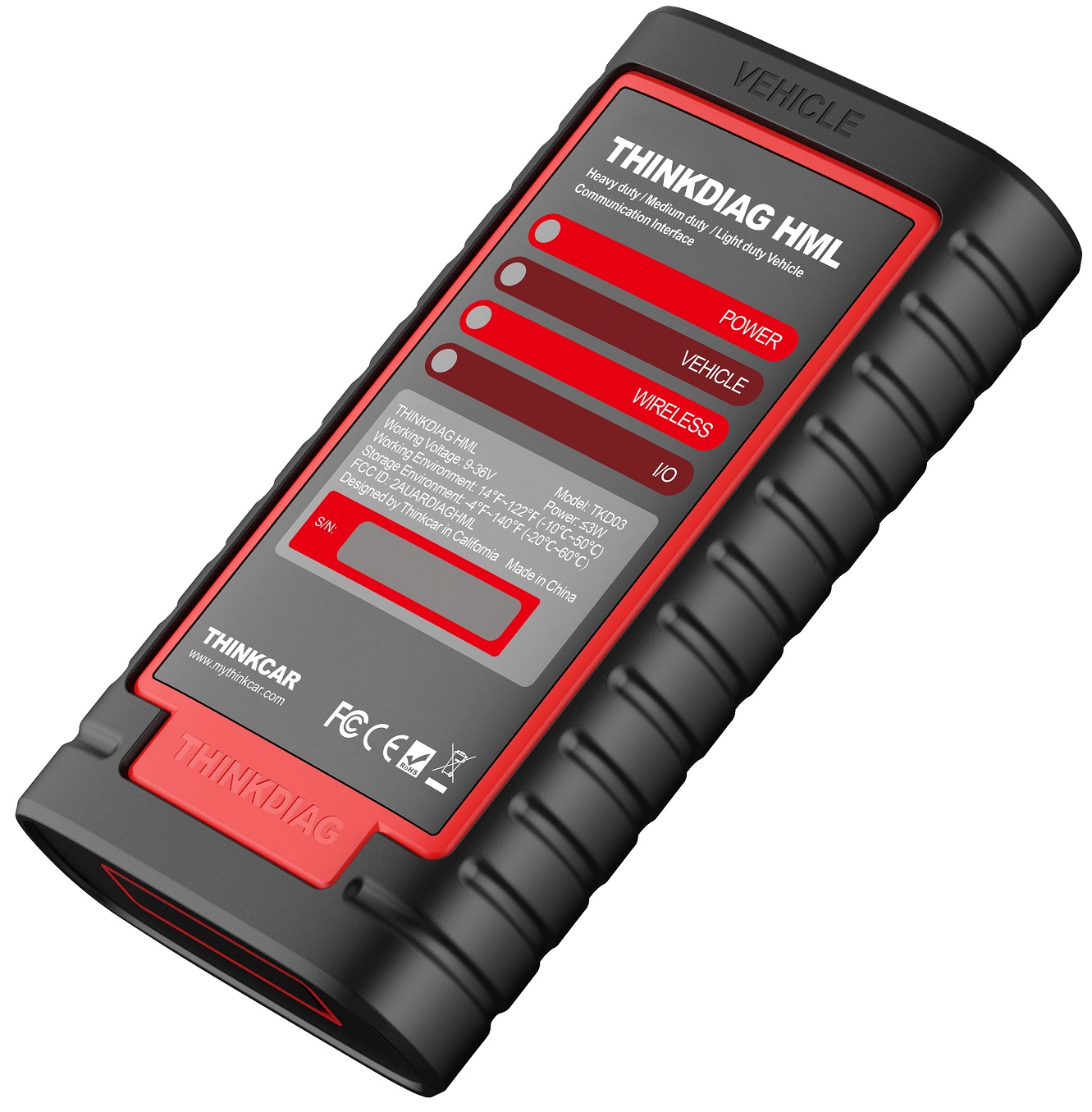

The new THINKCAR heavy duty (THINKCAR HD) module is perfect for a shop that works on heavy duty (Class 4 through 8) and medium trucks, it is can read the vehicle data via BT/Wi-Fi communication or USB connection. Moreover, this module can work with THINKTOOL MASTER X, THINKTOOL PROS and THINKTOOL MAX to expand the diagnosis to HD truck vehicle and can diagnose vehicle from 12V to 24V.

THINKCAR HD Heavy Duty Module Features

1. Full comprehensive HD truck diagnostic software functions

2. Wide diagnostic software coverage

3. Accurate test data

4. Release new software version timely to let customers enjoy latest service

5. Able to test truck with 12V or 24V battery diesel engine. When testing 24V truck, battery conversion is not required

6. Diagnostic hardware is designed according to international standard, compatible with diagnostic interfaces of worldwide models

7. Including wide-range connector and cable

8. Supported brands: Benz, Man, Volvo, Daf, Scania, Iveco, Renault, Freightliner, International, Kenworth, Peterbilt, Stering, Western Star, Mack, Fuso, Isuzu, UD, etc.

Specifications

THINKCAR HD Heavy Duty Module Parameters

Input voltage: 9-36V

Power: ≤3.0W

Working temperature: -10℃~55℃

Communication: USB/BT/Wi-Fi

Size: 204X110X45mm

Connections:

Led Indicators:

Knowledge of THINKDIAG HML Module:

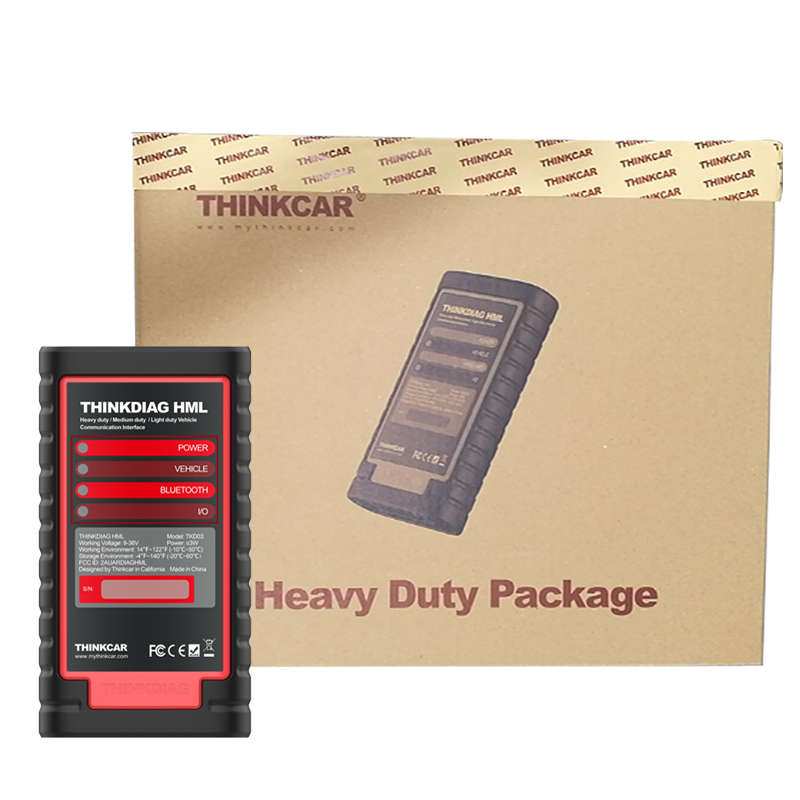

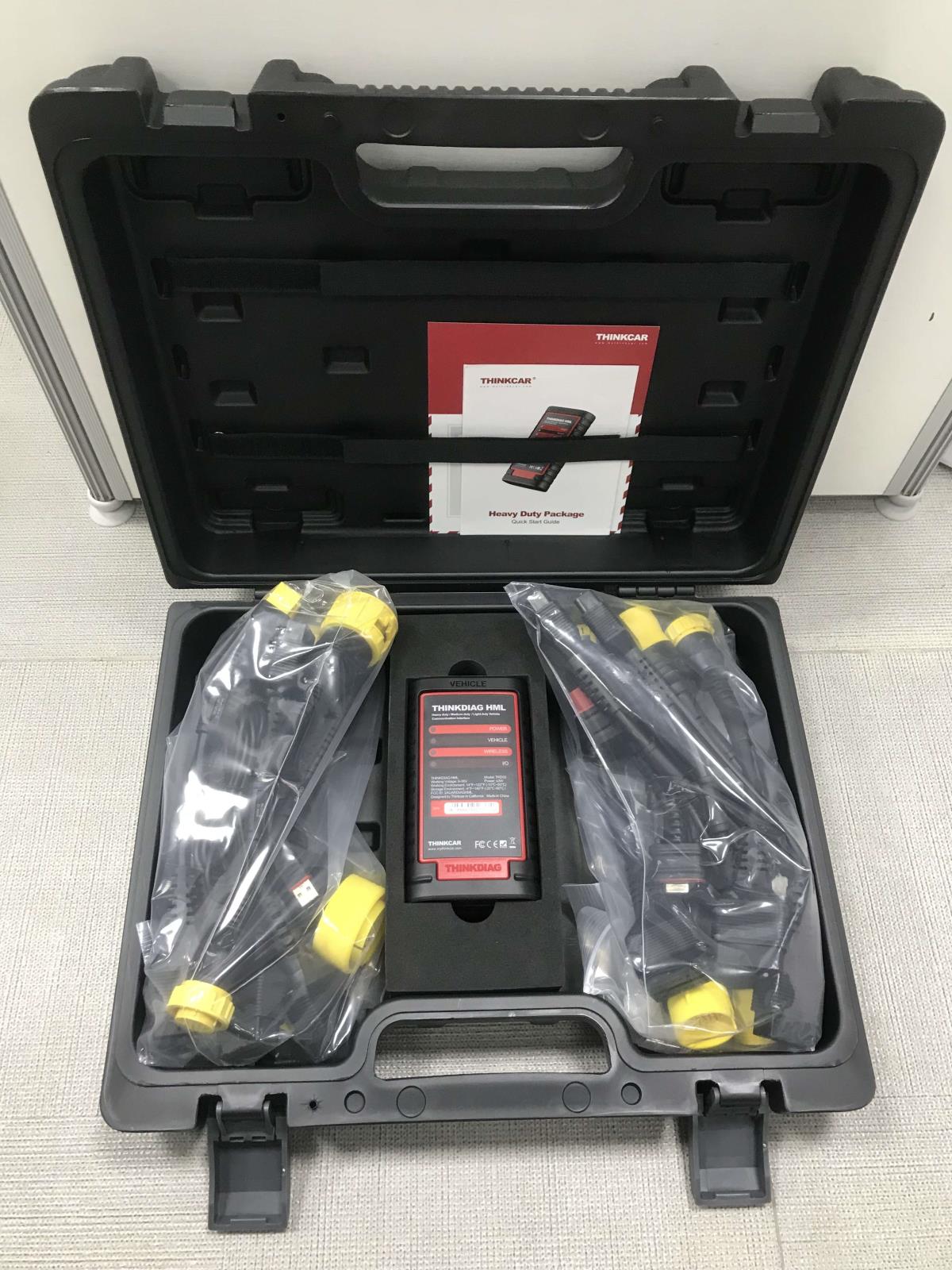

What's Heavy duty package?

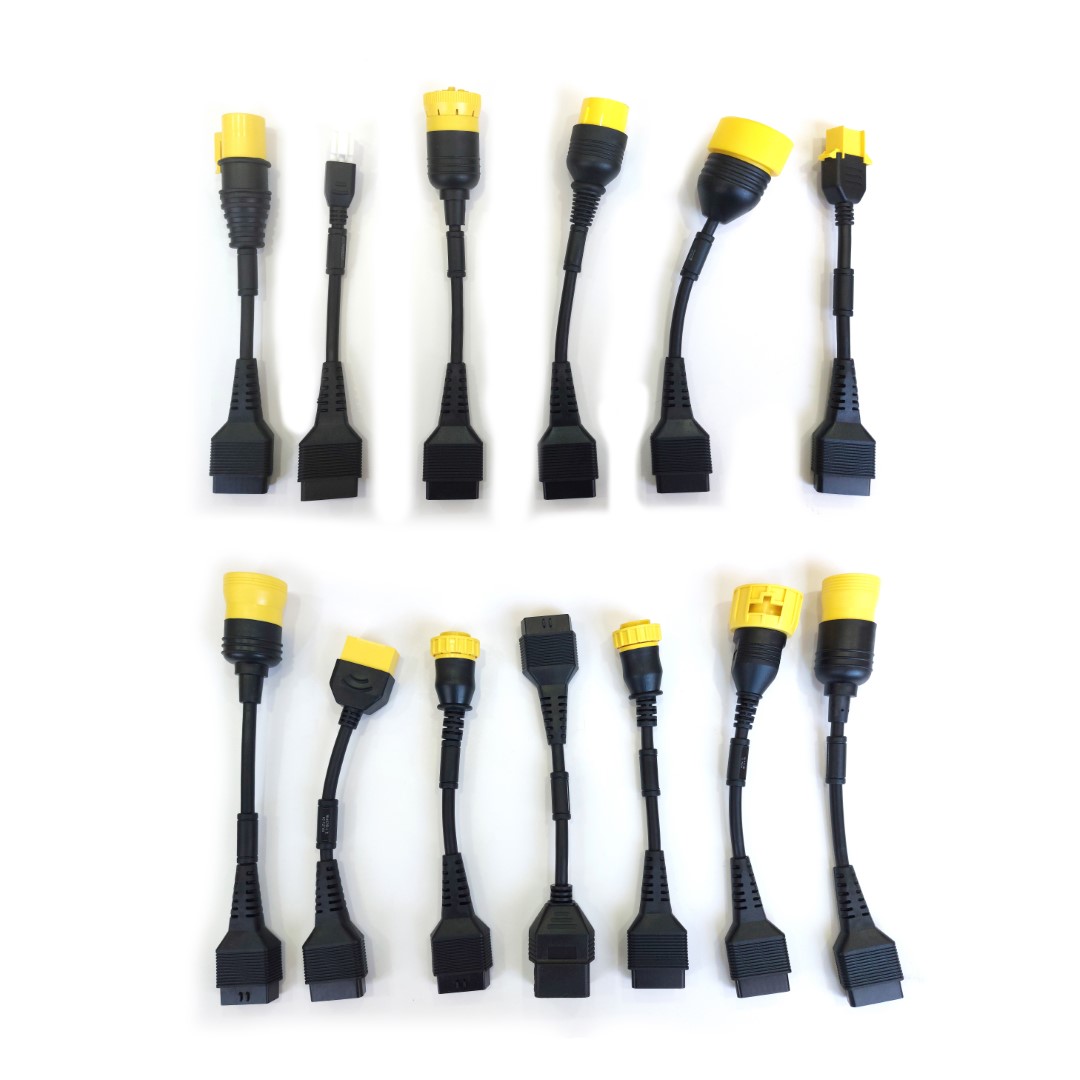

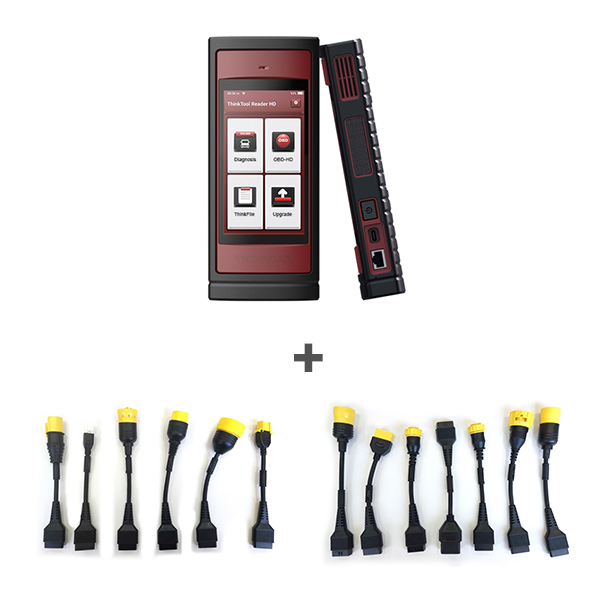

contain 13 non-standard HD diagnostic cables and all 75 HD software 1-Year free updates) .
