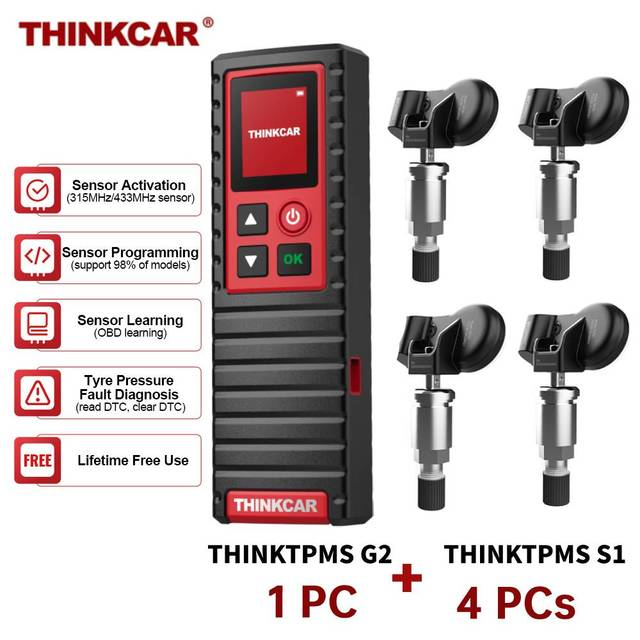

THINKCAR THINKTPMS G2 TPMS Car Tire Pressure Diagnostic Tool Plus 4 Pcs THINKCAR THINKTPMS S1

What is THINKTPMS G2?

THINKCAR Thinktpms G2 is a new generation of tire pressure diagnosis tool, which can realize Sensor Activation, Sensor Programming, Sensor Learning, Tire Pressure Fault Diagnosis. It can be connected to Thinkdiag APP via BT and used to easily diagnose tire faults on mobile phones. It can also be used with THINKTOOL series products to help you diagnose car tire information.

Support Sensor Activation:

THINKCAR Thinktpms G2 can activate all 315MHz/433MHz tire pressure sensors, and can read, copy, write sensor IDs and read tire pressure data (pressure, temperature, battery status)

Support Sensor Programming:

THINKCAR Thinktpms G2 supports unlimited repeat programming function, covering more than 98% of imported models with tire pressure system, and supports multiple ID generation methods: manual, copy, and automatic creation.

Support Sensor Learning:

The tire pressure matching learning function can perform tire pressure fault diagnosis through prompt learning steps, including code reading and code clearing.

Diagnose tire pressure fault

Read and clear the fault code of the TPMS system

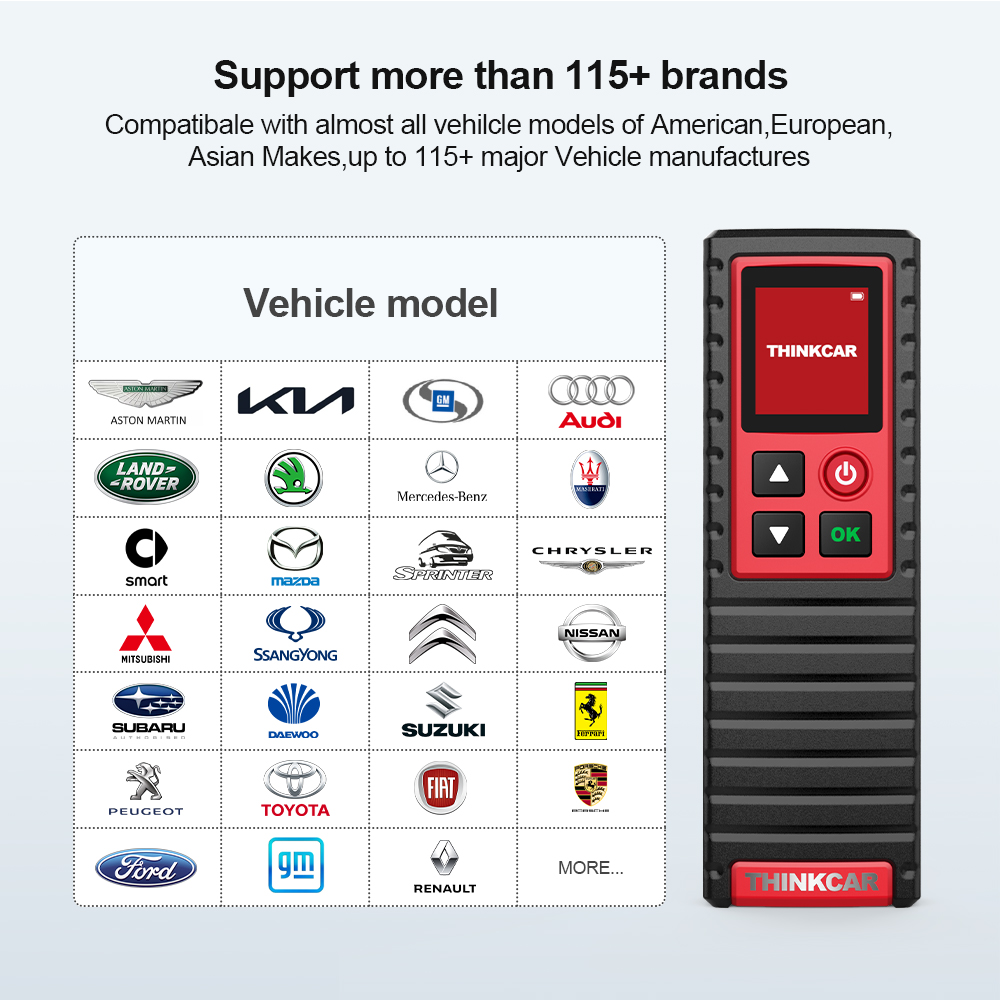

Support more than 115+ brands

For OBDII diagnostics, the obd2 code reader works great for most cars built in 1996 or later, being compatible with following protocols:

-ISO 14230-4 (KWP2000)
-ISO 15765-4 (CAN)
-ISO 9141-2 (iso)
-ISO 14229 (uds)
-SAE J1850 (VPW & PWM)
-Original protocols of makers

For advanced functions as active test, all system diagnostics, and maintenance service, it covers 95% of car models available in the market including:

-Asia:
for Daewoo, for Honda, for JP Isuzu, for Kia, for Mazda, for Mitsubishi, for Nissan, for SGM, for Subaru, for Suzuki, for Toyota,for Hyundai, for Ssangyong

-Europe:
for Aston Martin, for Audi, for Benz, for BMW, for Citroen, for Ferrari, for Fiat, for Land Rover, for Maserati, for Opel, for Porsche, for Renault, for Rover, for Saab, for Seat, for Skoda, for Smart, for Sprinter, for Volvo, for VW, for Peugeot

-America:
for Chrysler, for USA-Ford, for GM

And keep updating.

How to use?

1. Download the Thinkdiag APP (Android version), turn on the BT of the mobile phone, and click the Thinktpms function on the APP to diagnose tire pressure.

2. Use with Thinktool series products, including Thinktool mini\Thinktool pro\Thinktool pros\Thinktool pros+

THINKTPMS G2 Application Scenarios:

1.Sensor Replacement
2.Tire Rotation
3.On-line Assembly and Inspection by OEMs
4.Independently Detect Whether the Sensor Itself is Normal

How to download Thinkdiag APP?

1,Install the Thinkdiag App on your smartphone and sign up for a new account.
2,Activate the device in Thinkdiag APP,the device will be automatically bind to your account.
3,Plug the device into the OBD port and then turn on your vehicle
4,Connect device to your phone via BT.
5,Select and download the free diagnostic software for the manufacturer of your vehicle.
6,Start the diagnosis.

THINKCAR THINKTPMS G2 button description

Charging Port
Select Button
TPMS Antenna
Enter
Power Button
Display Screen

Product Parameters:

Model:TKTG2
Display:1.77 inches
Resolution:168*128 pixels
Battery:3000mAh
DC input voltage:5V
Working current:≤1A
Working temperature:-10℃~50℃
Storage temperature:-20℃~60℃
Size:252*54*30mm

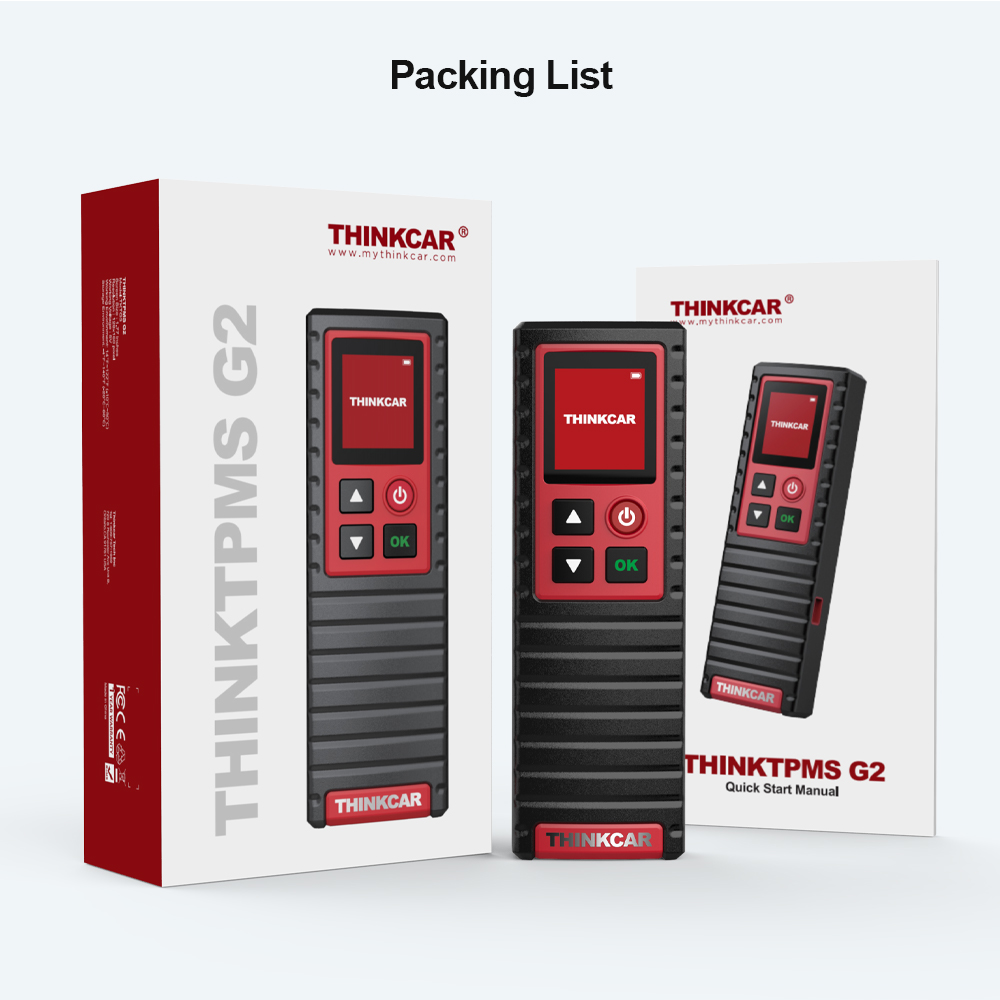

Packing List:

1* THINKCAR Thinktpms G2
1*manual
1*Charger
1*Type-c Cable

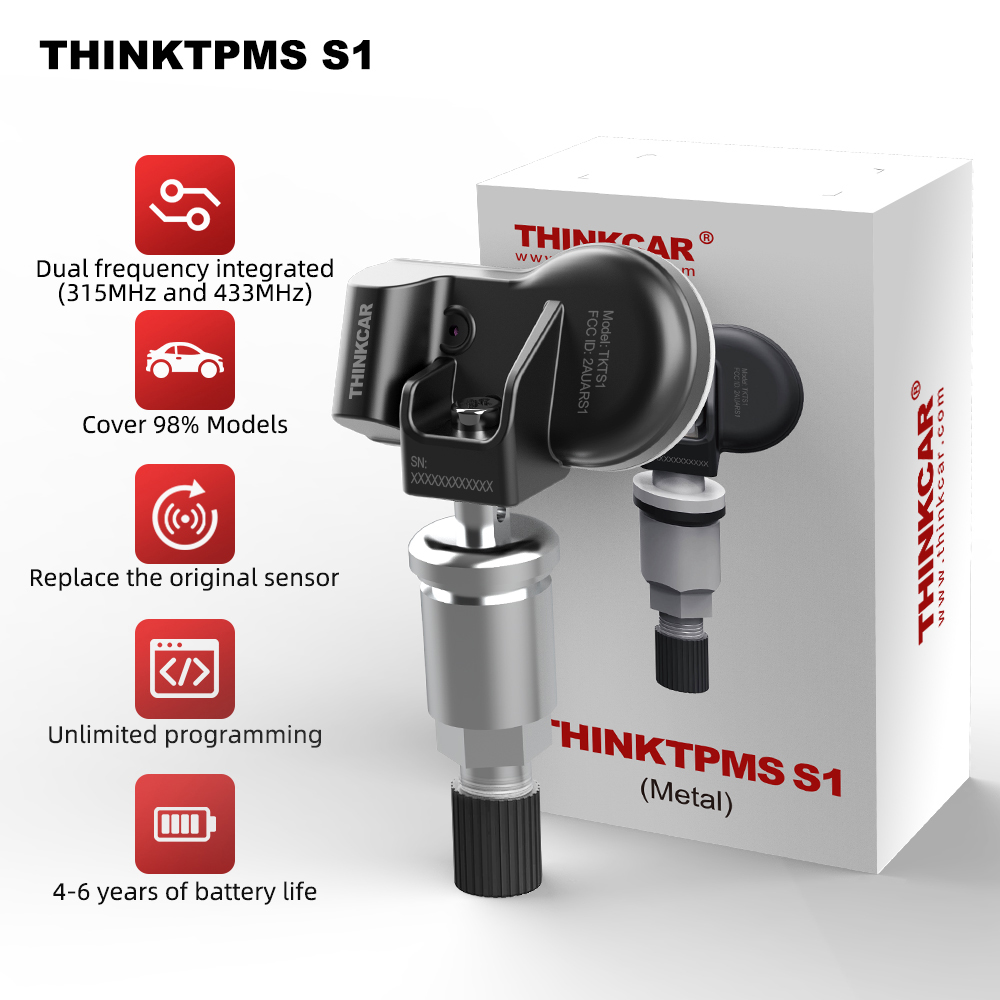

Why you need THINKTPMS S1 sensor?

THINKTPMS S1 sensor helps to monitors tire pressure and temperature. It helps you know the situation of four tires and prompts you to take in-time actions to prevent puncture and damage to car parts caused by flat tires. It also helps prevent flat tires, forecast leakage, reduce tire wire, prolong tire life, improve fuel efficiency and increase traffic safety.

Dual frequency integrated

Activate All 315MHz/433MHz Sensors

Unlimited programming

4-6 years of battery life

Support more than 115+ brands

For OBDII diagnostics, the obd2 code reader works great for most cars built in 1996 or later, being compatible with following protocols:

-ISO 14230-4 (KWP2000)
-ISO 15765-4 (CAN)
-ISO 9141-2 (iso)
-ISO 14229 (uds)
-SAE J1850 (VPW & PWM)
-Original protocols of makers

For advanced functions as active test, all system diagnostics, and maintenance service, it covers 95% of car models available in the market including:

-Asia:
for Daewoo, for Honda, for JP Isuzu, for Kia, for Mazda, for Mitsubishi, for Nissan, for SGM, for Subaru, for Suzuki, for Toyota,for Hyundai, for Ssangyong
-Europe:
for Aston Martin, for Audi, for Benz, for BMW, for Citroen, for Ferrari, for Fiat, for Land Rover, for Maserati, for Opel, for Porsche, for Renault, for Rover, for Saab, for Seat, for Skoda, for Smart, for Sprinter, for Volvo, for VW, for Peugeot
-America:
for Chrysler, for USA-Ford, for GM

And keep updating.

How toTrigger theTHINKTPMS S1 Sensor

1.Remove tire cap
2.Install tire sensor
3.Pump up the tire
4.Put calve cap
5.Test balancing
6.Adjust balance

Component Display:

Specifications of THINKTPMS S1:

Battery life:4-6 years / 100,000 km
Working temperature:-40 ℃ to + 125 ℃
Storage temperature:-40 ℃ to + 125 ℃
Working humidity:<=90%
Working frequency:433MHz/315MHz
Pressure monitoring range:0-800kpa
Pressure reading accuracy:±10kPa
Temperature reading accuracy:± 5℃
Acceleration (G) Sensor reading accuracy:± 15%
Transmission power:5-8 dBm
battery:3.0V
Waterproof level:IP67
Size:71.5*40*15mm
Net weight:22g

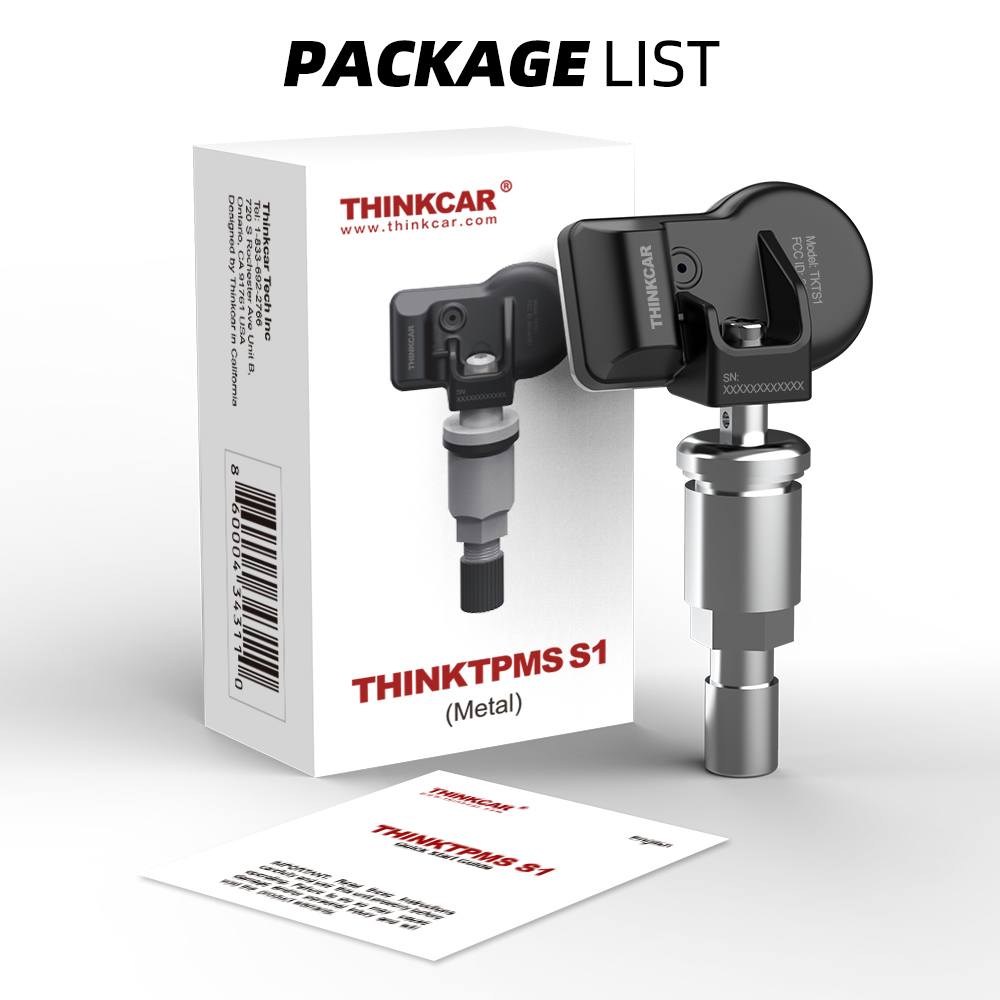

Packing List:
